RADIOPhilco
MODEL41-220
TECHNOLOGYTube
YEAR1941
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1600 KHz; SW 1.6 - 3.3 MHz
DESCRIPTIONRight front dial, left cloth grill, handle, front trim feet, 3 knobs - on/off volume, band switch, dial
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS115 Volts
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSISCode 121

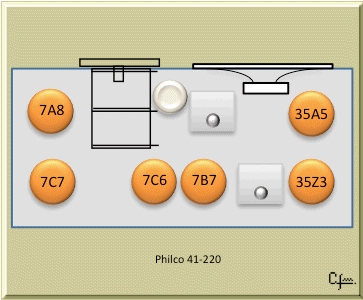

TUBES LOCATION
TUBE COMPLEMENT | 7C7 | 7A8 | 7B7 | 7C6 | 35A5 | 35Z3 |

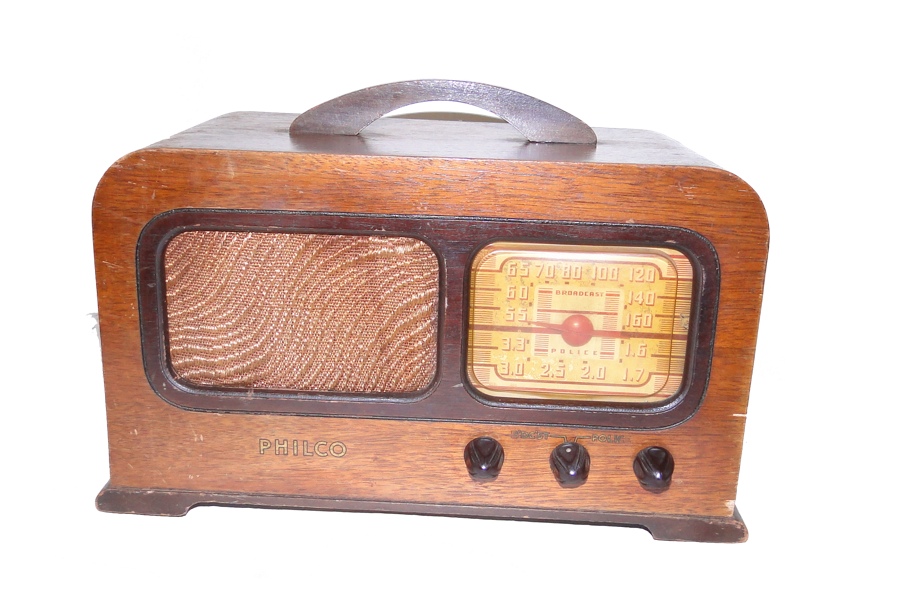

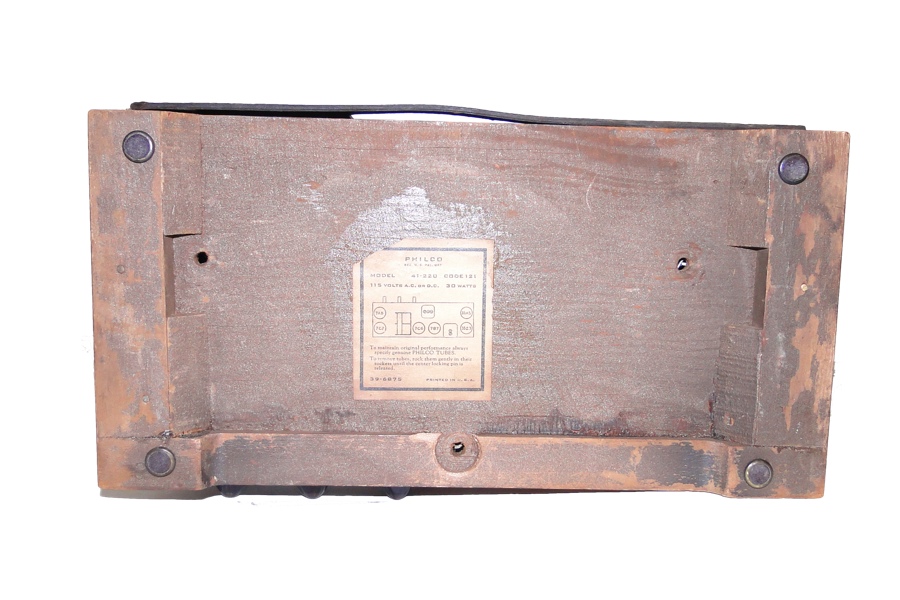

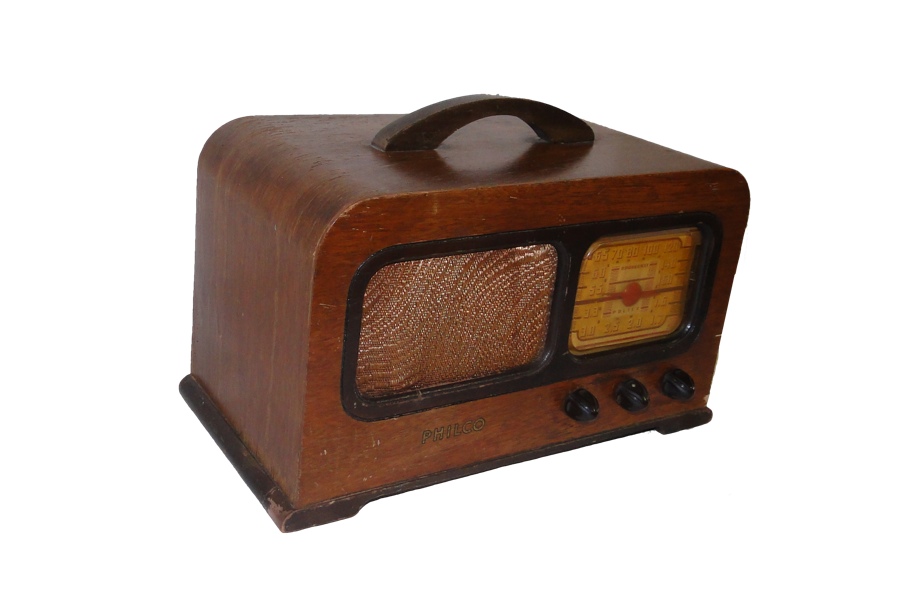

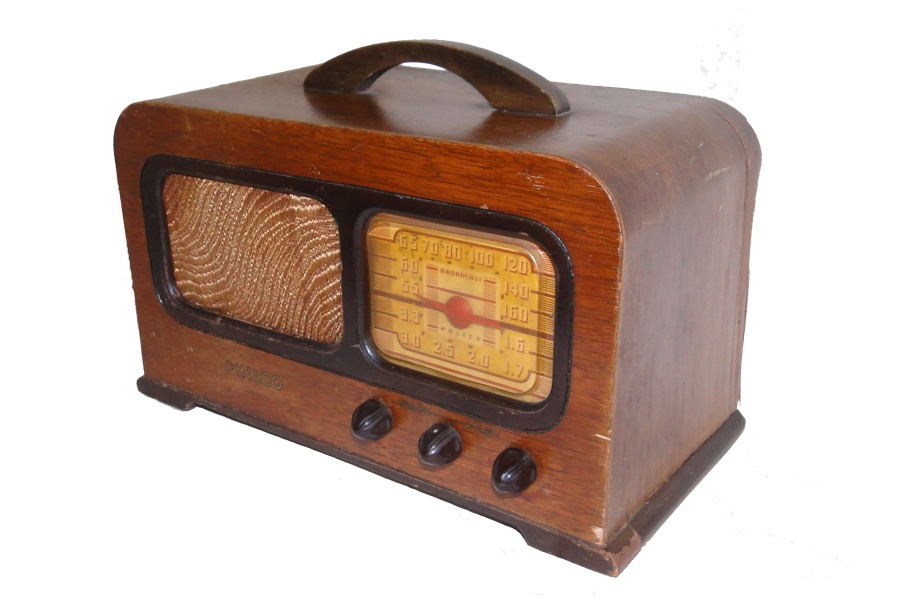

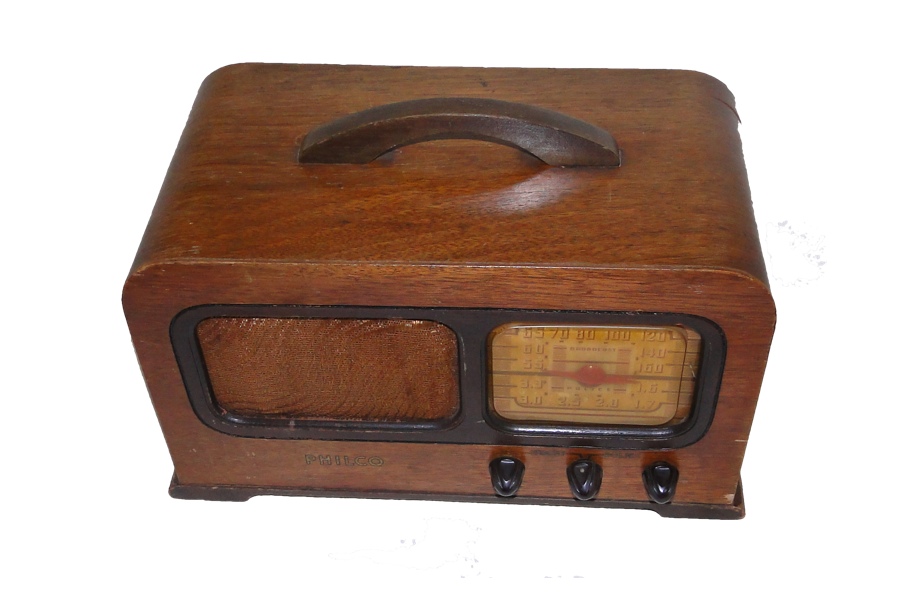

PICTURES(Click to enlarge image)

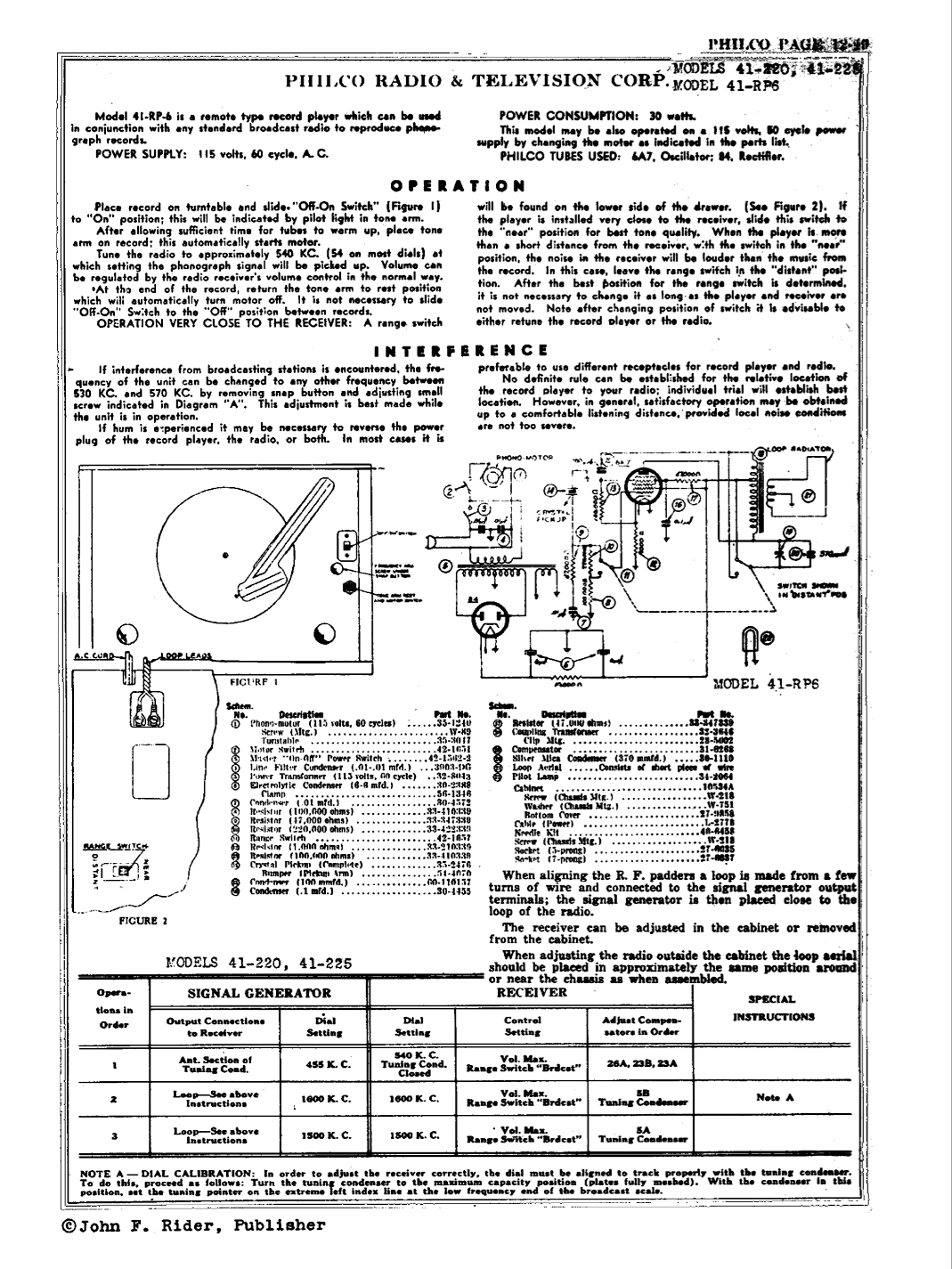

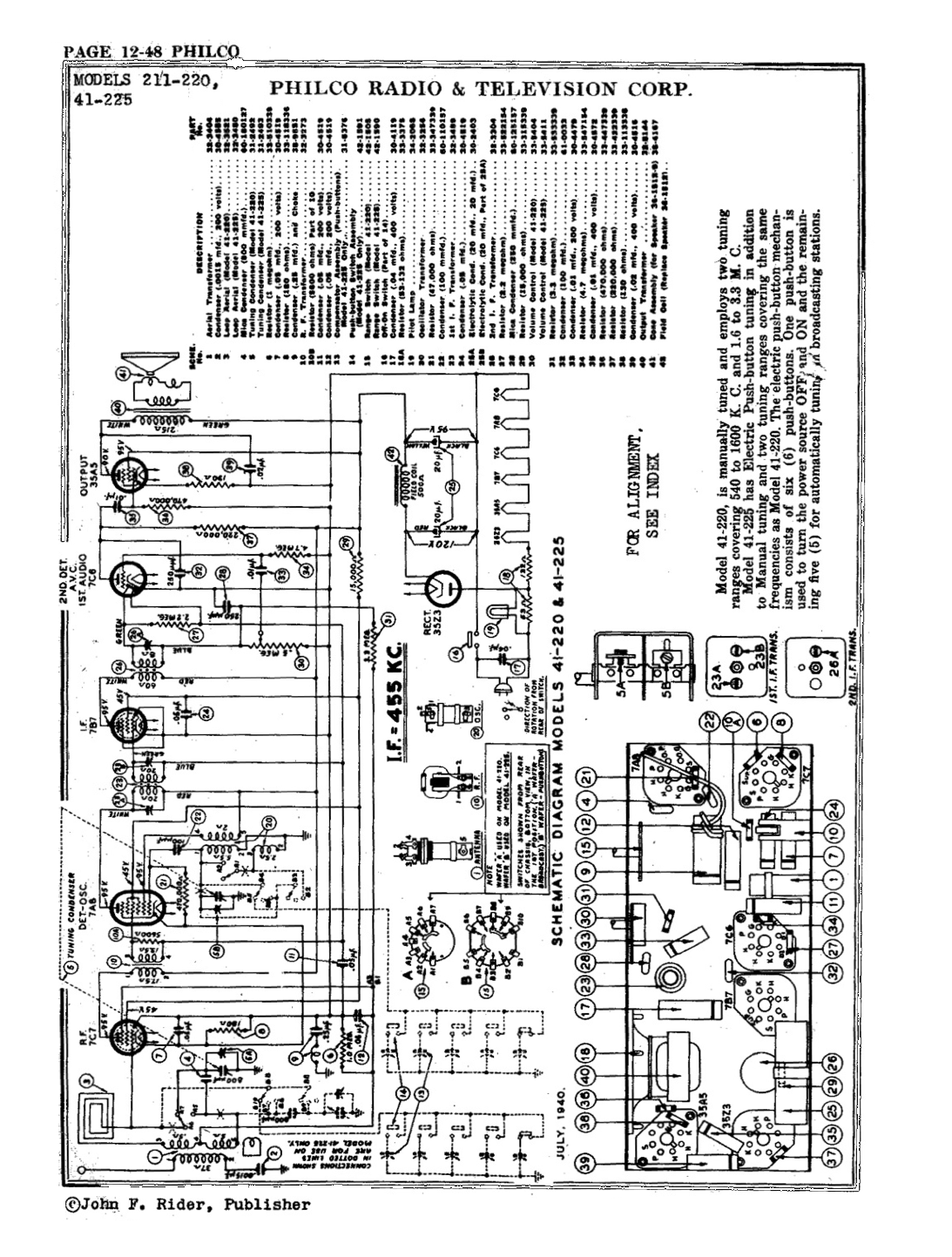

SCHEMATICS | Page1 | Page2 | Page3 |
FROM
ADDITIONAL INFOFrom MAARC RadioActivity 2013, June 21st, 2013.
