RADIOCrosley
MODELD-25CE
TECHNOLOGYTube
YEAR1951
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1600 Kc
DESCRIPTIONRight round dial, left alarm clock, center crest, 2 frontal lower knobs
CABINET STYLEClock Radio
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE0 x ?
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC
VOLTS117 V
CONSUMPTION35 W
AC CYCLES60 Hz
CHASSIS

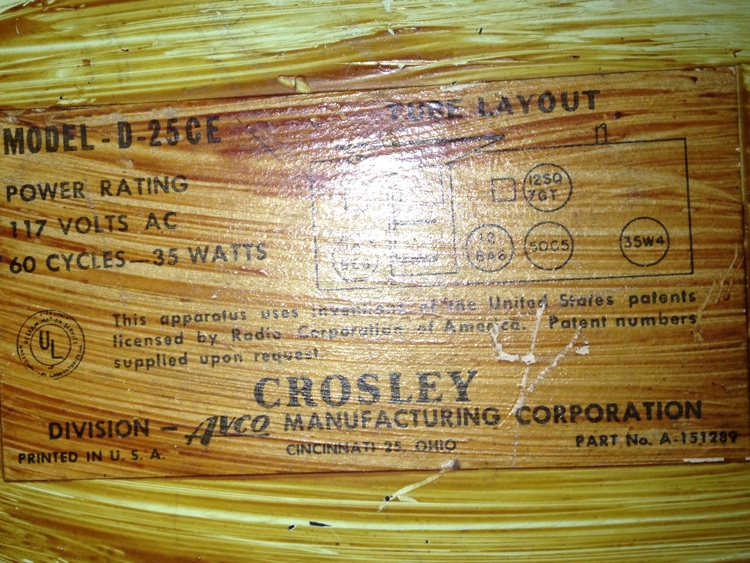

TUBES LOCATION
TUBE COMPLEMENT | 12BE6 | 12BA6 | 12SQ7 | 50C5 | 35W4 |

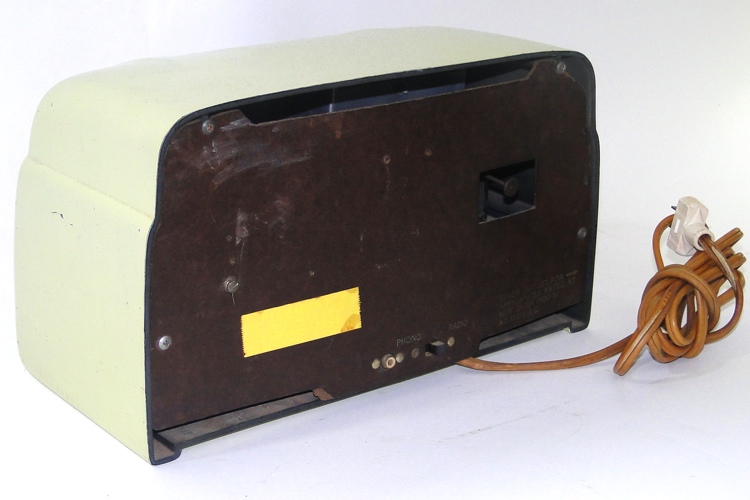

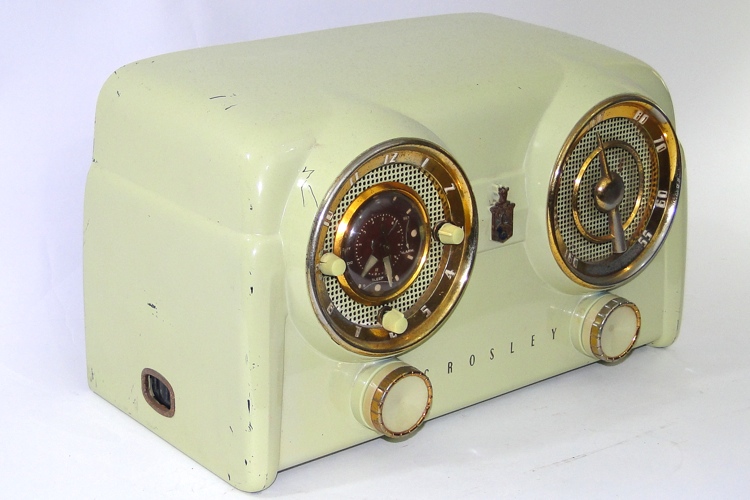

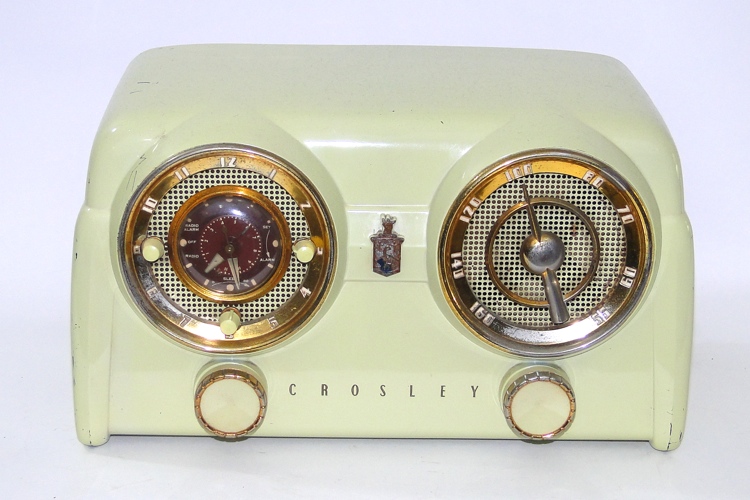

PICTURES(Click to enlarge image)

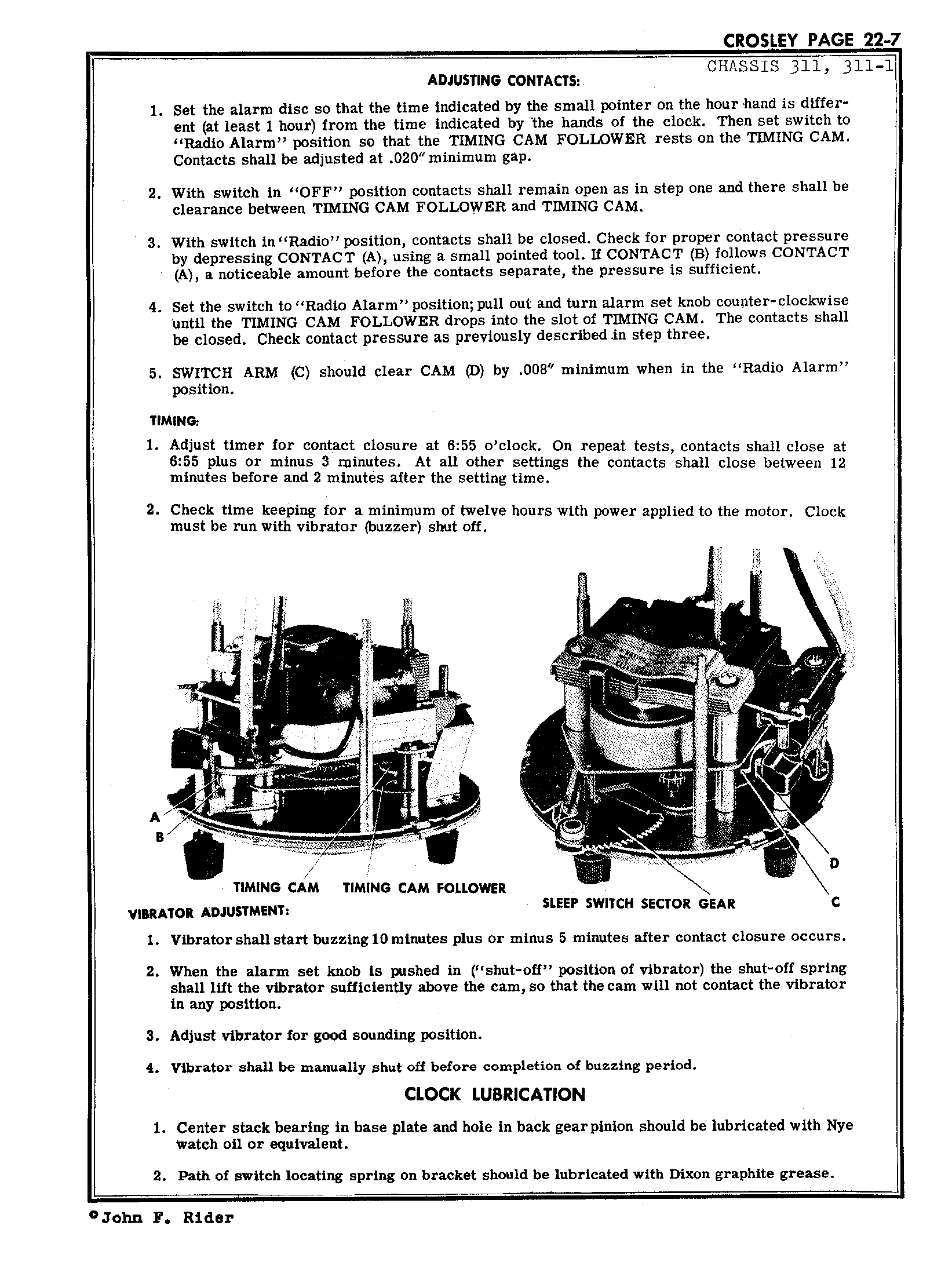

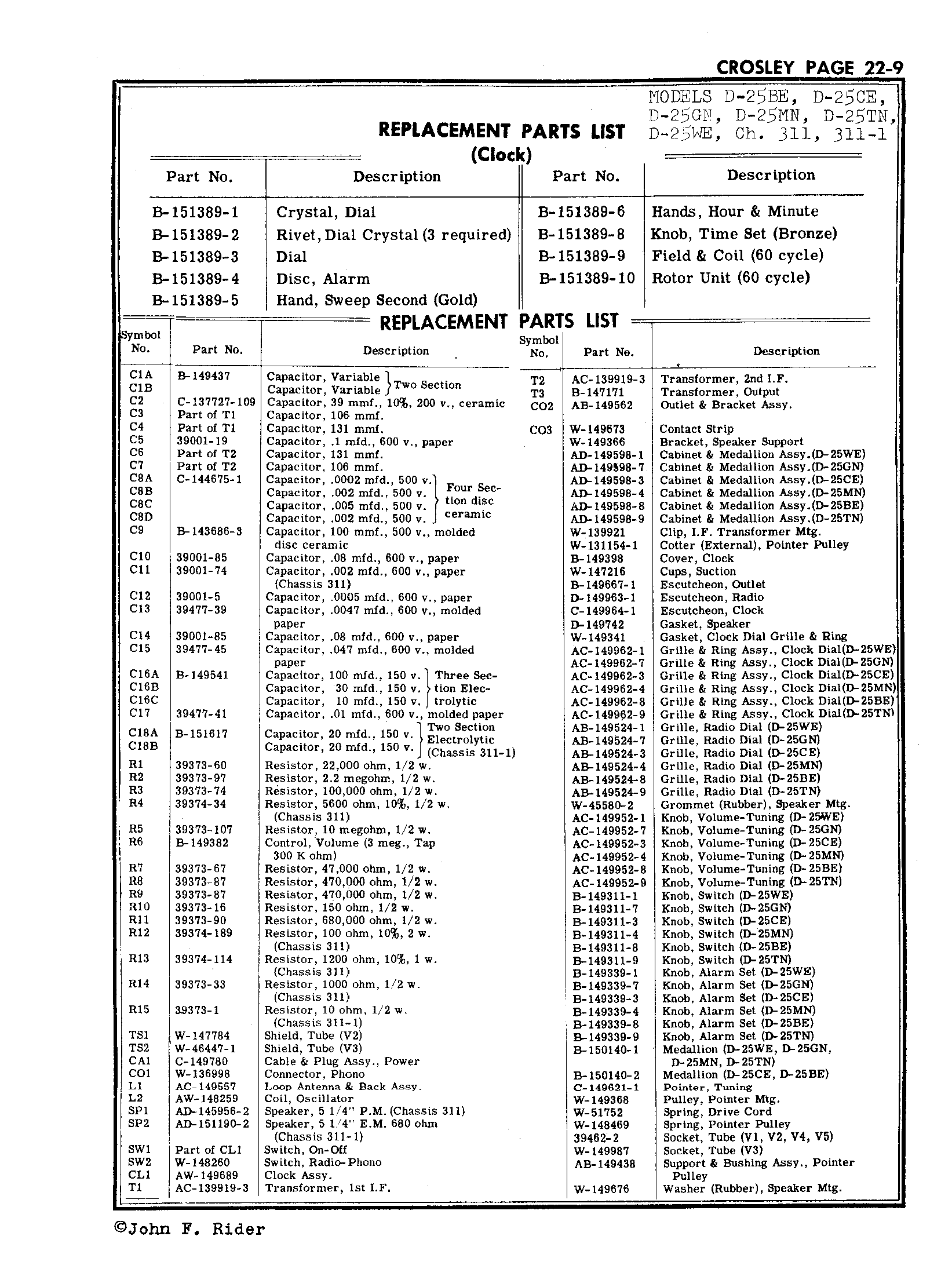

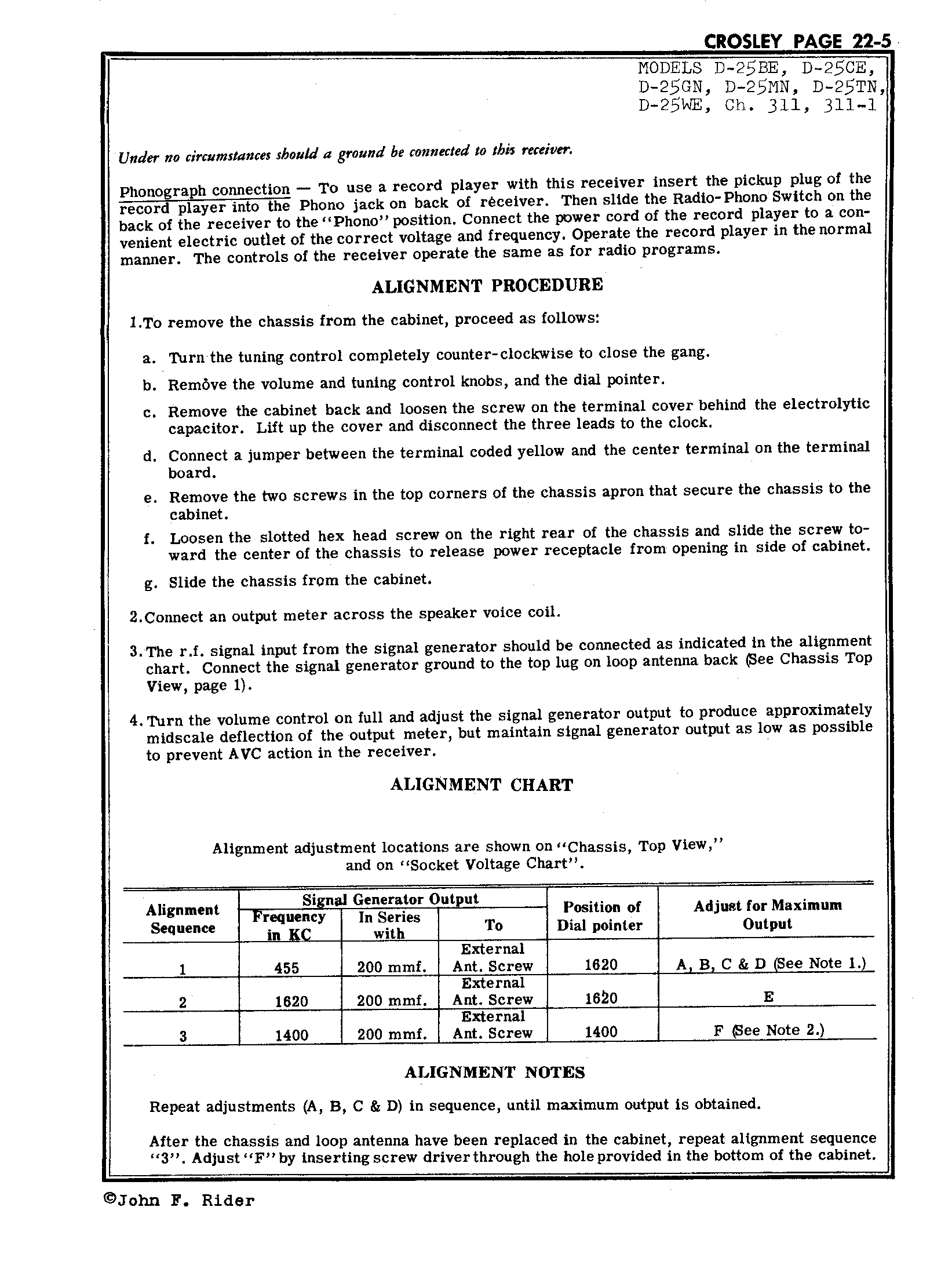

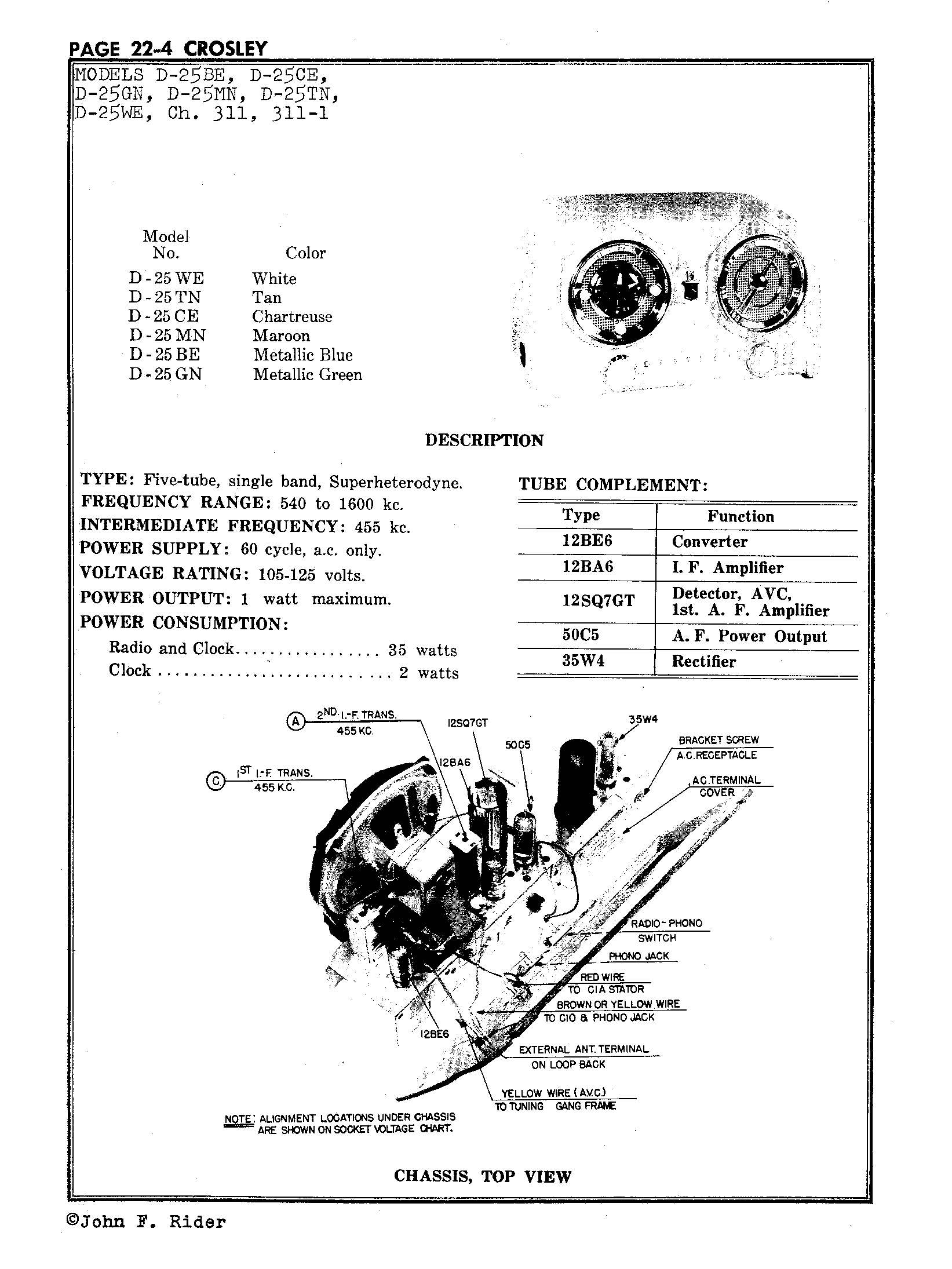

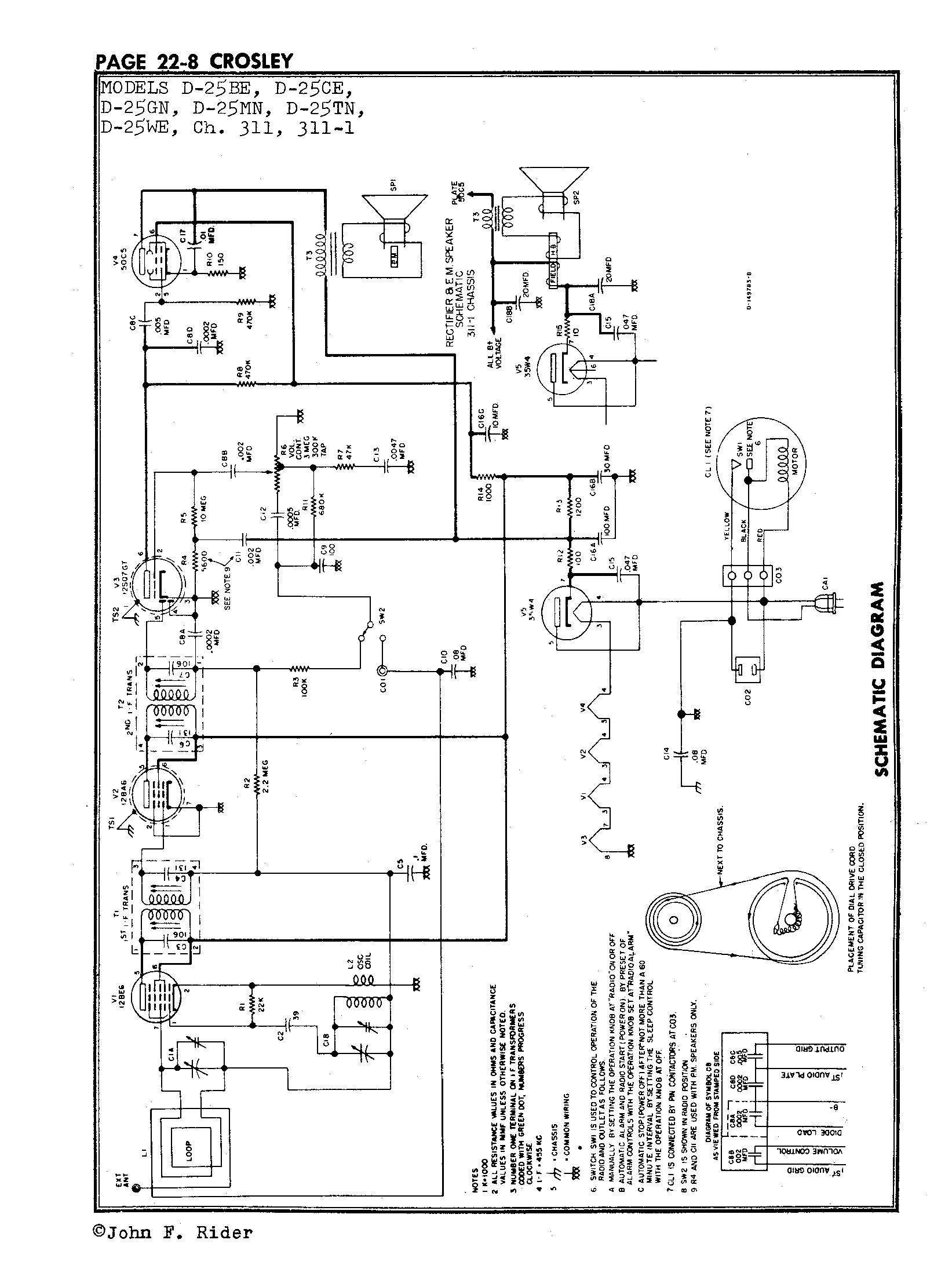

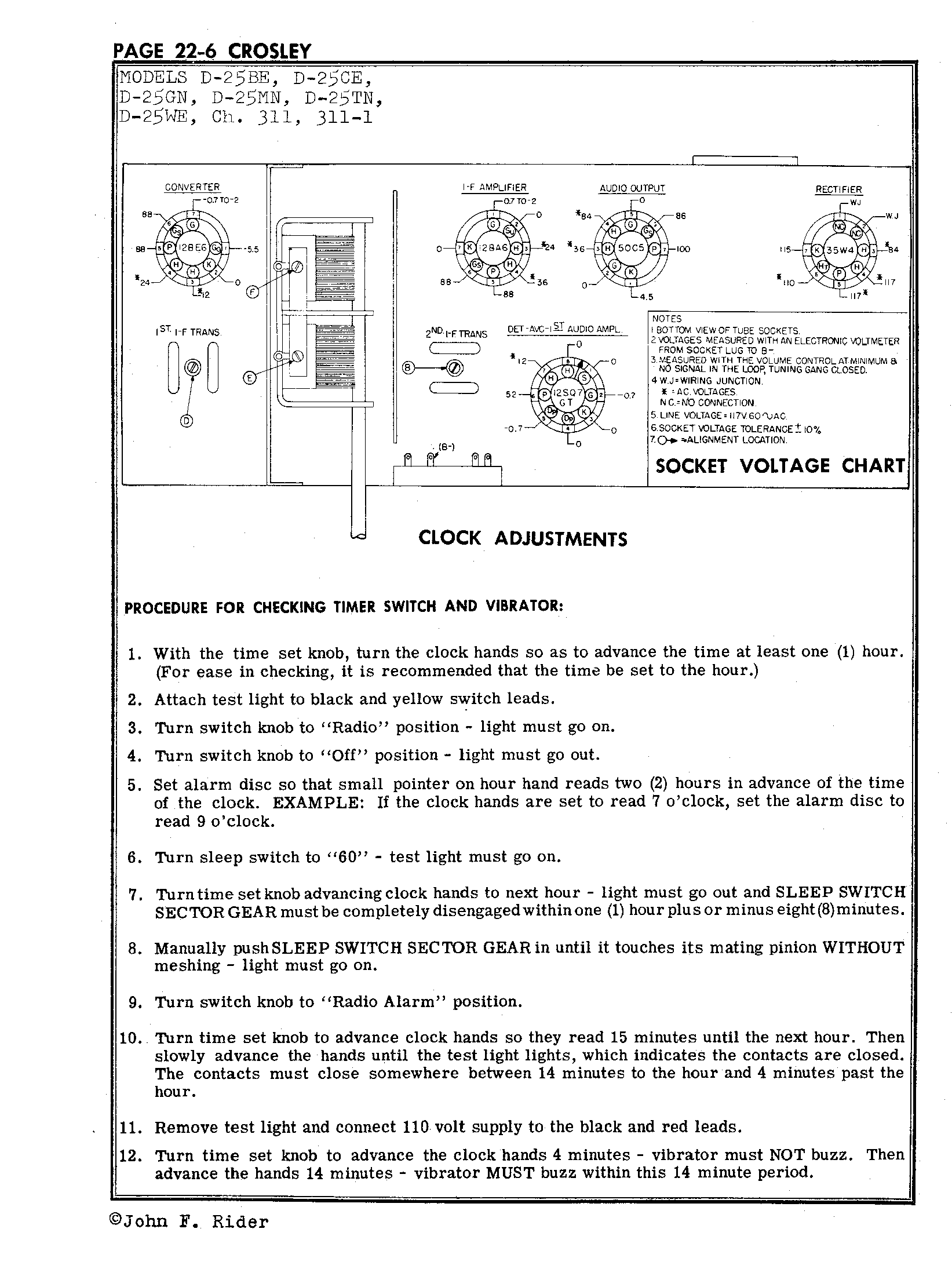

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 |
FROMI bought it inmy first MAARC meeting at The Sully Station Community Center, Centreville, VA on April, 15th 2012
