RADIODetrola
MODEL568-1
TECHNOLOGYTube
YEAR1946
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1600 Kc, SW 6 - 18 Mc

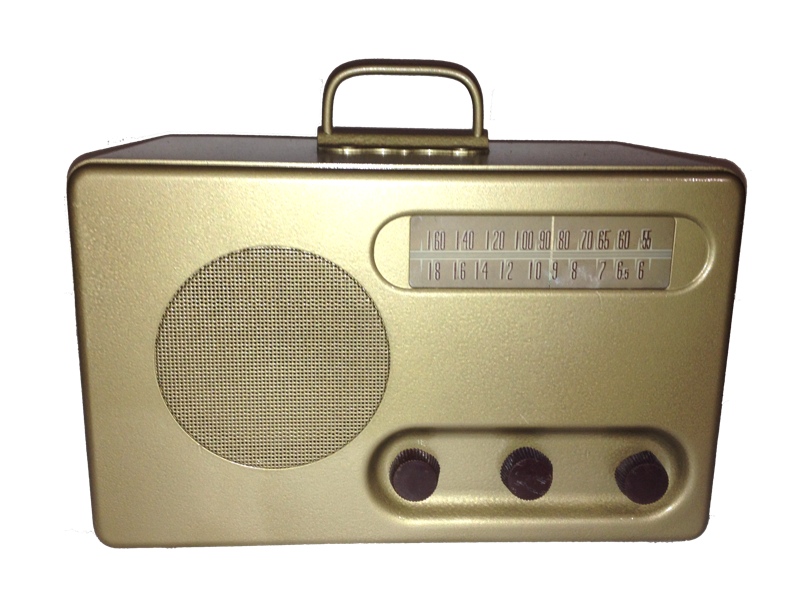

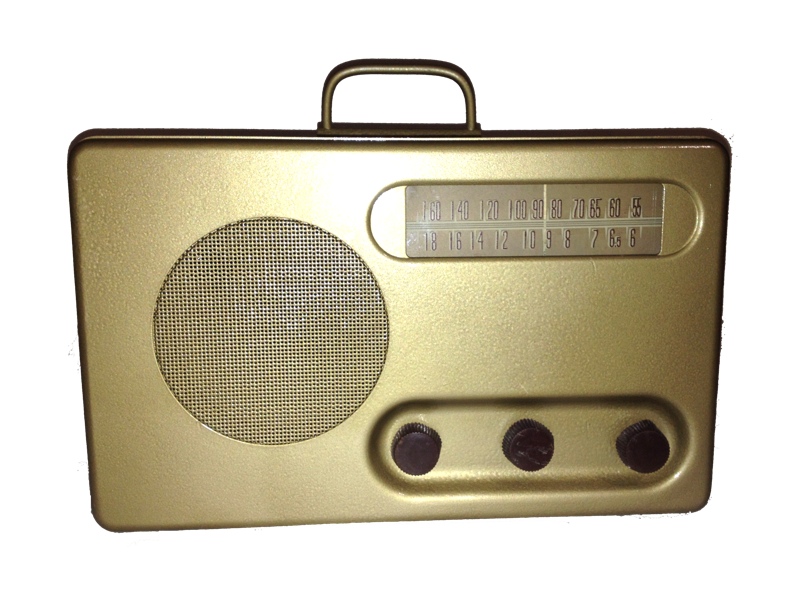

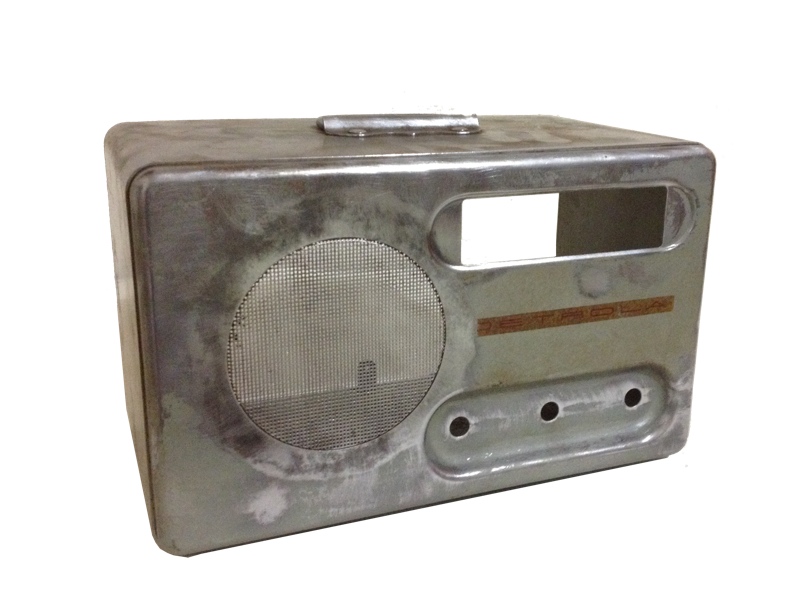

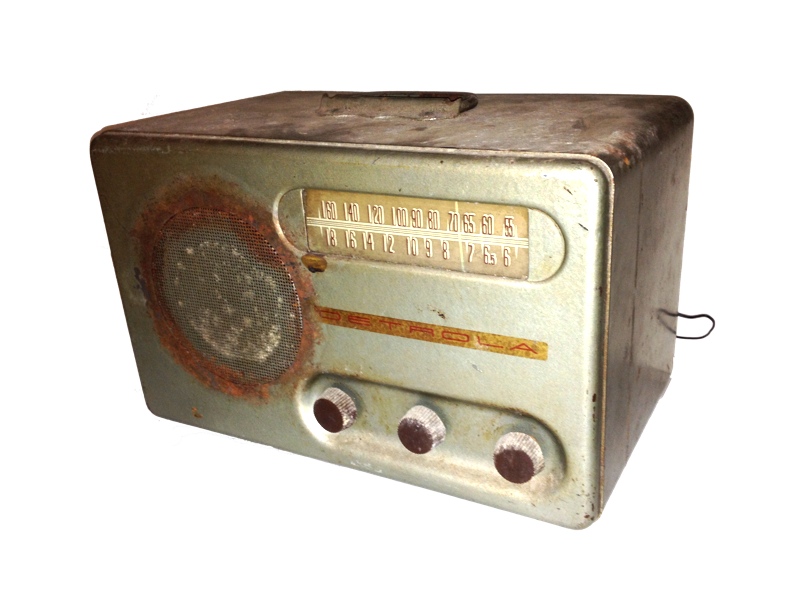

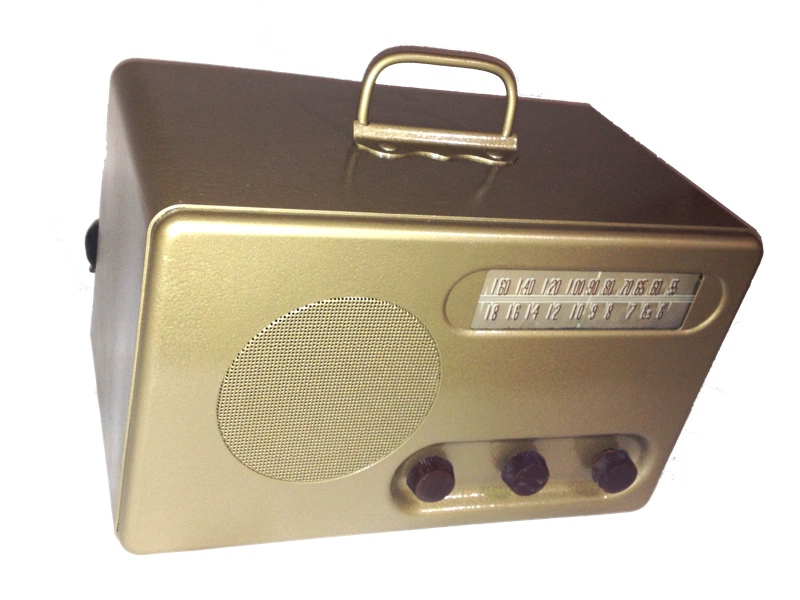

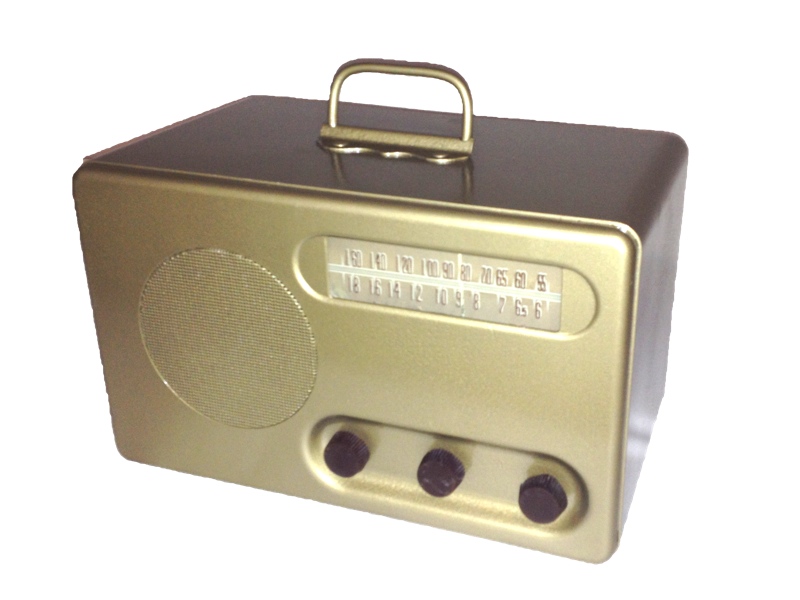

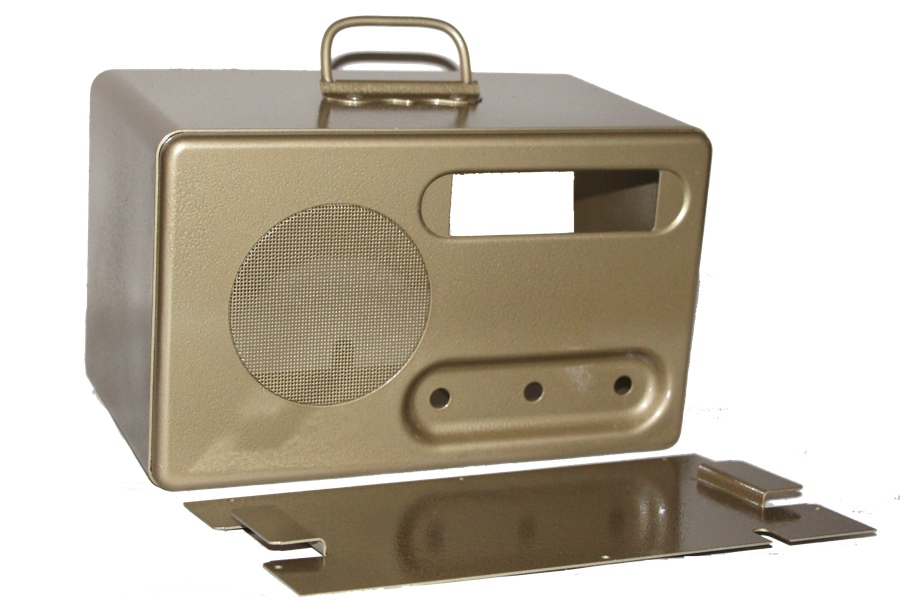

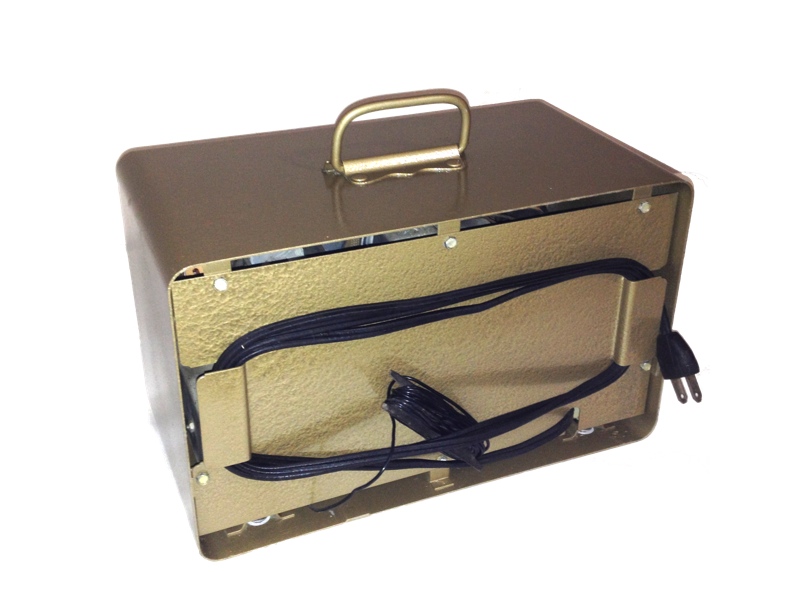

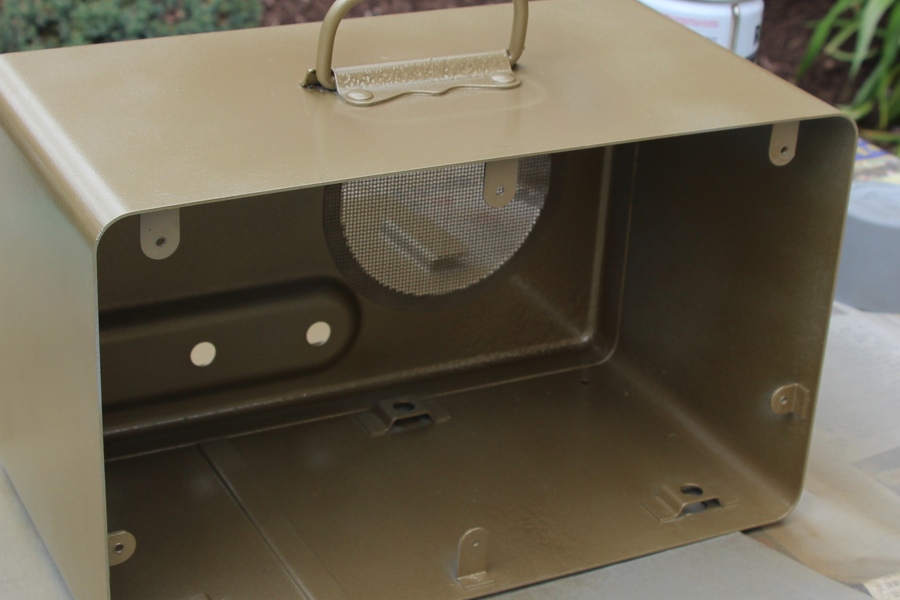

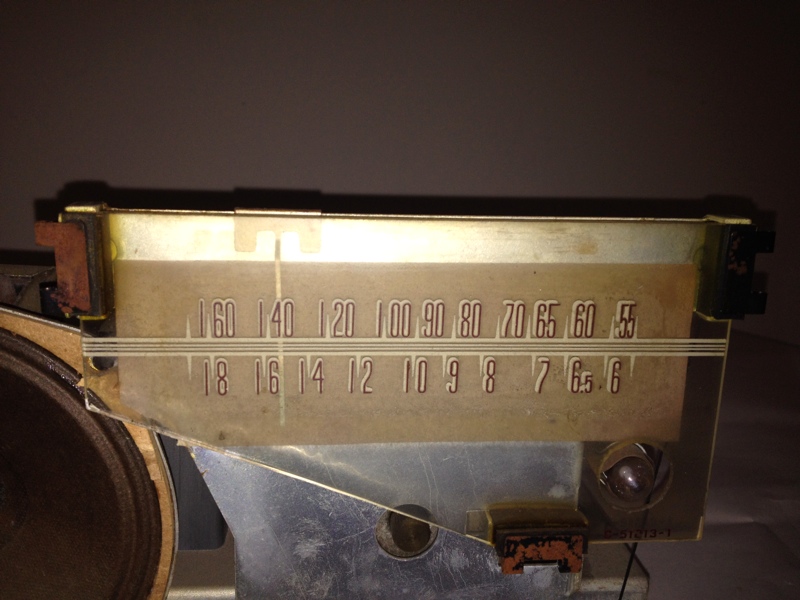

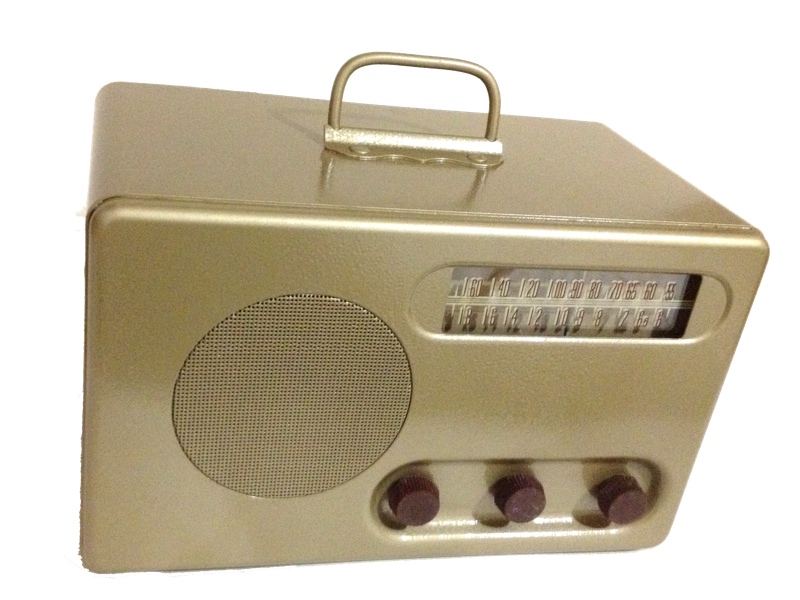

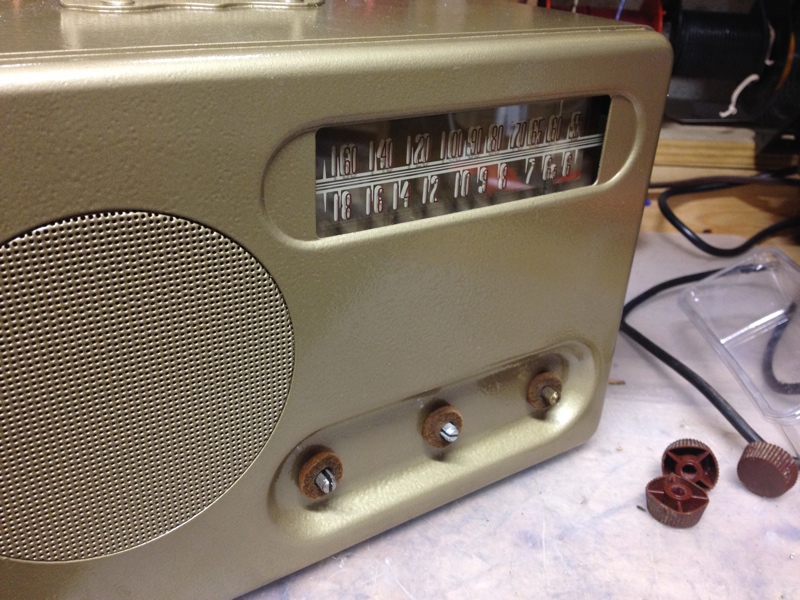

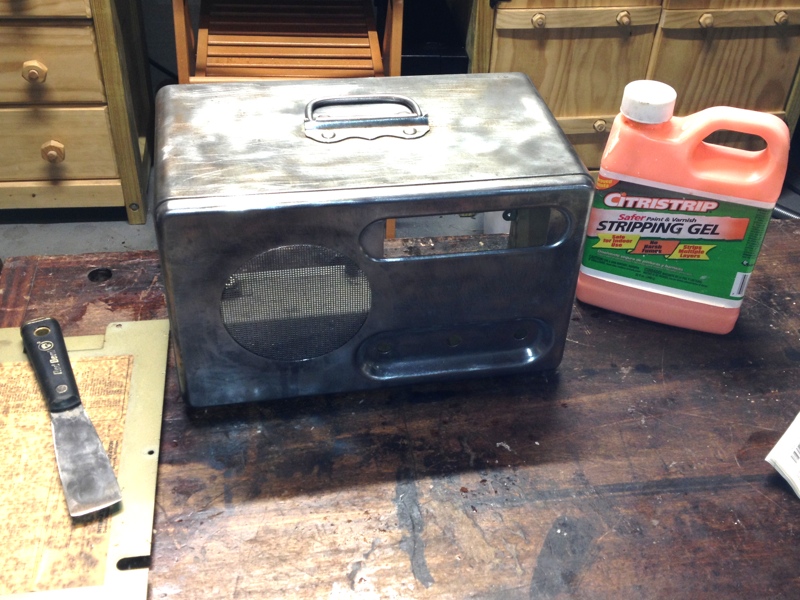

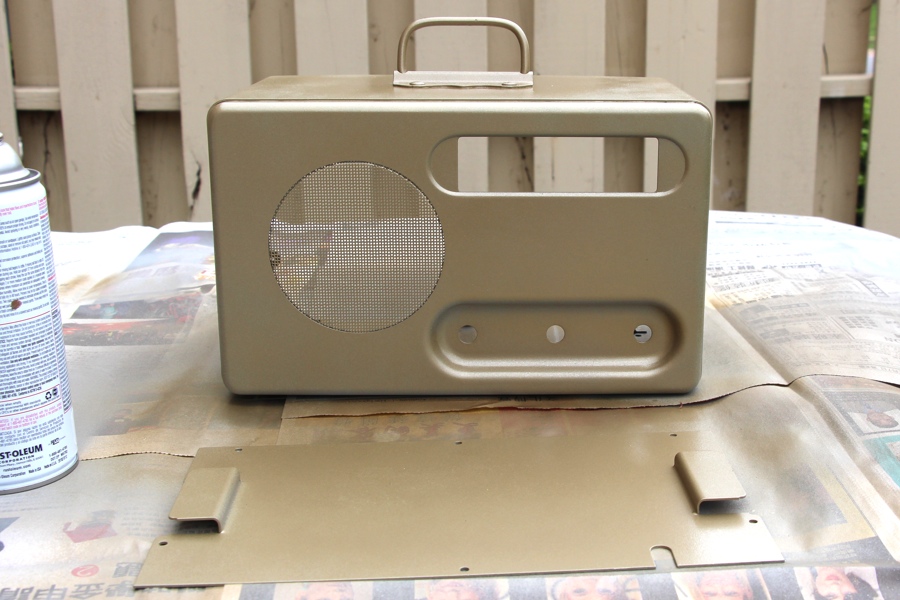

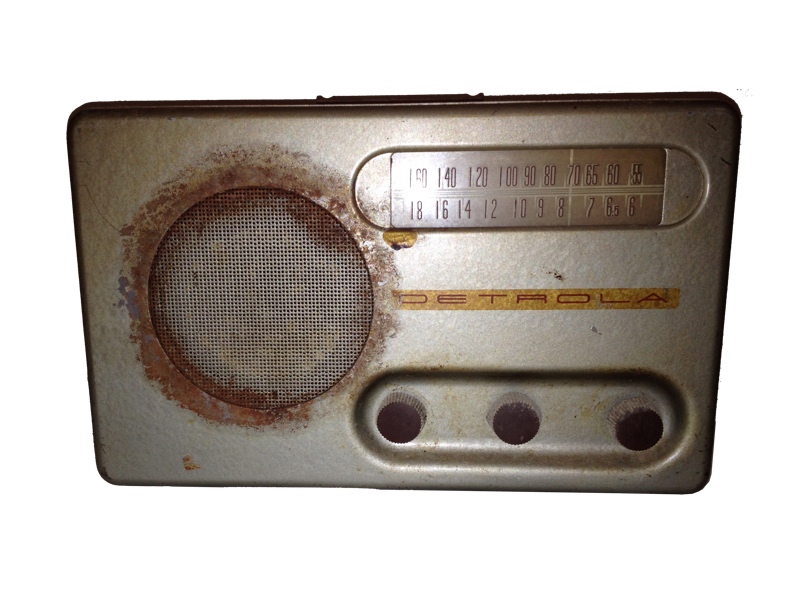

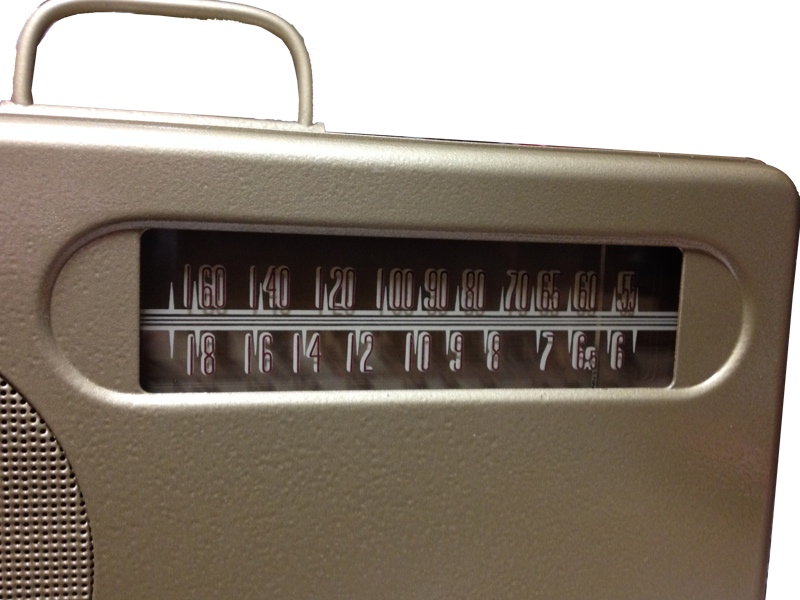

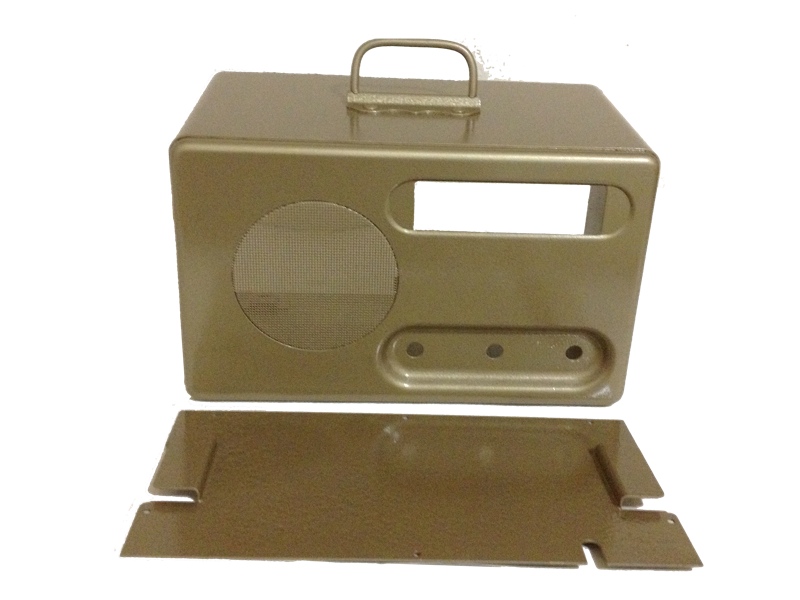

DESCRIPTIONA metal cabinet, upper right front slide rule dial, left round perforated grill, and 3 knobs, on/off volume on left, wave switch on middle, and tuning on right
CABINET STYLEPortable

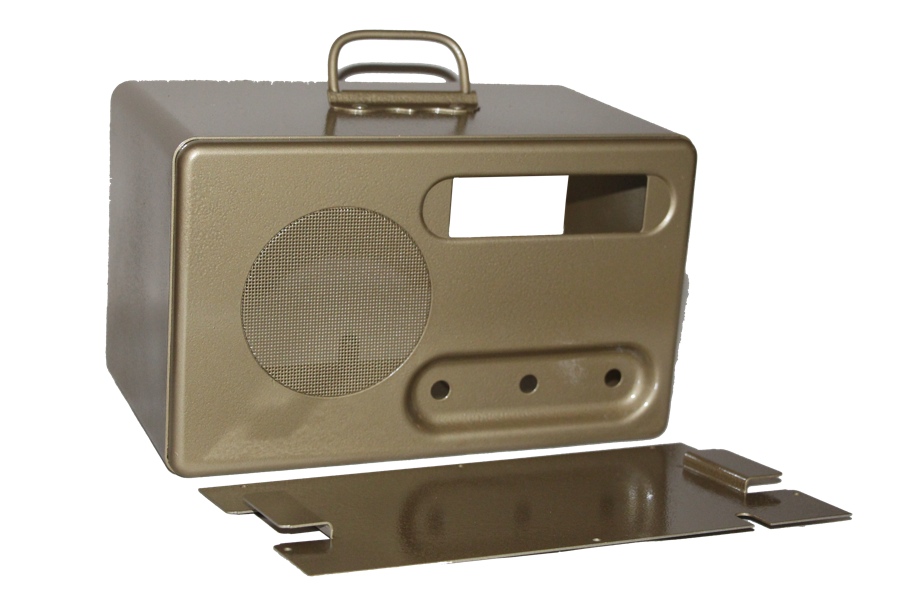

CABINET MATERIALMetal
DIAL LAMP - N° x TYPE0 x ?
TONE?
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION25 W
AC CYCLES50-60 Hz

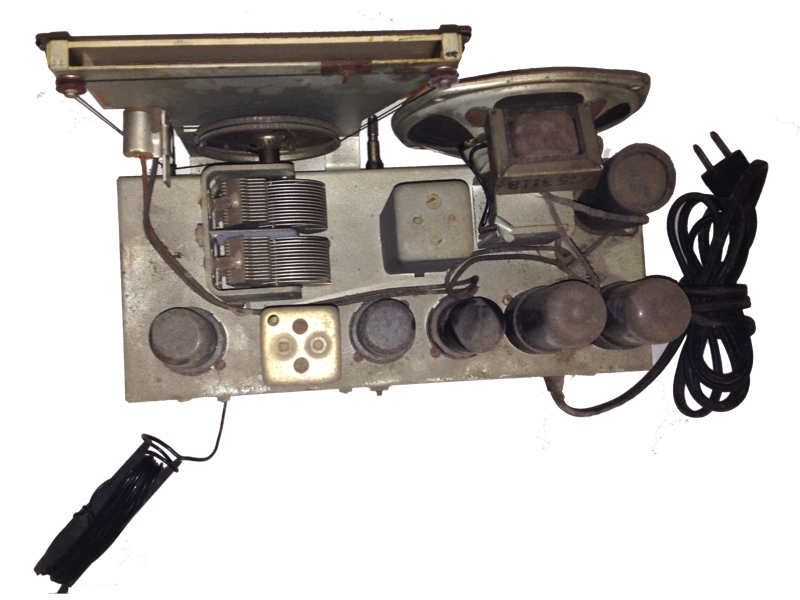

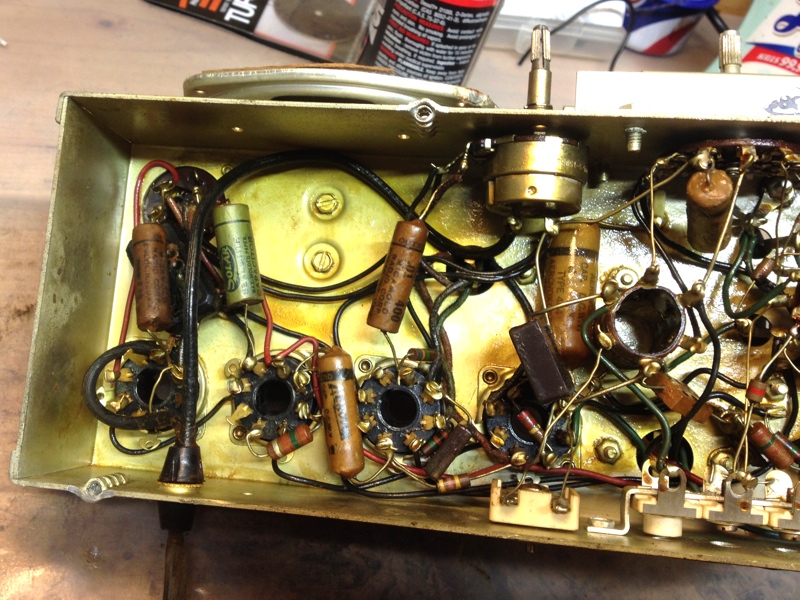

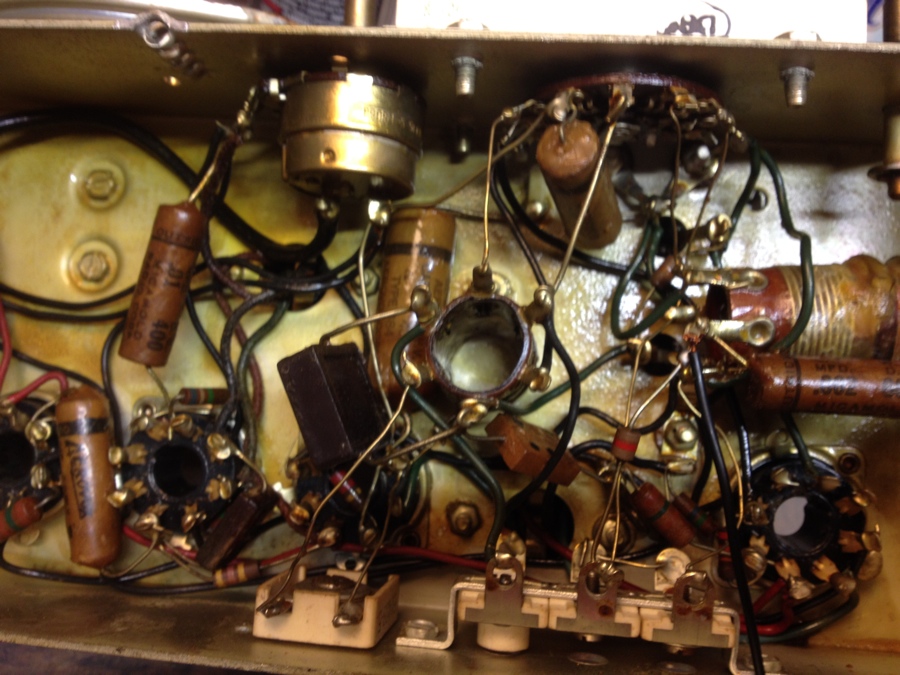

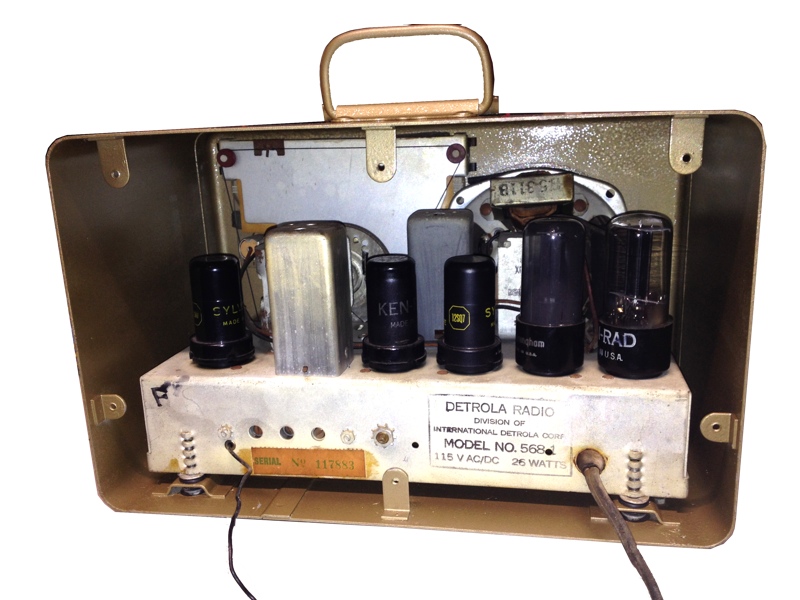

CHASSIS

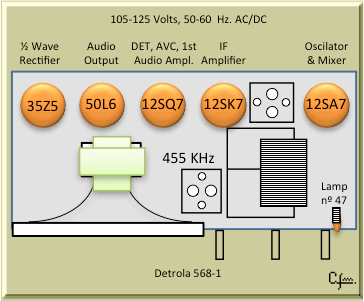

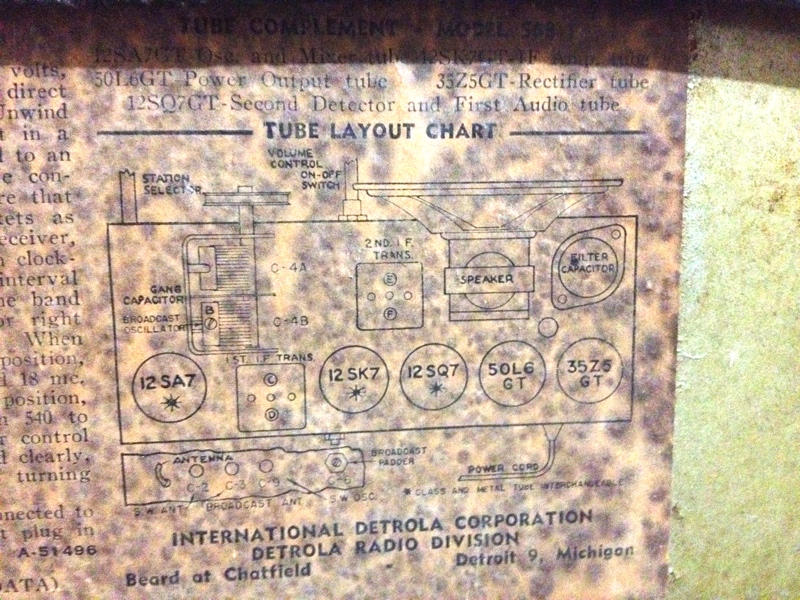

TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |

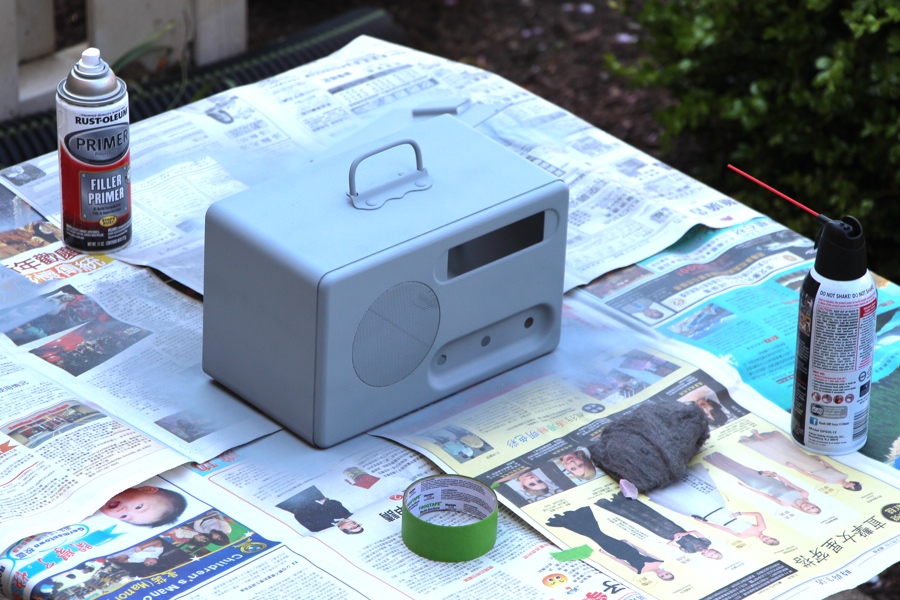

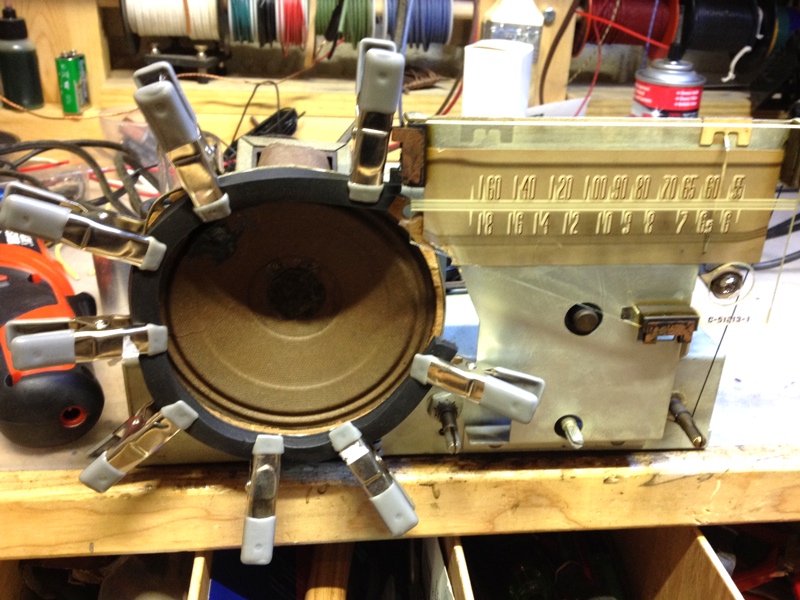

PICTURES(Click to enlarge image)

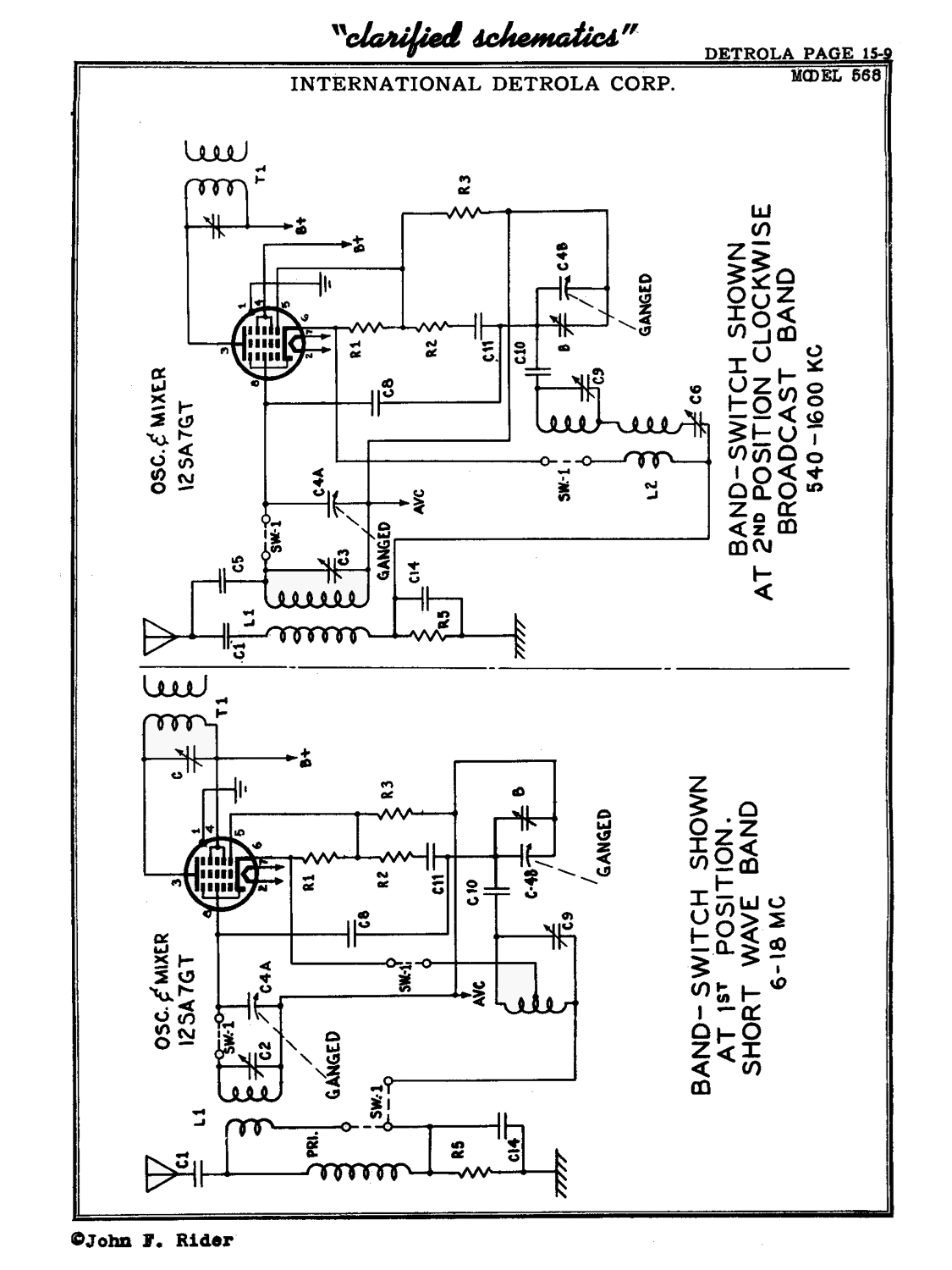

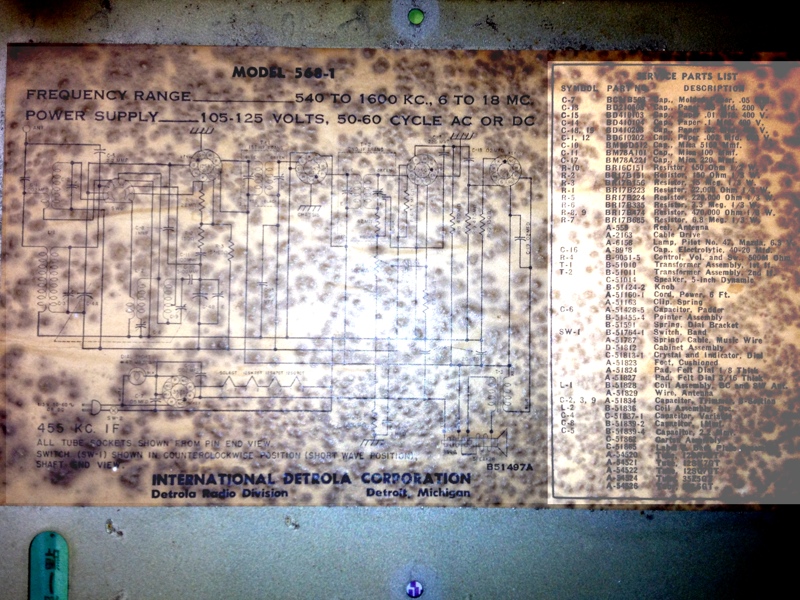

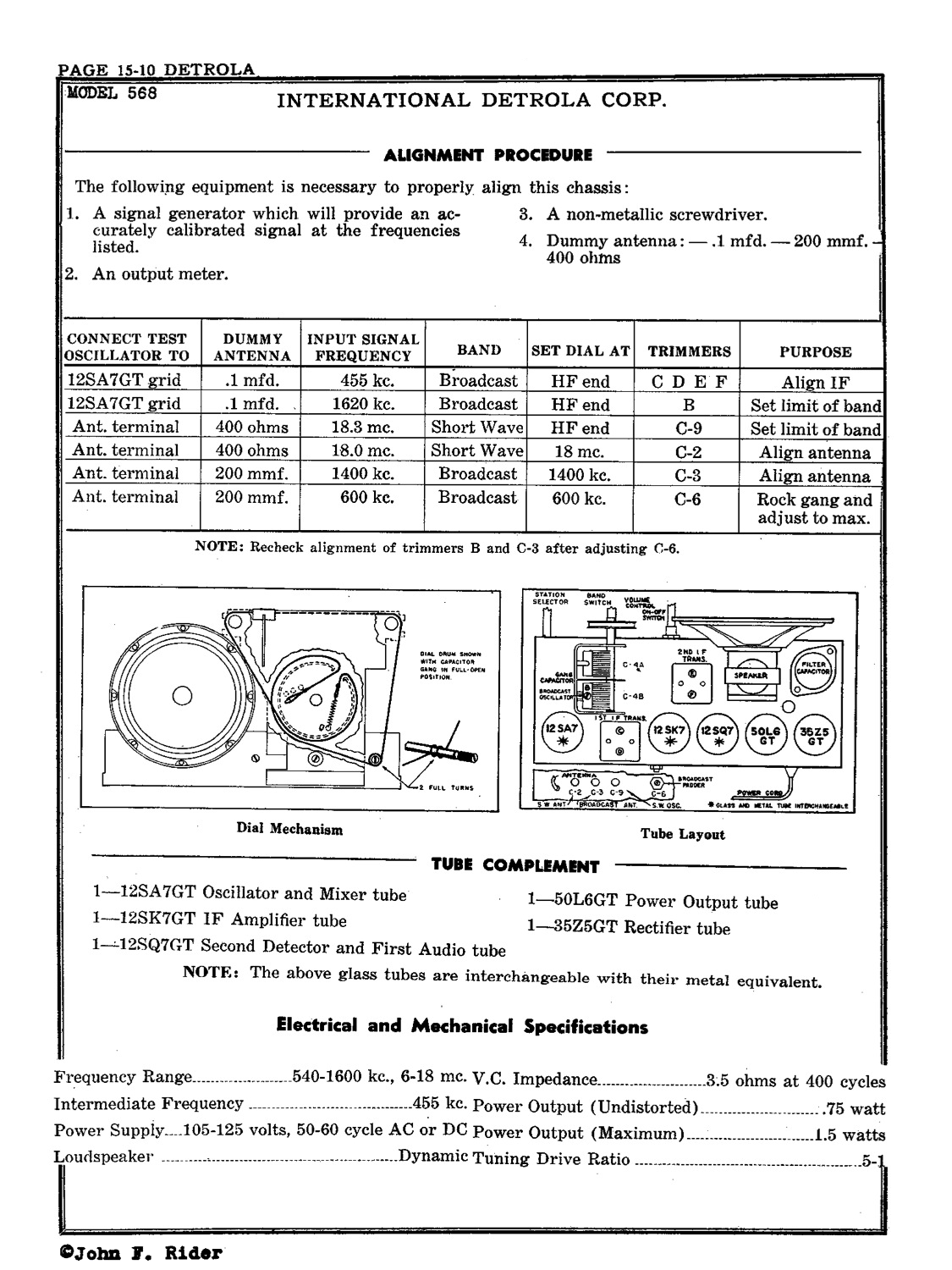

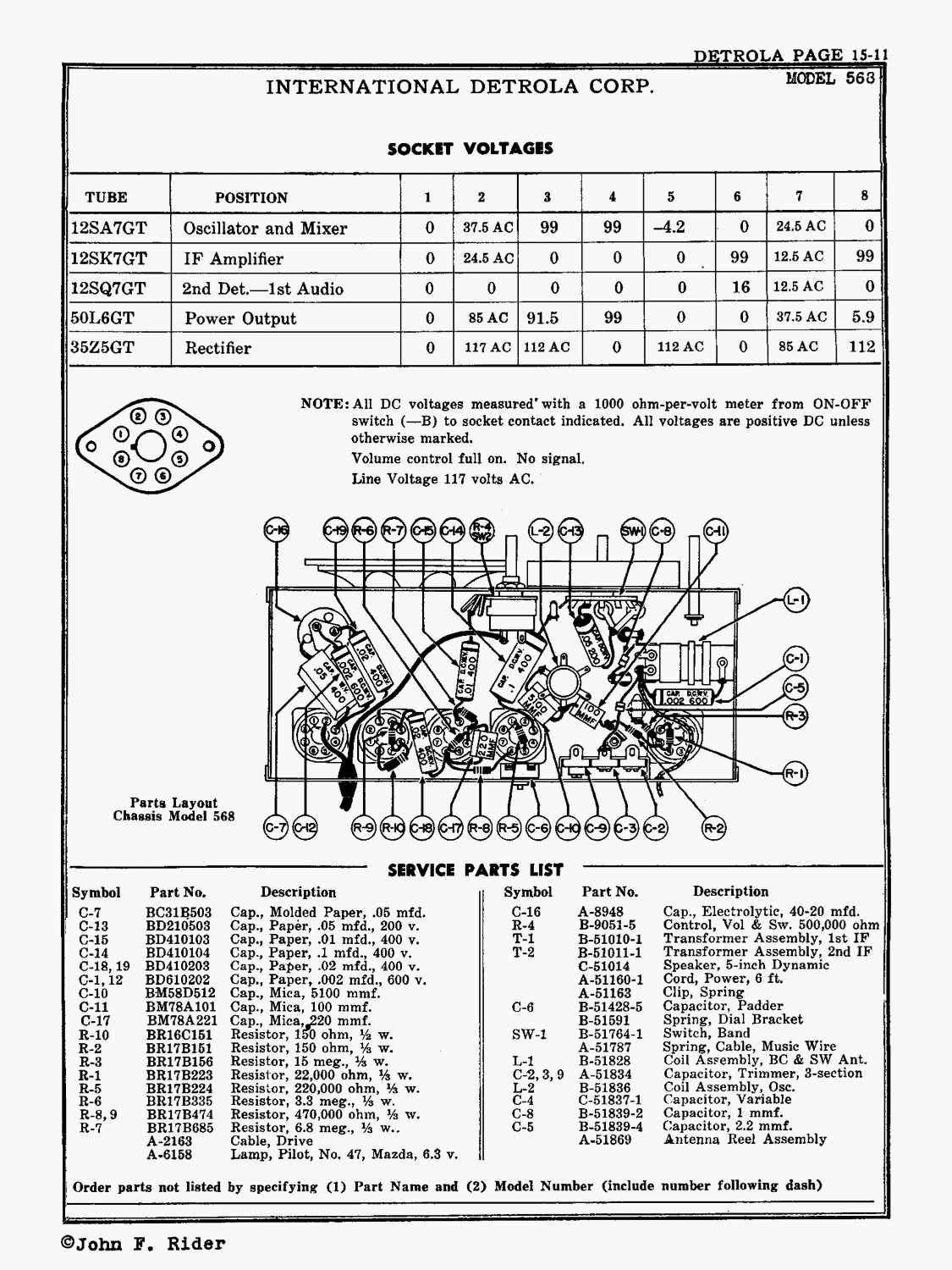

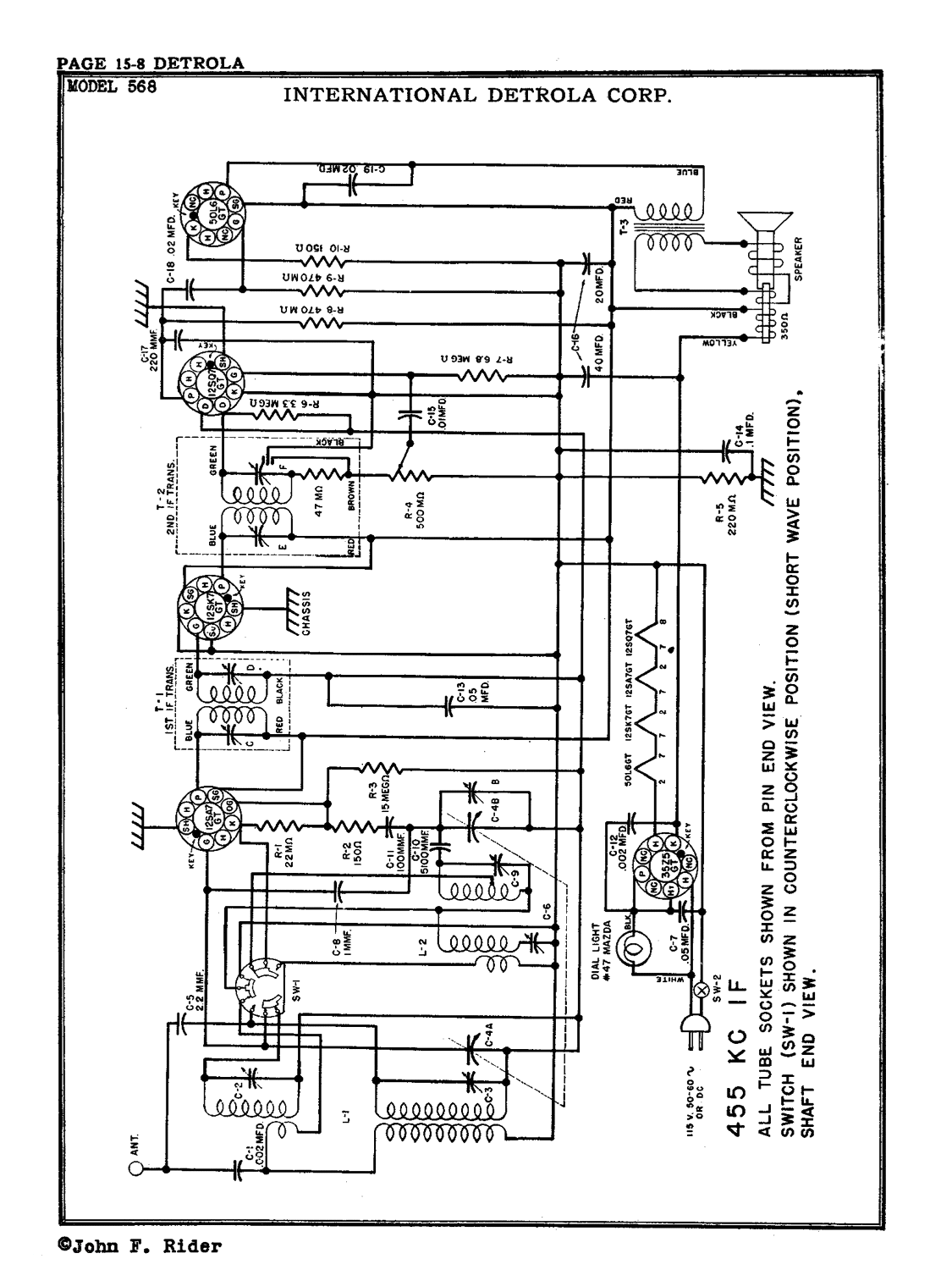

SCHEMATICS | Page1 | Page2 | Page3 | Page4 |
FROMFrom the auction at the March 2014 MAARC monthly meeting.
