RADIOTruetone
MODELD724
TECHNOLOGYTube
YEAR1938
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEAM 550 - 1670 Kc, SW 5.5 - 15.7 Mc
DESCRIPTIONLarge right front round airplane dial, left cloth grill with cut-outs, 4 knobs, magic eye.
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE0 x 46
TONEVariable
CIRCUITSuperheterodyne
IF456 KC
POWER SUPPLYAC
VOLTS115 V
CONSUMPTION80 W
AC CYCLES50-60 Hz
CHASSIS147E
TUBES LOCATION
TUBE COMPLEMENT | 6A7 | 42 | 80 | 6G5 | 42 | 6D6 | 75 | 76 |

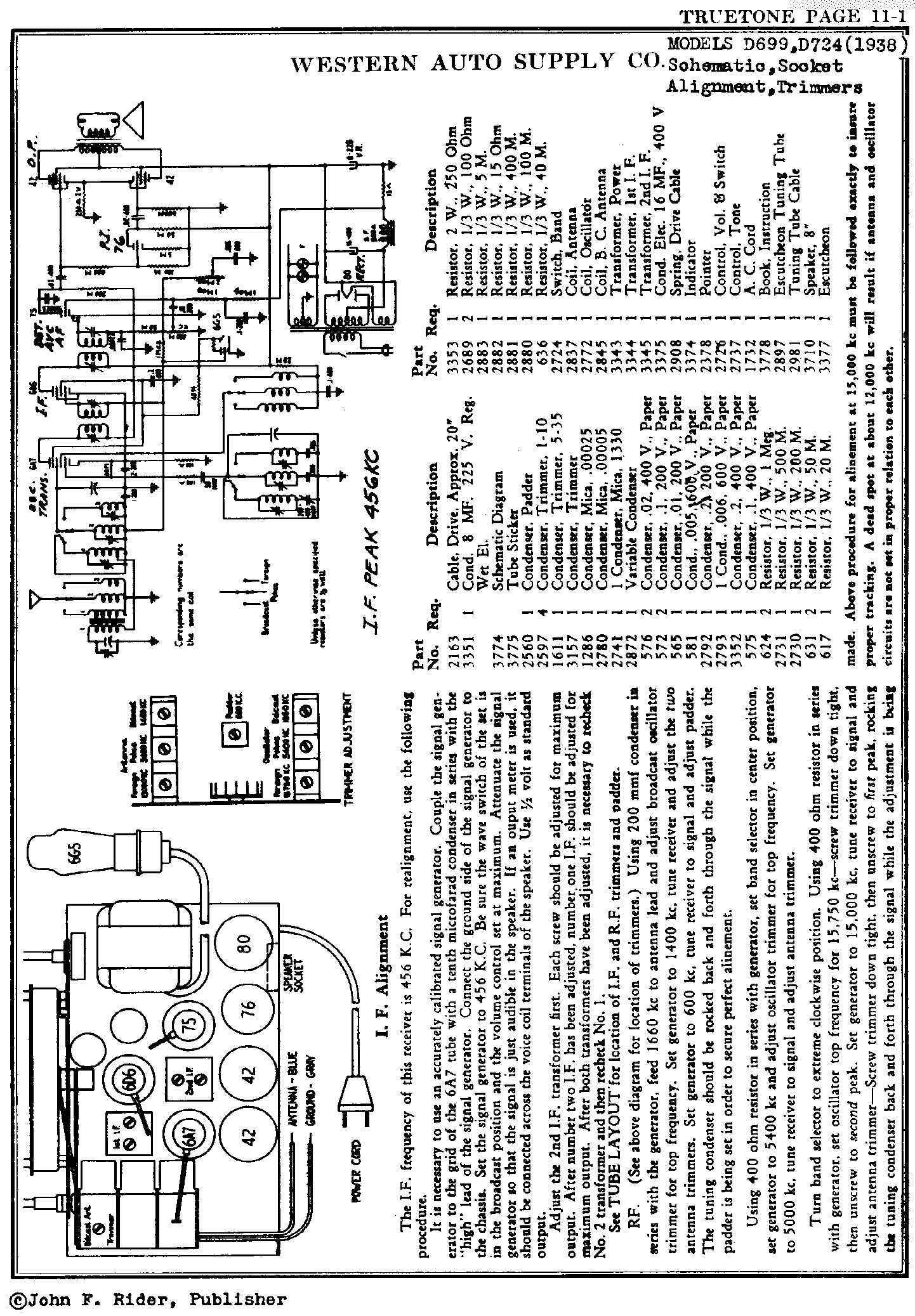

SCHEMATICS | Page1 |
FROMJJ Antique Store, Binghamton, NY
