| RADIO | Zenith |
| MODEL | ROYAL 7000 |
| TECHNOLOGY | Transistor |
|
|
|
| YEAR | 1968 |
| MADE IN | UNITED STATES |
| WAVE BANDS | VHF/FM/LW/AM/S1-S7 |
| COVERAGE | |
| DESCRIPTION | Trans-Oceanic |
| CABINET STYLE | Portable |
| CABINET MATERIAL | Plastic |
| DIAL LAMP - N° x TYPE | 3 x ? |
| TONE | Variable |
| CIRCUIT | Superheterodyne |
| IF | 455 KC |
| POWER SUPPLY | AC/DC Battery |
| VOLTS | 115 or 230 V AC, 13,5 V DC |
| CONSUMPTION | ? |
| AC CYCLES | 60 Hz |
| CHASSIS | 18ZT40Z3 |

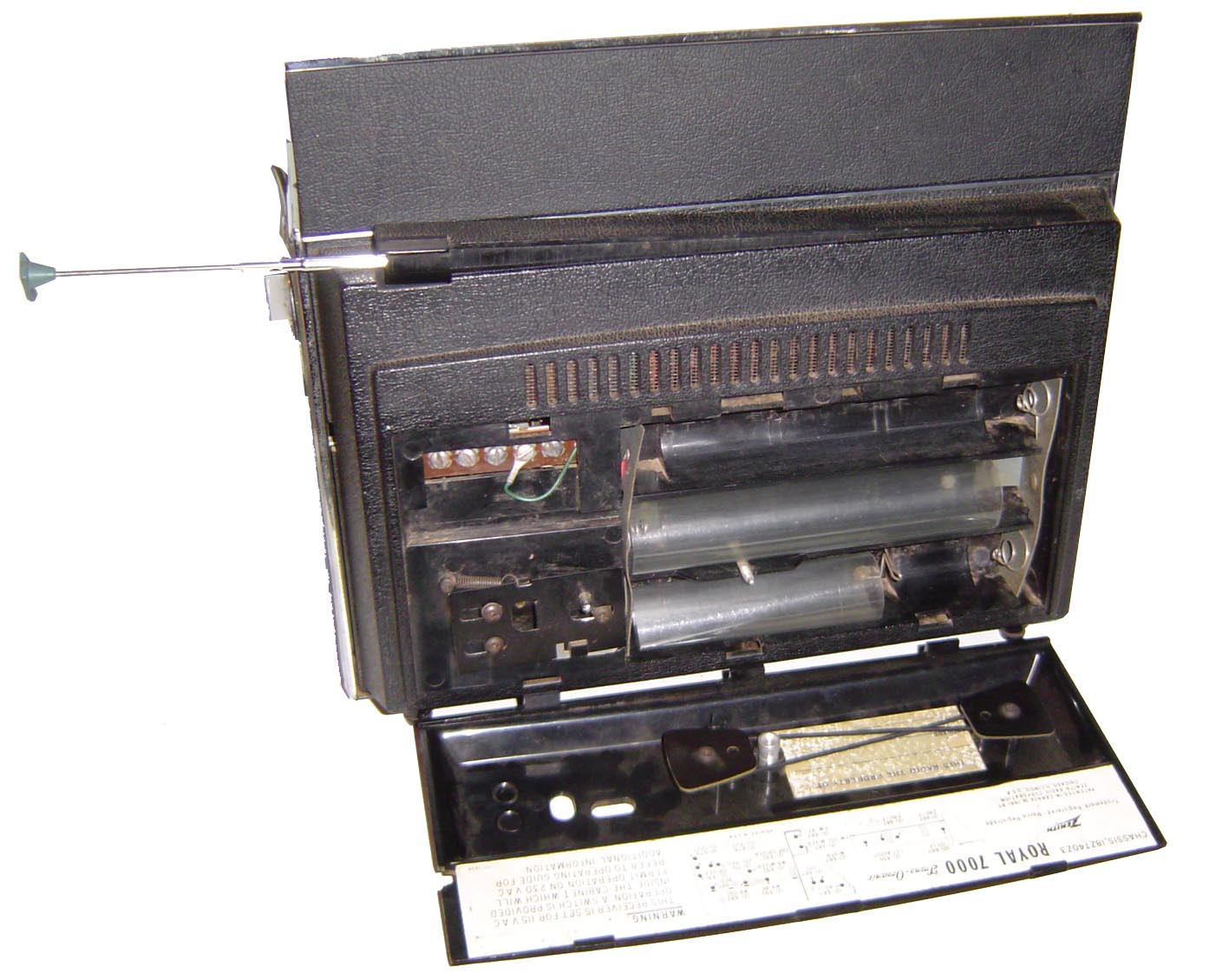

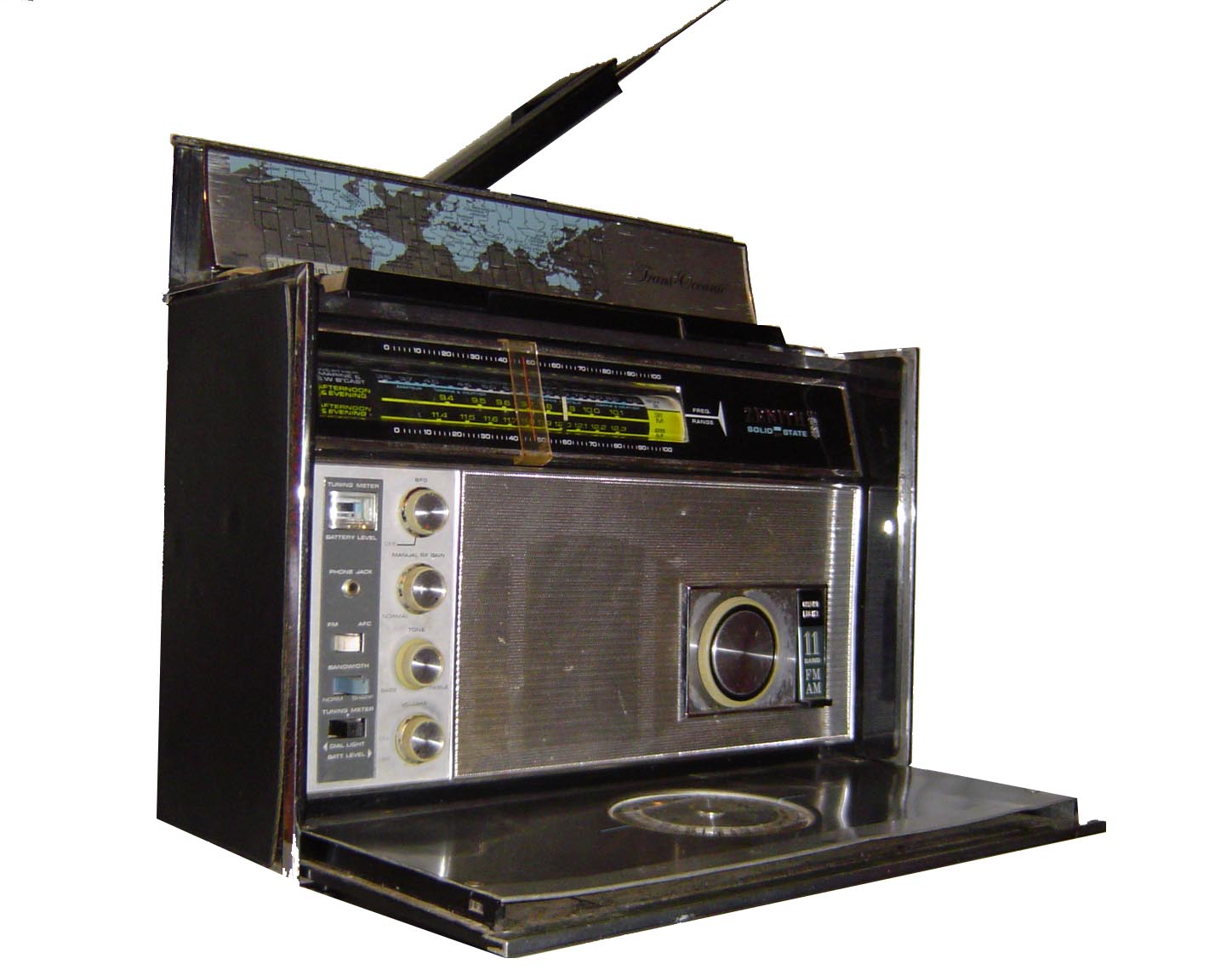

| PICTURES | (Click to enlarge image) |
|
|

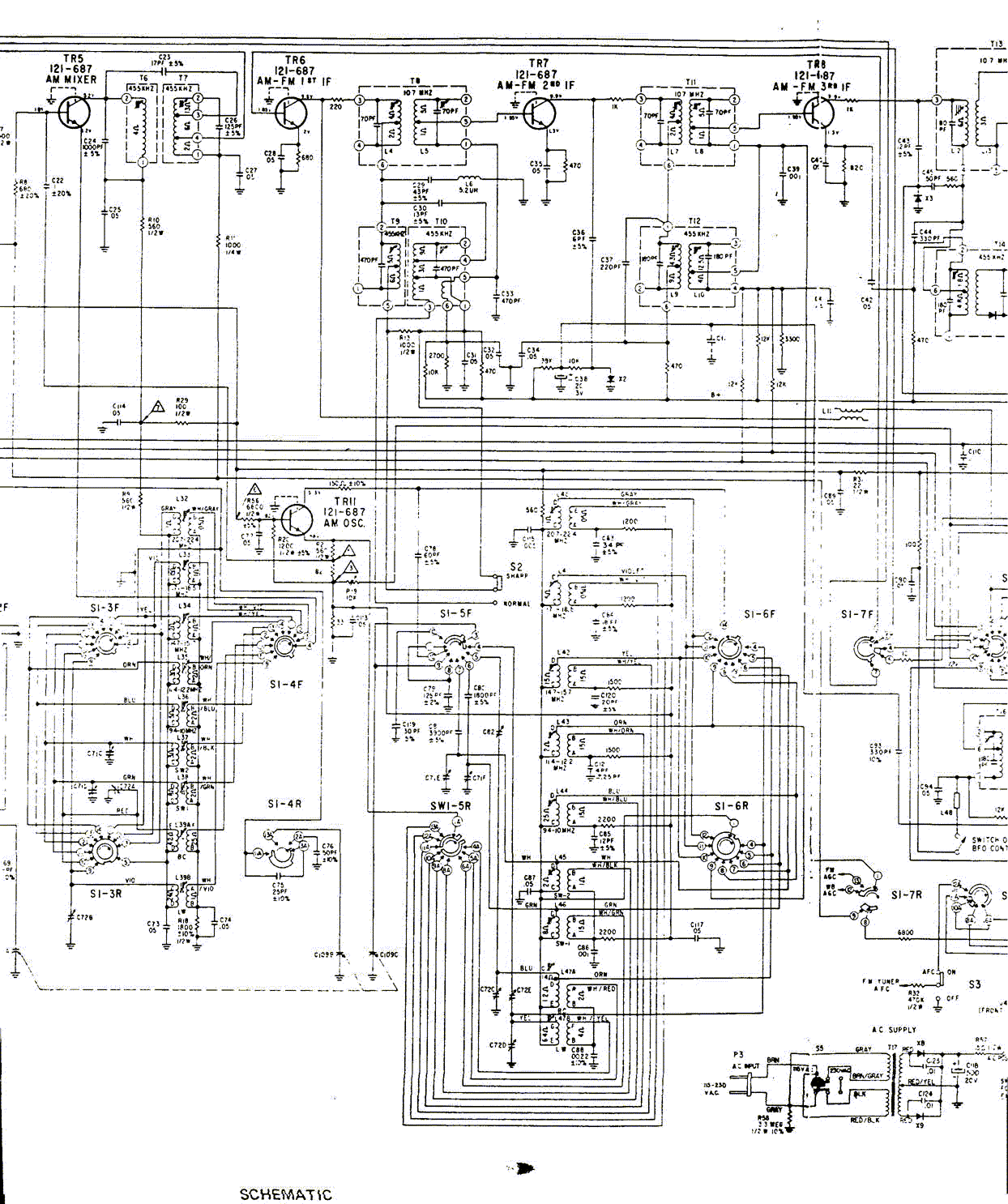

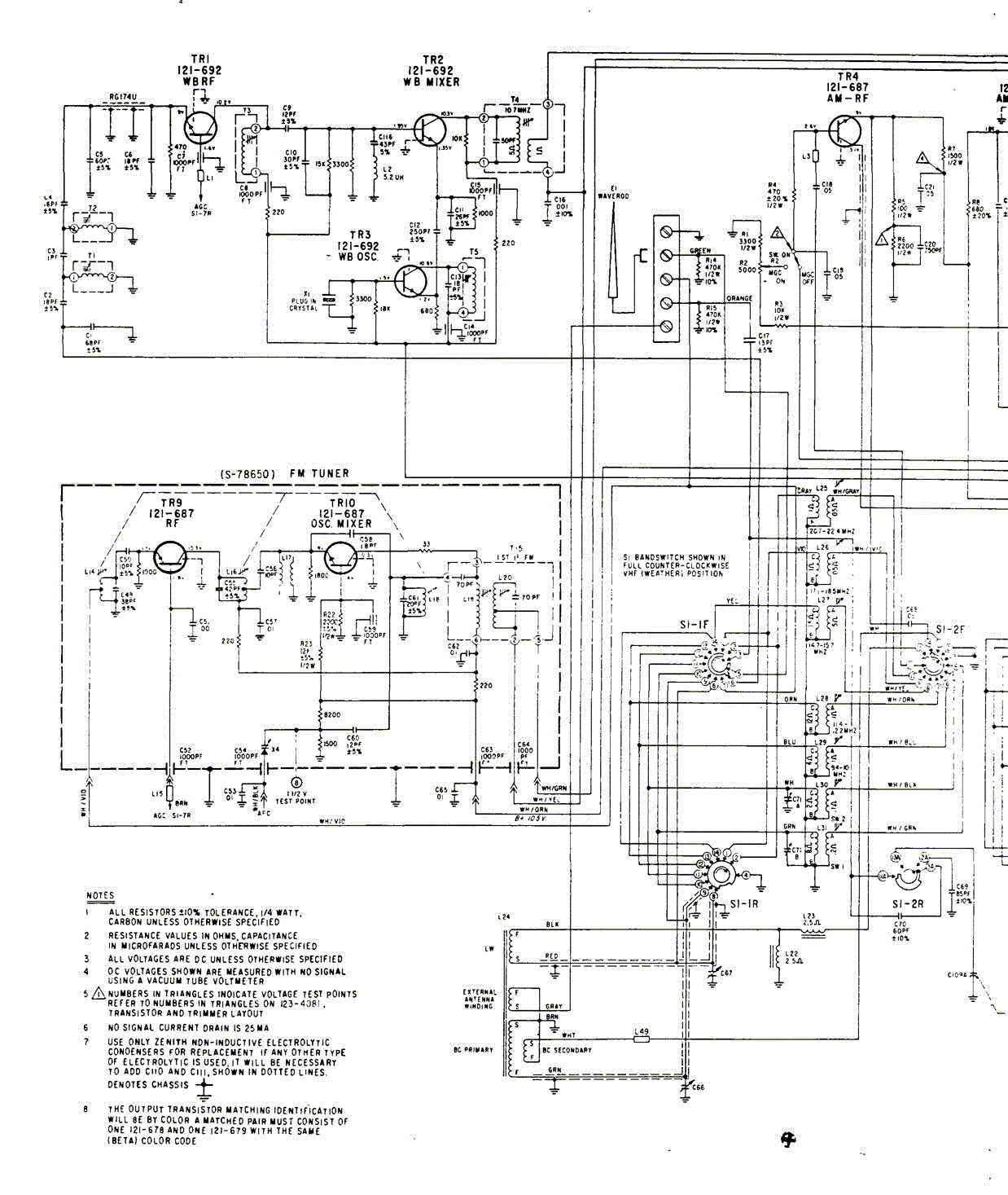

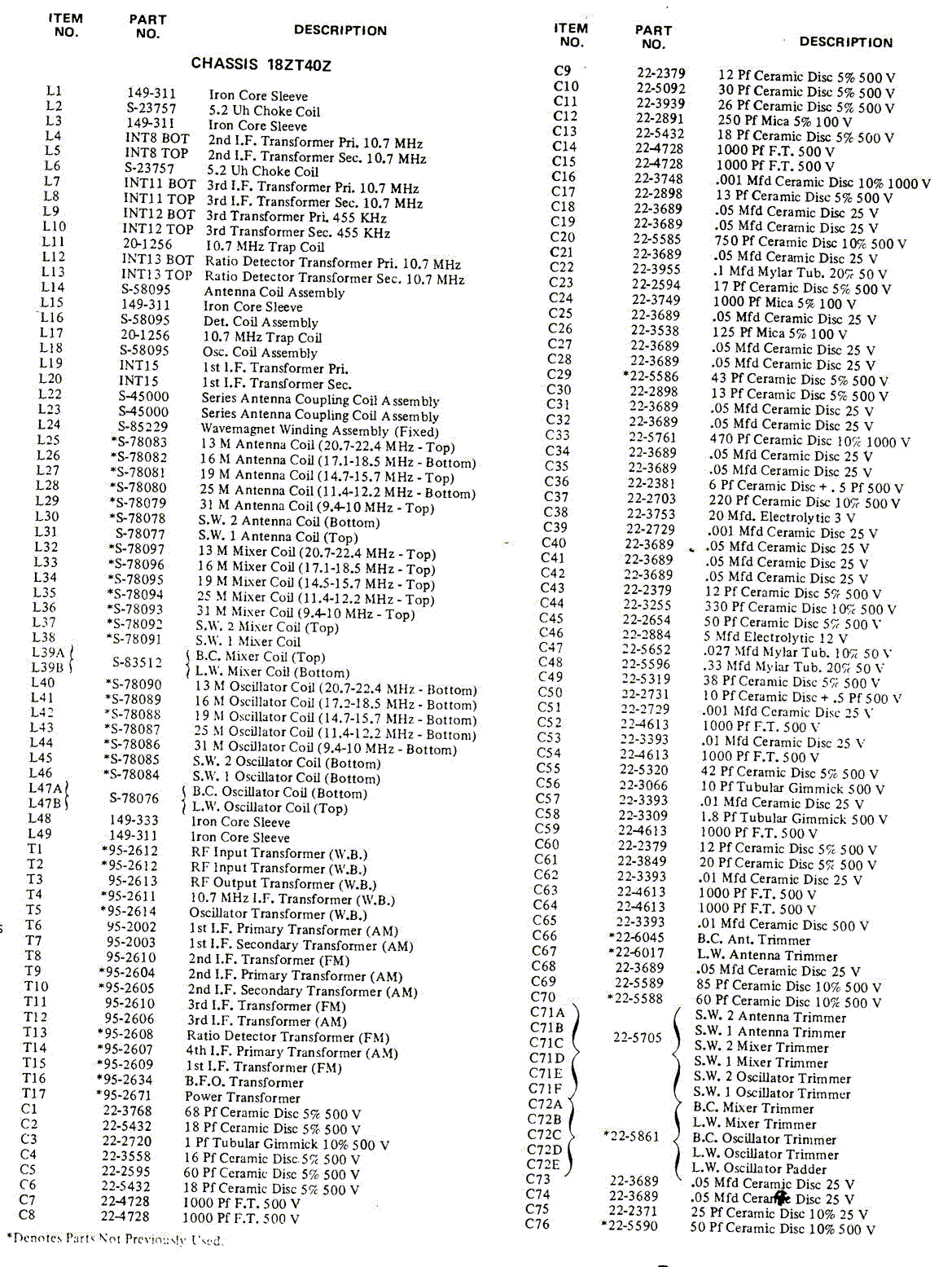

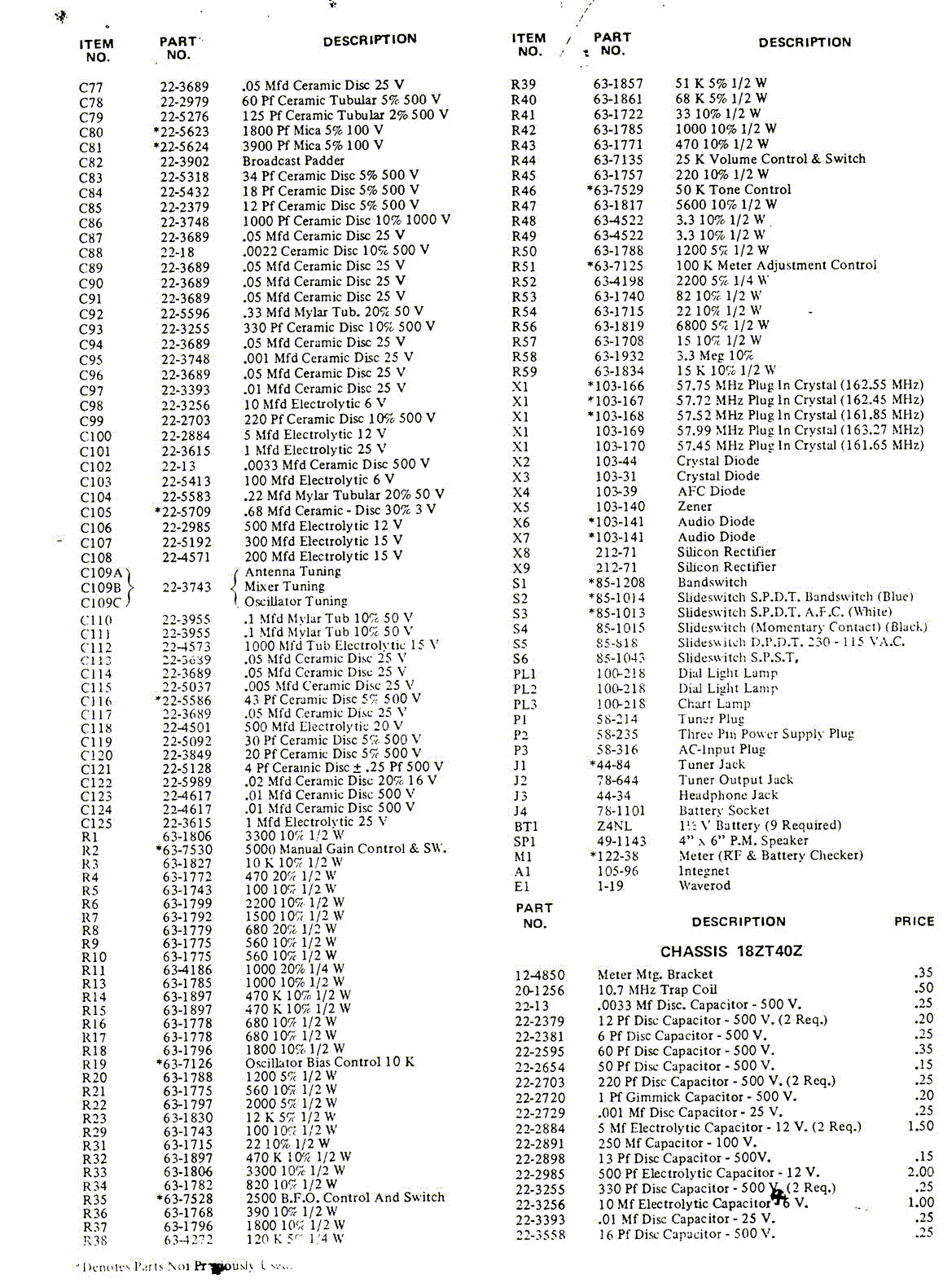

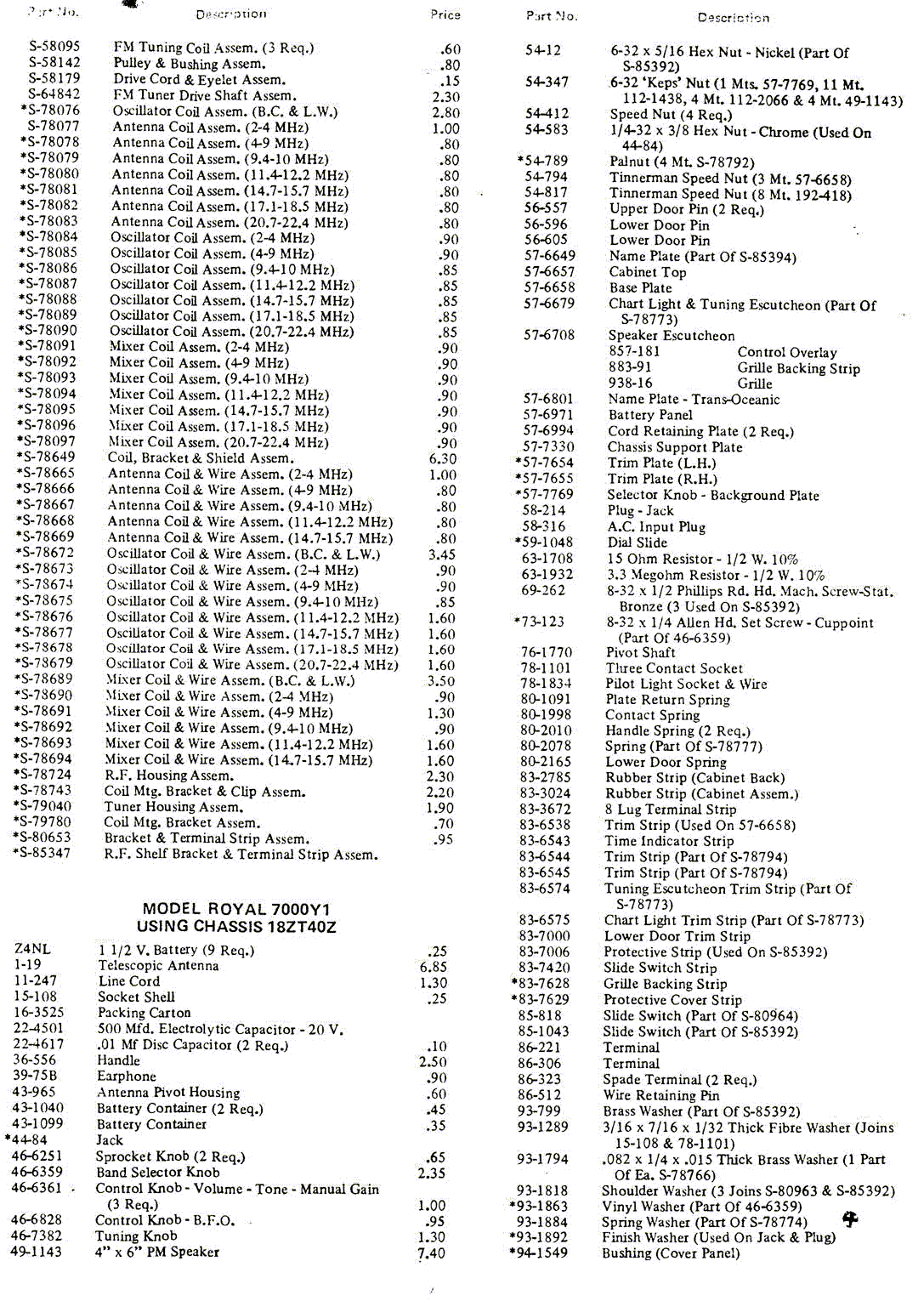

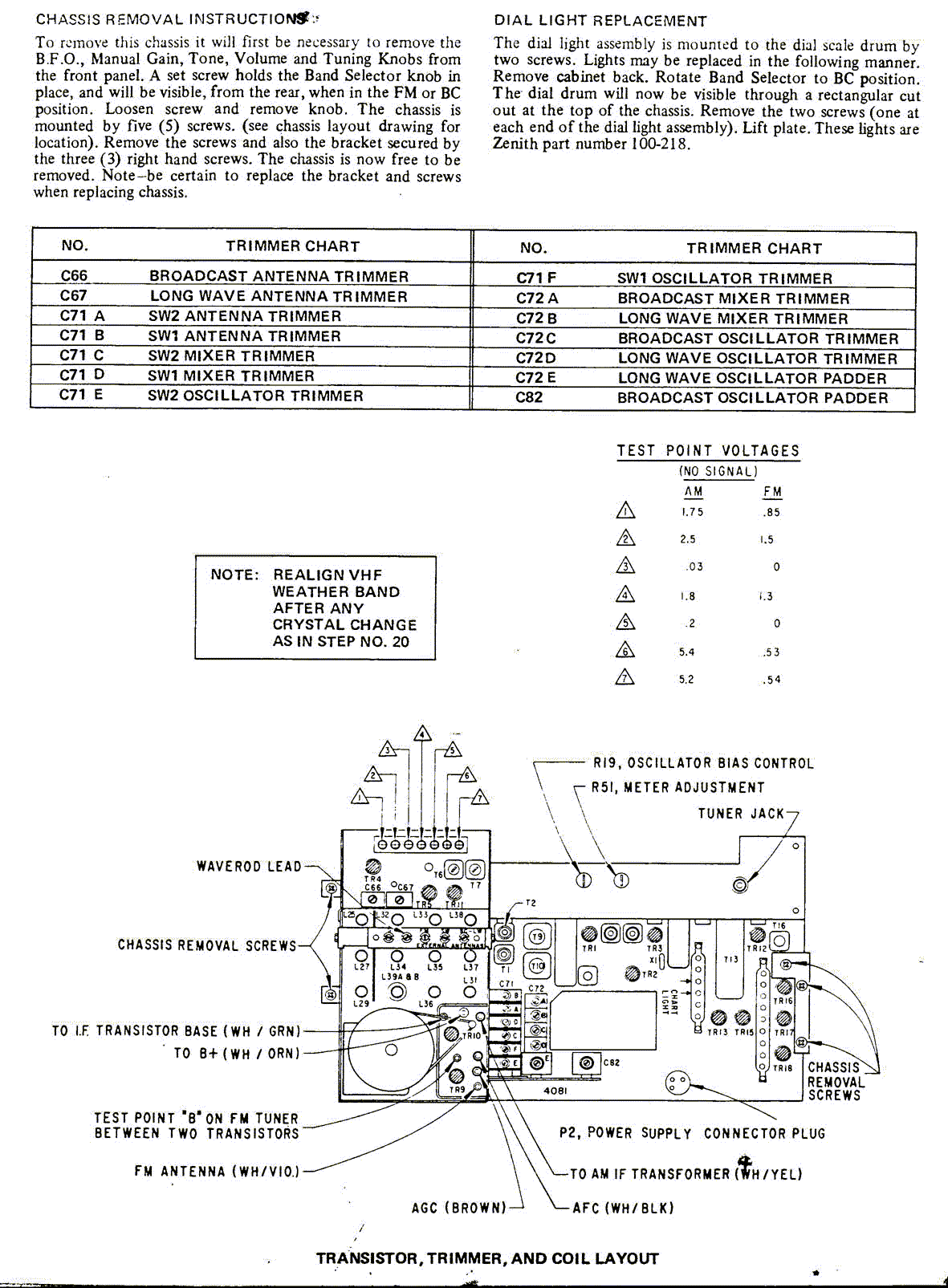

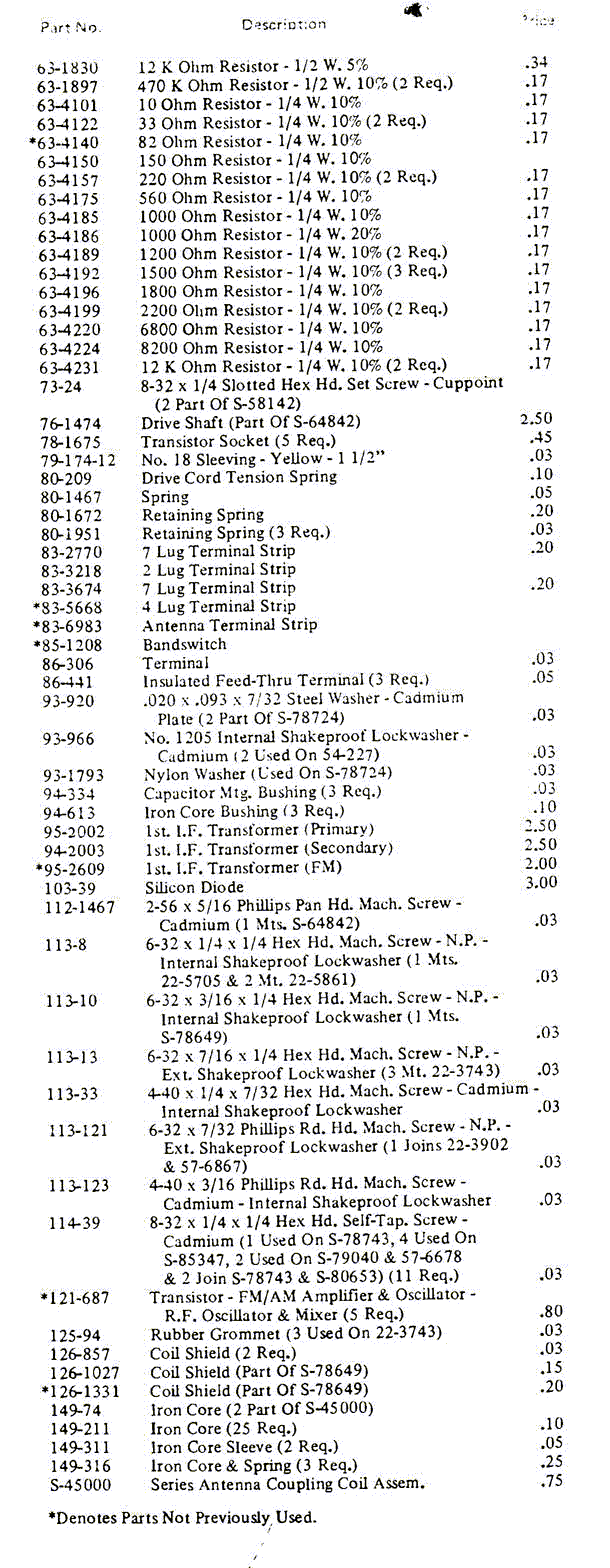

| SCHEMATICS |

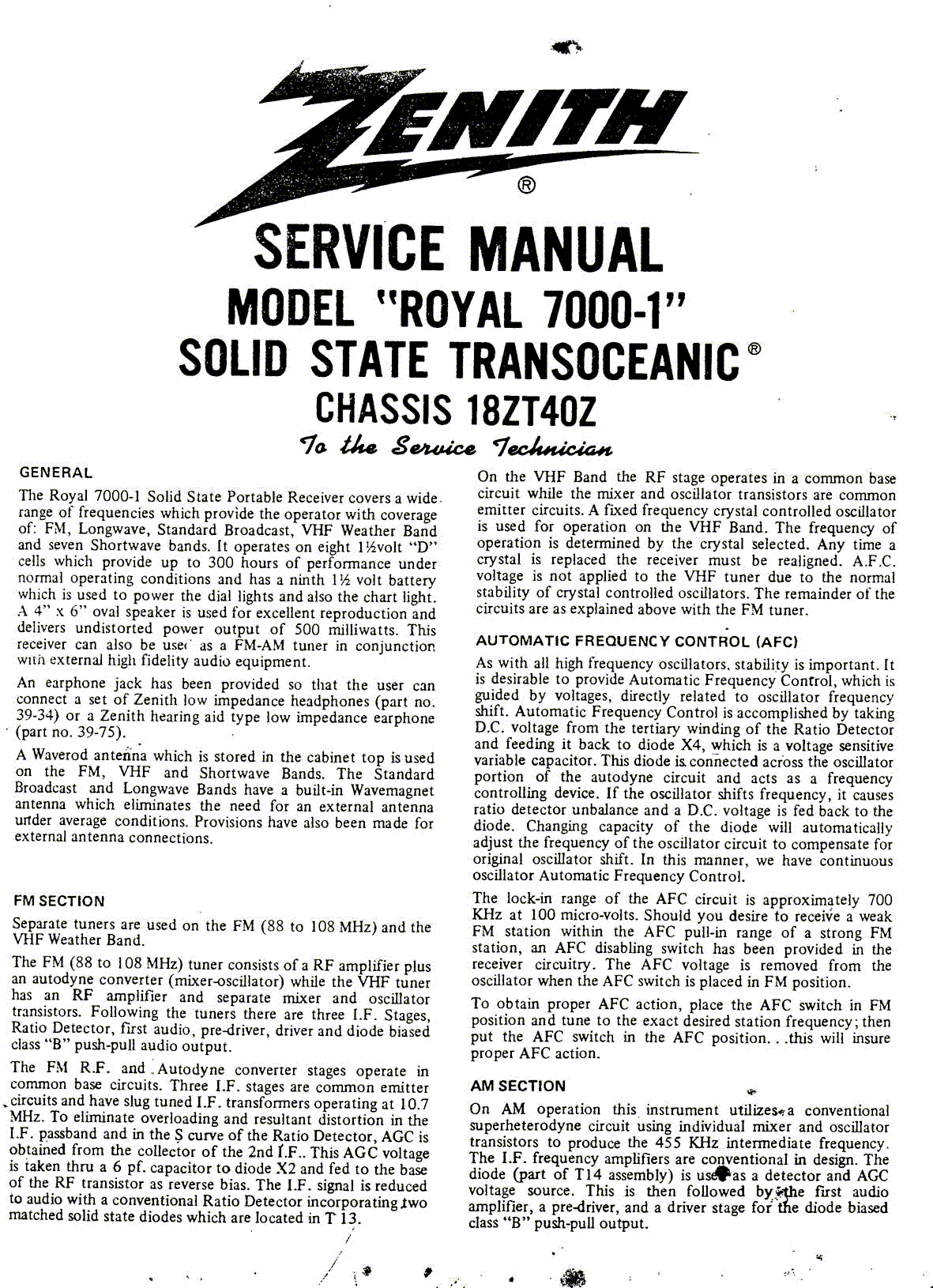

| Page1

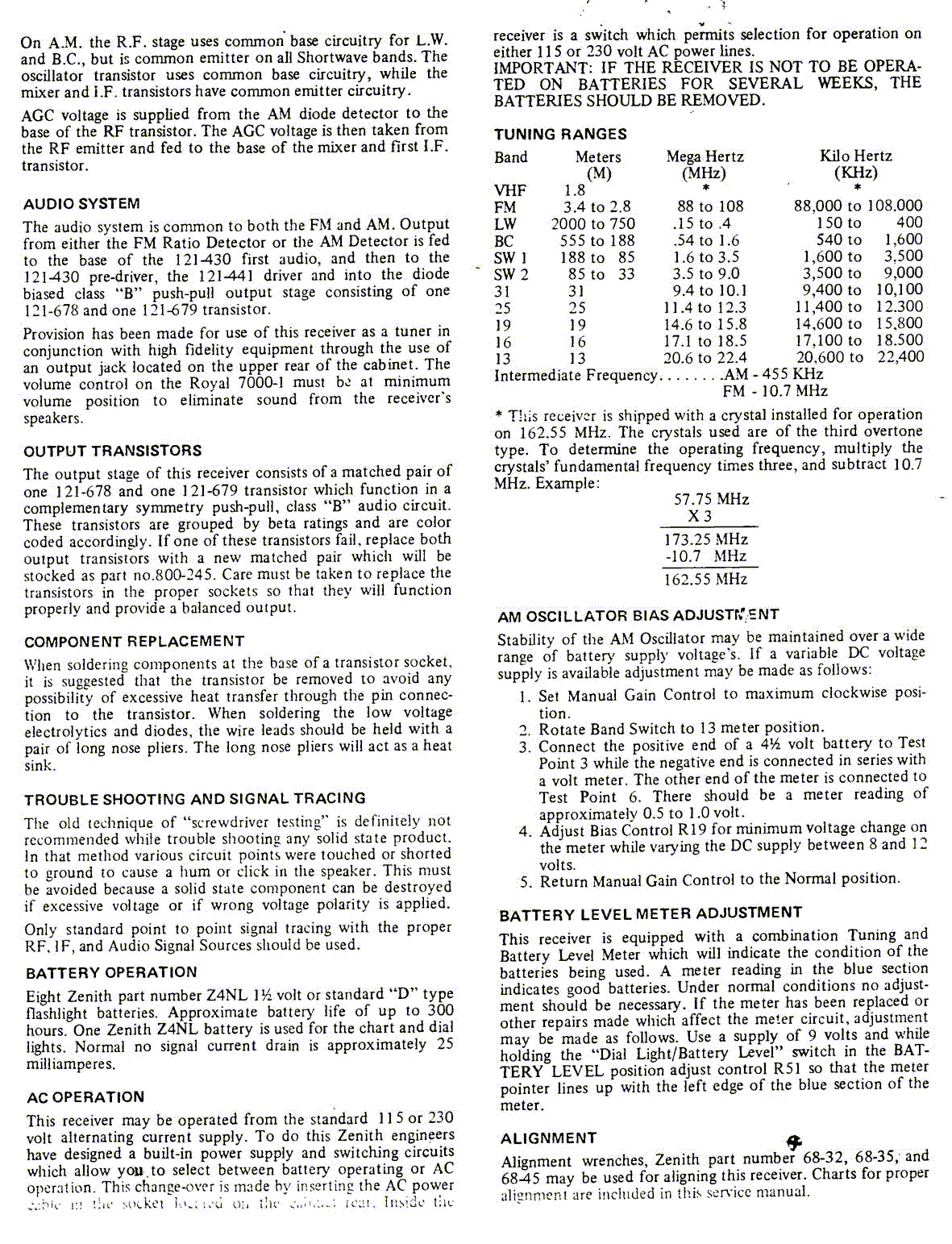

| Page2
| Page3

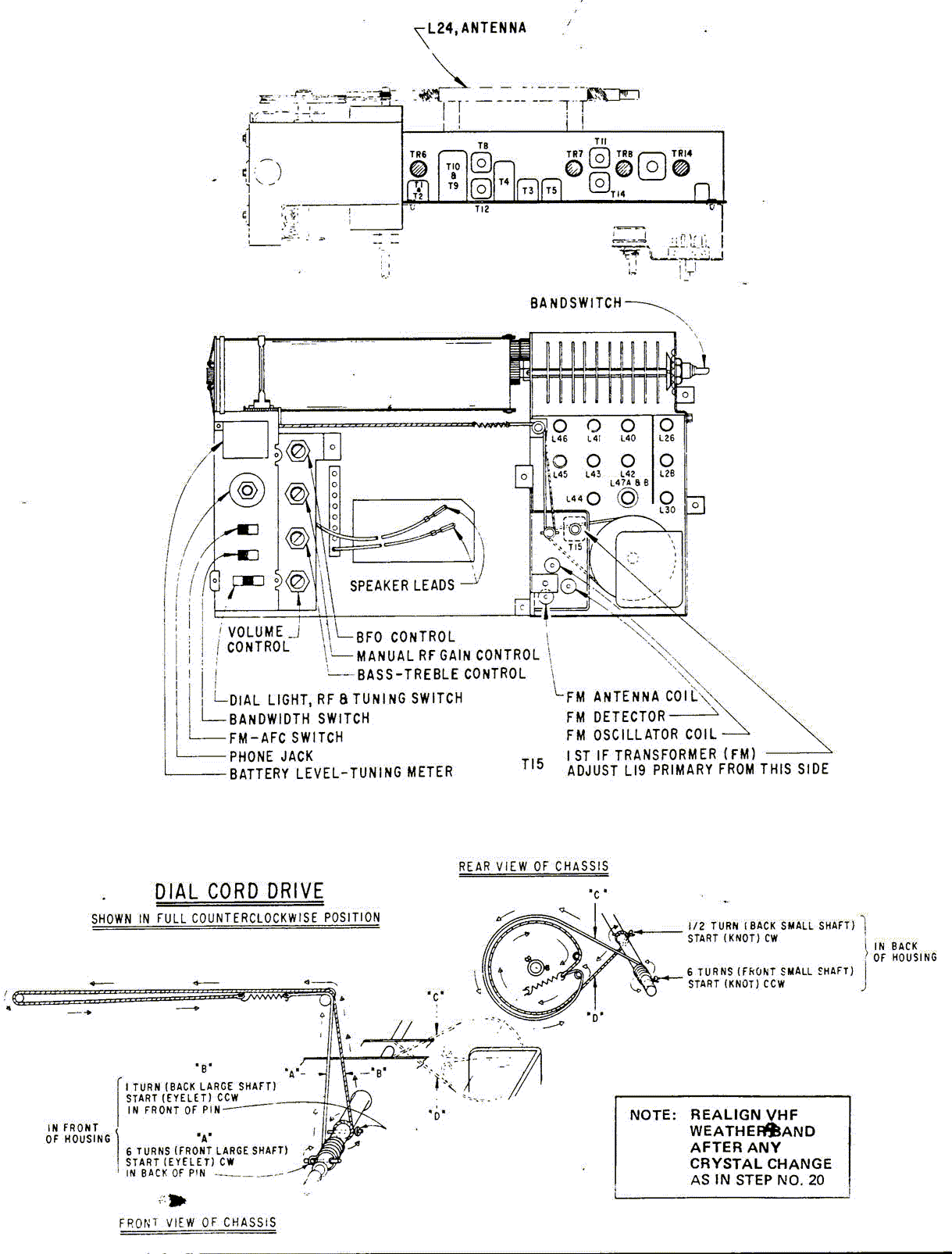

| Page4
| Page5
| Page6

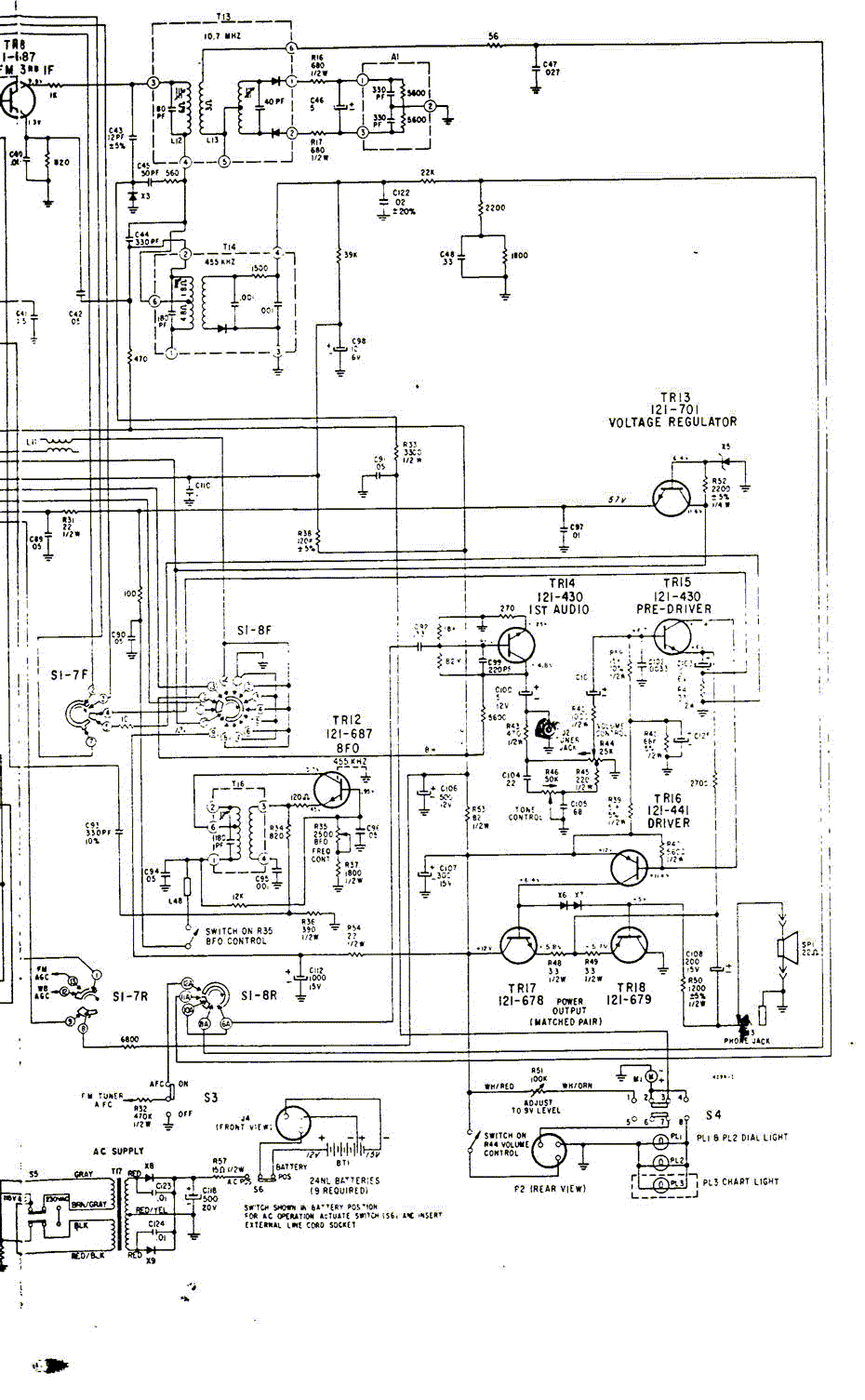

| Page7

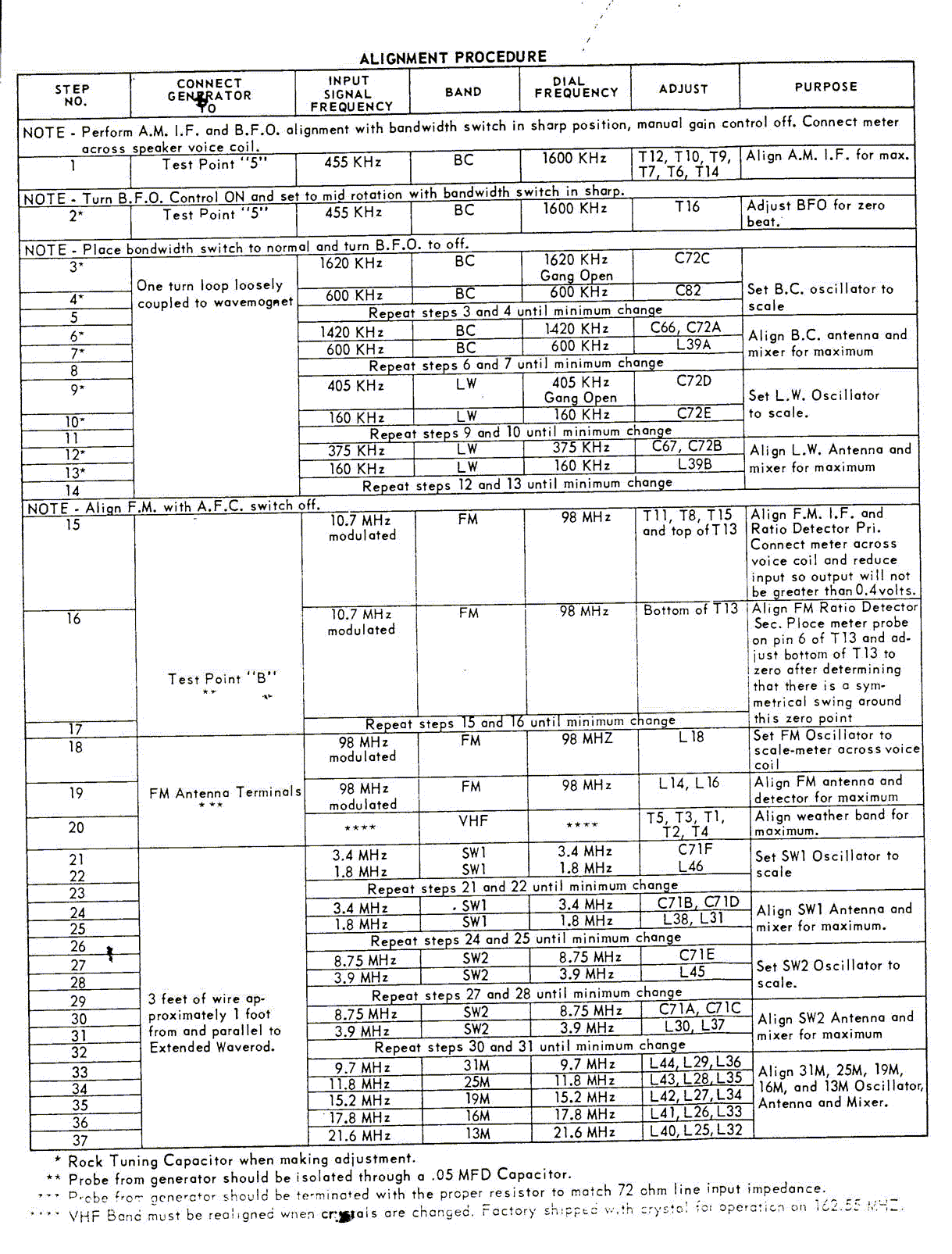

| Page8
| Page9
| Page10
| Page11
| Page12

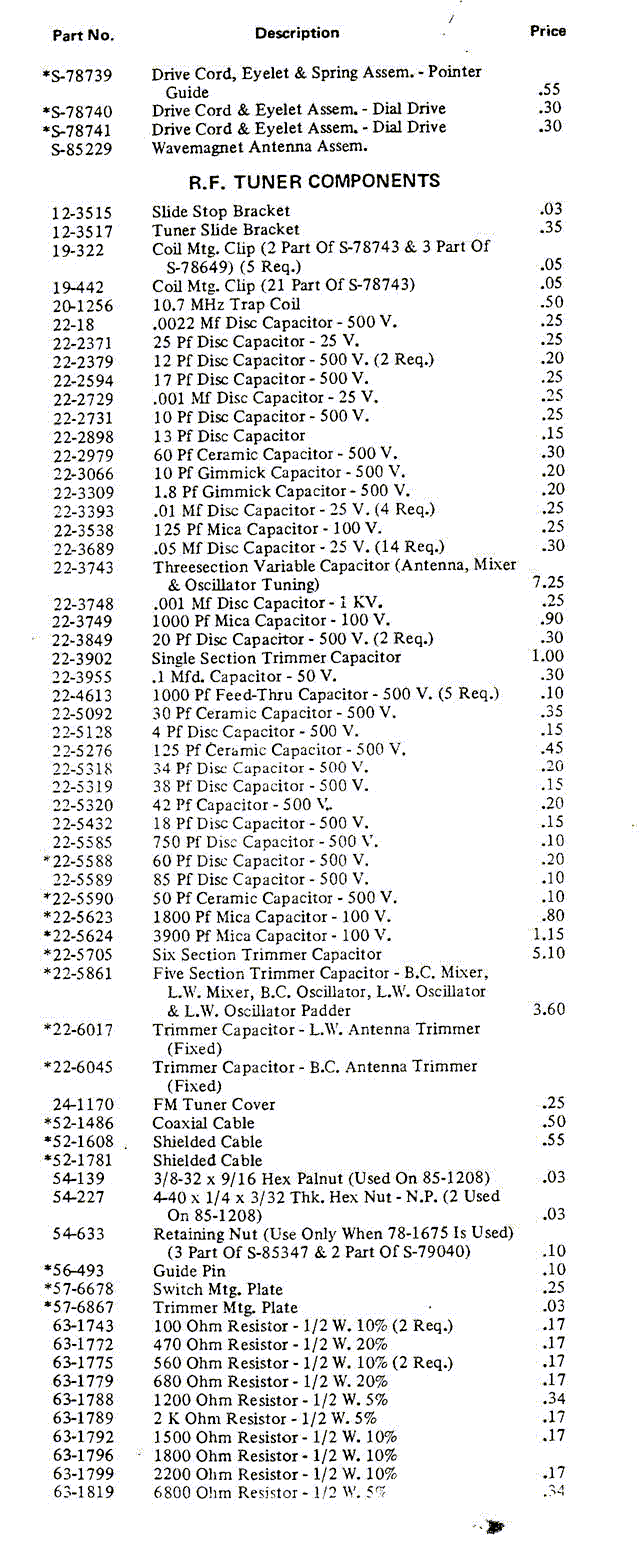

| Page13

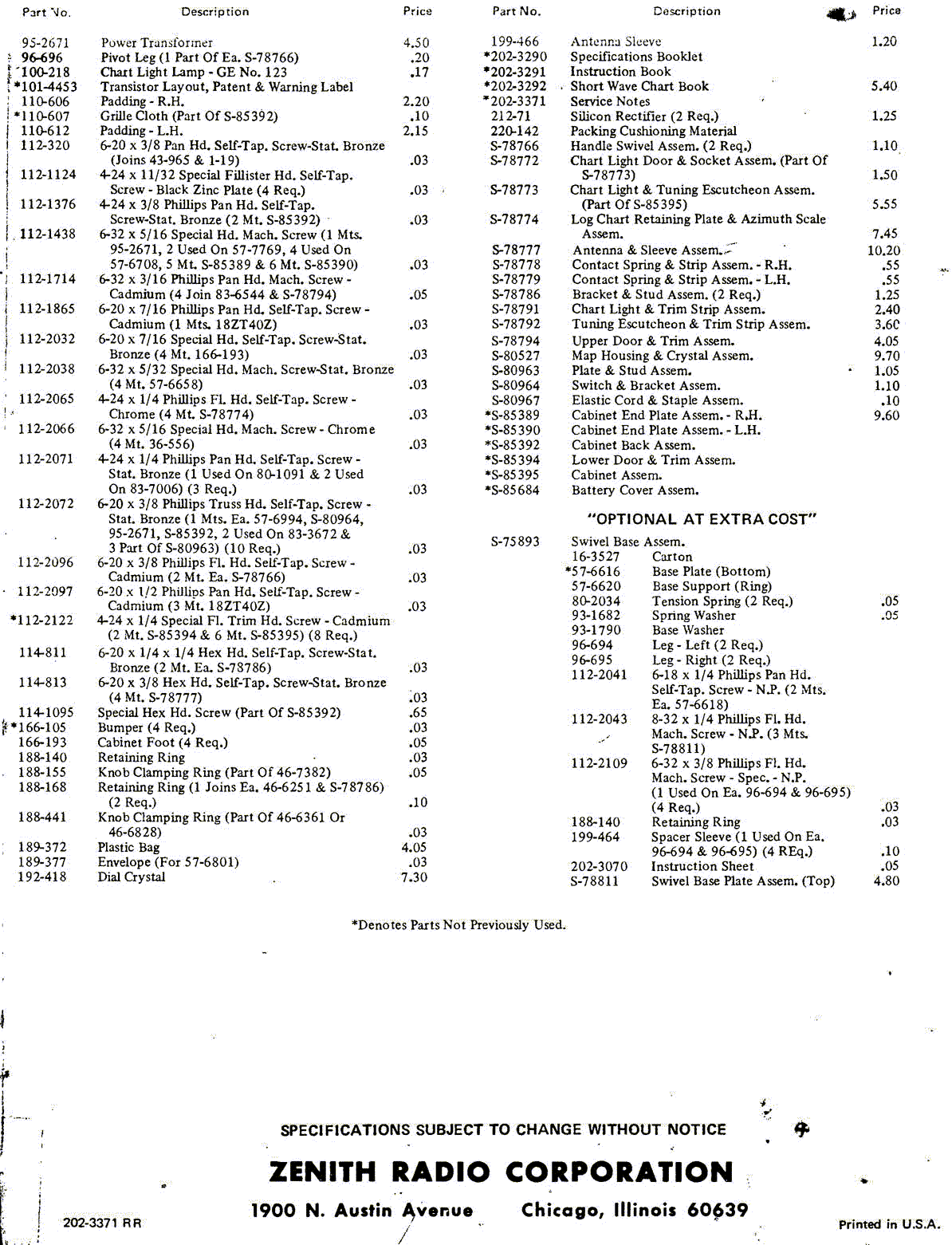

| Page14
|
|
| FROM | A gift from Gilda Normando. This set used to belong to her husband, Wanderley Normando. |
