RADIOEmerson
MODEL30 AW
TECHNOLOGYTube
YEAR1933
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1500 Kc; SW 1500 - 3000 Kc.

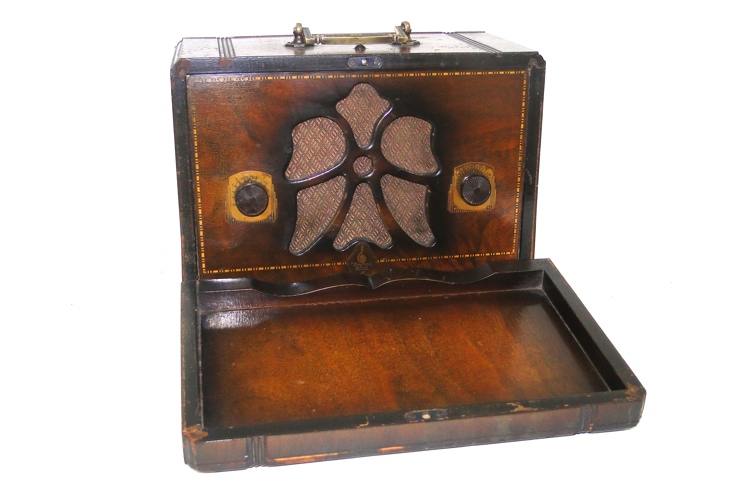

DESCRIPTIONFold down front door, cloth grill with fancy cut-outs, flat top with metal handle, left knob on/off volume and right knob tuning dial
CABINET STYLETable
CABINET MATERIALWood - Walnut
DIAL LAMP - N° x TYPE0 x ?
TONENo
CIRCUITSuperheterodyne
IF456 KC
POWER SUPPLYAC/DC
VOLTS100 - 135 V
CONSUMPTION?
AC CYCLES25-70 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 78 | 78 | 77 | 43 | 25Z5 |

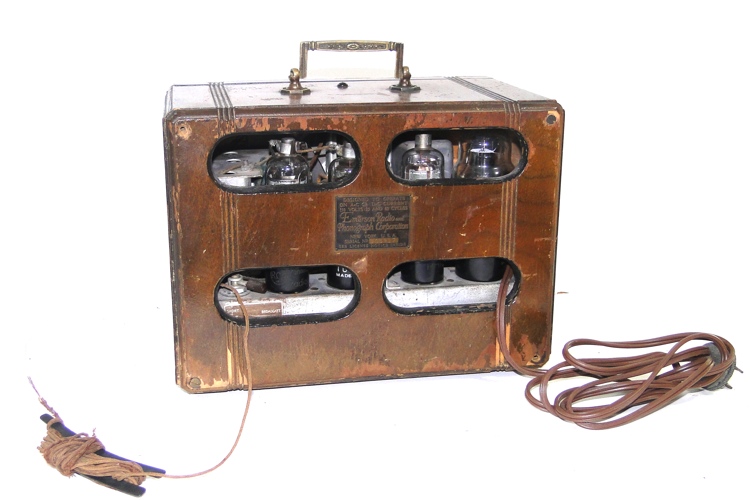

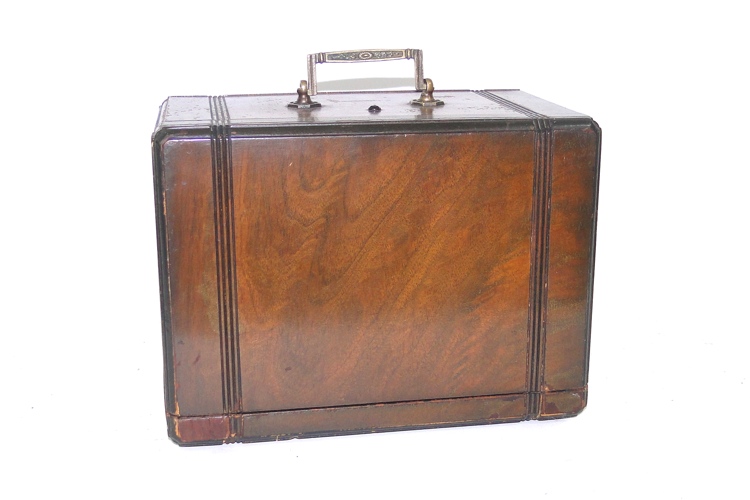

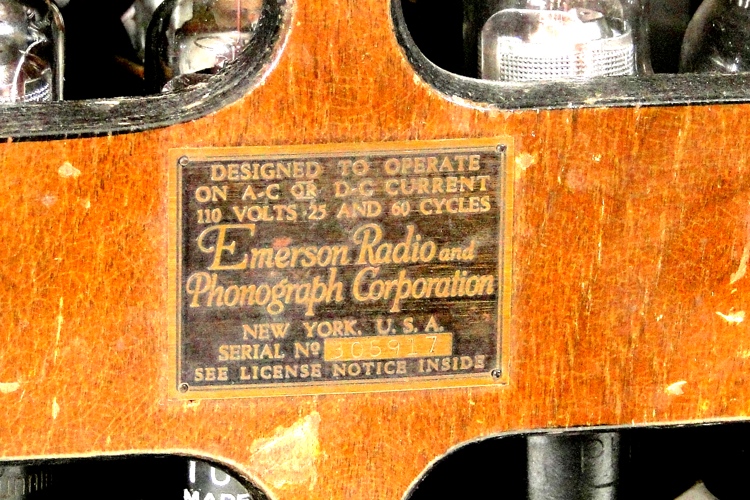

PICTURES(Click to enlarge image)

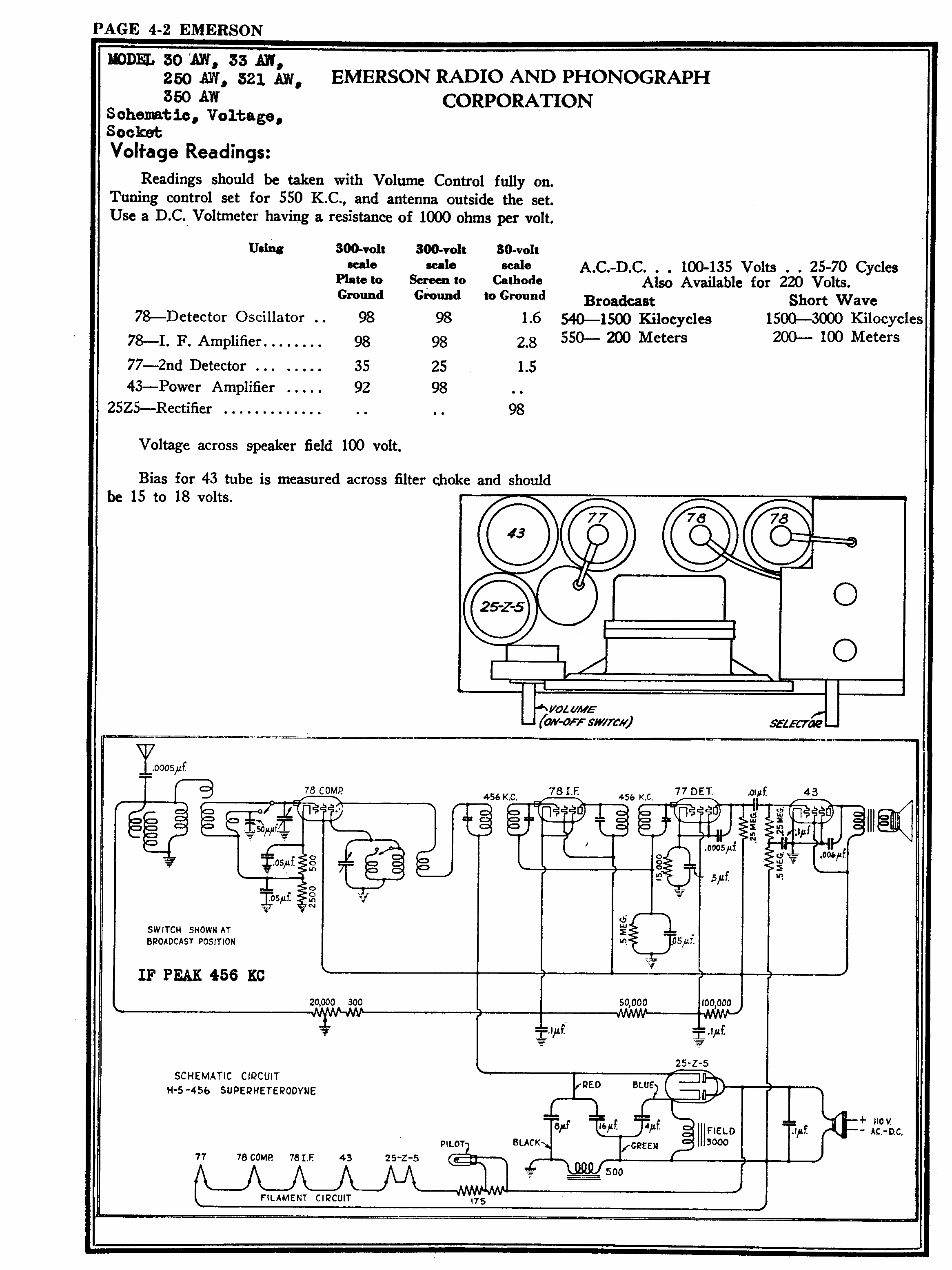

SCHEMATICS | Page1 |
FROMFrom Geoff in the Sep MAARC monthly meeting in Davidsonville, MD on Sepember 16th, 2012.
