RADIOZenith

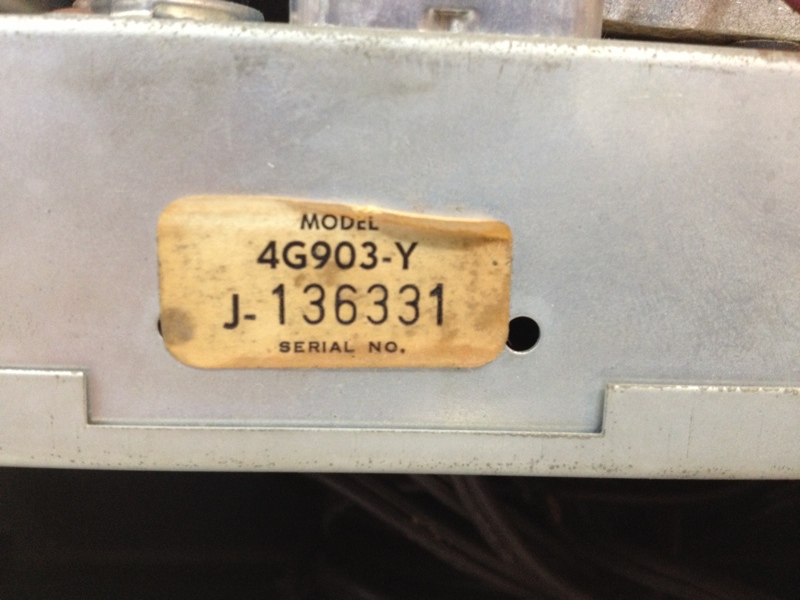

MODEL4G903Y
TECHNOLOGYTube
YEAR1949
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 535 - 1620 KHz

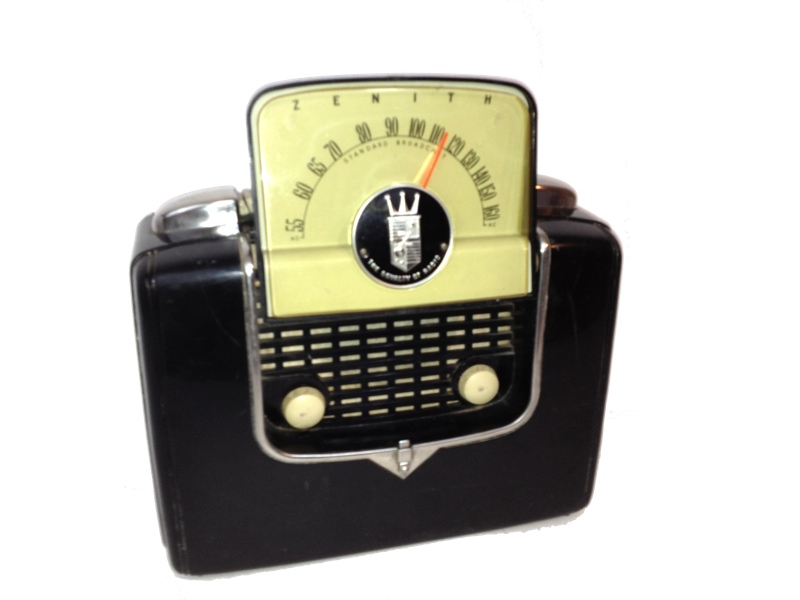

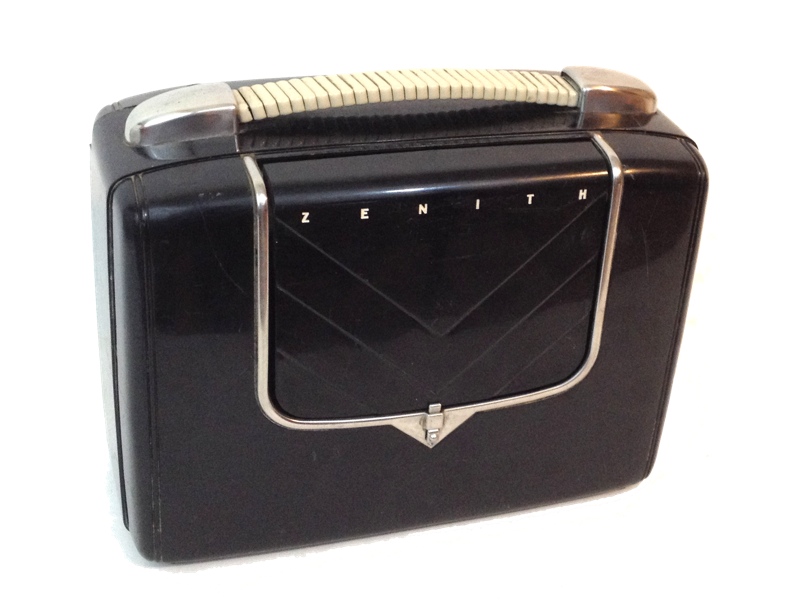

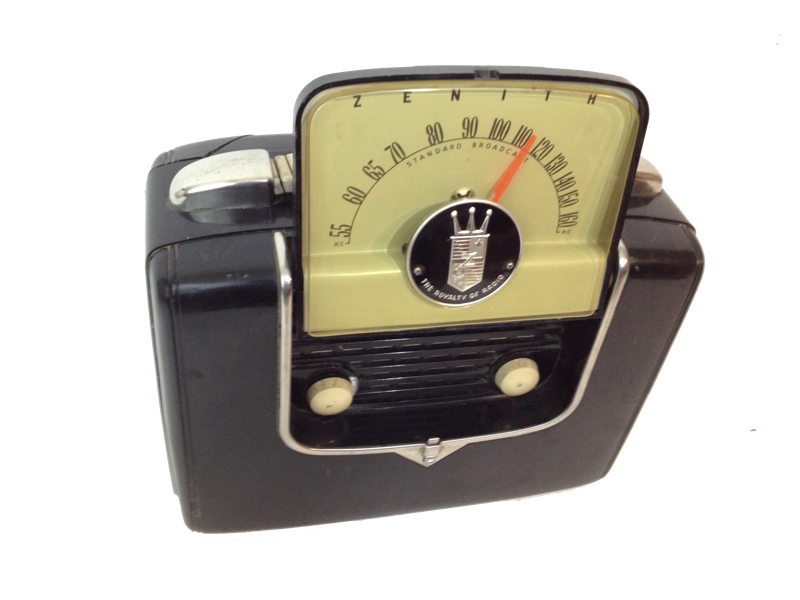

DESCRIPTIONFlip-over dial in lid, inner checkered grill area, white handle, 2 knobs.
CABINET STYLEPortable
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC Battery
VOLTS117 Volts
CONSUMPTION09 W
AC CYCLES50-60 Hz
CHASSIS4F40
TUBES LOCATION
TUBE COMPLEMENT | 1R5 | 1U4 | 1S5 | 3V4 |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom ebay US, 'badsometimes', May 12, 2012.
