RADIORCA Victor
MODELBR353B
TECHNOLOGYTube
YEAR0000
MADE INBRAZIL
WAVE BANDSBC/SW1/SW2
COVERAGE550-1650 Kc, 5,15-18 Mc, 9,4-12 Mc
DESCRIPTION
CABINET STYLEMantle
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE2 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC
VOLTS100 V, 120 V, 180 V, 220 V
CONSUMPTION60 W
AC CYCLES50-60 Hz

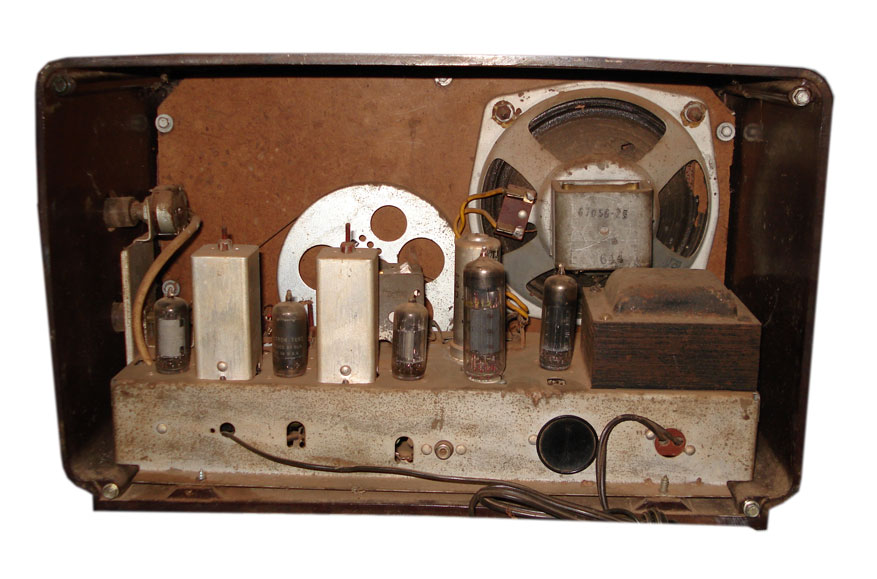

CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 6BE6 | 6BA6 | 6AV6 | 6AQ5 | 6X4 |
PICTURES(Click to enlarge image)
SCHEMATICS
FROM
