RADIOEmerson
MODEL32
TECHNOLOGYTube
YEAR1934
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1500 KHz; SW 1.5 - 3.9 MHz.

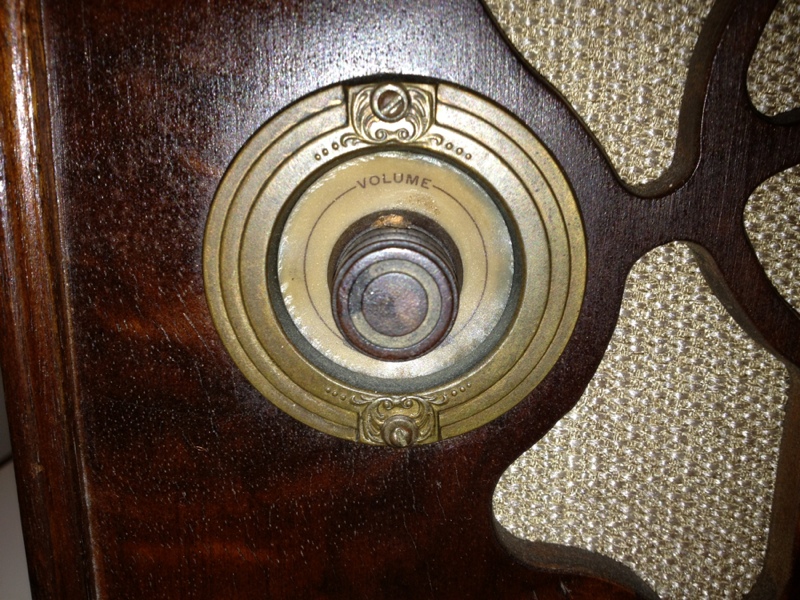

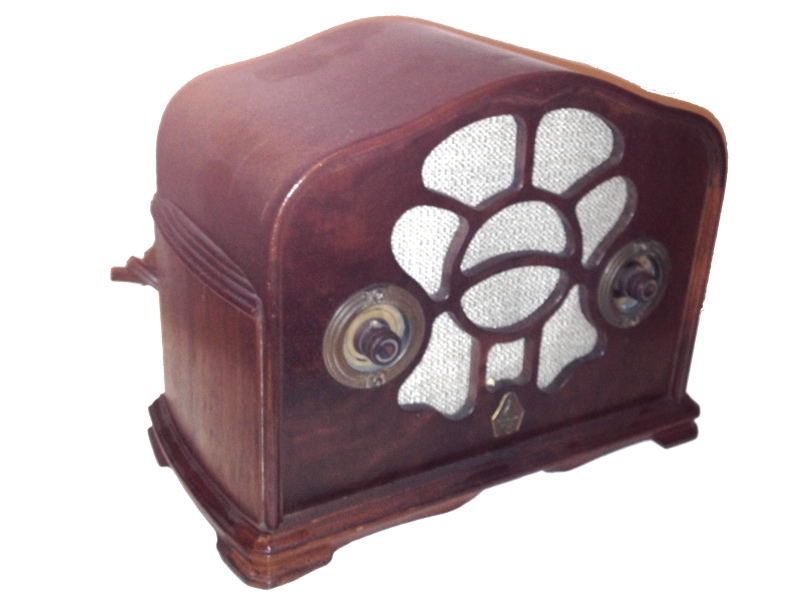

DESCRIPTIONFrontal cloth grill with fancy cut-outs, both lateral slanted top, left knob on/off volume and right knob tuning dial.
CABINET STYLEMantle
CABINET MATERIALWood
DIAL LAMP - N° x TYPE2 x ?
TONENo
CIRCUITSuperheterodyne
IF456 KC
POWER SUPPLYAC/DC
VOLTS105 - 130 Volts
CONSUMPTION?
AC CYCLES25-70 Hz
CHASSIS

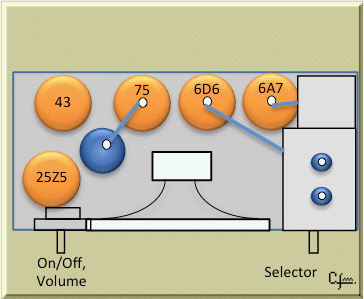

TUBES LOCATION
TUBE COMPLEMENT | 6A7 | 6D6 | 75 | 43 | 25Z5 |

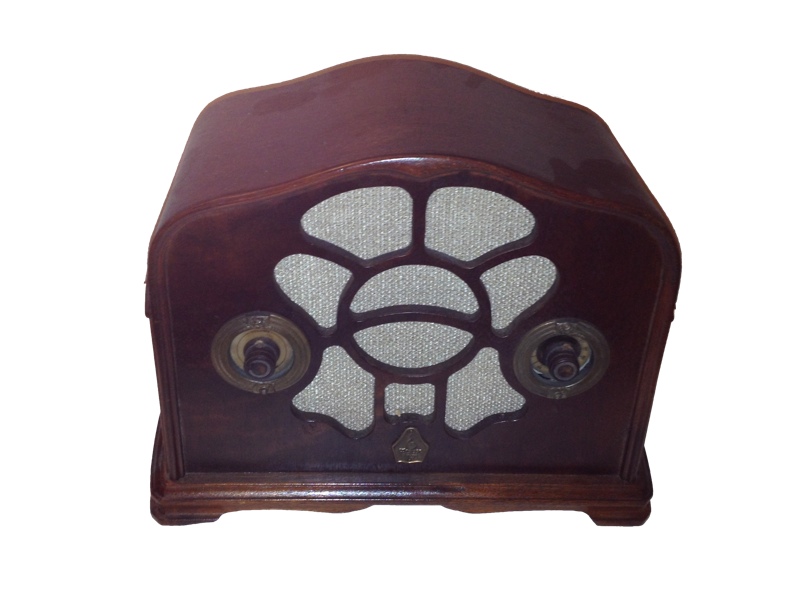

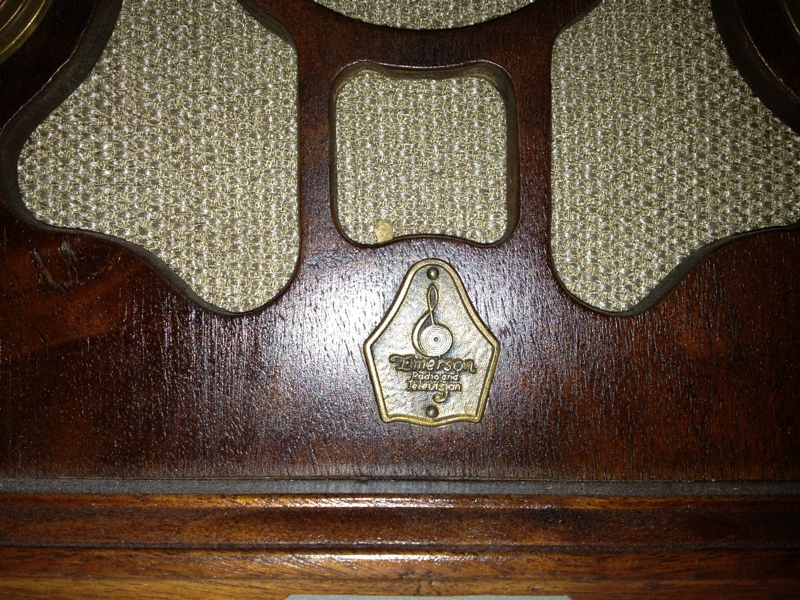

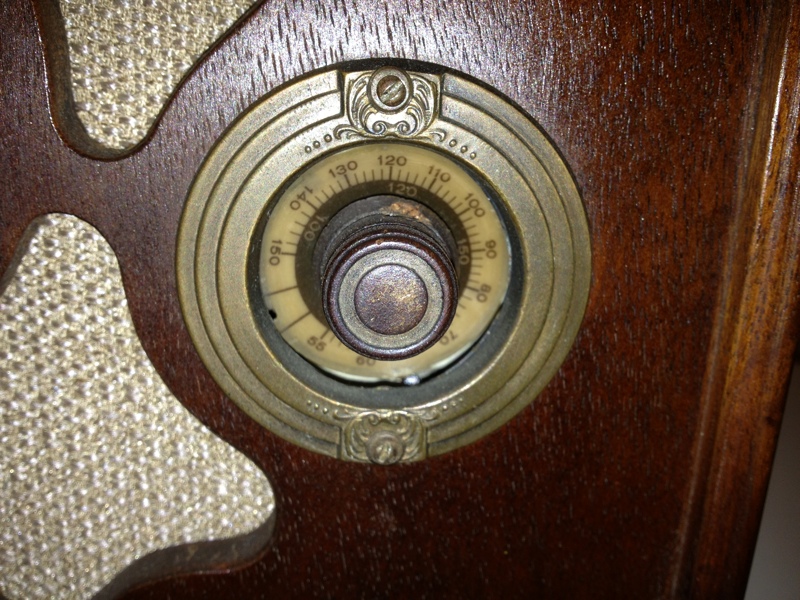

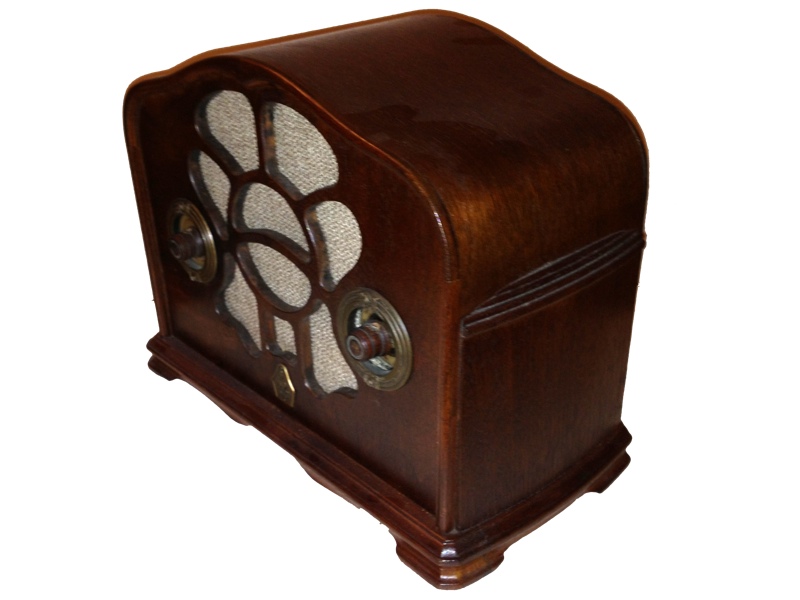

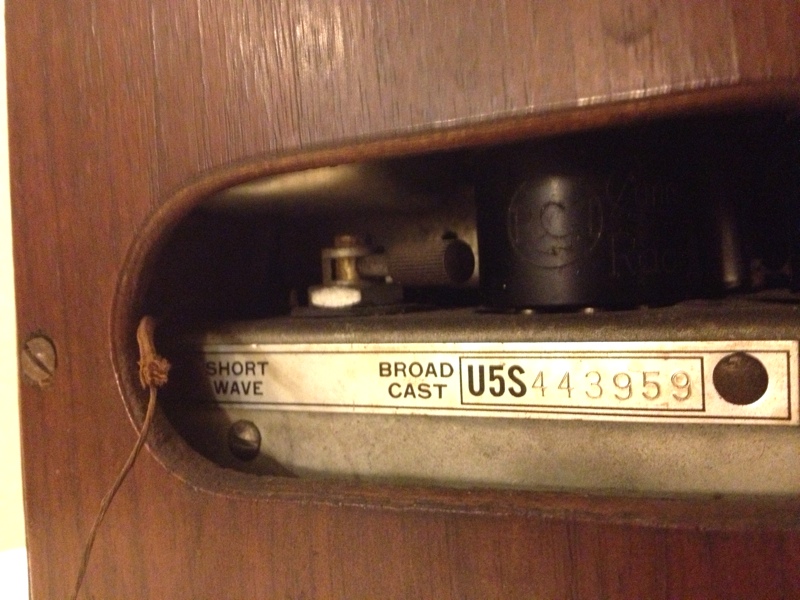

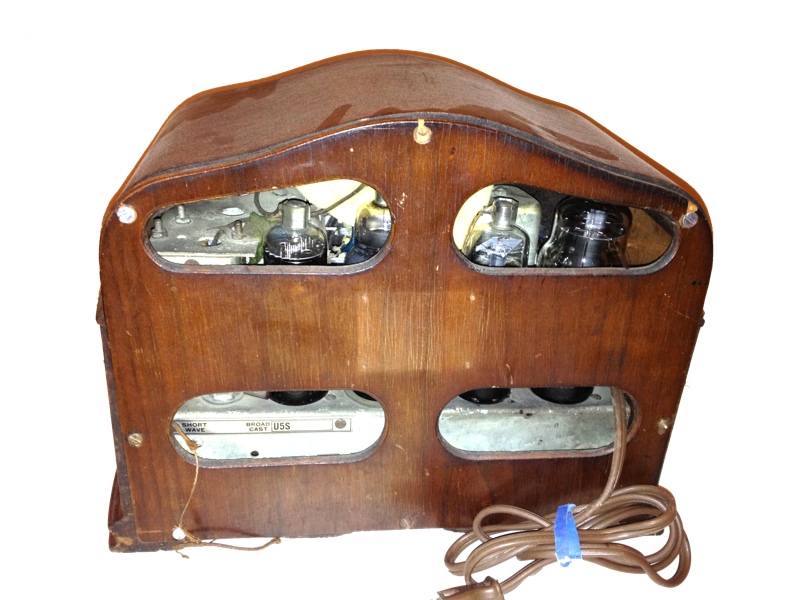

PICTURES(Click to enlarge image)

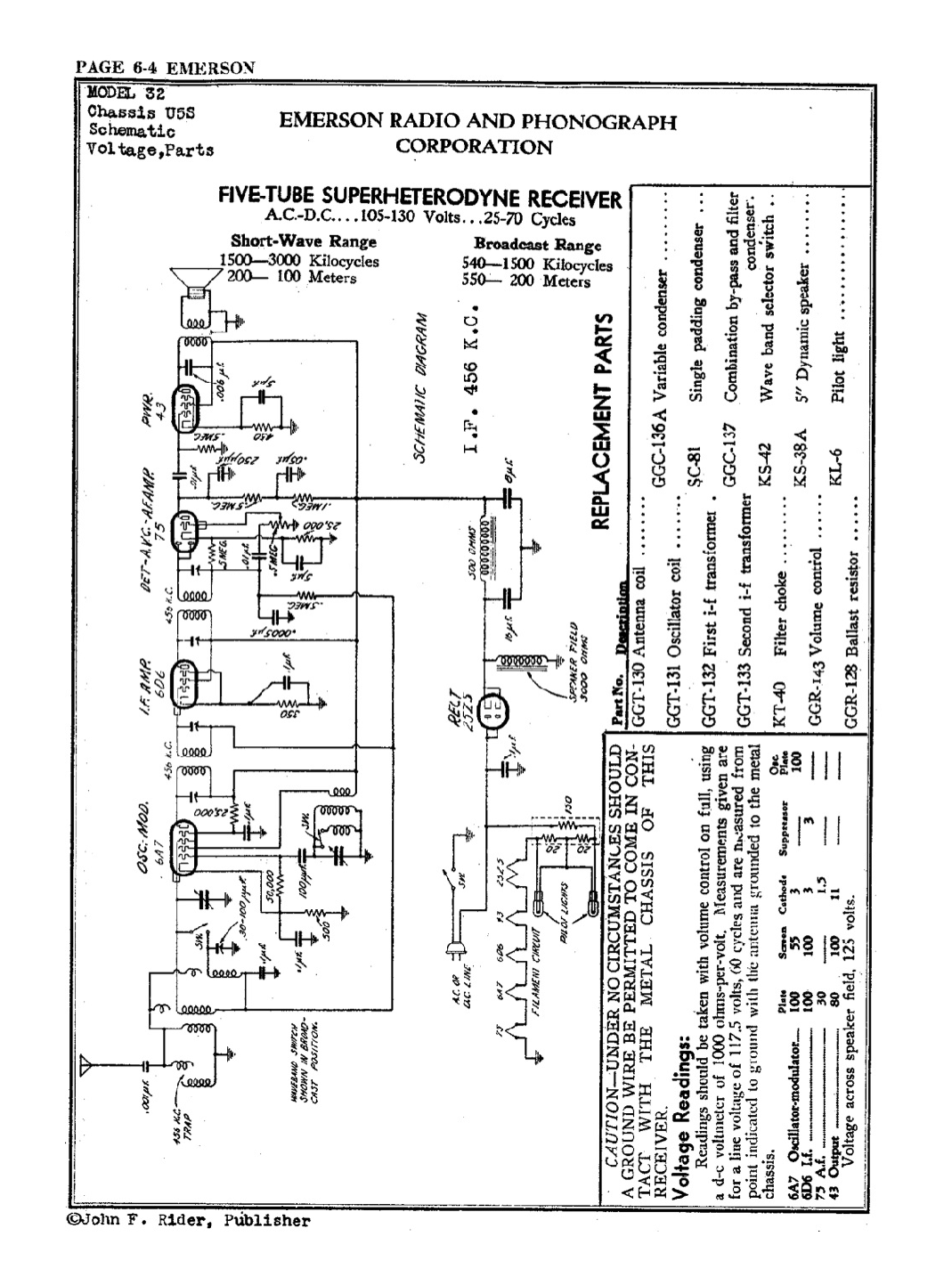

SCHEMATICS | Page1 |
FROMFrom ebay US, sticky501 seller, on May 14th, 2013.
