RADIOTelefunken
MODELAtlanta 7151W
TECHNOLOGYTube
YEAR1960
MADE INGERMANY
WAVE BANDSBC/SW1/SW2
COVERAGEBC 510-1630 Kc, SW1 7,7-22,5 Mc, SW2 2,2 - 7,5 Mc
DESCRIPTIONLower front slide rule dial, upper grill cloth, 2 frontal knobs, 5 band selection pushbuttons, magic eye indicator.
CABINET STYLETable
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE1 x 46
TONE2 Positions
CIRCUITSuperheterodyne
IF460 KC
POWER SUPPLYAC
VOLTS100, 118, 150, 200, 230 V
CONSUMPTION35 W
AC CYCLES50-60 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | ECH81 | EF89 | EBC91 | EL95 | DM71 |

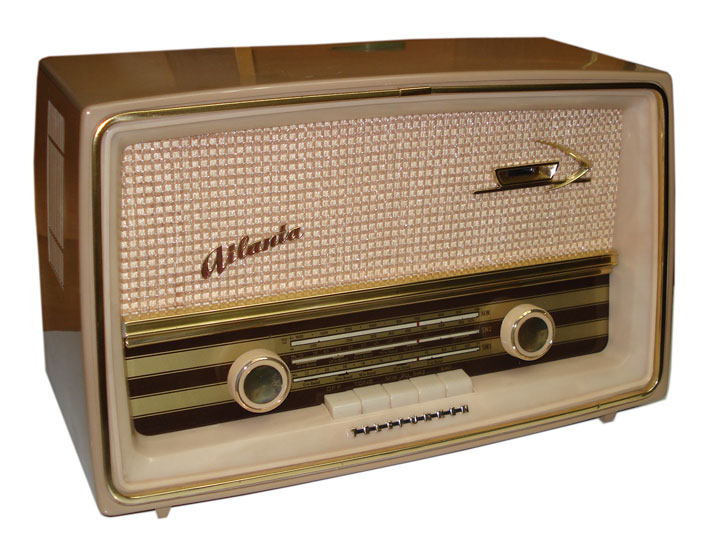

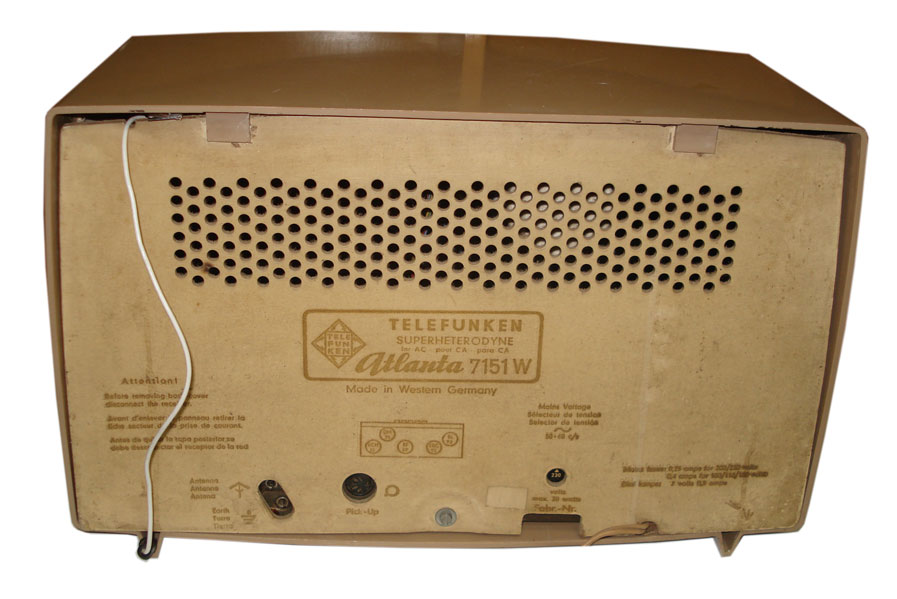

PICTURES(Click to enlarge image)

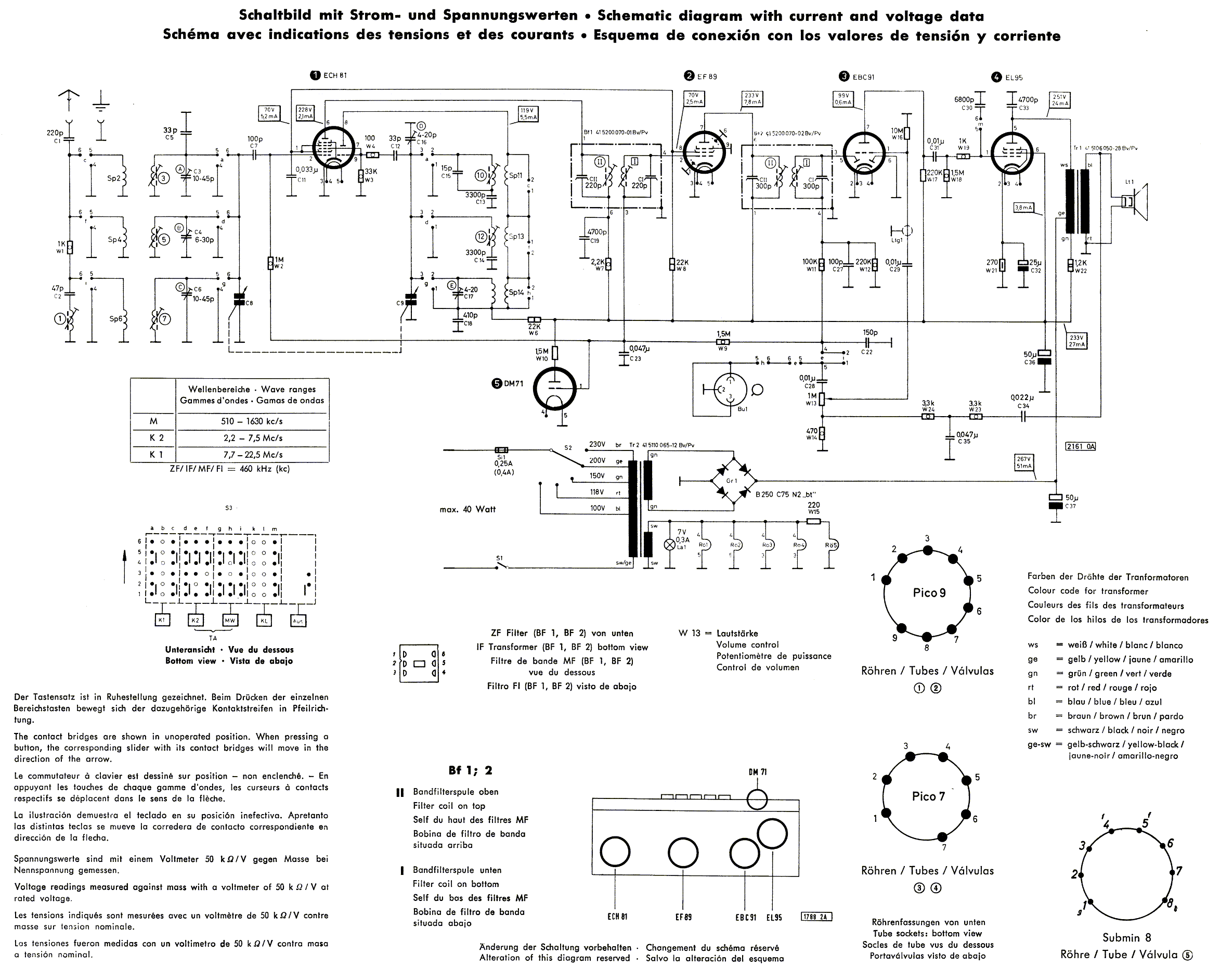

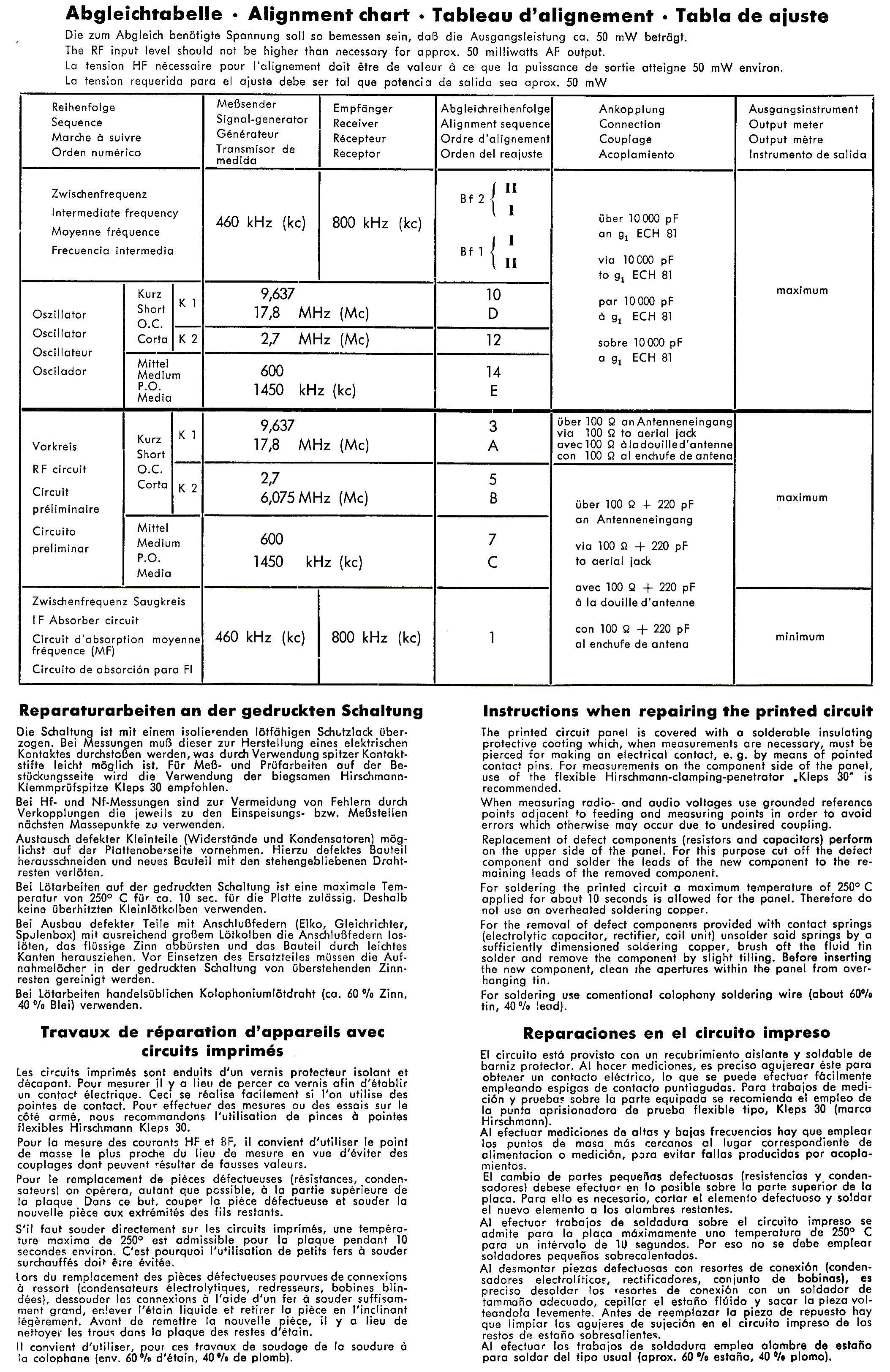

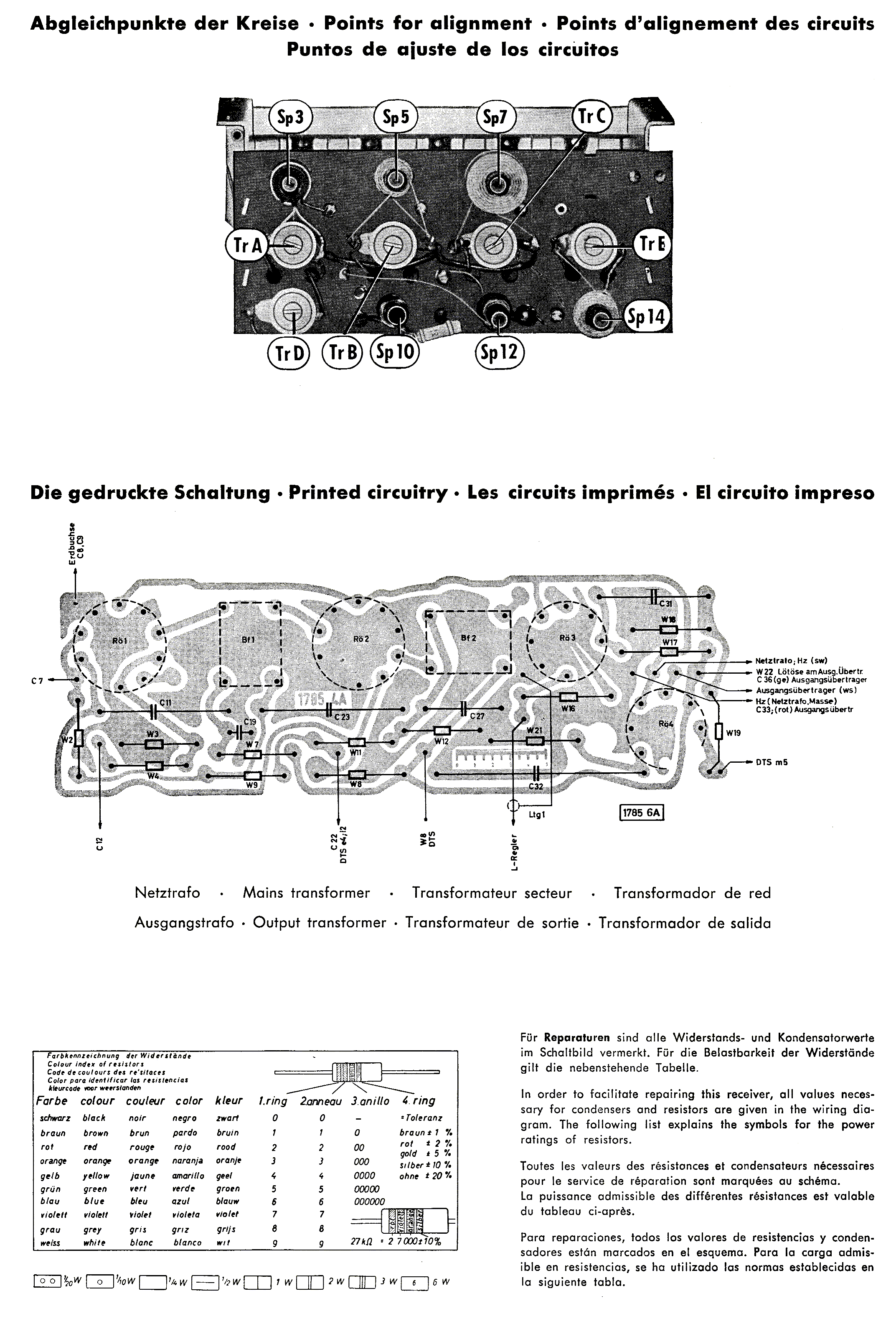

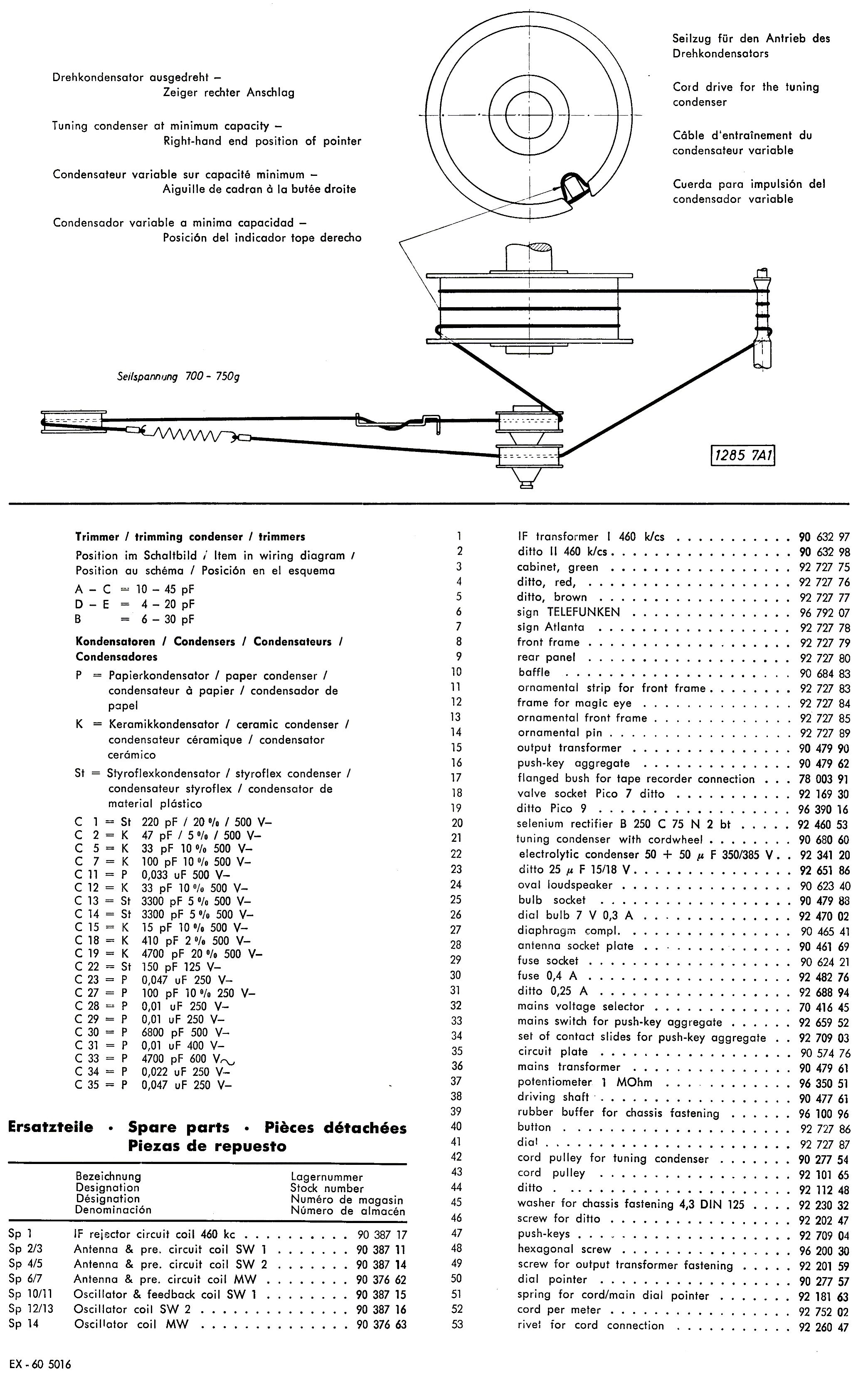

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 |
FROMFrom Geraldo Tonon, Brasilia, DF, Brazil
ADDITIONAL INFOSelenium rectifier replaced by a solid state construction. See picts 5 and 6.
