RADIOArvin
MODEL444A Brown
TECHNOLOGYTube
YEAR1946
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1600 KHz
DESCRIPTIONRight front dial, left horizontal louvers, raised top, 2 knobs, brown color
CABINET STYLEMidget
CABINET MATERIALMetal
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS117 V
CONSUMPTION30 W
AC CYCLES50-60 Hz

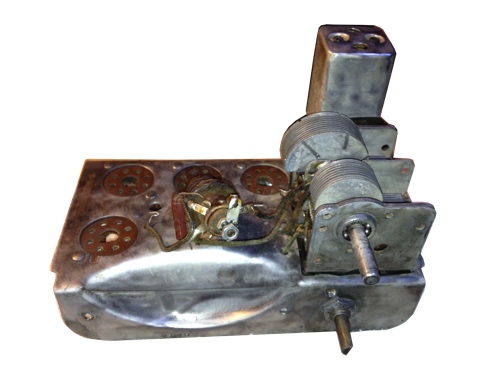

CHASSIS

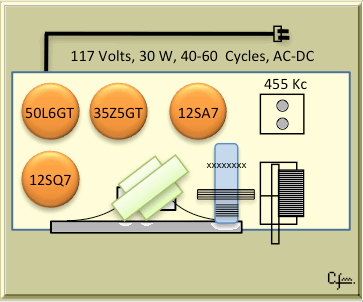

TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SQ7 | 50L6 | 35Z5 |

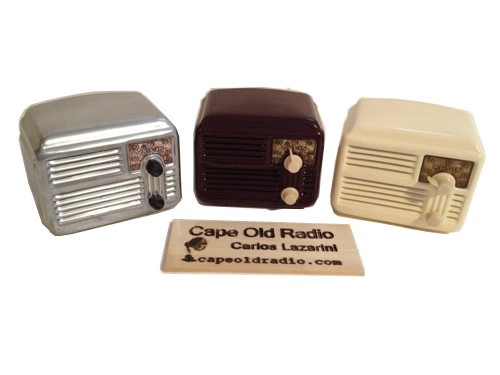

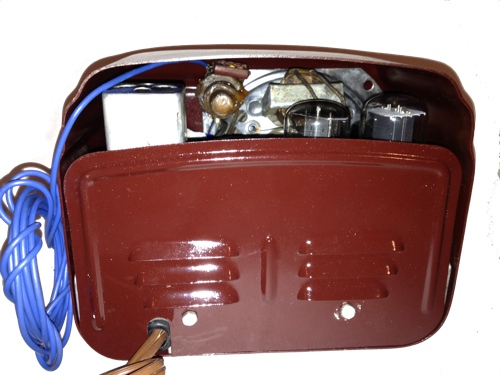

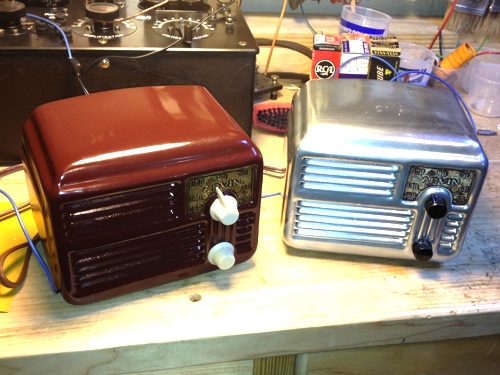

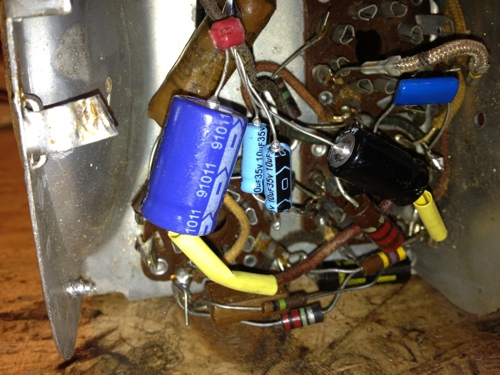

PICTURES(Click to enlarge image)

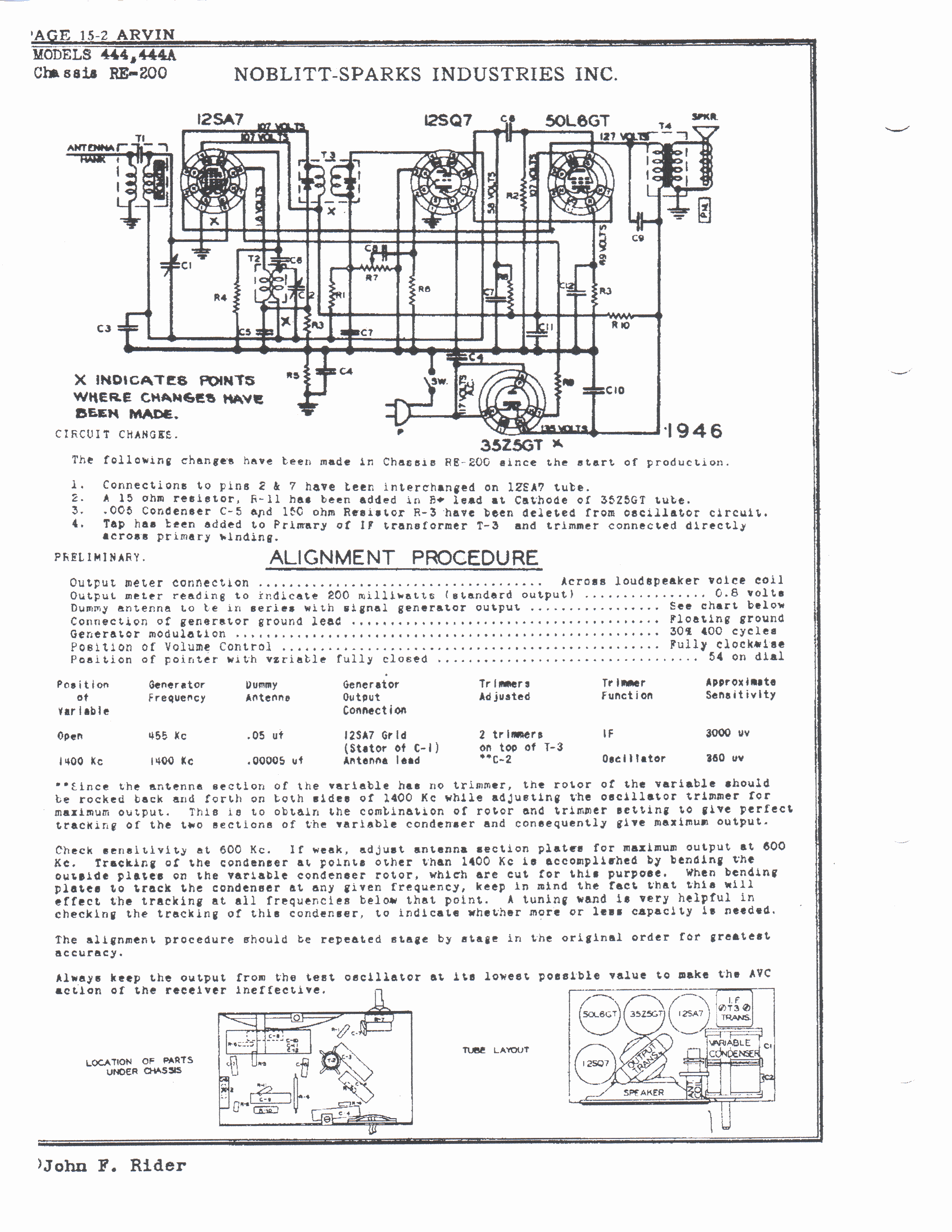

SCHEMATICS | Page1 | Page2 |
FROMBought from Bill Goodwin in a box of junkers in the 2012 MAARC Radioactivity, the Mid Atlantic Antique Radio Club annual spring event on June 21-23, 2012
