RADIOMajestic
MODEL90
TECHNOLOGYTube
YEAR1929
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC
DESCRIPTIONNice cabinet with upper dial and lower grill cloth. Chassis with 5 gang variable condenser for tuning the TRF balanced circuit with a single control.
CABINET STYLEConsole Lowboy
CABINET MATERIALWood - Mahogany
DIAL LAMP - N° x TYPE1 x 43
TONENo
CIRCUITTRF Neutrodyne
IFNot applicable
POWER SUPPLYAC
VOLTS105, 115, 125 V
CONSUMPTION105 W
AC CYCLES25-40 and 50-60 Hz
CHASSIS90B SERIAL 356828
TUBES LOCATION
TUBE COMPLEMENT | 27 | 27 | 27 | 27 | 27 | 45 | 45 | 80 |

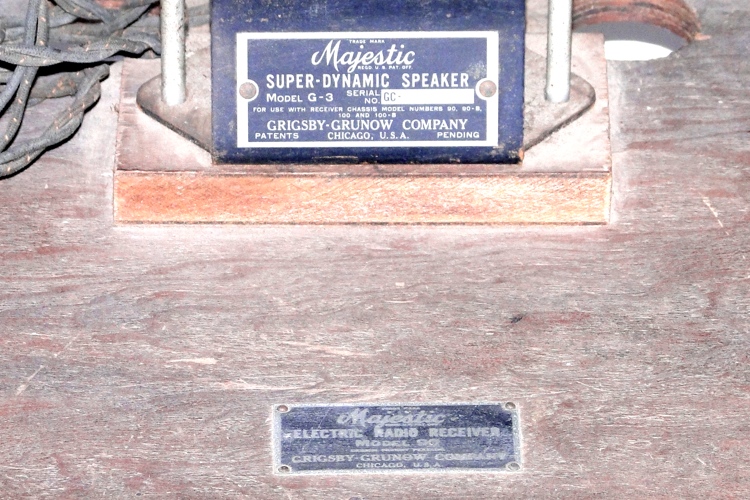

PICTURES(Click to enlarge image)

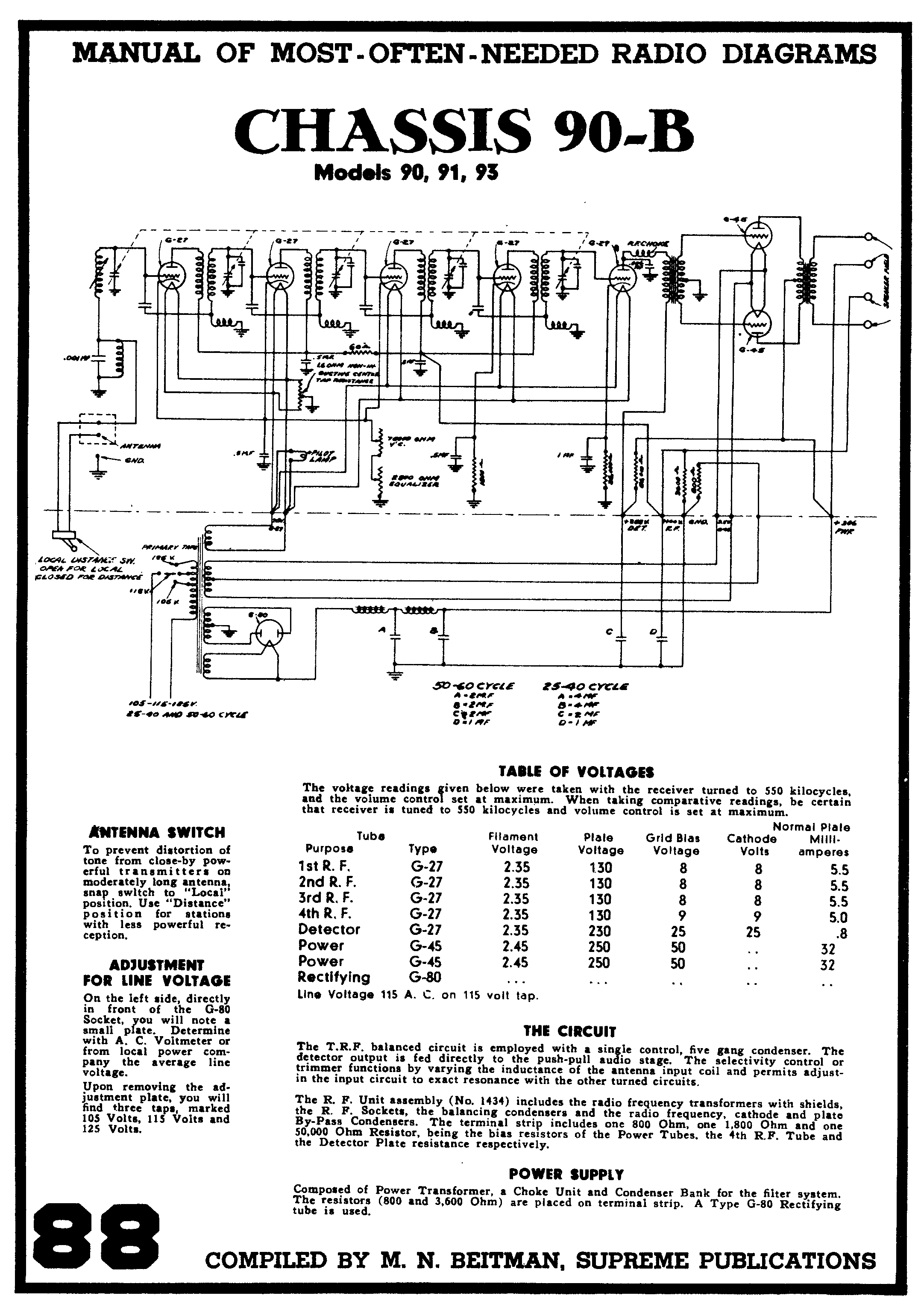

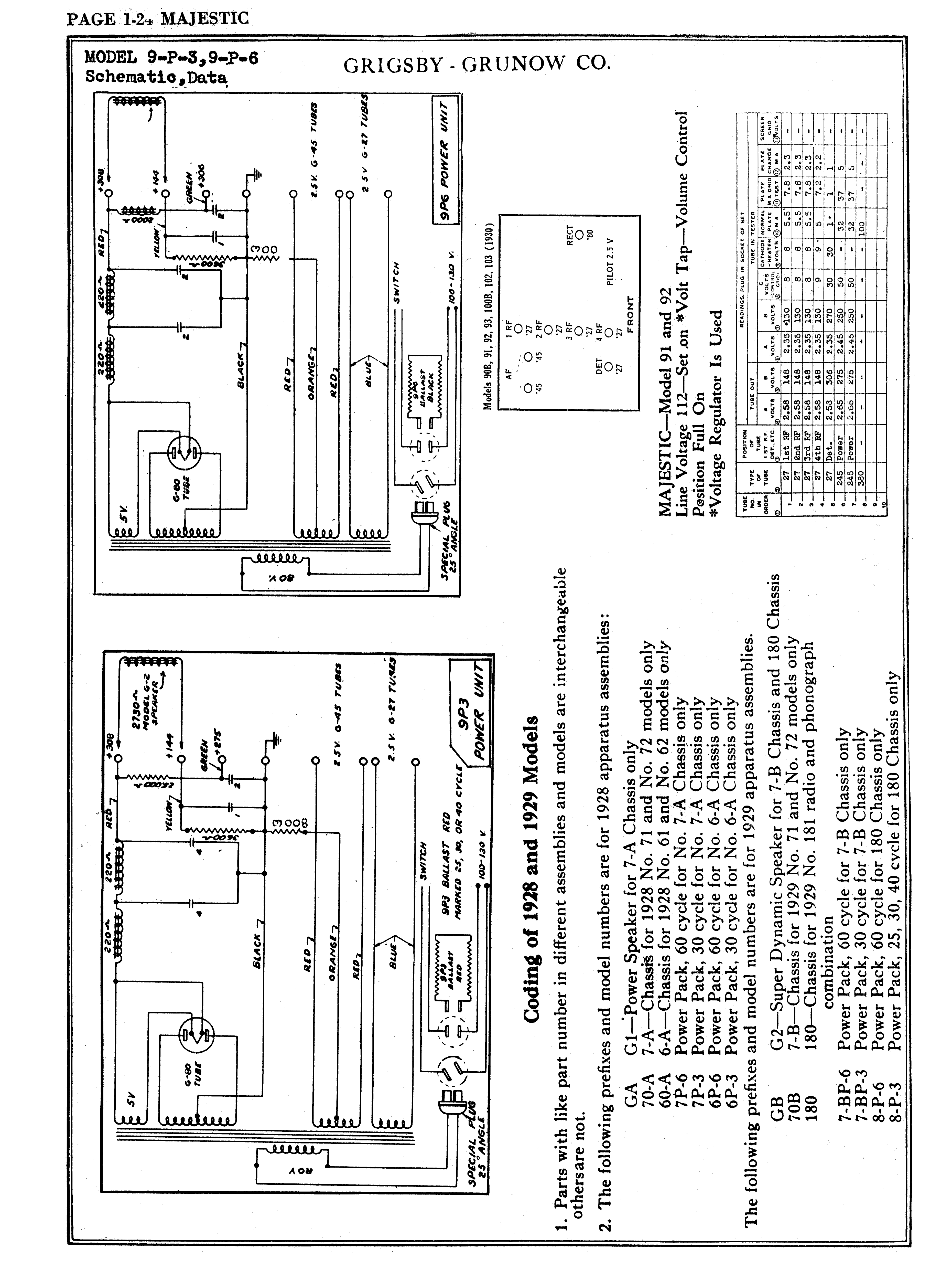

SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom 2012 AWA Conference in Rochester, NY, Aug 23rd.
