RADIOZenith
MODEL6D539
TECHNOLOGYTube
YEAR1941
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEAM 540 - 1600 Kc, SW 5.6 - 16 Mc
DESCRIPTIONRight front blue dial, 3 white plastic knobs, left cloth grill. Original finish. Electricaly restored, works great.
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS117 V
CONSUMPTION25 W
AC CYCLES50-60 Hz
CHASSISChassis 6A16, Serial U193010
TUBES LOCATION
TUBE COMPLEMENT | 12K7 | 12SA7 | 12SQ7 | 14H7 | 35L6 | 35Z5 |

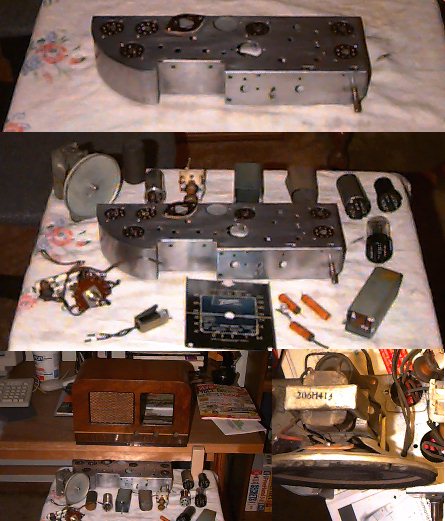

PICTURES(Click to enlarge image)

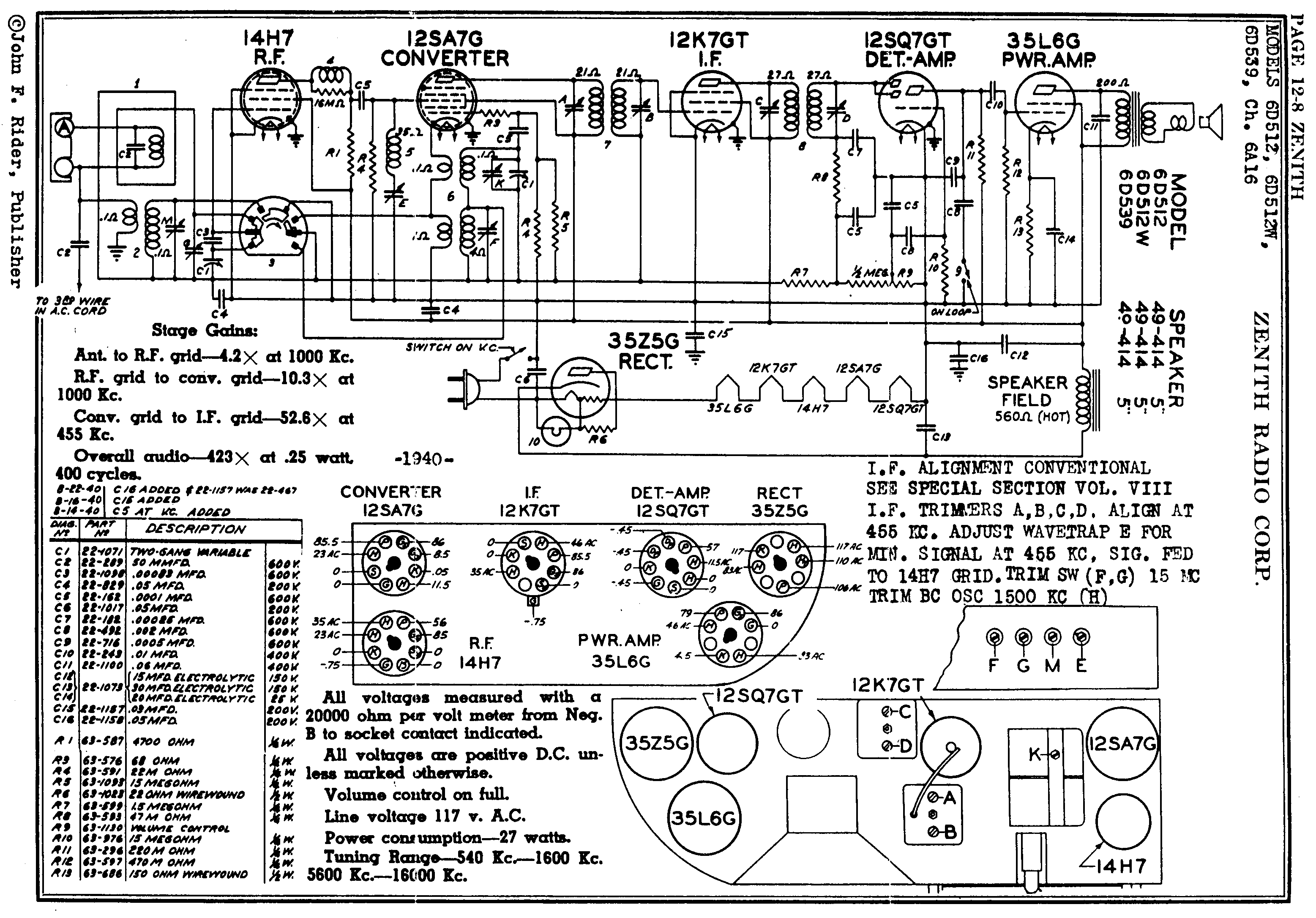

SCHEMATICS | Page1 |
FROMGarage Sale Ms. Mary Thomas, Brooktondale, NY.
ADDITIONAL INFOAll papers caps replaced, electrolitics, and a few reistors as well. Completed on Feb 19, 1997.
