| RADIO | Telefunken |
| MODEL | 40W |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1929 |
| MADE IN | GERMANY |
| WAVE BANDS | BC |
| COVERAGE | |
| DESCRIPTION | High rectangular case, center front dial with higher scutecheon, 4 knobs. |
| CABINET STYLE | Table |
| CABINET MATERIAL | Bakelite |
| DIAL LAMP - N° x TYPE | 0 x None |
| TONE | No |
| CIRCUIT | TRF |
| IF | Not applicable |
| POWER SUPPLY | AC |
| VOLTS | 110 - 220 V |
| CONSUMPTION | ? |
| AC CYCLES | 50 Hz |
| CHASSIS | |
| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| RGN1054 | REN1204 | REN1104 | REN1004 | RE134 |
|

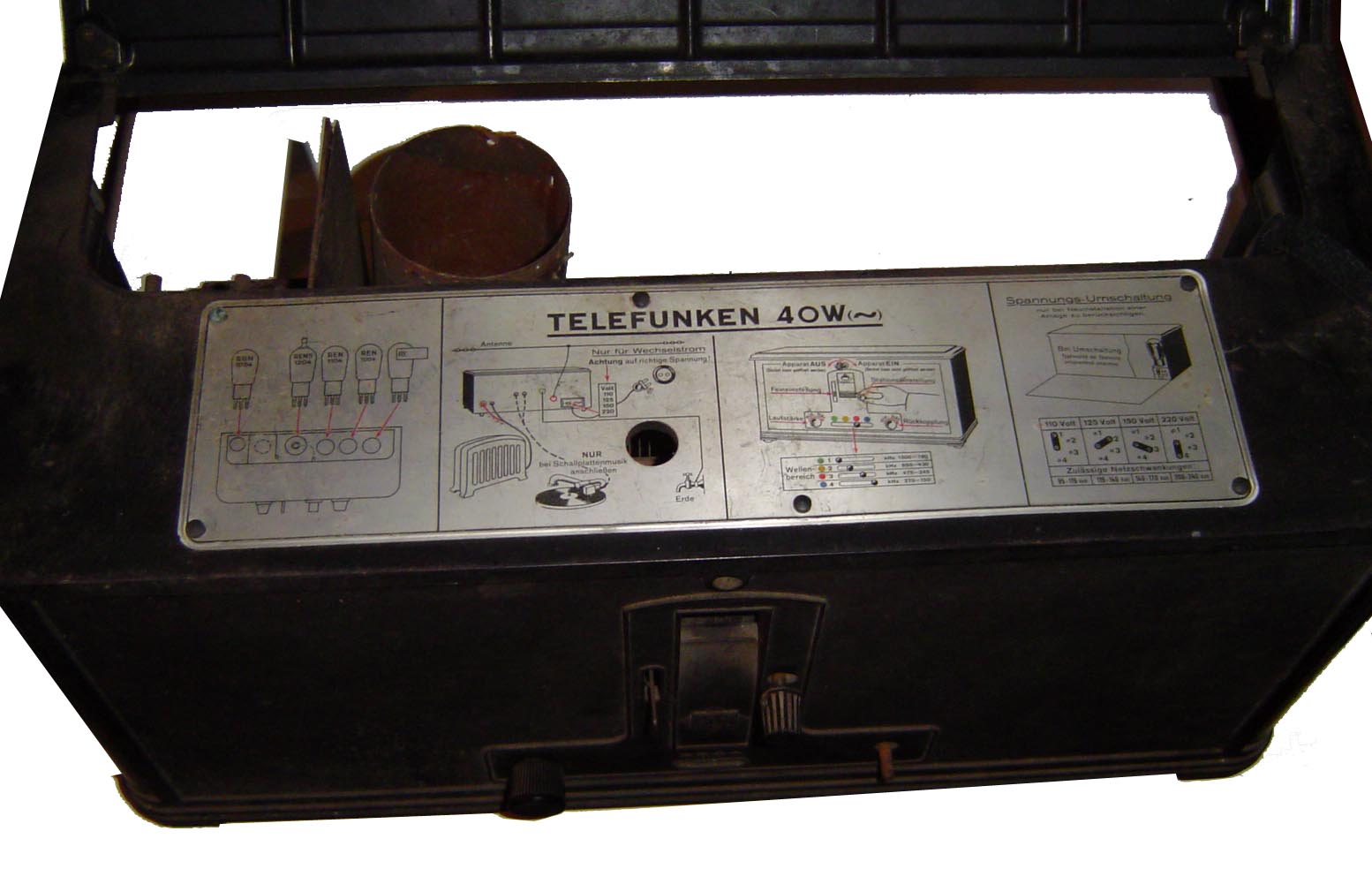

| PICTURES | (Click to enlarge image) |
|
|
| SCHEMATICS |
| Page1
|
|
| FROM | Geraldo Tonon, Bauru, SP |
