| RADIO | Philco |
| MODEL | 37-620 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1937 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC/SW1/SW2 |
| COVERAGE | BC 530 - 1720 Kc; SW1 2.3 - 7.4 Mc; and SW2 7.35 - 22 Mc. |
| DESCRIPTION | Upper front roun dial with lower cloth grill wiwth "V" pattern, 4 frontal knobs. |
| CABINET STYLE | Console |
| CABINET MATERIAL | Wood |
| DIAL LAMP - N° x TYPE | 2 x ? |
| TONE | 2 Positions |
| CIRCUIT | Superheterodyne |
| IF | 470 KC |
| POWER SUPPLY | AC |
| VOLTS | 115 V |
| CONSUMPTION | 65 W |
| AC CYCLES | 50-60 Hz |
| CHASSIS | |

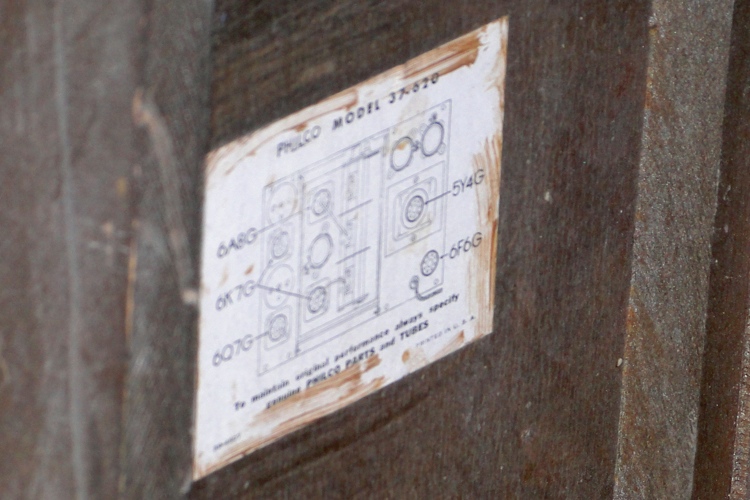

| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 6K7 | 6K7 | 6A8 | 6Q7 | 6F6 | 5Y4 |
|

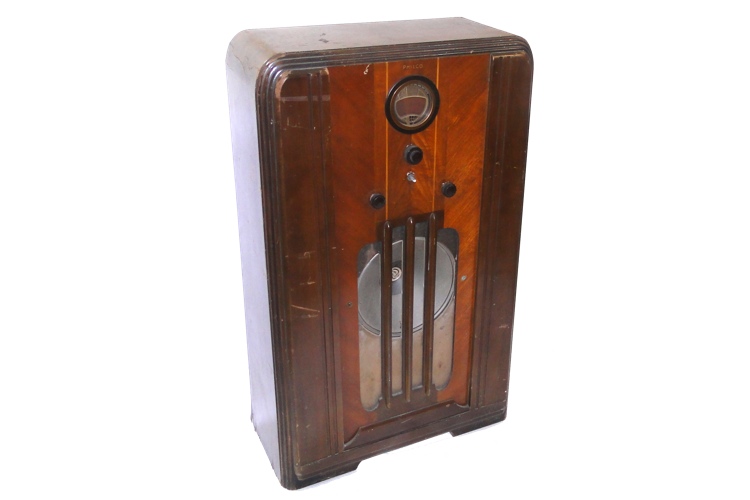

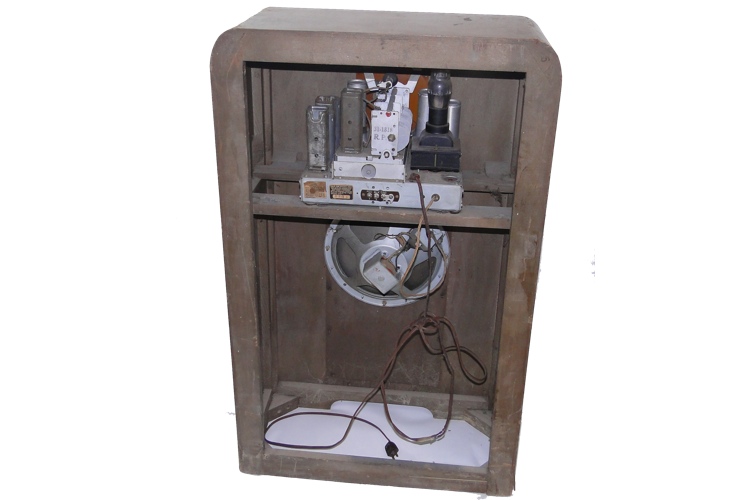

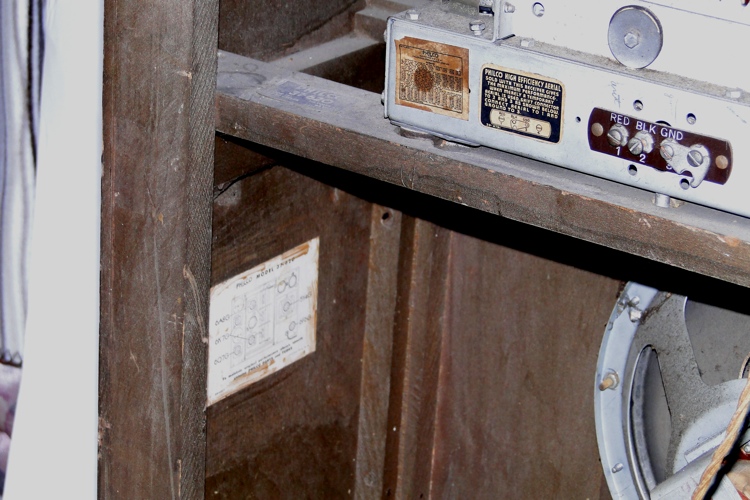

| PICTURES | (Click to enlarge image) |
|
|

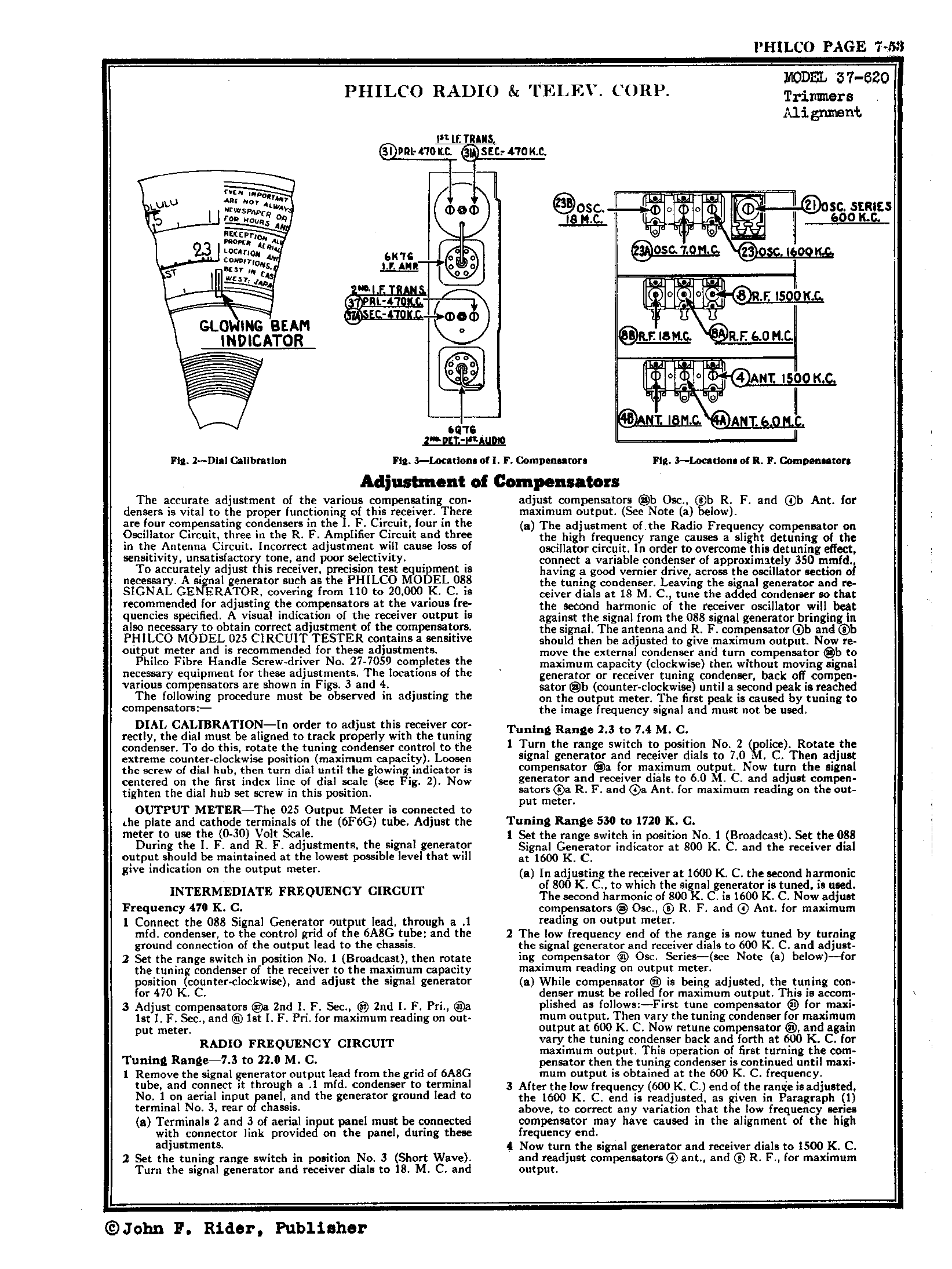

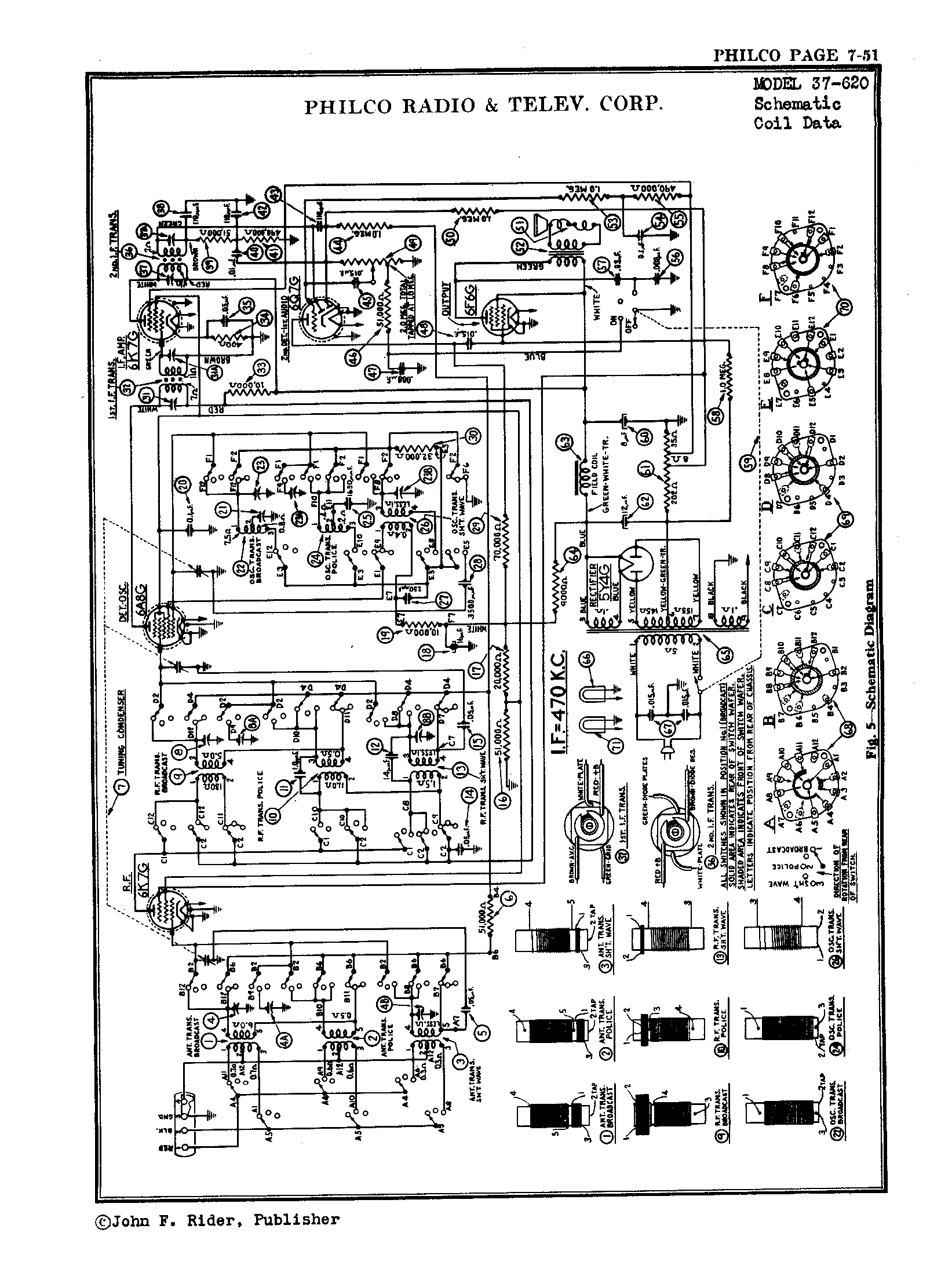

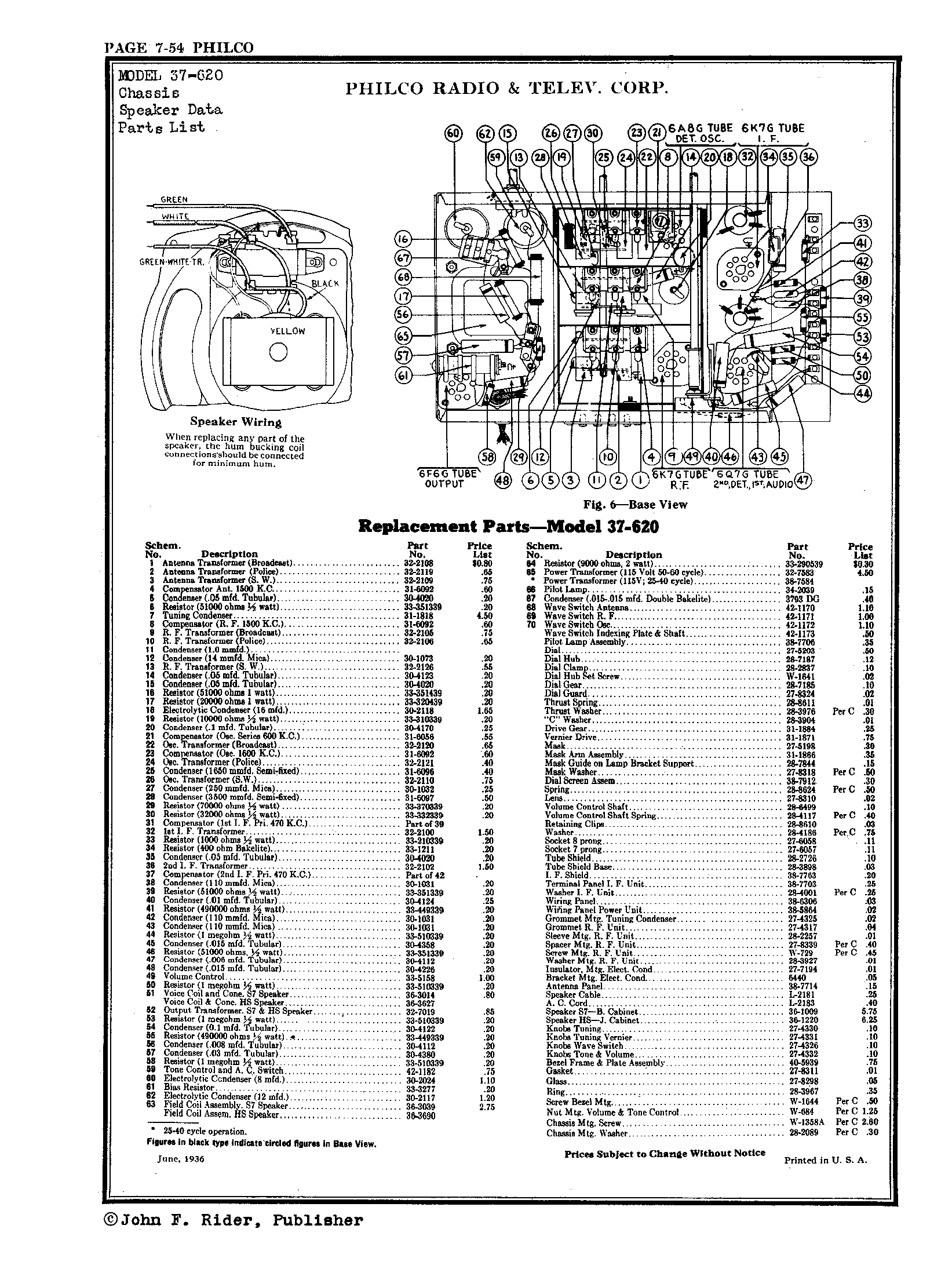

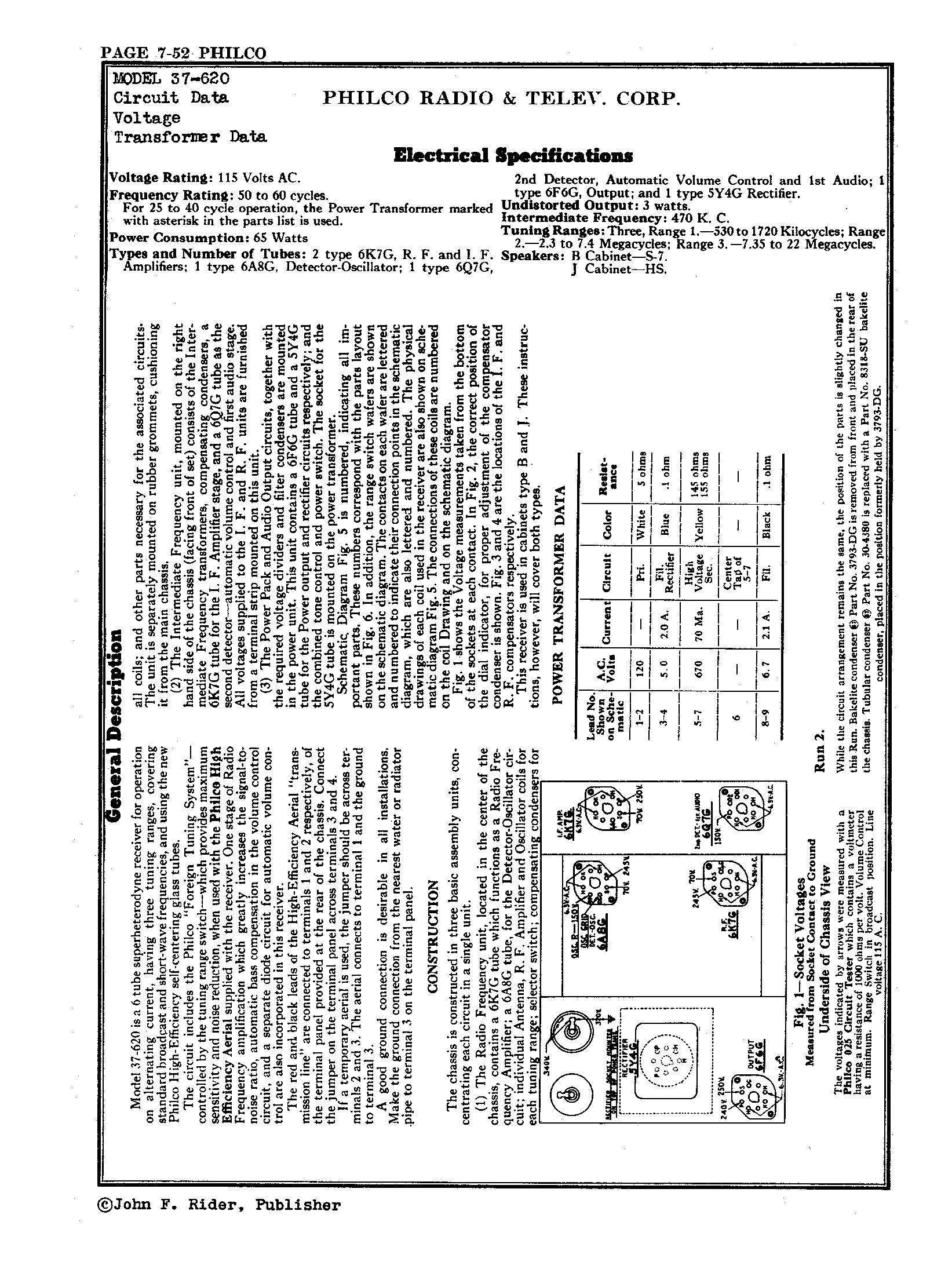

| SCHEMATICS |
| Page1
| Page2
| Page3
| Page4
|
|
| FROM | From MAARC monthly meeting auction on May |
