RADIOSEMP
MODELAC431
TECHNOLOGYTube
YEAR1958
MADE INBRAZIL
WAVE BANDSBC/SW1-SW3
COVERAGE
DESCRIPTION
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE2 x 53
TONEVariable
CIRCUITSuperheterodyne
IF456 KC
POWER SUPPLYAC
VOLTS90, 115, 125, 200 or 220V
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSISNo. 62532 ZX
TUBES LOCATION
TUBE COMPLEMENT | 6X4 | EBC91 | ECH81 | EF93 | EL84 |
PICTURES(Click to enlarge image)

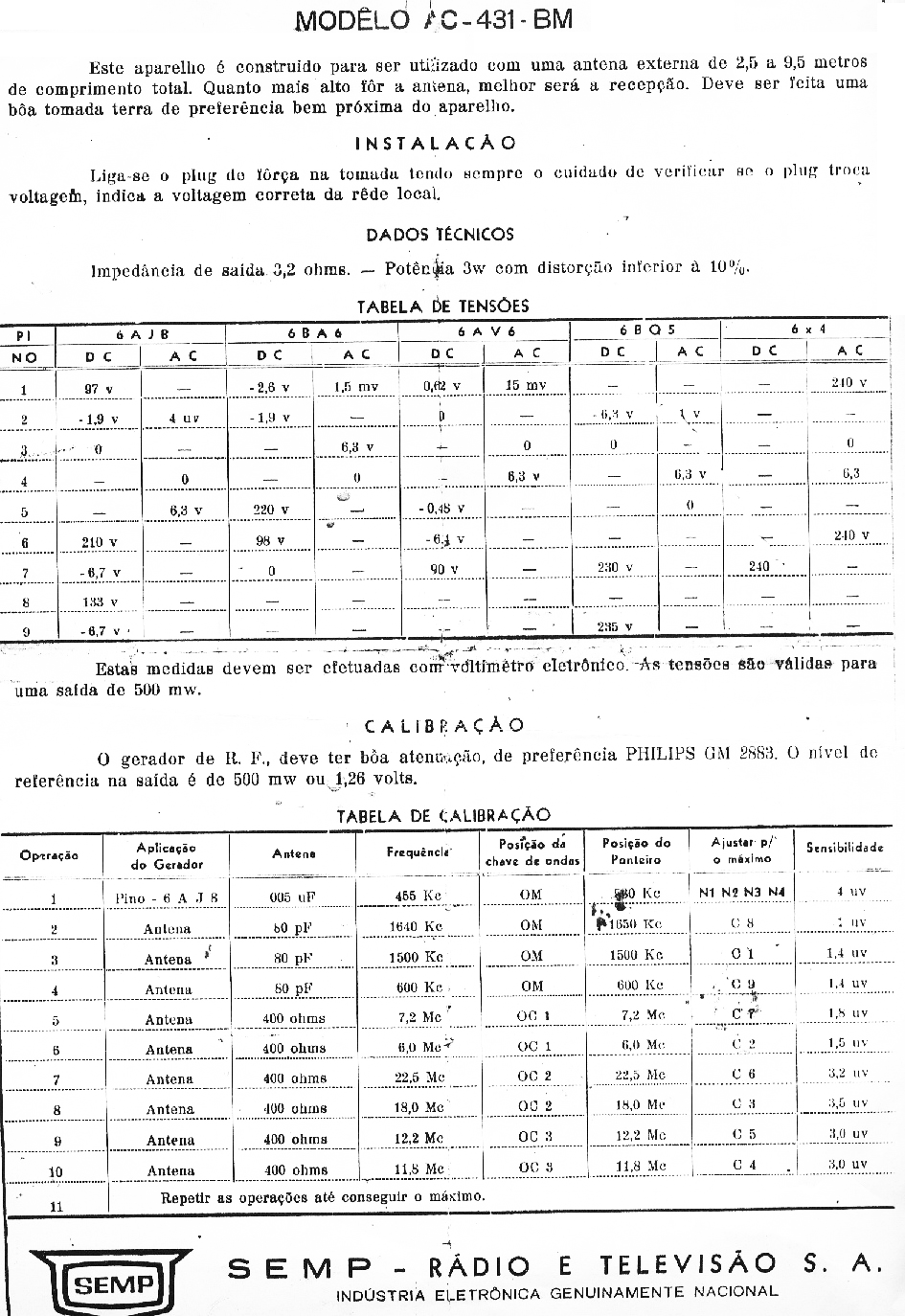

SCHEMATICS | Page1 | Page2 |
FROMGeraldo Tonon, Brasilia, DF.
