| RADIO | Airline |
| MODEL | 62-235 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1936 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC/SW1/SW2 |
| COVERAGE | BC 530 1720 Kc; MW 2.35 - 7.7 Mc; SW 7.6 - 19 Mc |

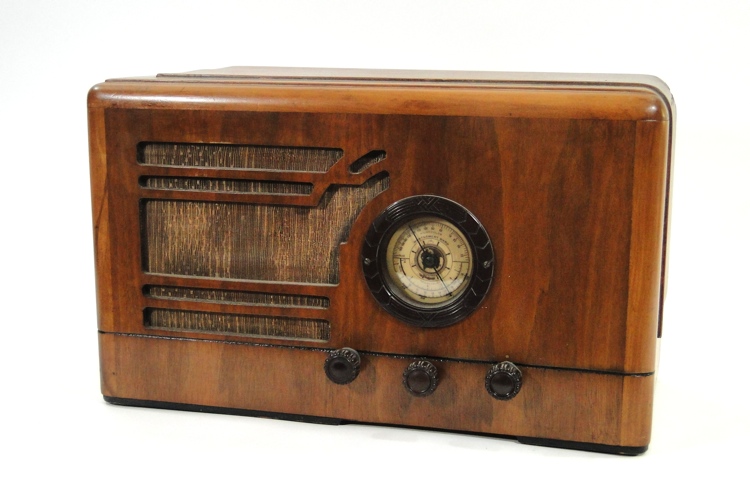

| DESCRIPTION | Center Front airplane dial, left grill with deco cutouts, 3 frontal knobs. |
| CABINET STYLE | Table |
| CABINET MATERIAL | Wood |
| DIAL LAMP - N° x TYPE | 1 x 47 |
| TONE | ? |
| CIRCUIT | Superheterodyne |
| IF | 465 KC |
| POWER SUPPLY | AC |
| VOLTS | 119 V |
| CONSUMPTION | ? |
| AC CYCLES | 50-60 Hz |
| CHASSIS | |
| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 6F7 | 6K7 | 75 | 6F6 | 80 |
|

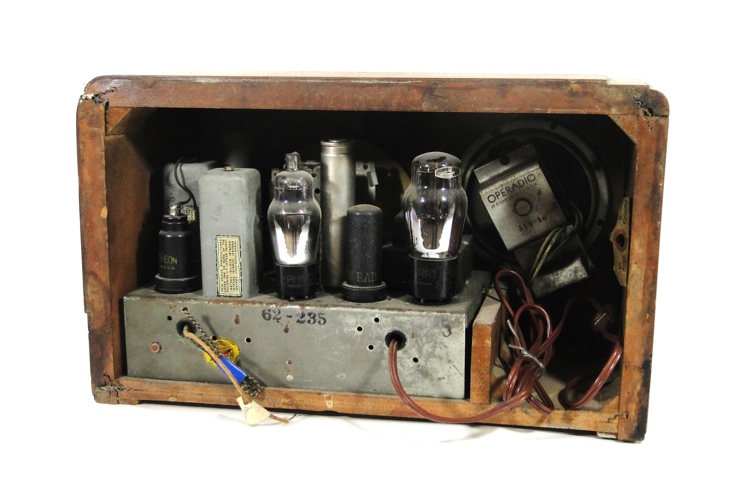

| PICTURES | (Click to enlarge image) |
|
|

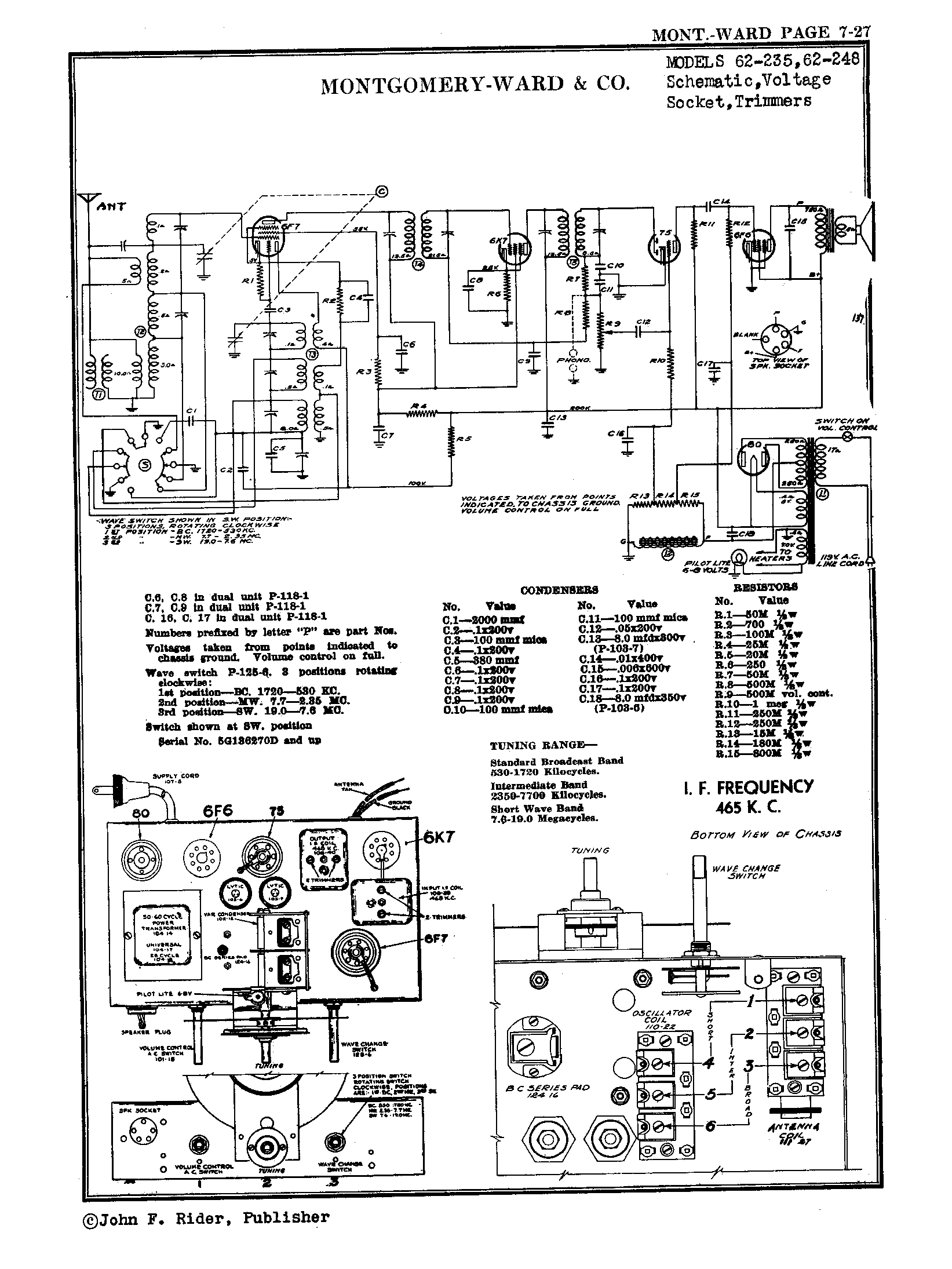

| SCHEMATICS |
| Page1
|
|
| FROM | From 2012 AWA Conference in Rochester, NY, Aug 21-25. |
| ADDITIONAL INFO | Not restored. |
