RADIOPhilips
MODELB3X85U
TECHNOLOGYTube
YEAR1958
MADE INNETHERLANDS
WAVE BANDSBC/SW1/SW2
COVERAGEBC 517 - 1622 KHz, SW1 2.54 - 7.45 MHz, SW3 6.9 - 22 MHz

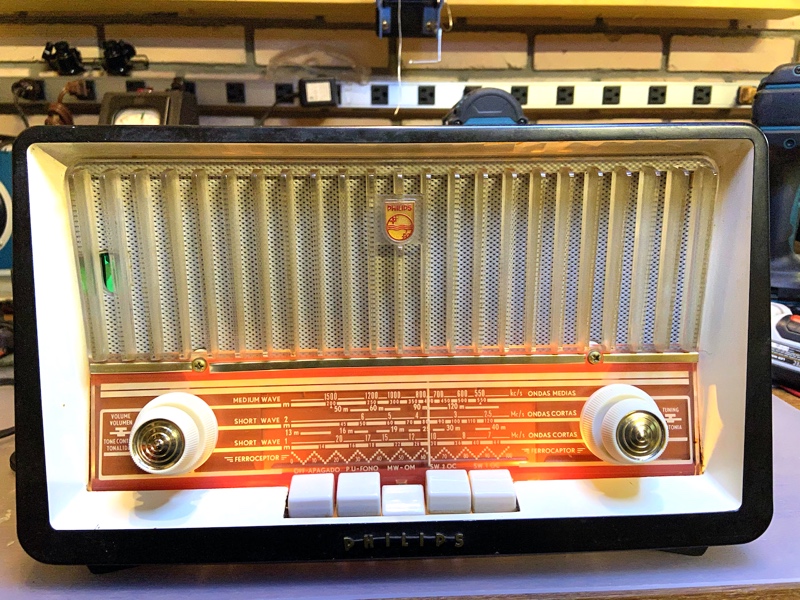

DESCRIPTIONLower front slide rule dial, upper vertical bars grill, 2 double knobs, 5 push buttons.
CABINET STYLETable
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE2 x 8089D
TONEVariable
CIRCUITSuperheterodyne
IF452 KC
POWER SUPPLYAC
VOLTS110 - 127 & 220 Volts
CONSUMPTION34-48 W
AC CYCLES50-60 Hz
CHASSIS

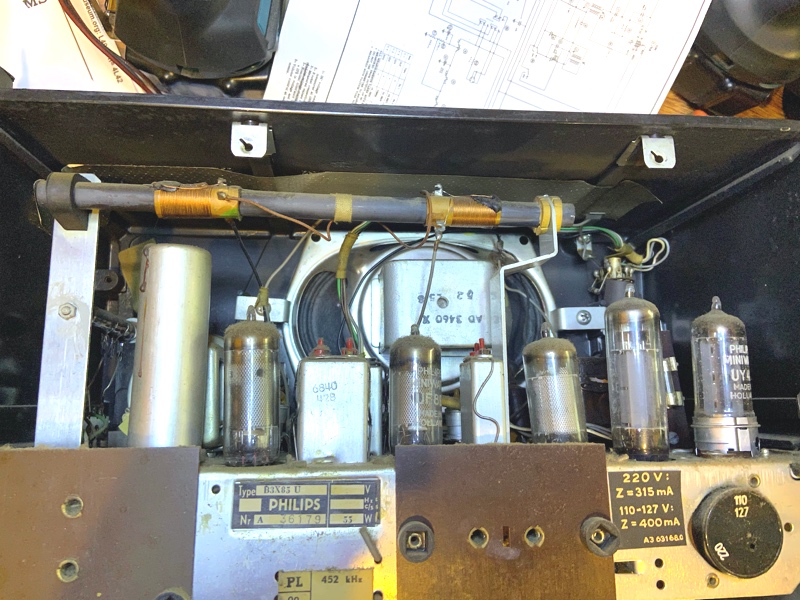

TUBES LOCATION
TUBE COMPLEMENT | UCH81 | UF89 | UBC81 | UL84 | UY42 | UM80 |

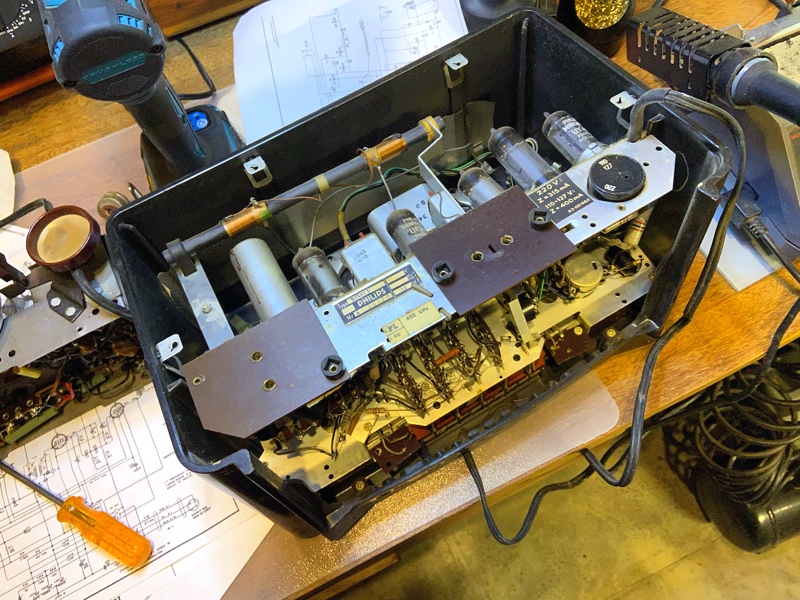

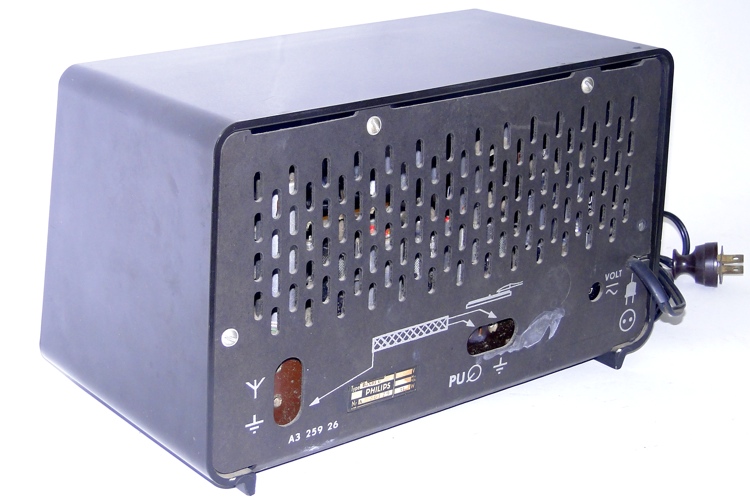

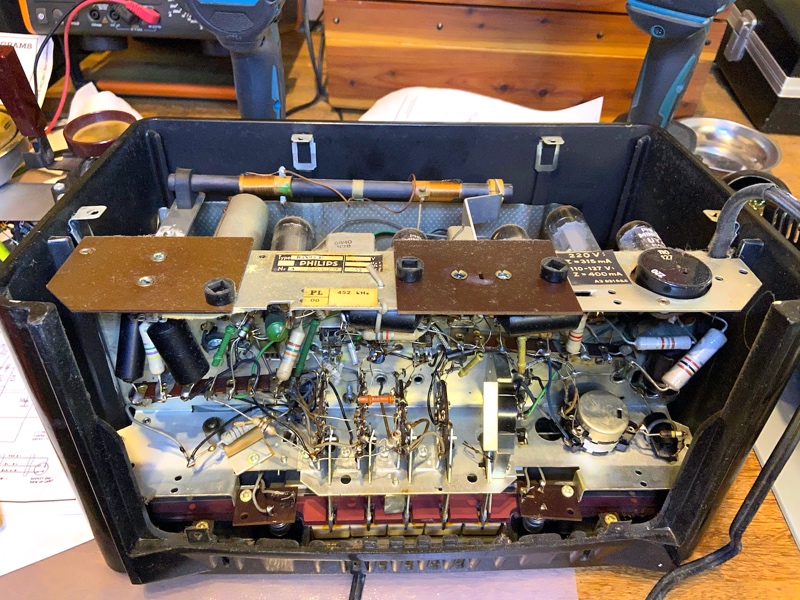

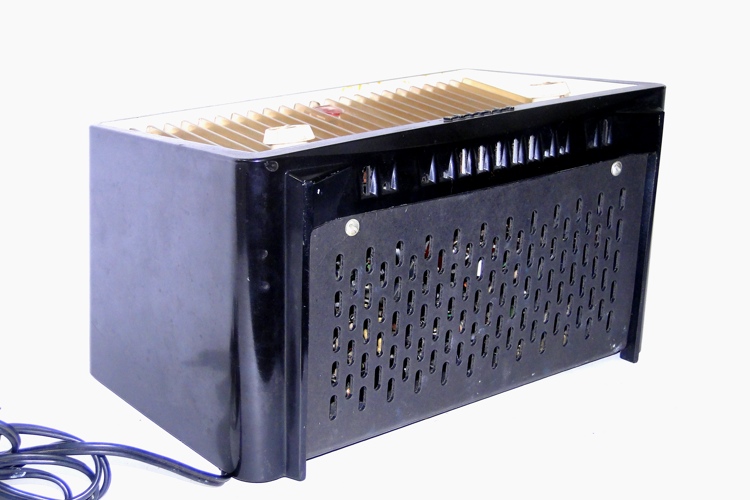

PICTURES(Click to enlarge image)

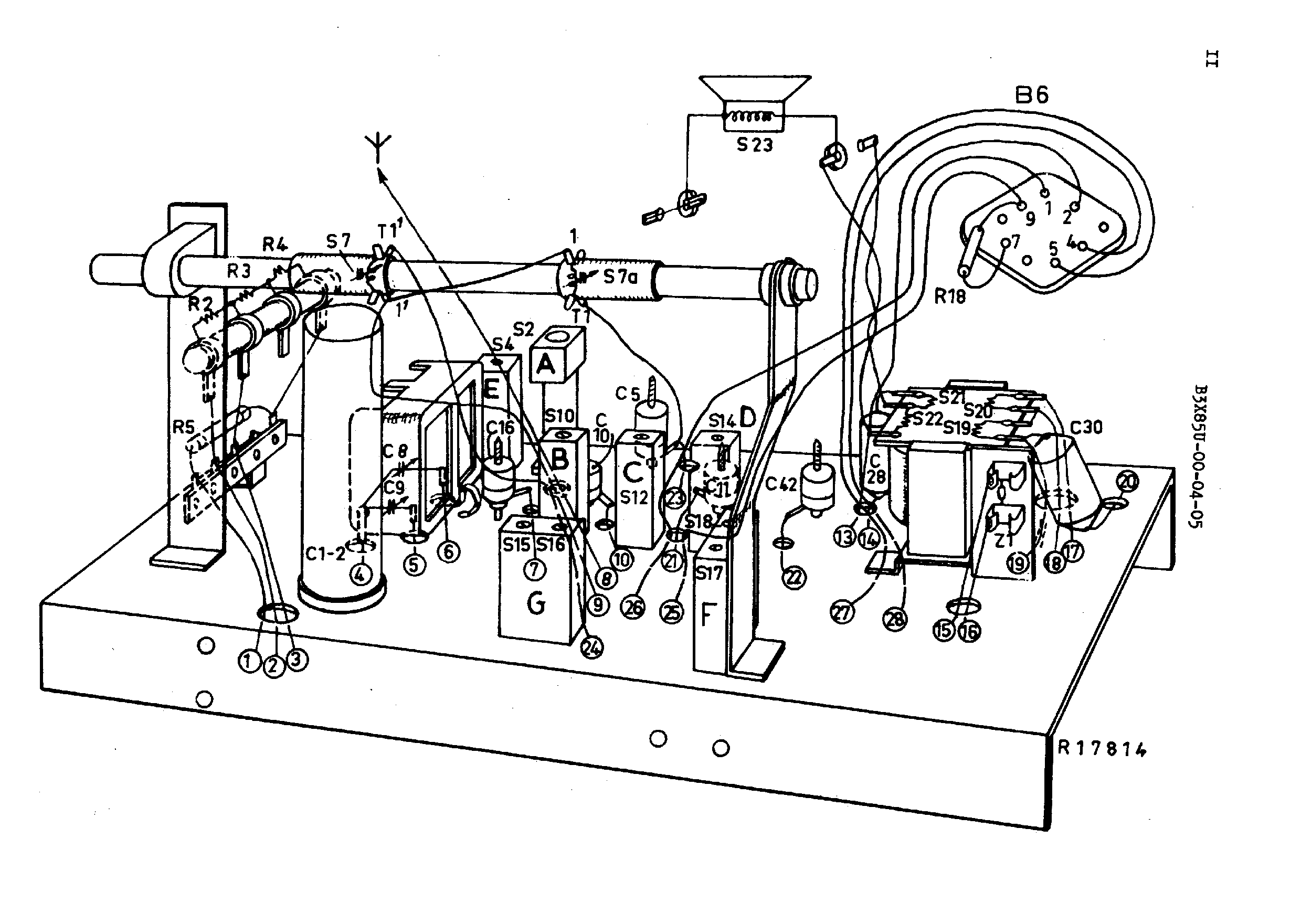

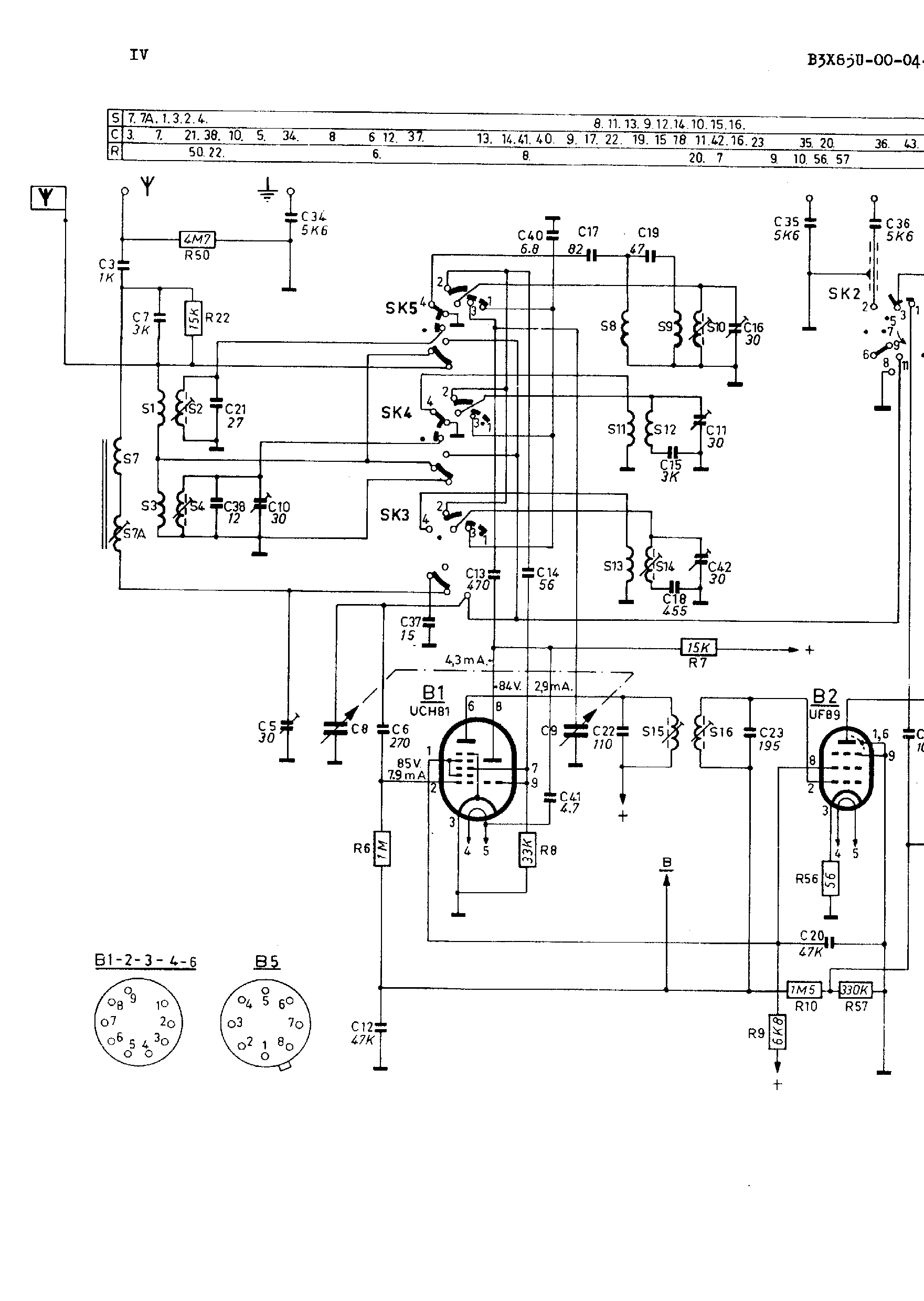

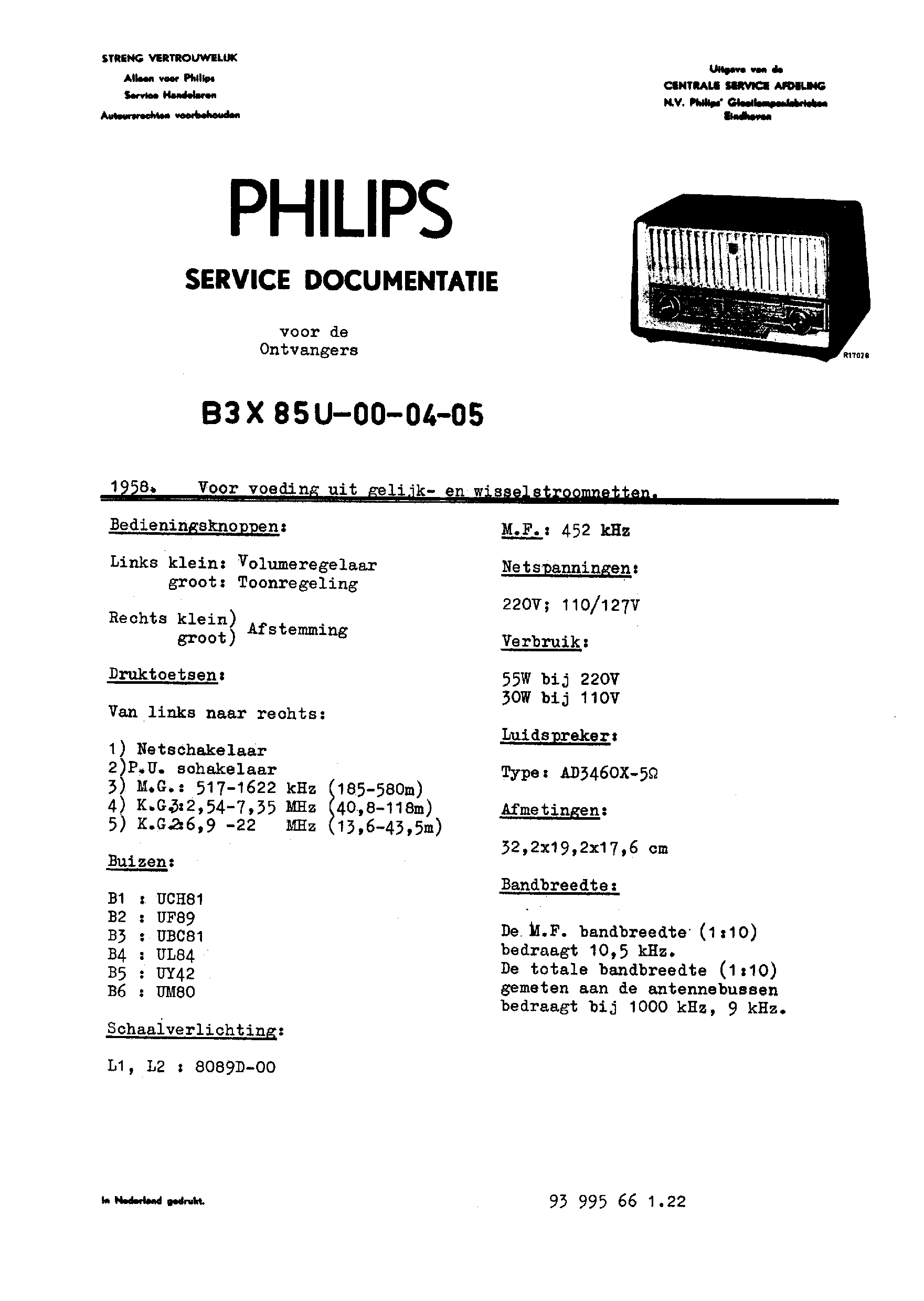

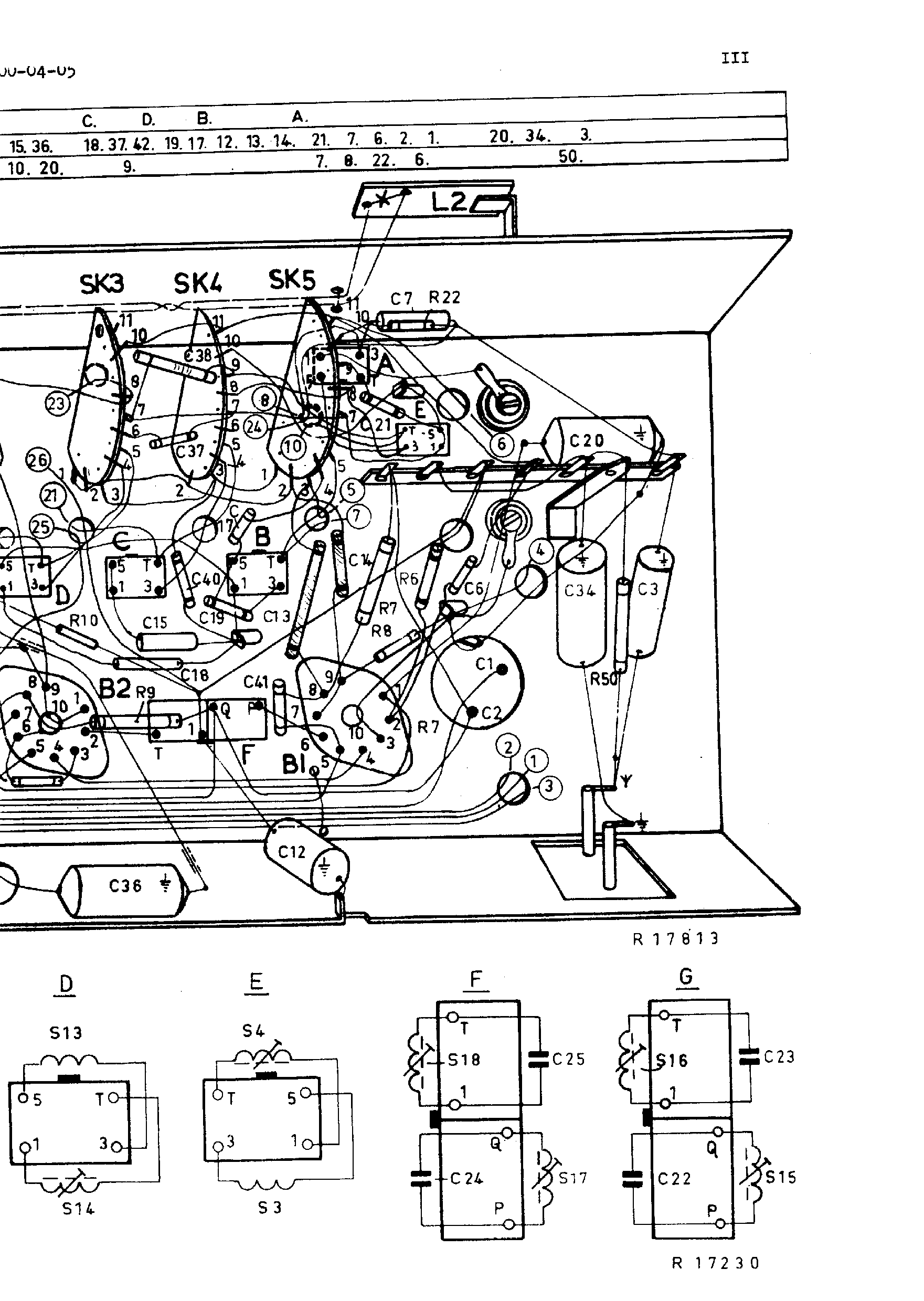

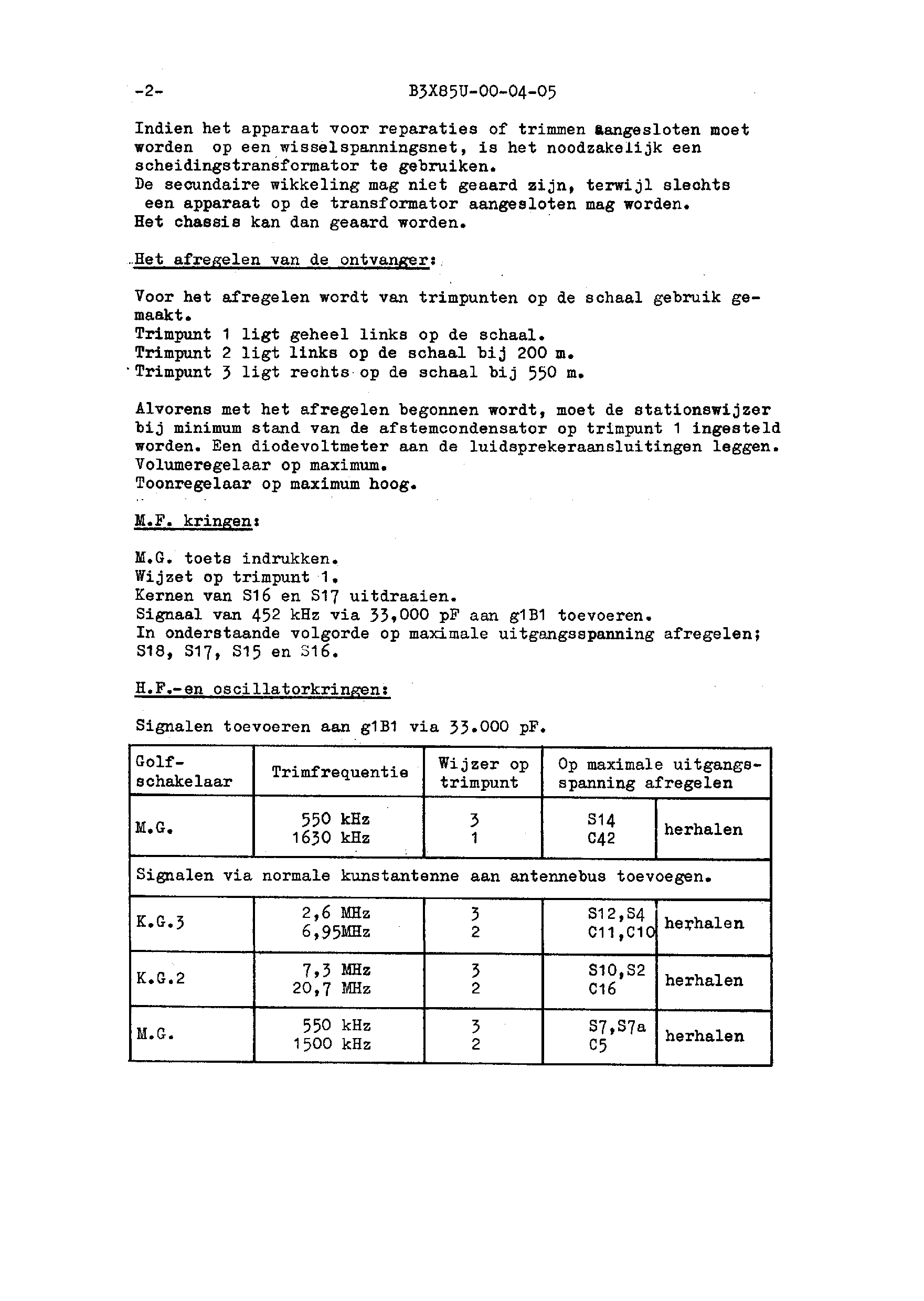

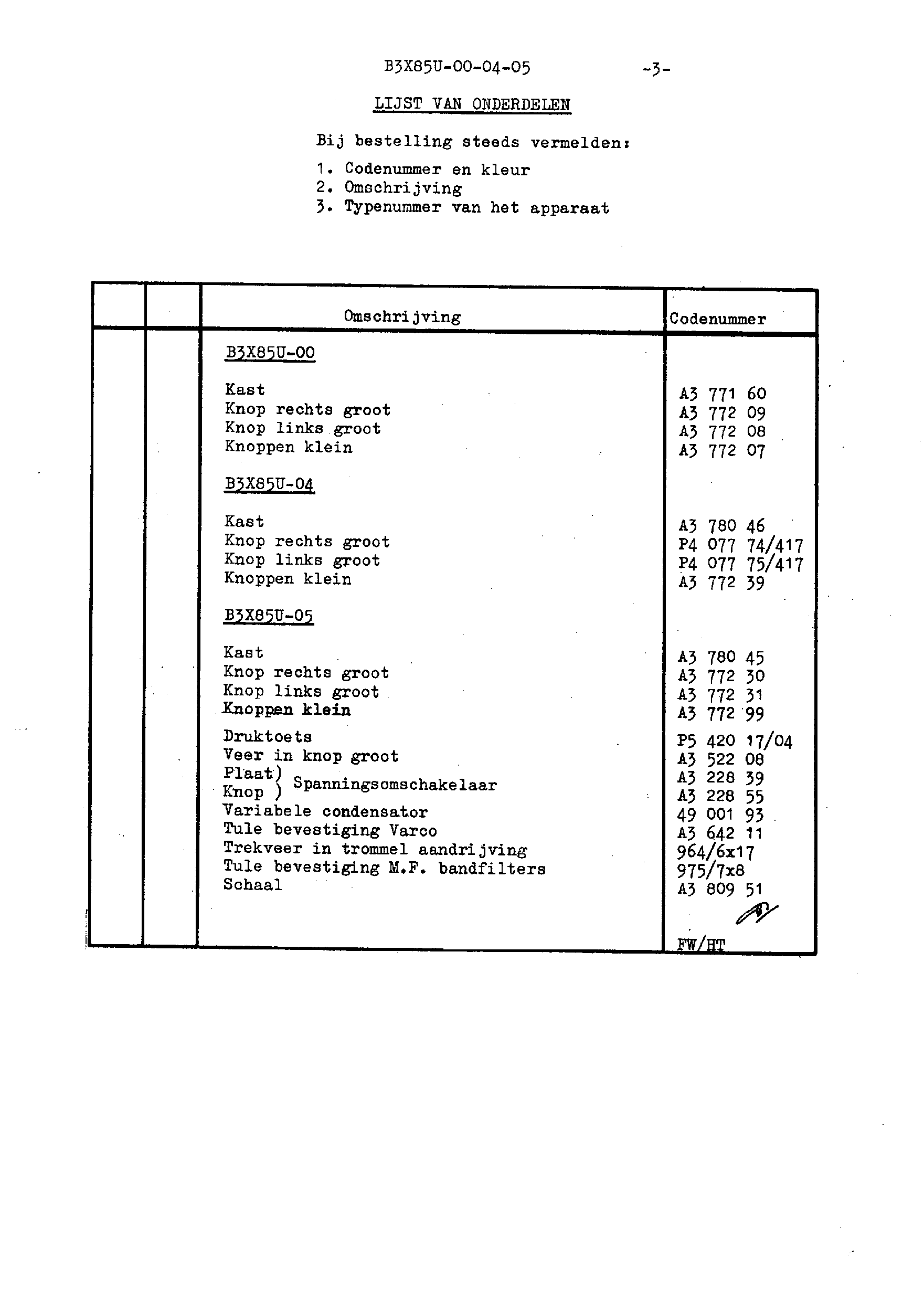

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 | Page7 | Page8 | Page9 | Page10 | Page11 |
FROMFrom MAARC auction, 2012
