| RADIO | Freshman Charles |
| MODEL | Masterpiece 5F4 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1925 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC |
| COVERAGE | BC |

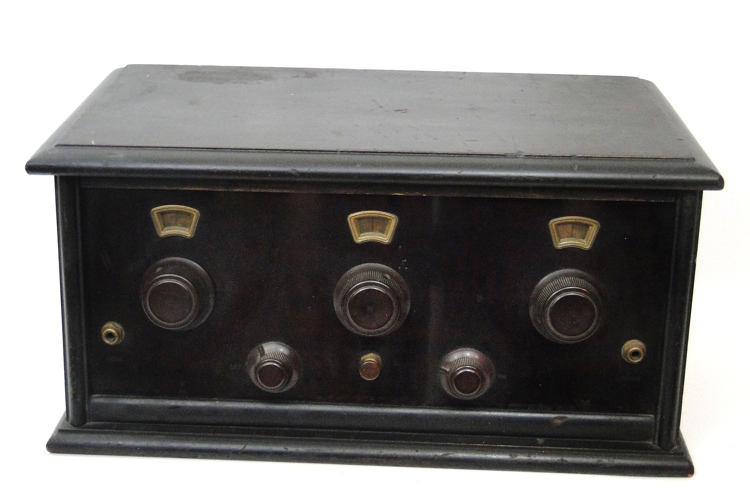

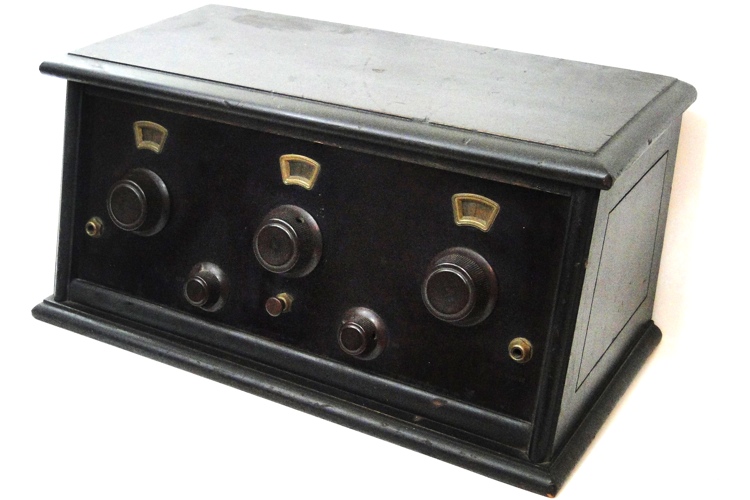

| DESCRIPTION | Low rectangular cabinet, 3 dial front panel, lift top, fancier Style 2. |
| CABINET STYLE | Table Low Profile |
| CABINET MATERIAL | Wood - Mahogany |
| DIAL LAMP - N° x TYPE | 0 x None |
| TONE | No |
| CIRCUIT | TRF |
| IF | Not applicable |
| POWER SUPPLY | DC |
| VOLTS | A +5 V; B +45, +90, +135 V; C -9 V. |
| CONSUMPTION | ? |
| AC CYCLES | Not applicable |
| CHASSIS | |
| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 01A | 01A | 01A | 01A | 12A |
|

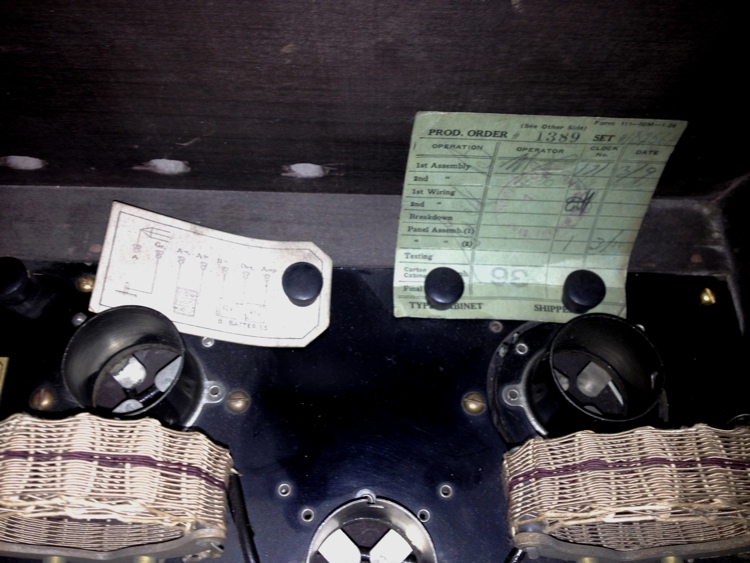

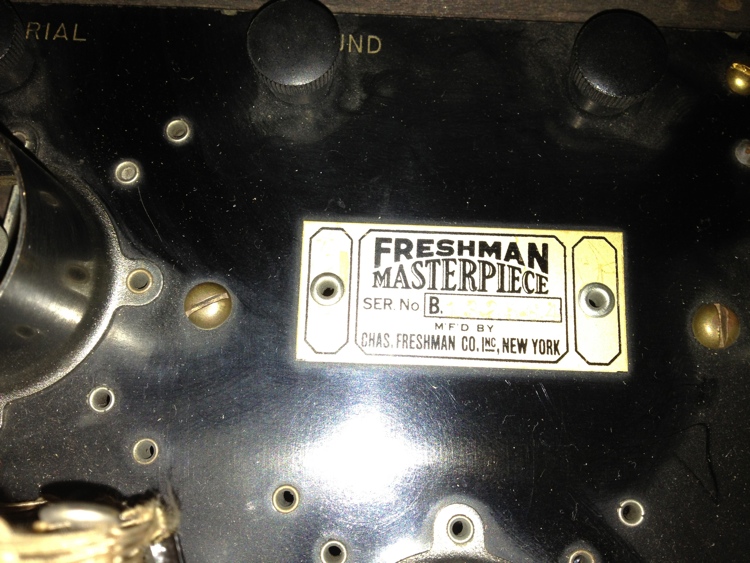

| PICTURES | (Click to enlarge image) |
|
|
| SCHEMATICS |
| Page1
|
|
| FROM | From Skip after the RadioActivity 2012 MAARC Auction on June 23, 2012 |
