RADIOTelefunken
MODELMignon E
TECHNOLOGYTube
YEAR0000
MADE INBRAZIL
WAVE BANDSBC/SW1/SW2
COVERAGEBC 550-1600 KHz, SW1 120-40 m, SW2 41-16 m
DESCRIPTION
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE0 x ?
TONE?
CIRCUITSuperheterodyne
IF?
POWER SUPPLY?
VOLTS110-220 Volts
CONSUMPTION?
AC CYCLES50-60 Hz

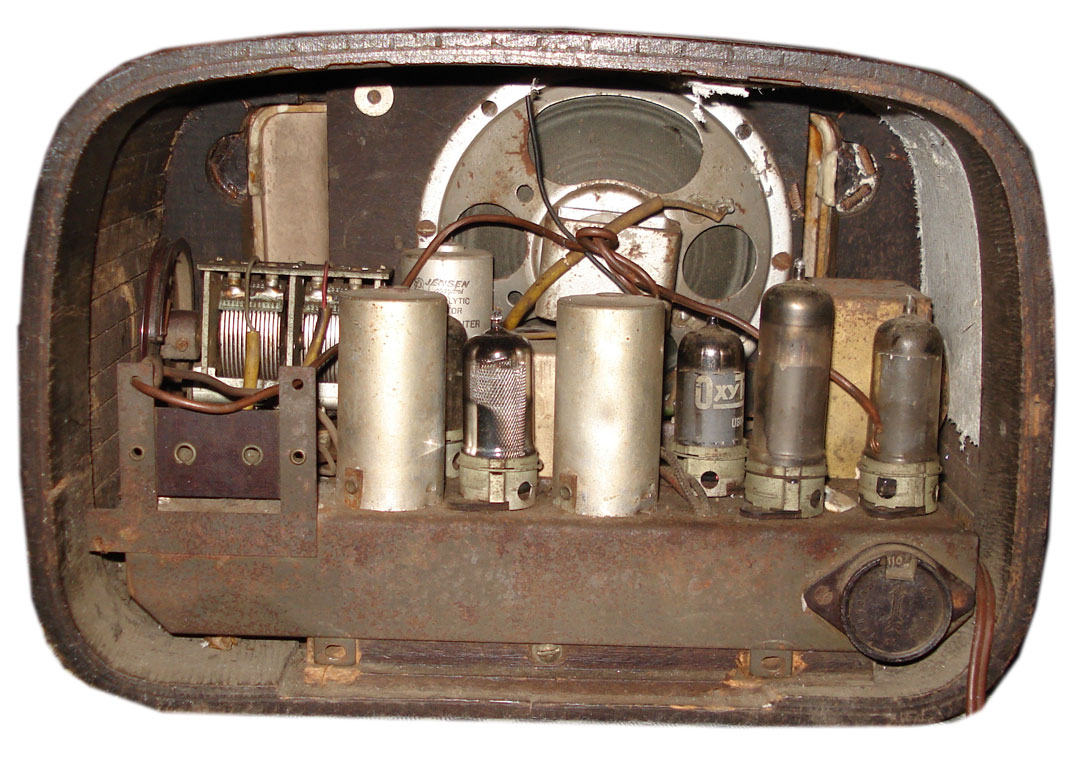

CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | HCH81 | HF93 | HCH81 | HL94 | HY90 |

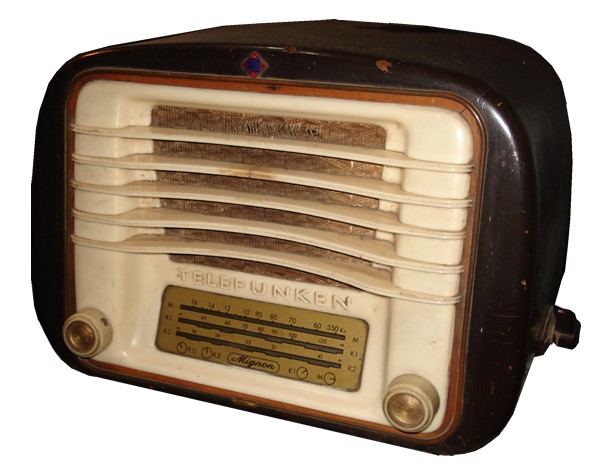

PICTURES(Click to enlarge image)
SCHEMATICS
FROM
