RADIOCrosley
MODEL182
TECHNOLOGYTube
YEAR1933
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1600 KHz

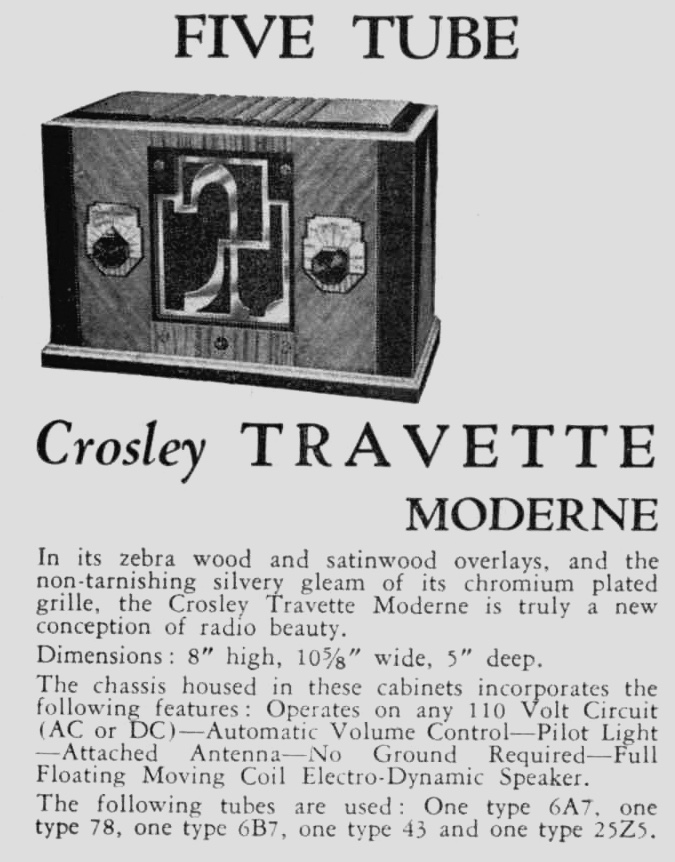

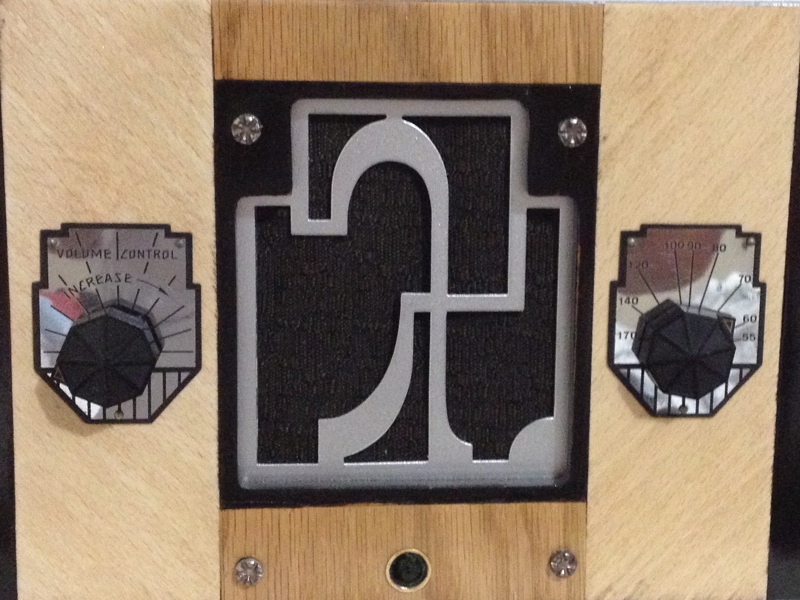

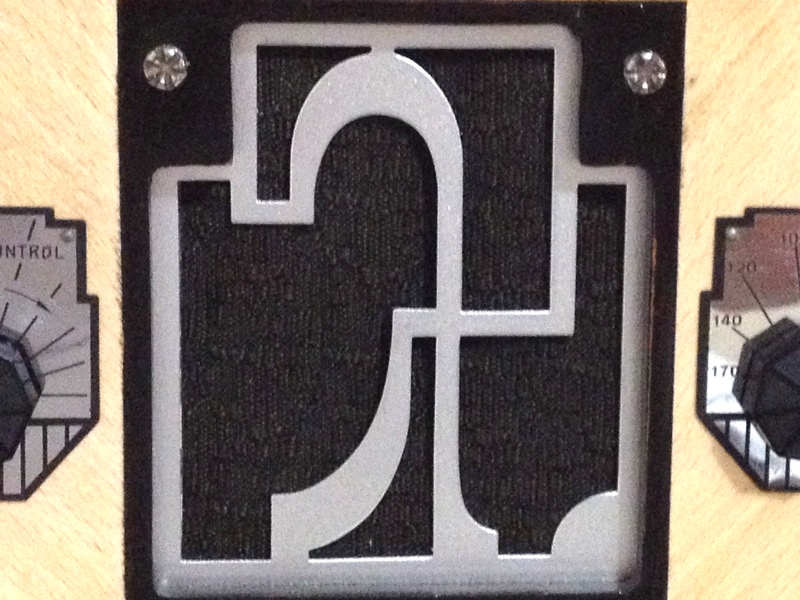

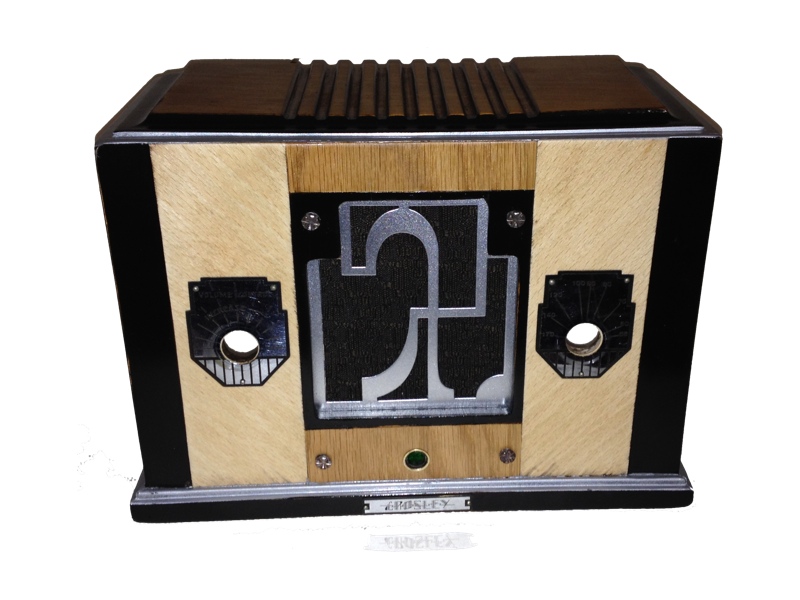

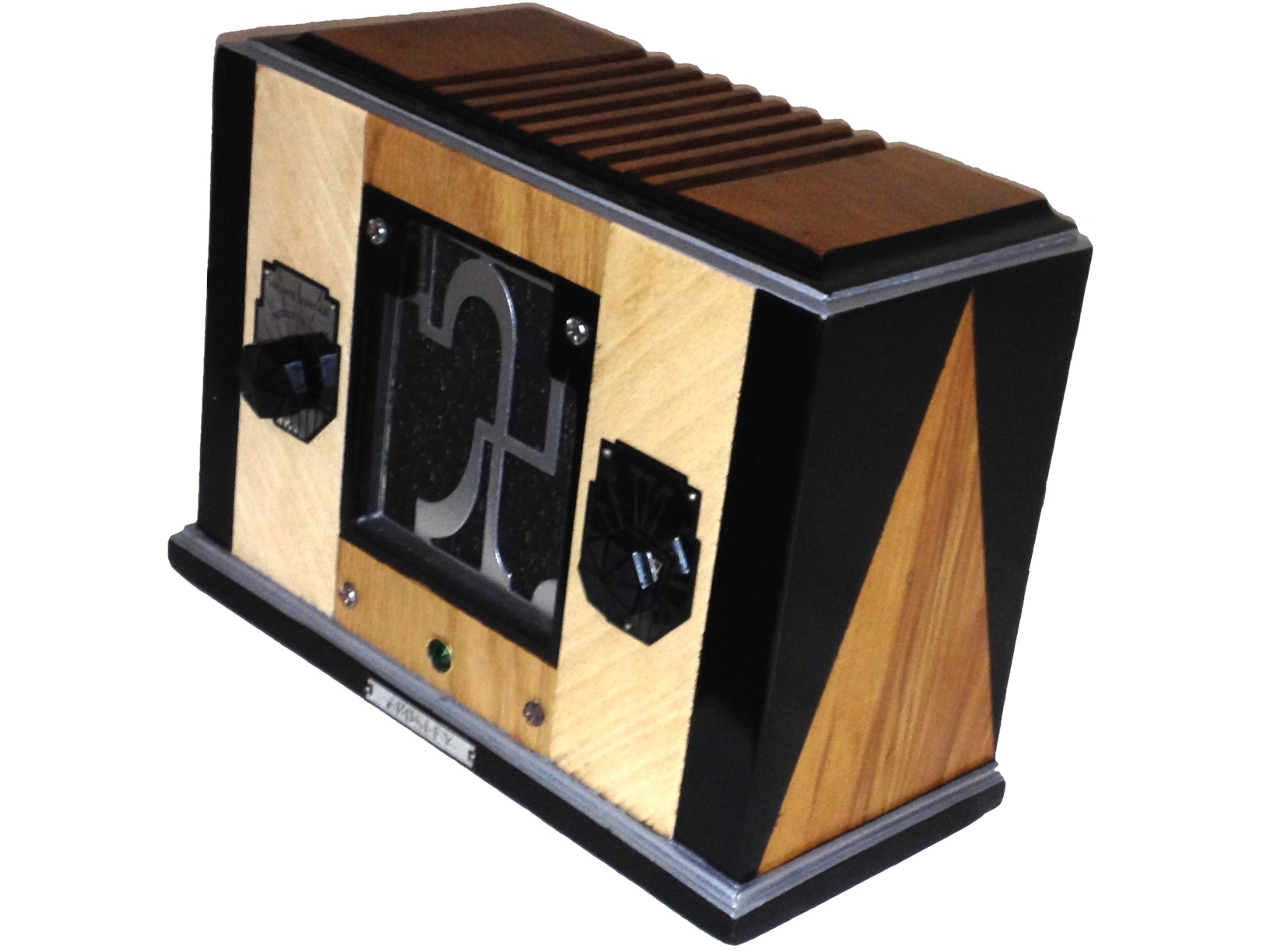

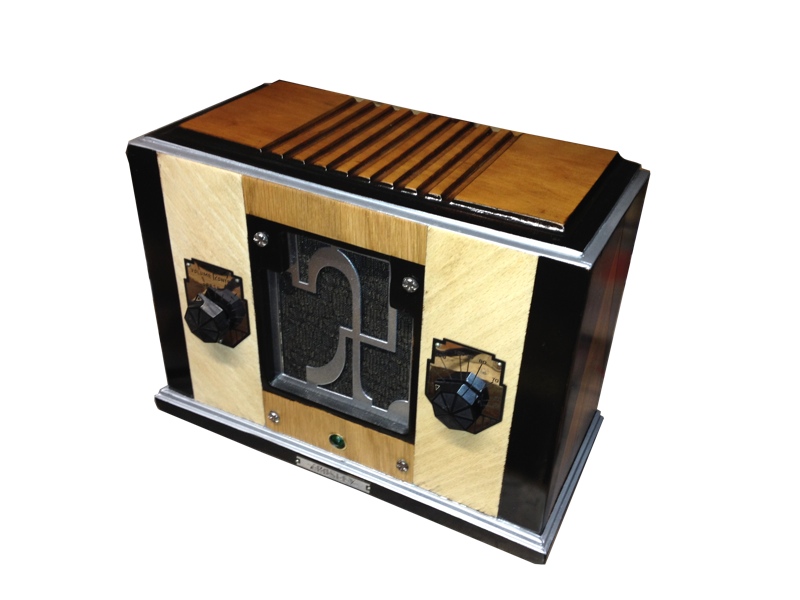

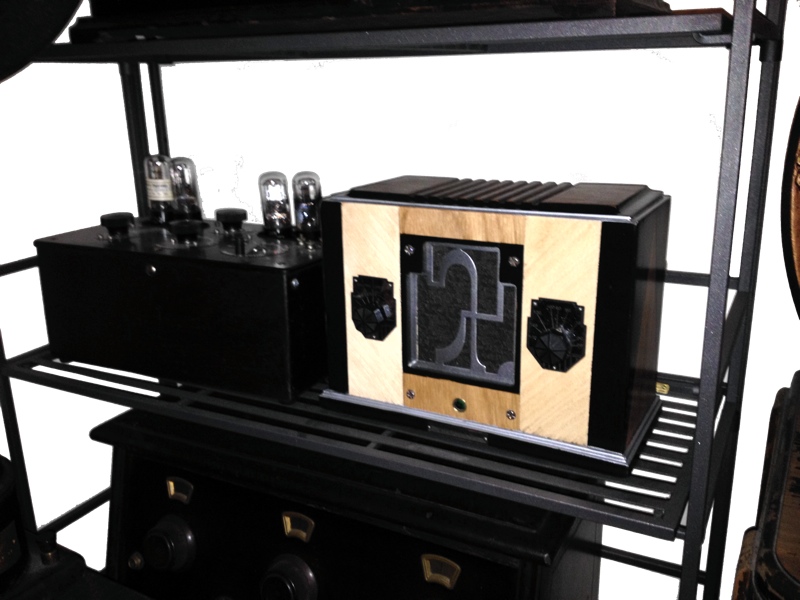

DESCRIPTIONTravette Moderne - with right front dial, centre grille with metal cut outs, 2 knobs on left on/off volume and on right dial.

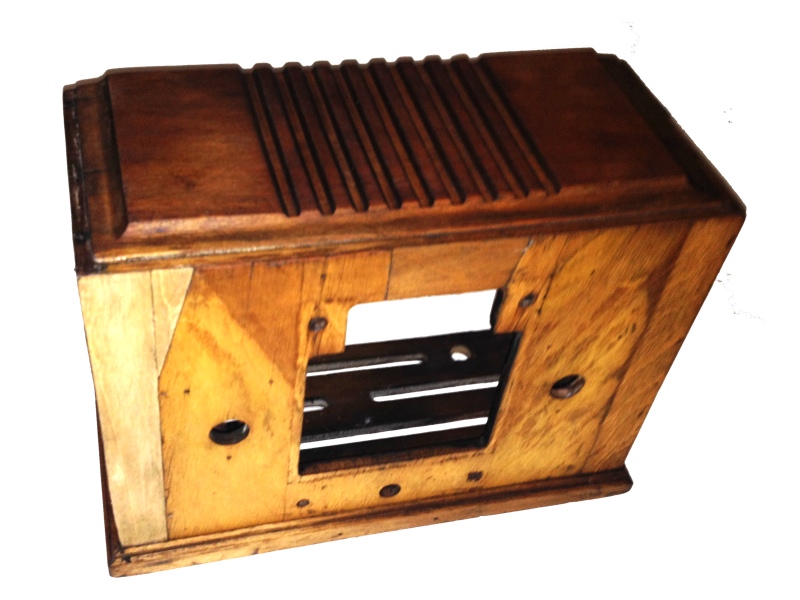

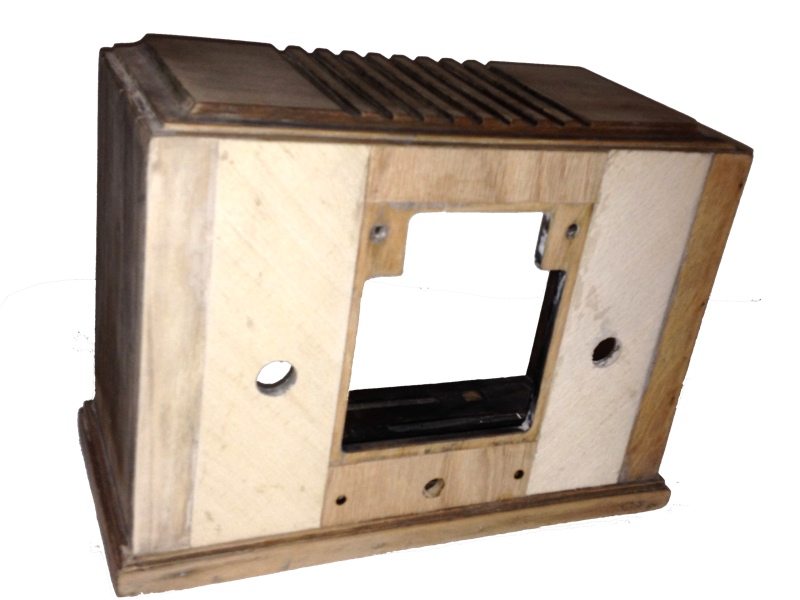

CABINET STYLEMantle
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 46
TONENo
CIRCUITSuperheterodyne
IF456 KC
POWER SUPPLYAC/DC
VOLTS110 Volts
CONSUMPTION?
AC CYCLES60 Hz

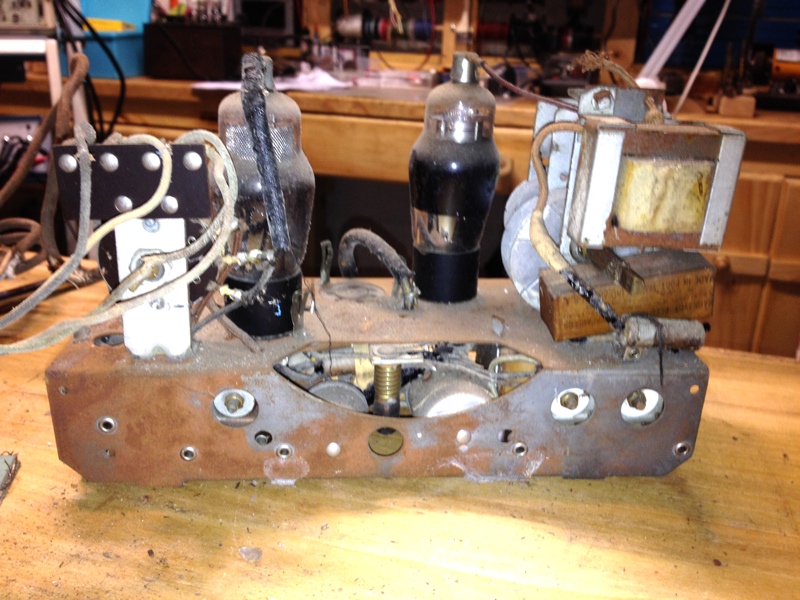

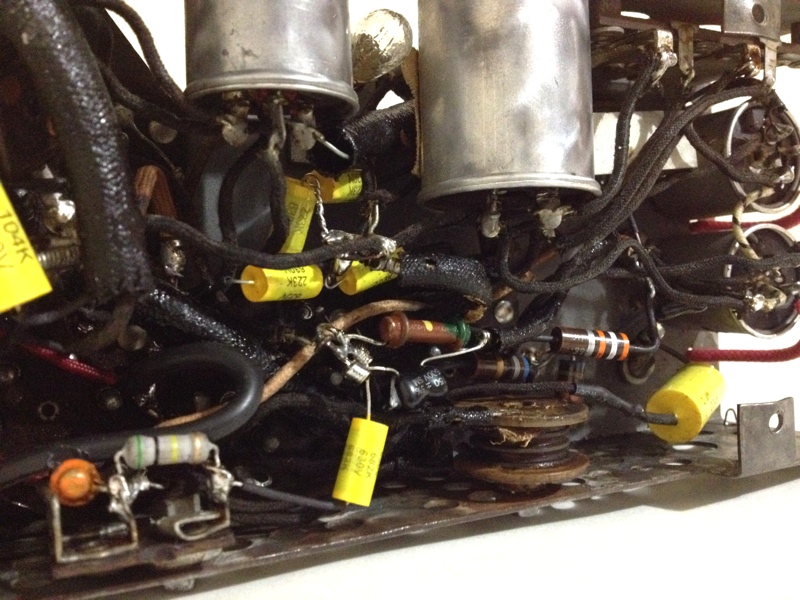

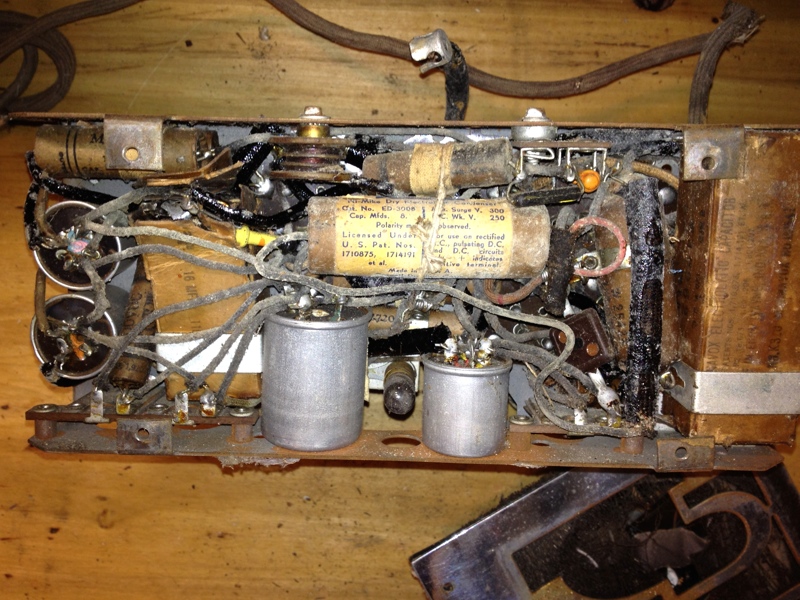

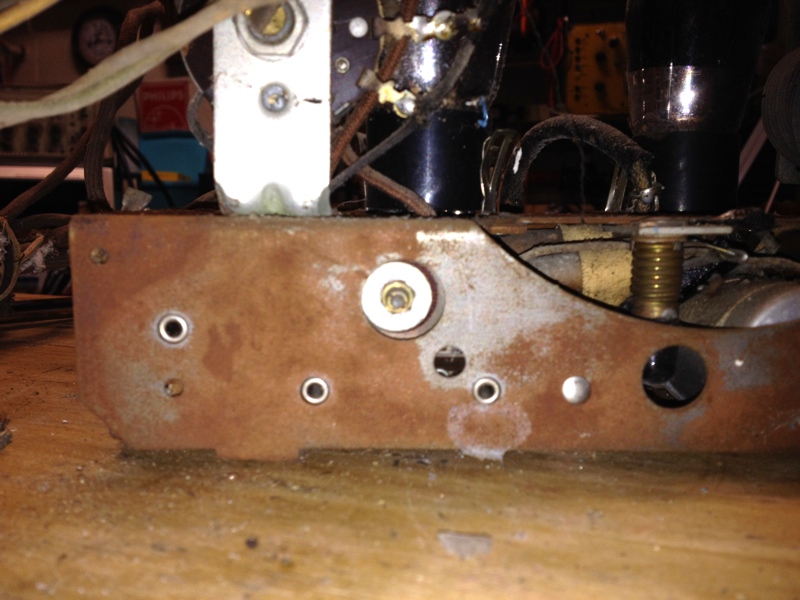

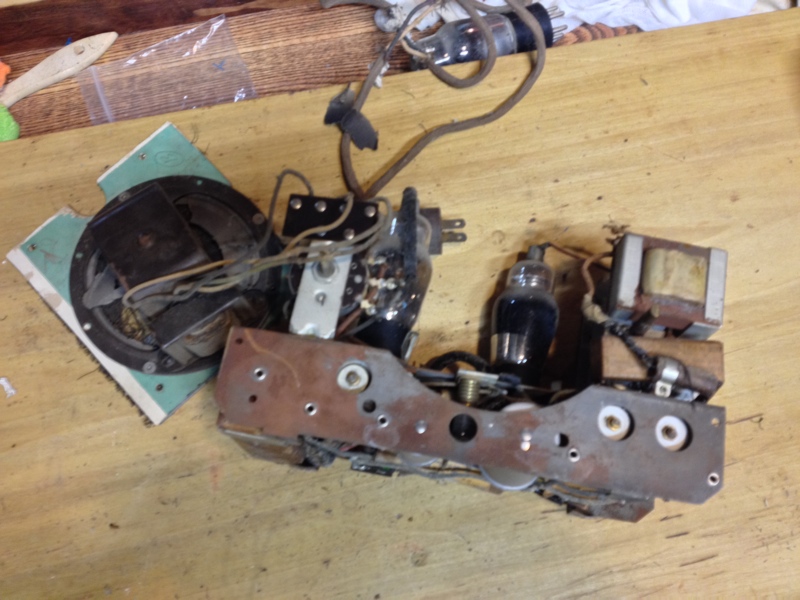

CHASSIS

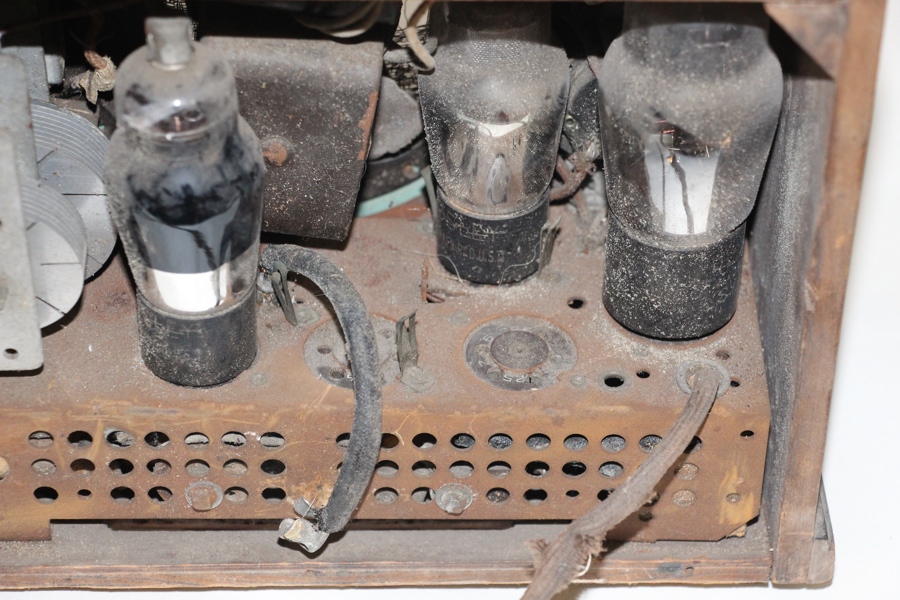

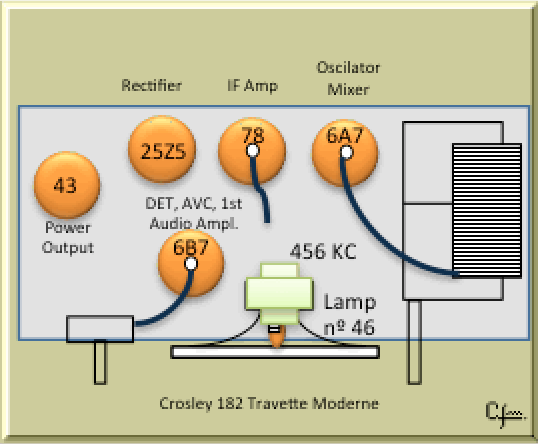

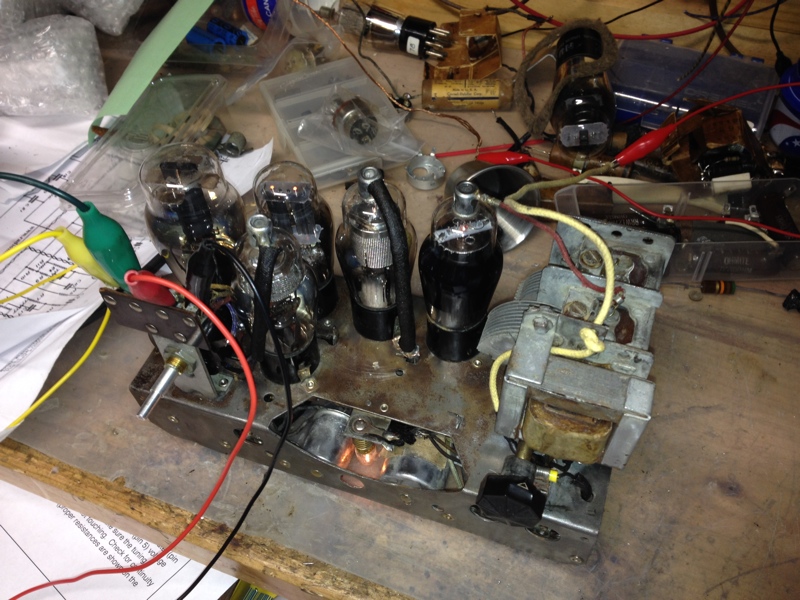

TUBES LOCATION

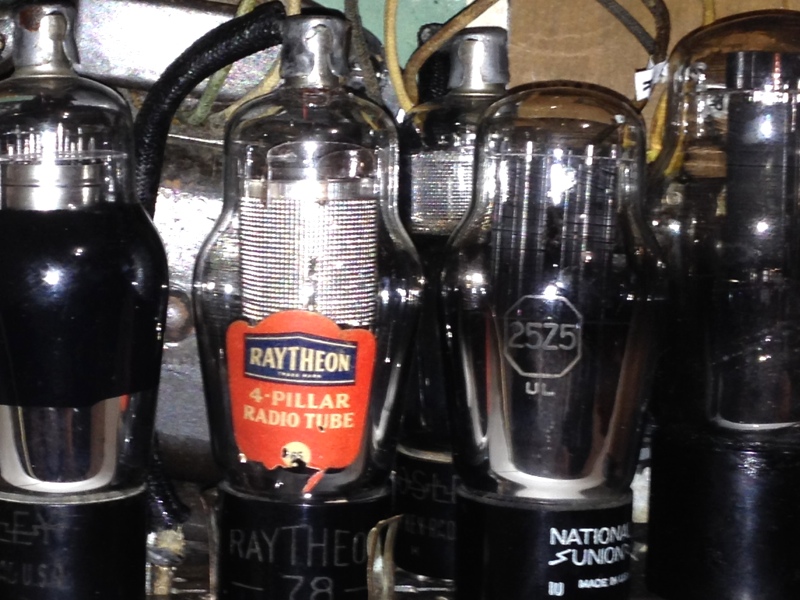

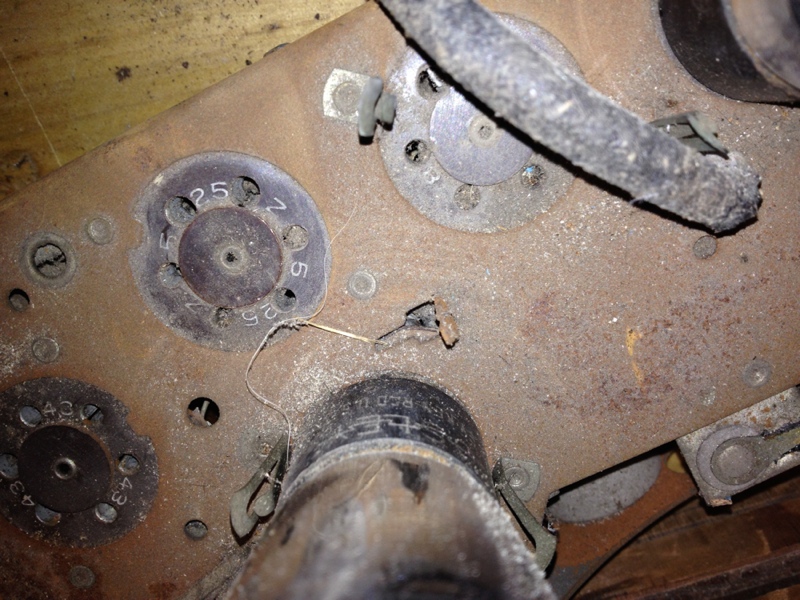

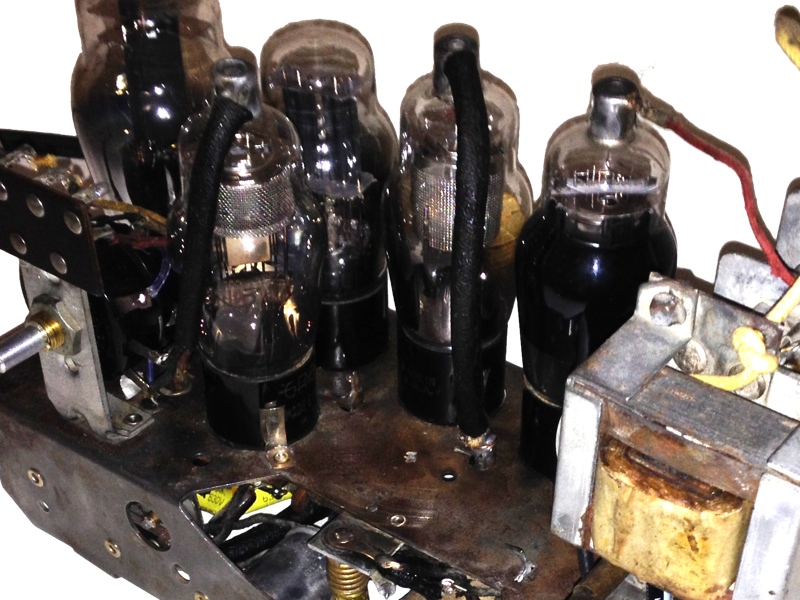

TUBE COMPLEMENT | 25Z5 | 6A7 | 78 | 6B7 | 43 |

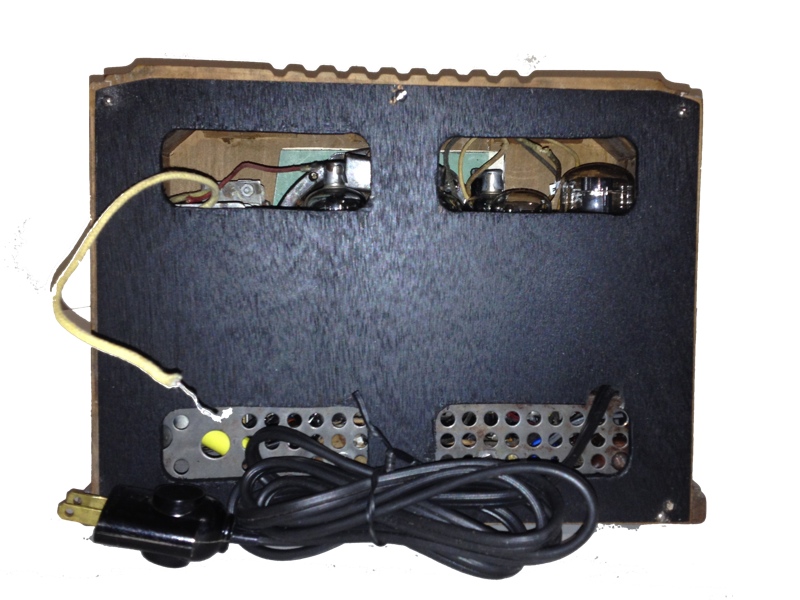

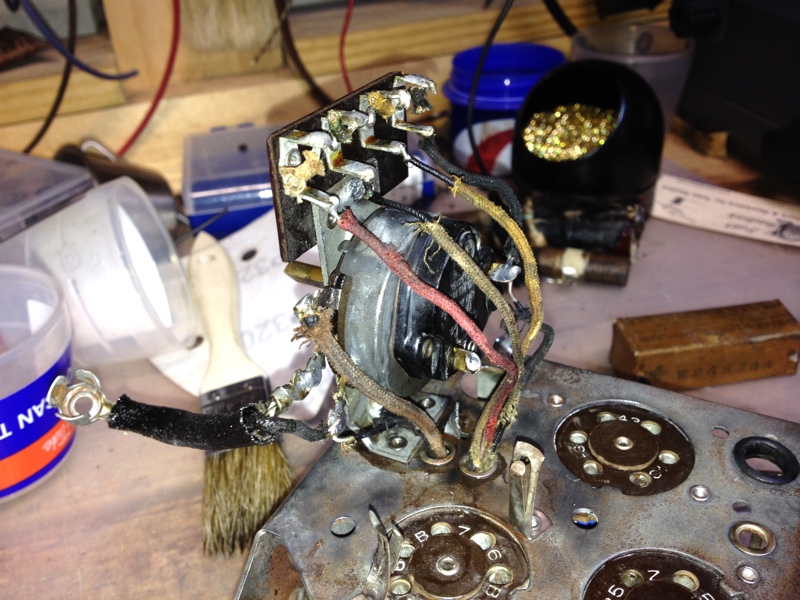

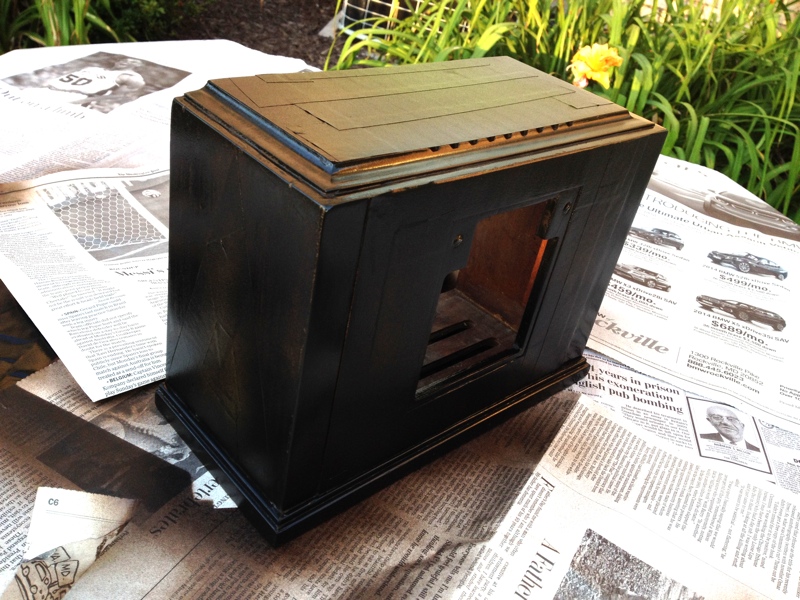

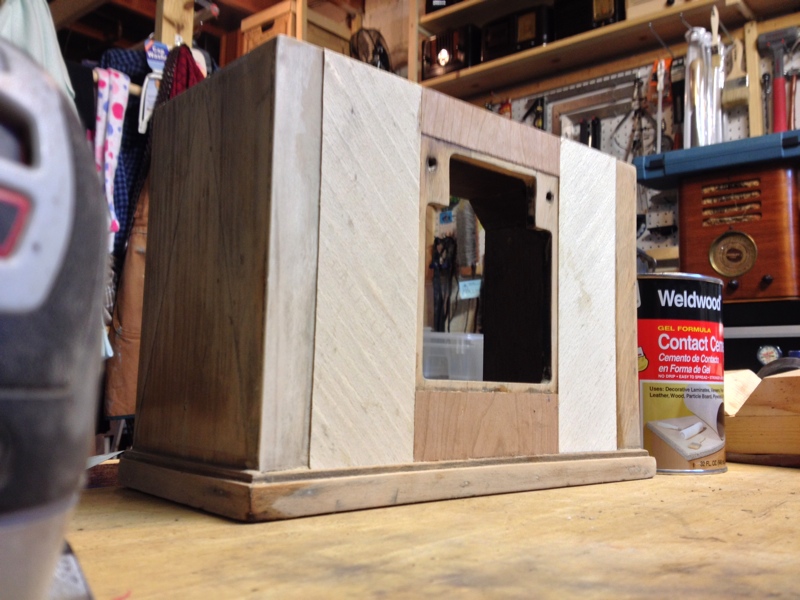

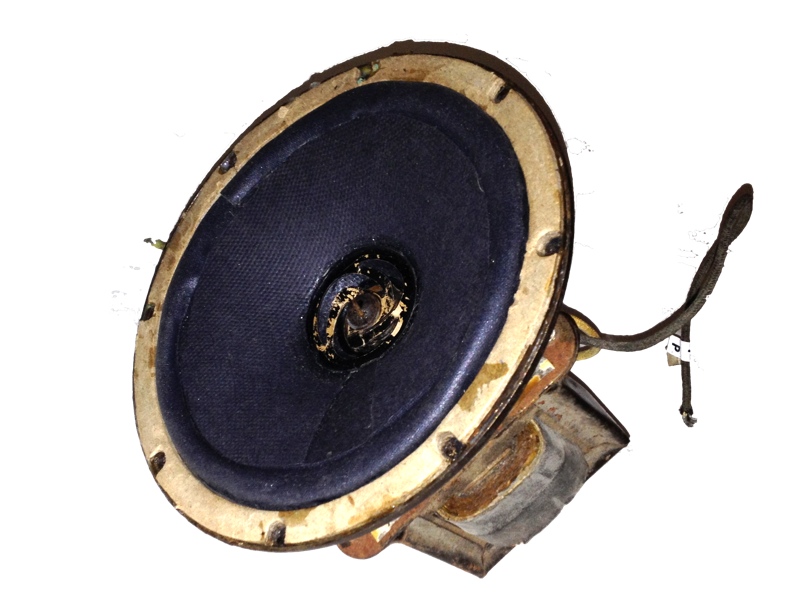

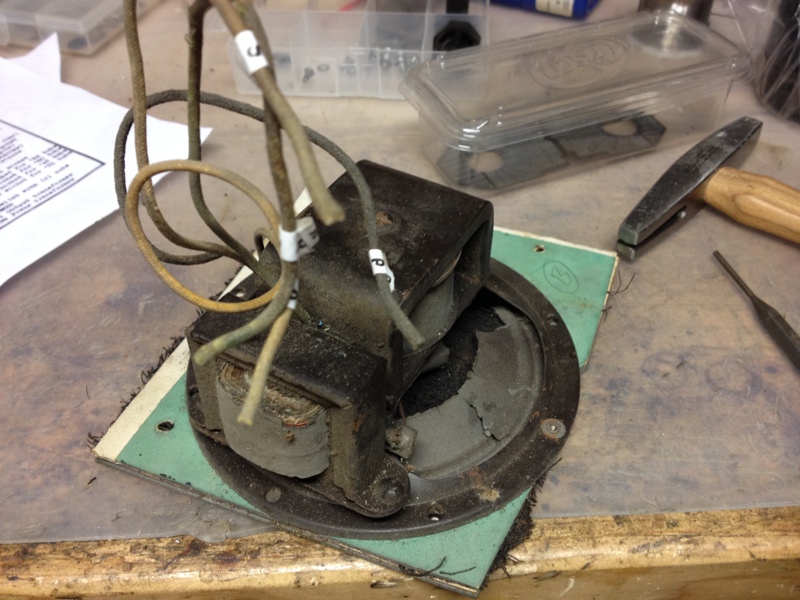

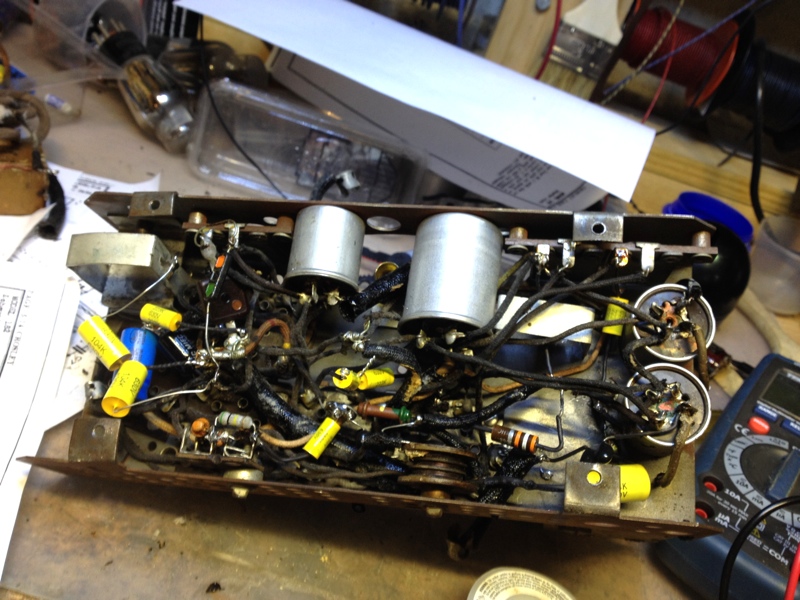

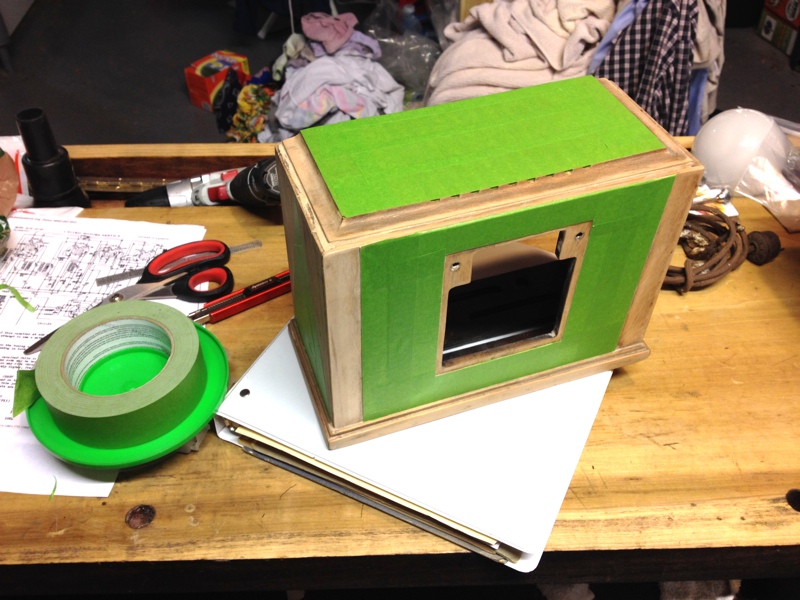

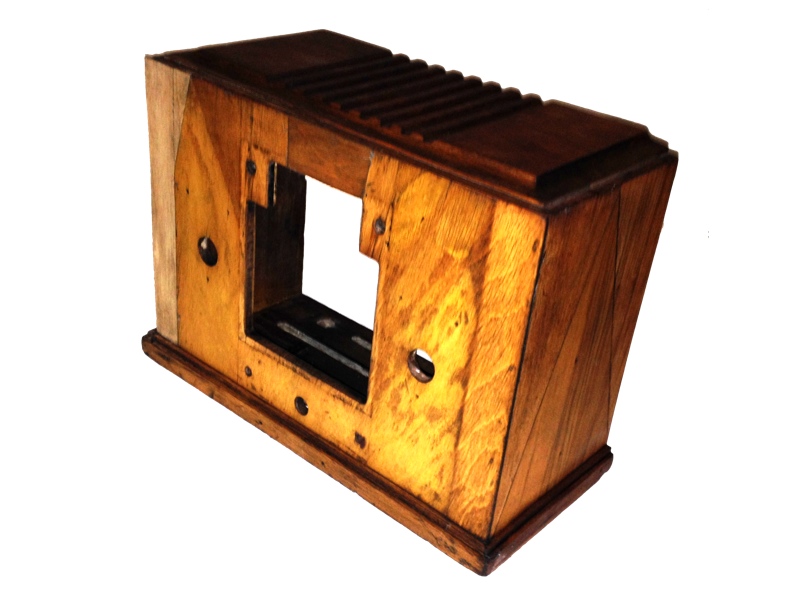

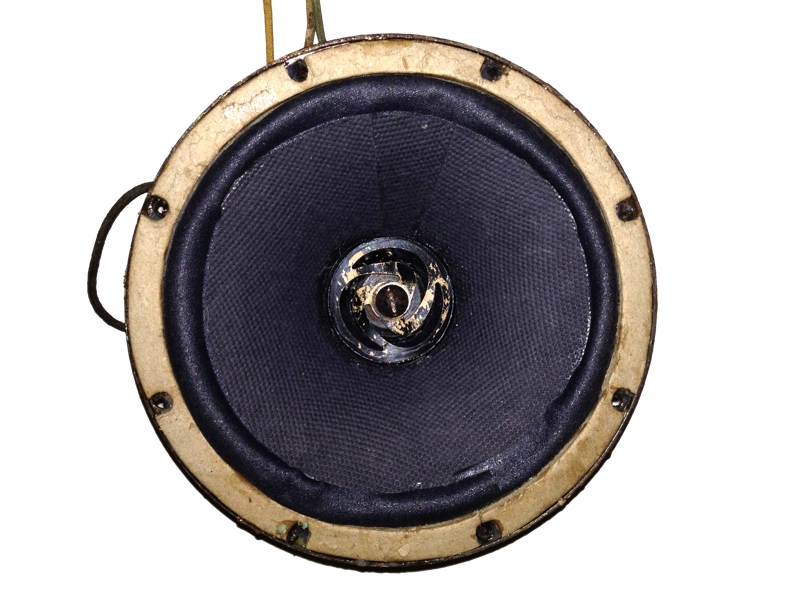

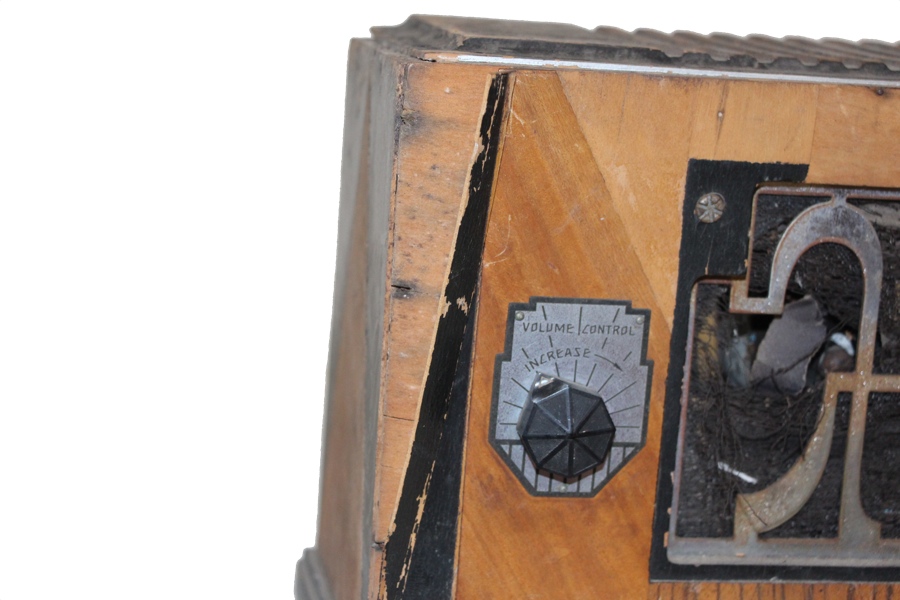

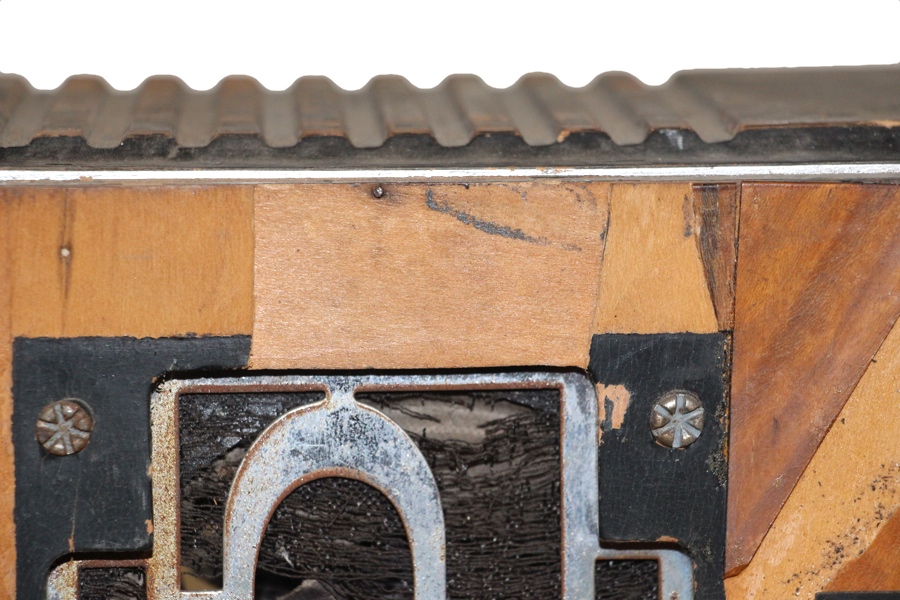

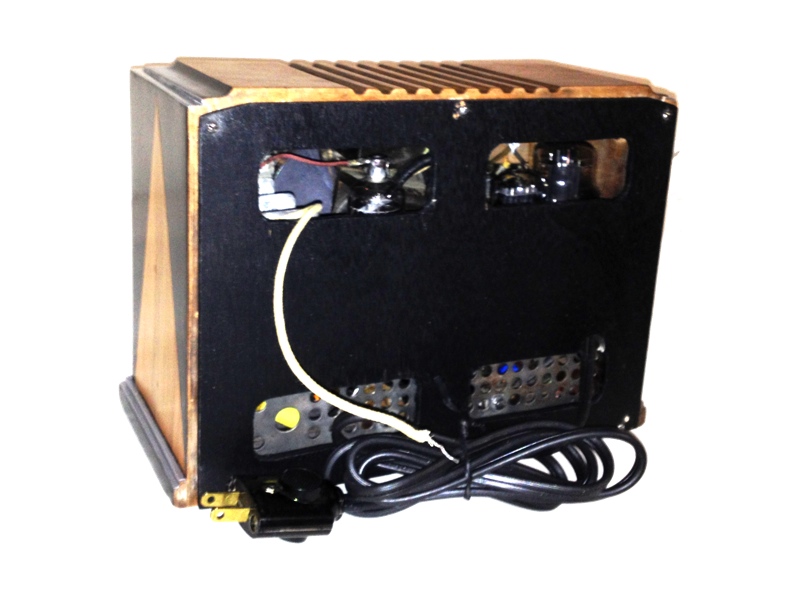

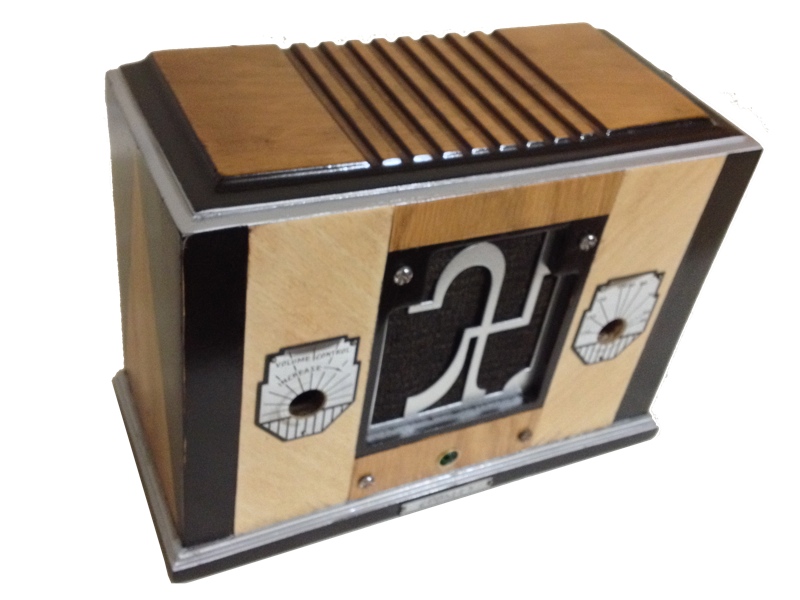

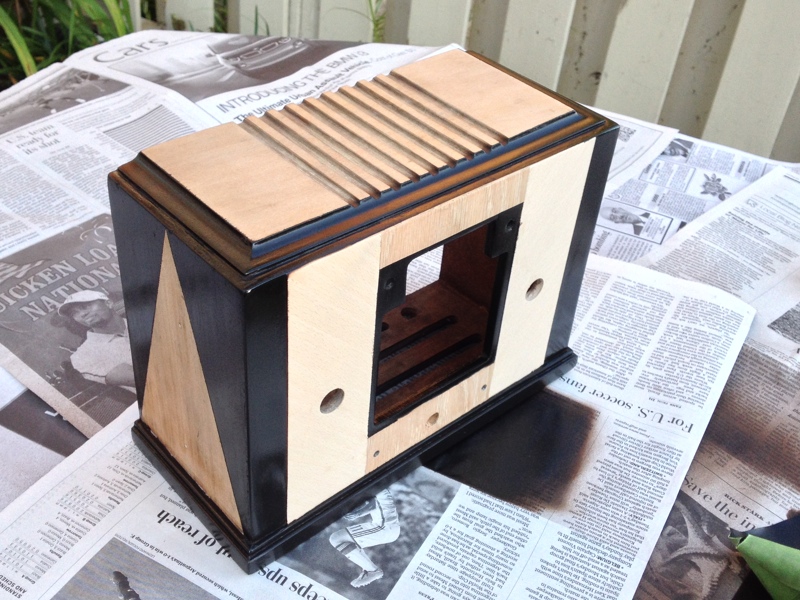

PICTURES(Click to enlarge image)

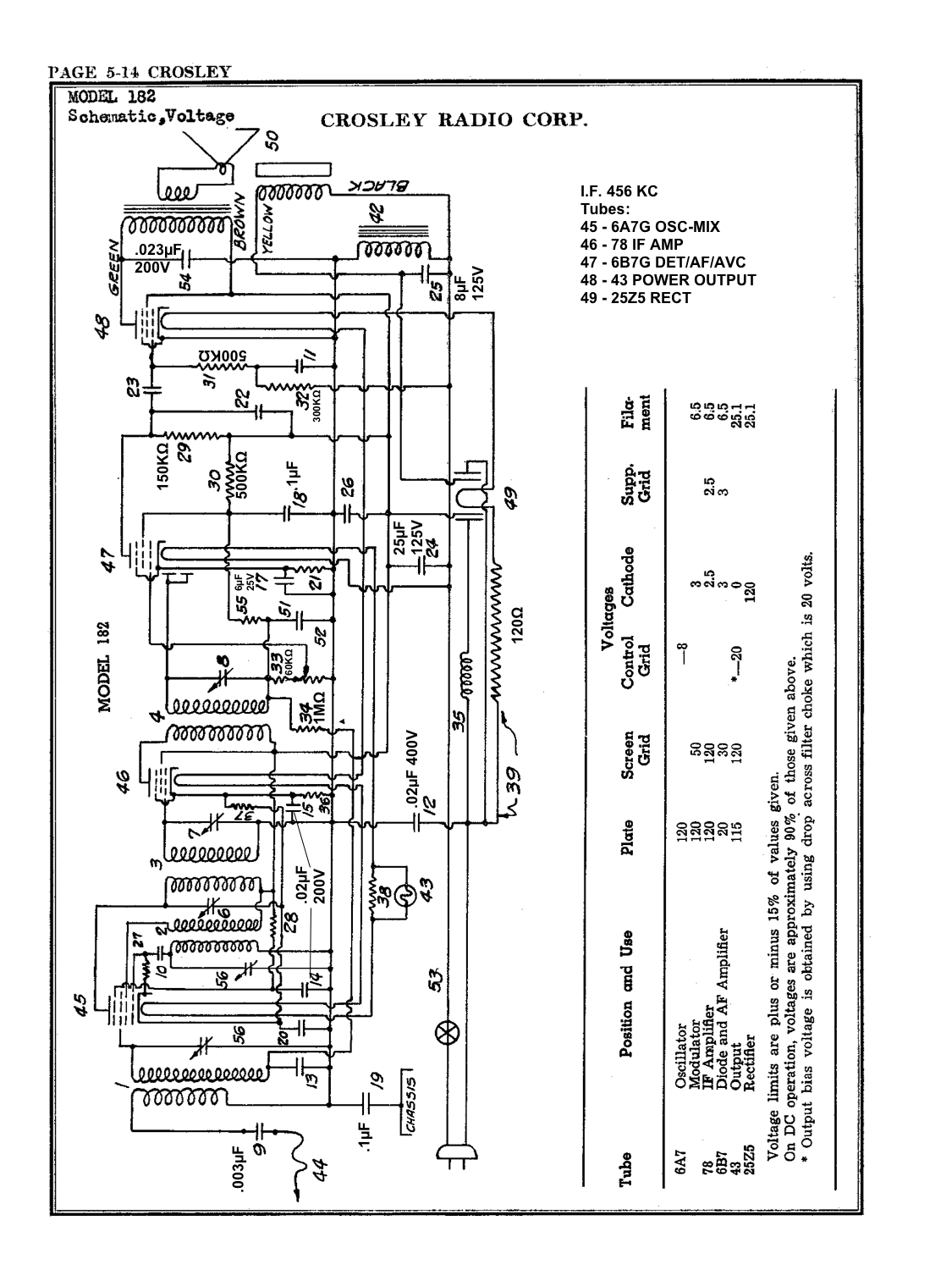

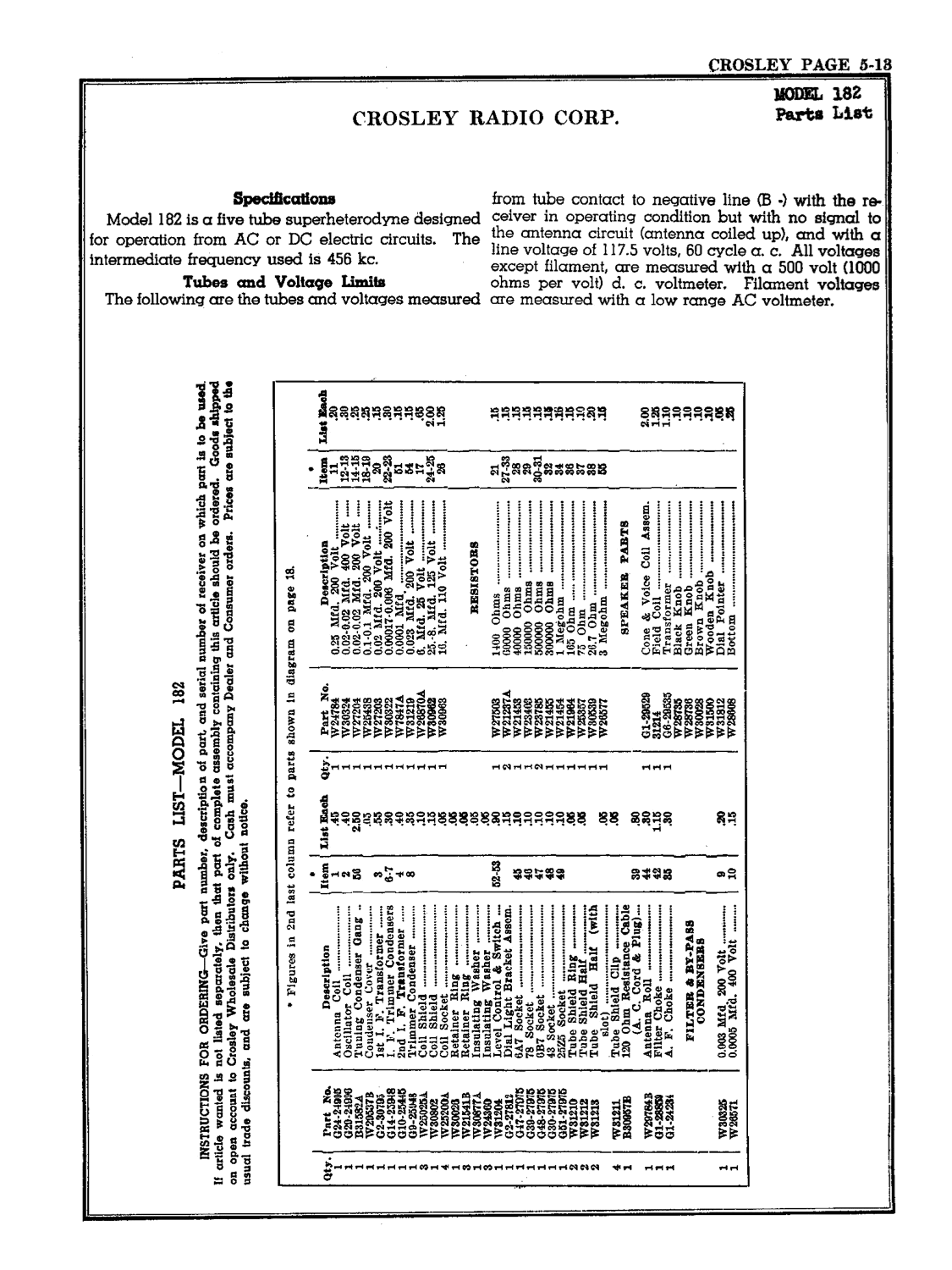

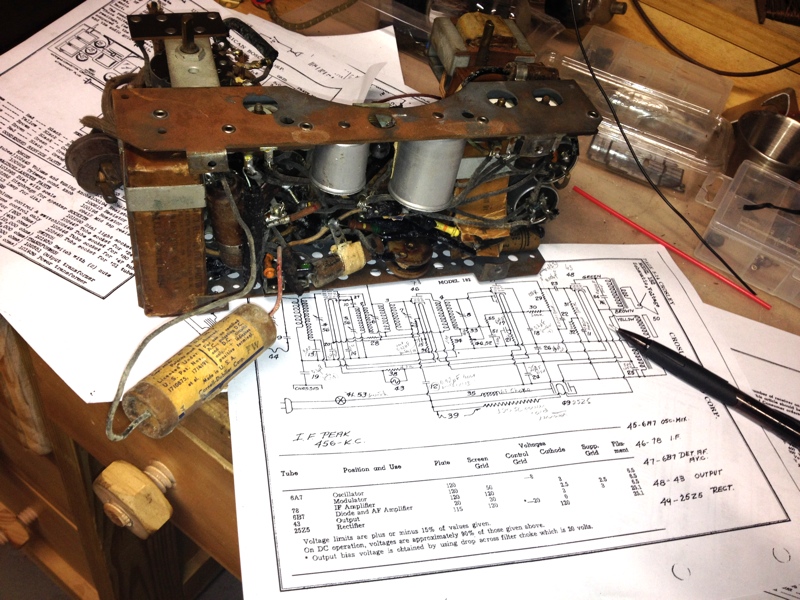

SCHEMATICS | Page1 | Page2 |
FROMFrom 2014 Radioactivity Flea Market.
