RADIOEmerson
MODELDY-349
TECHNOLOGYTube
YEAR1941
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1600 KHz; SW 2.5 - 6.5 MHz
DESCRIPTIONTwo-tone wood cabinet, right front dial, left two raised curved section grill with vertical bars, 2 right front knobs, 1 back wave switch knob. Built-in loop antennas as first RF circuit and Ingraham cabinet.
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSIS

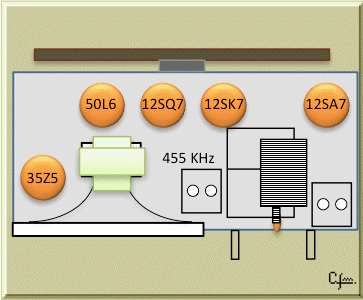

TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |

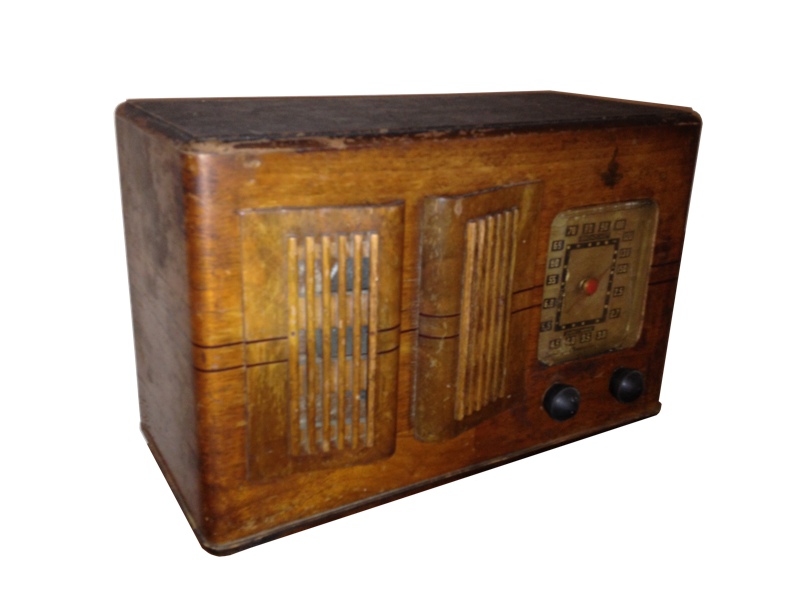

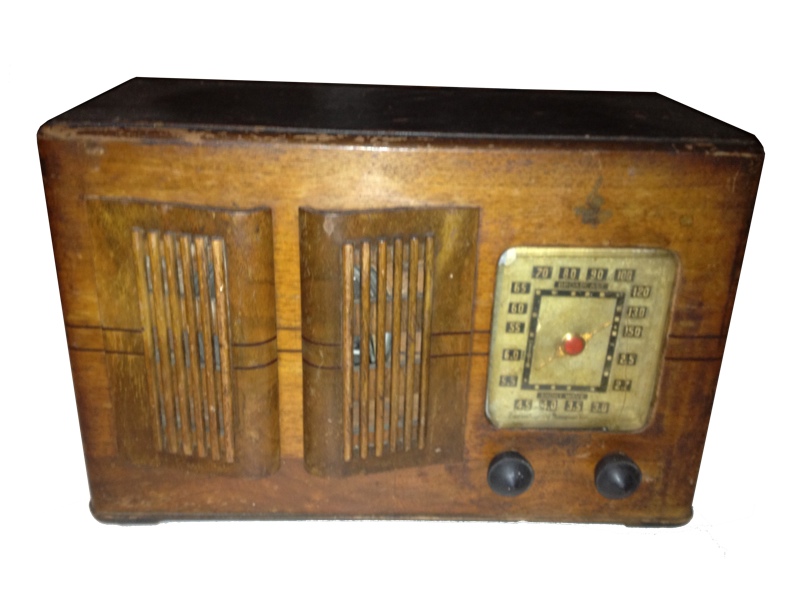

PICTURES(Click to enlarge image)

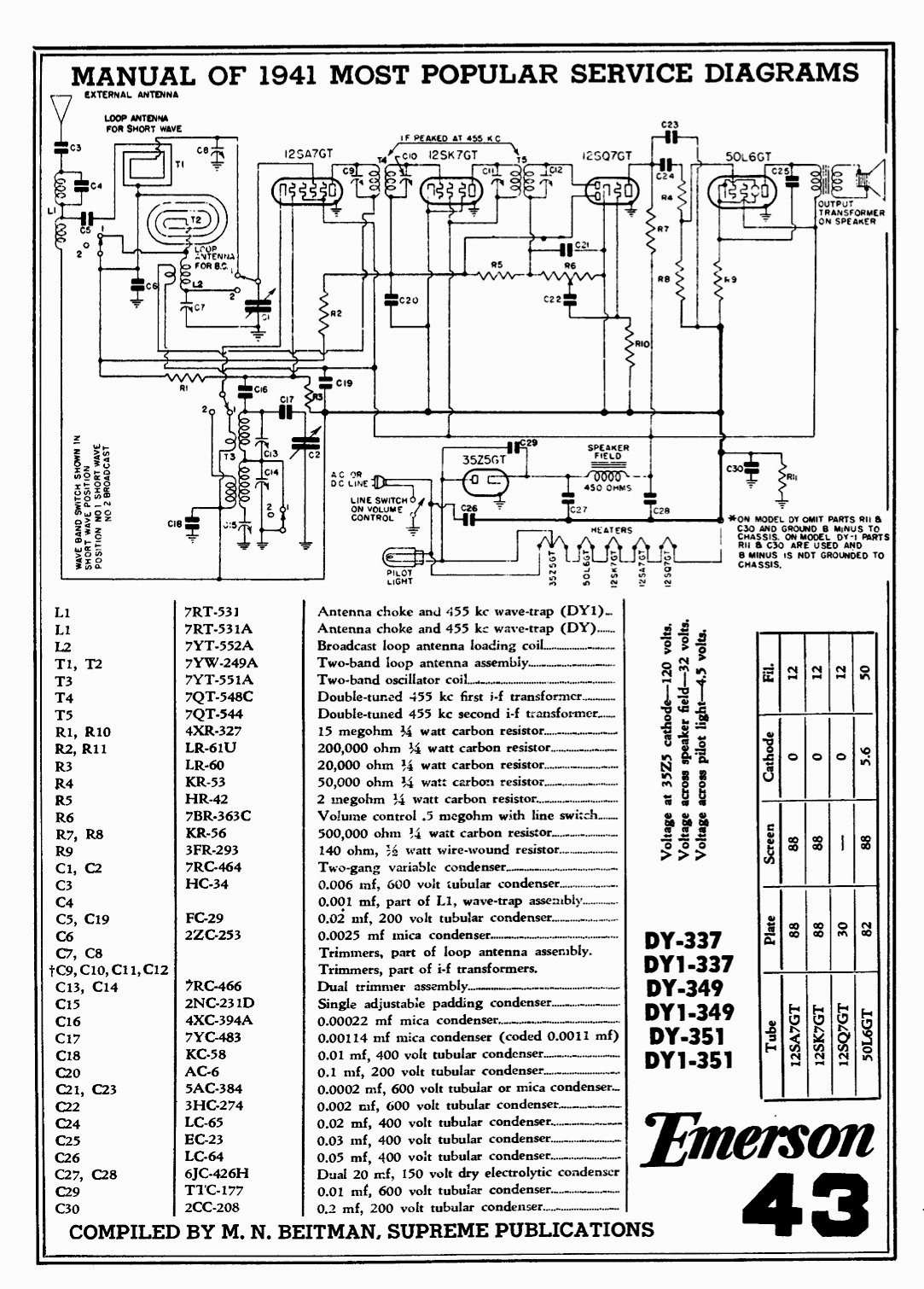

SCHEMATICS | Page1 | Page2 |
FROM
ADDITIONAL INFOFrom ebay US 84elcamino in March 24, 2013.
