RADIOSilvertone
MODEL6050
TECHNOLOGYTube
YEAR1947
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE540 - 1600 Kc
DESCRIPTIONRight front dial, left cloth grill with 3 horizontal bars, 3 knobs.
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x Candelabra
TONEVariable
CIRCUITSuperheterodyne
IF465 KC
POWER SUPPLYAC/DC
VOLTS105-125 V
CONSUMPTION45 W
AC CYCLES50-60 Hz
CHASSISSerial No. 132.825-2
TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 14R7 | 35L6 | 35Z5 |

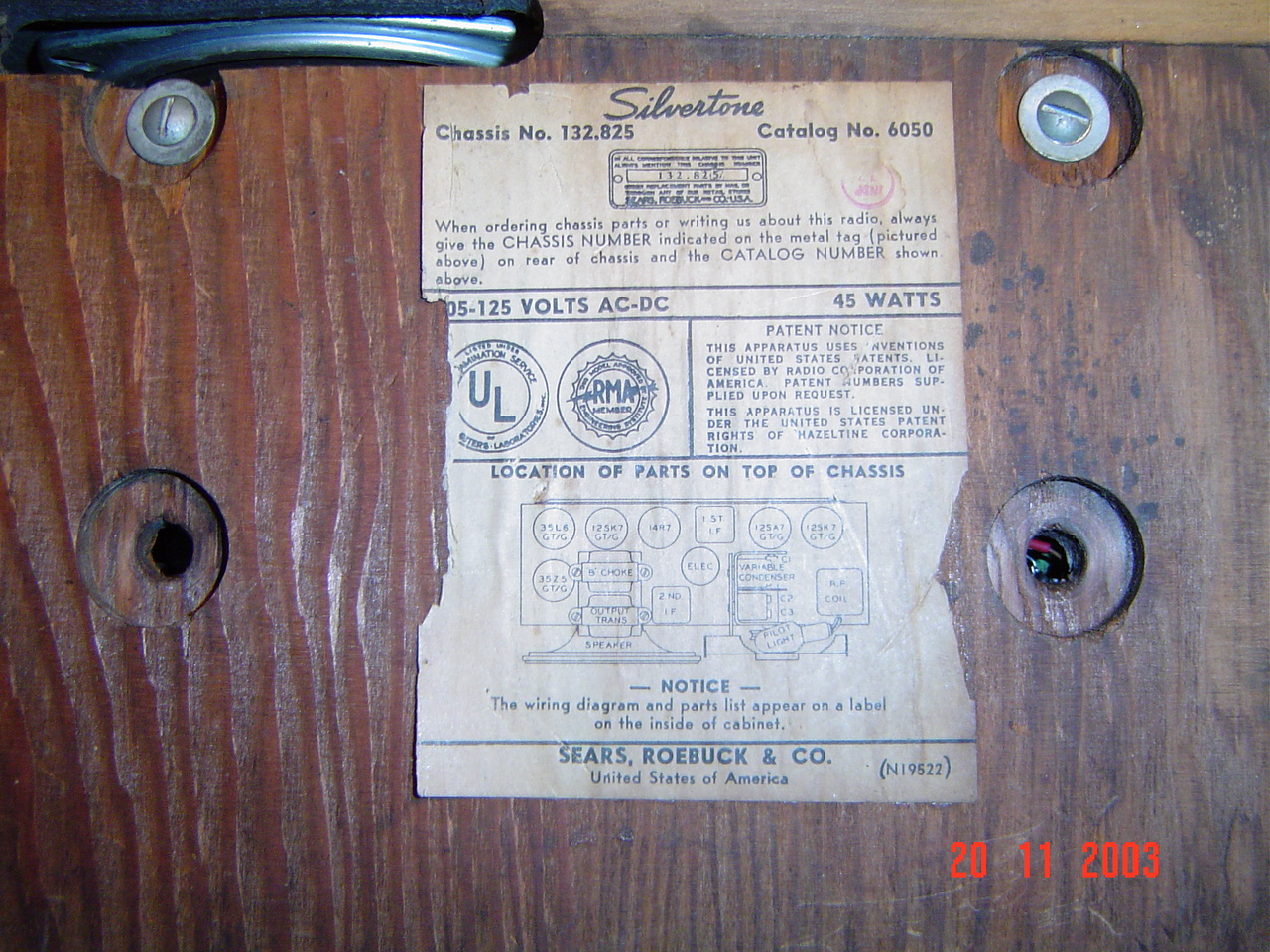

PICTURES(Click to enlarge image)

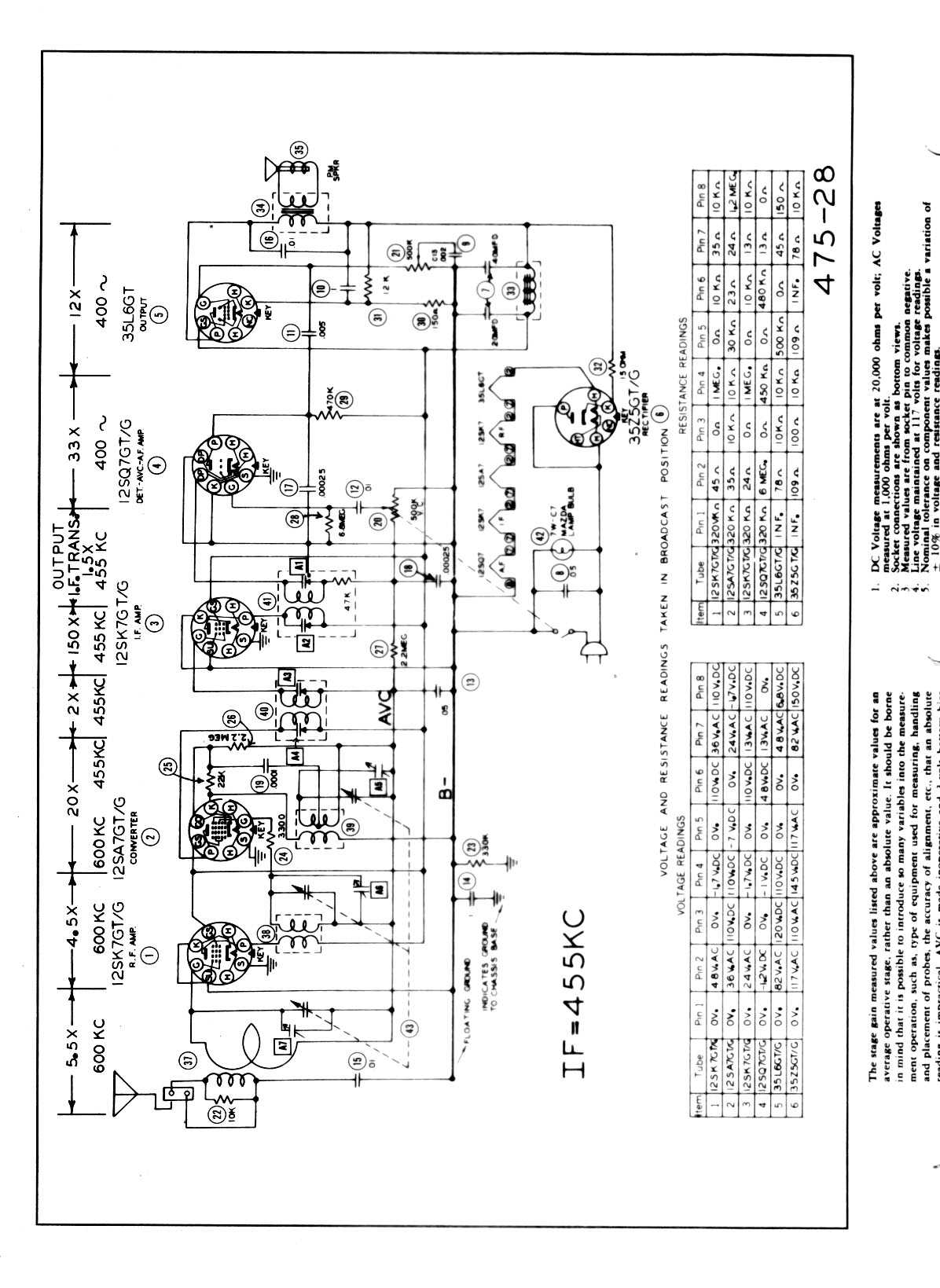

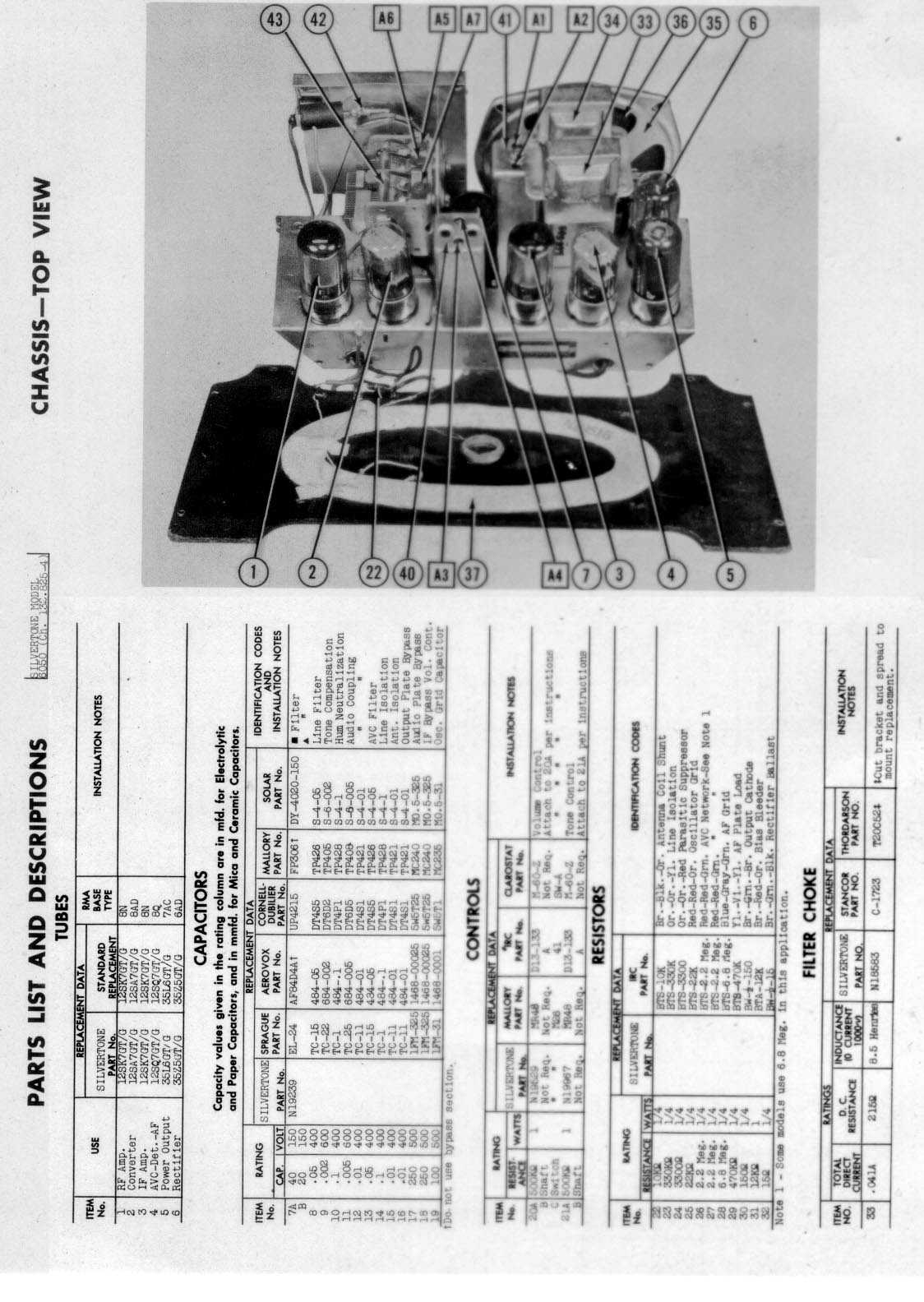

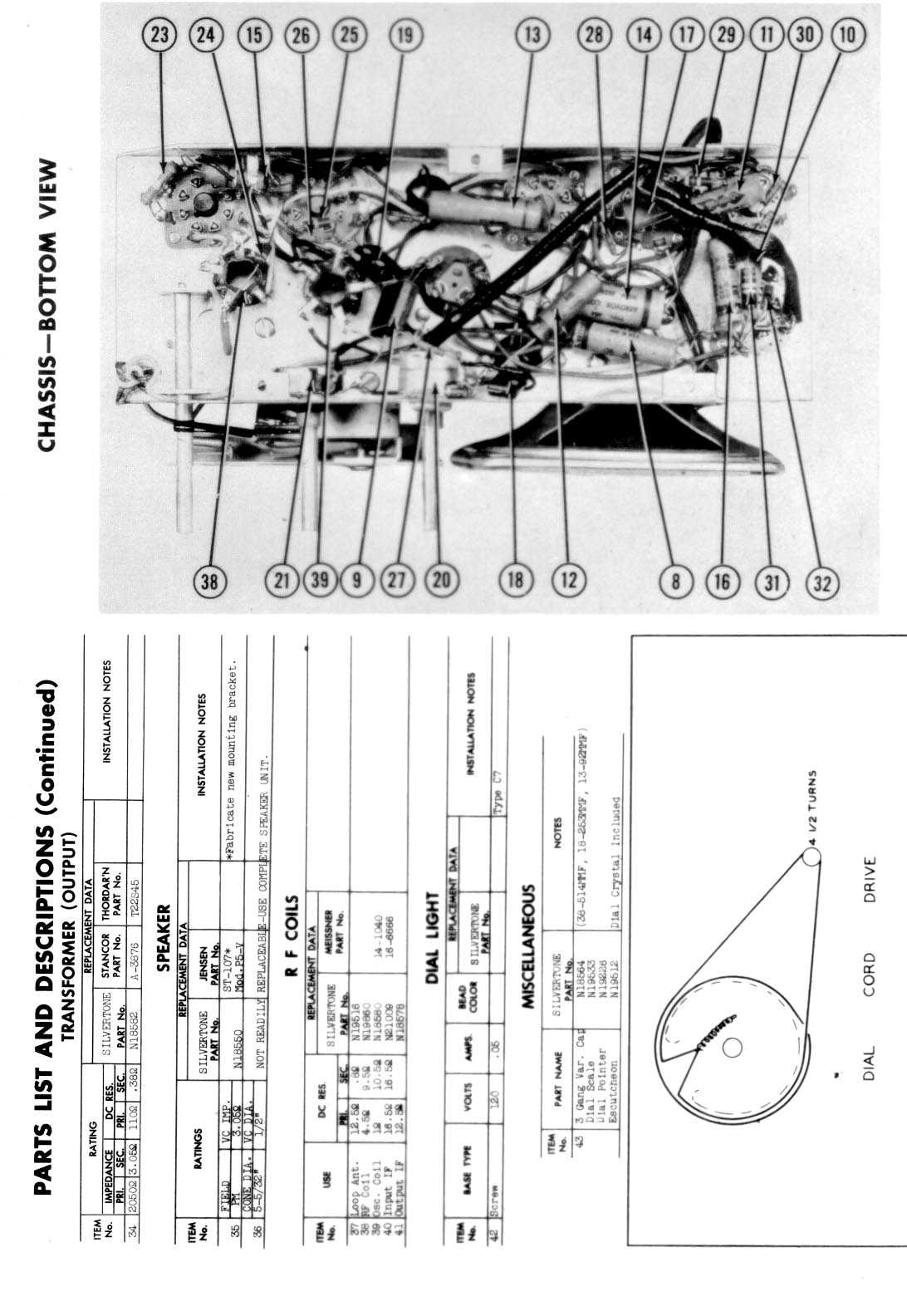

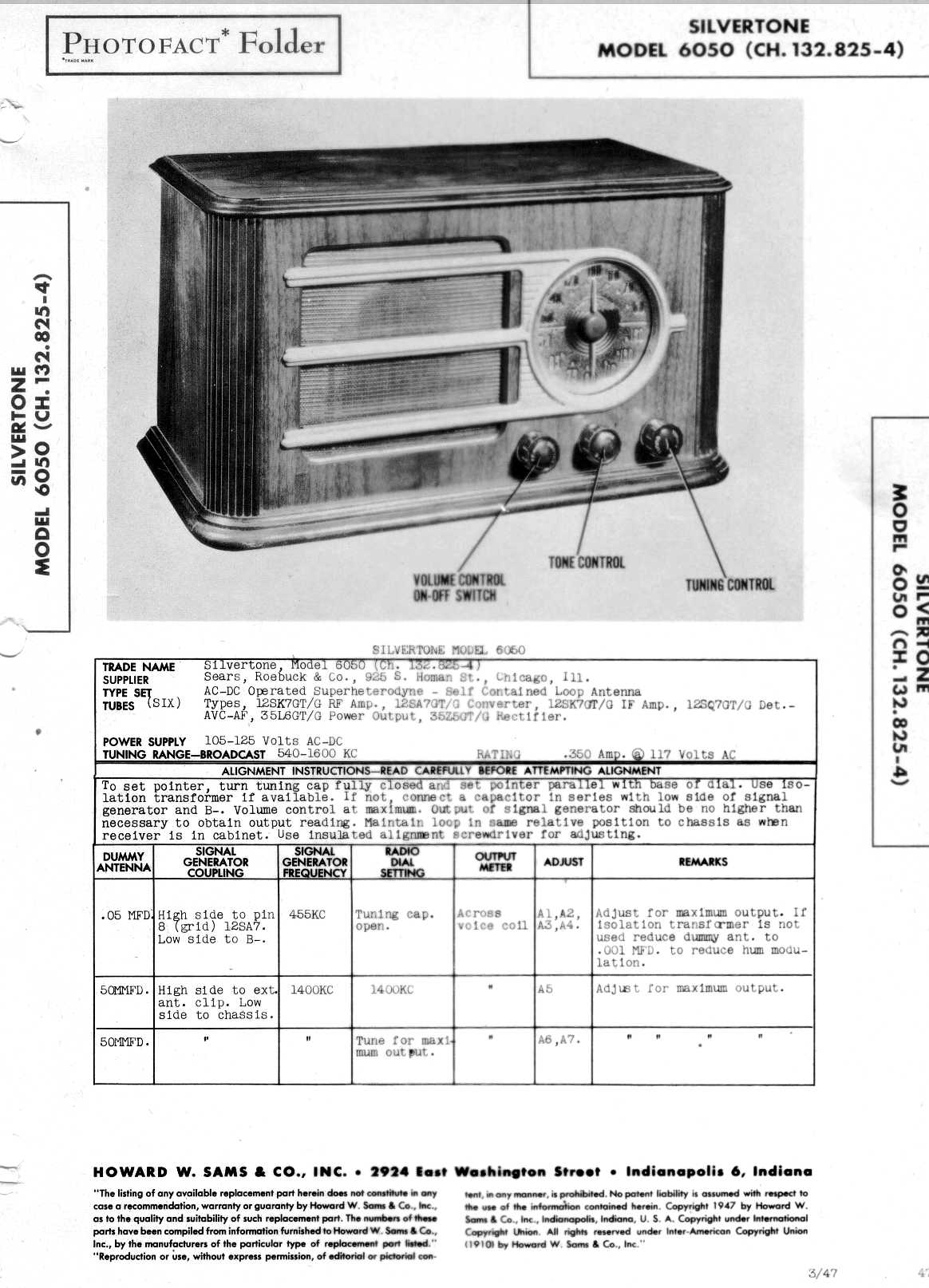

SCHEMATICS | Page1 | Page2 | Page3 | Page4 |
FROMGarage Sale Ms. Mary Thomas, Brooktondale, NY.
ADDITIONAL INFOCabinet restored with tung oil finish and wax.
