| RADIO | Philips |
| MODEL | BR295 UM |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1950 |
| MADE IN | BRAZIL |
| WAVE BANDS | BC/SW1/SW2 |
| COVERAGE | BC (OM) 531 - 1604 Kc; SW1 - 4.8 - 16.2 Mc; SW2 - 25 - 30 m (amplified wave) |
| DESCRIPTION | |
| CABINET STYLE | Mantle |
| CABINET MATERIAL | Bakelite |
| DIAL LAMP - N° x TYPE | 1 x 8097D |
| TONE | No |
| CIRCUIT | Superheterodyne |
| IF | 452 KC |
| POWER SUPPLY | AC/DC |
| VOLTS | 110, 127, 220 V |
| CONSUMPTION | ? |
| AC CYCLES | 50-60 Hz |
| CHASSIS | |
| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| UCH42 | UAF42 | UBC41 | UL41 | UY41 |
|

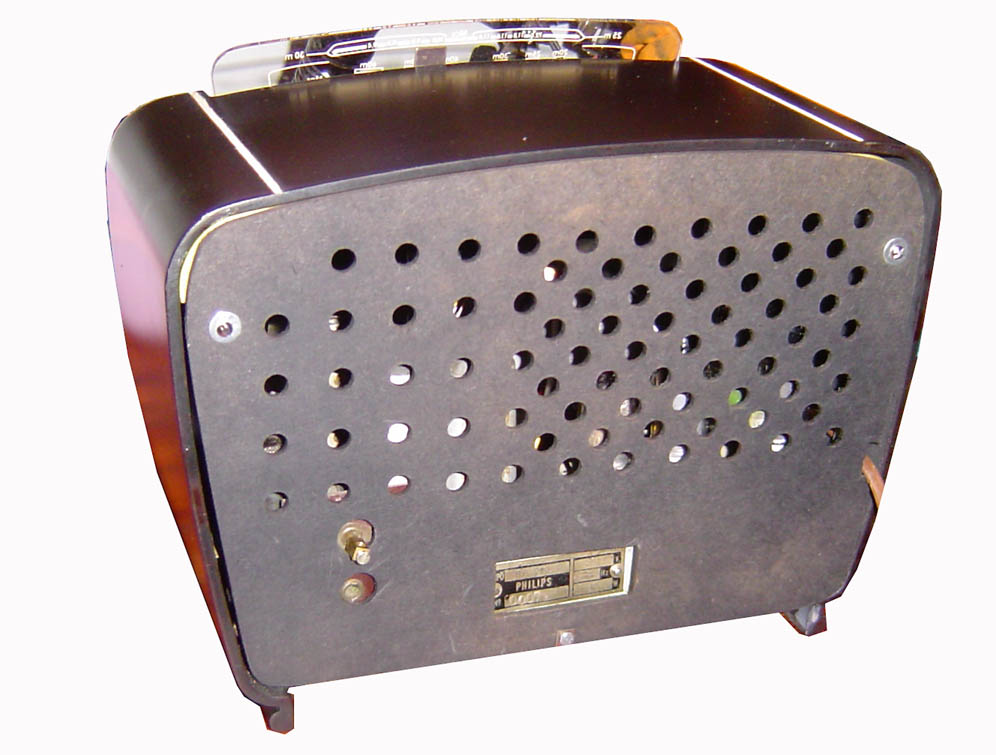

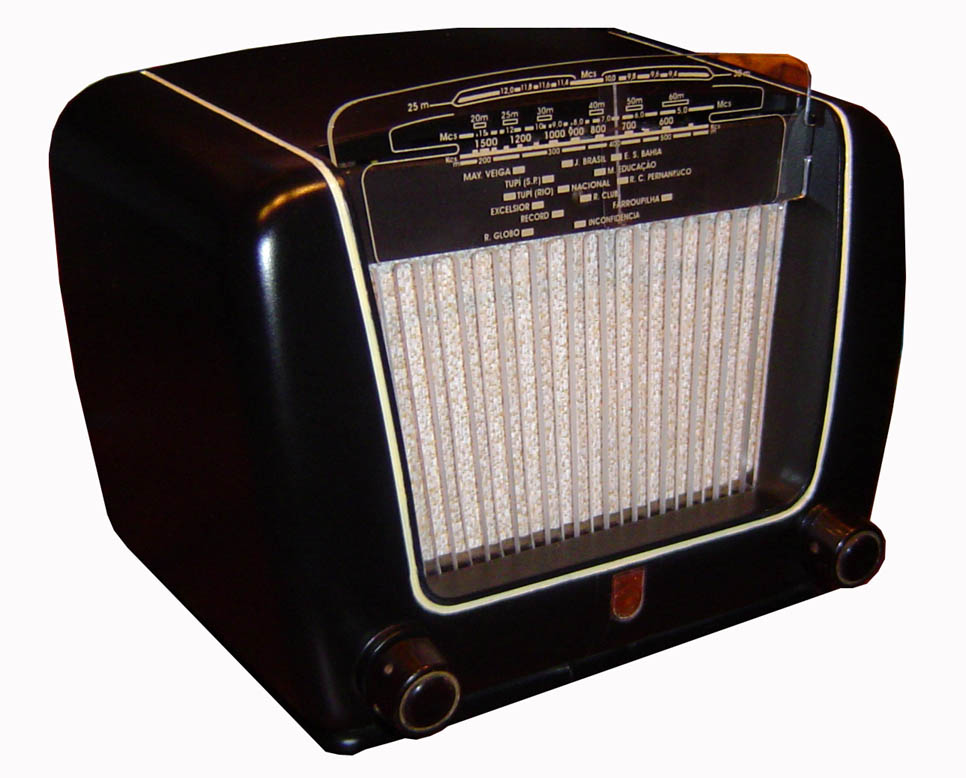

| PICTURES | (Click to enlarge image) |
|
|
| SCHEMATICS |
| Page1
| Page2
| Page3
| Page4
|
|
| FROM | |
