RADIOPhilco
MODEL20
TECHNOLOGYTube
YEAR1930
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 550kHz to 1500 kHz

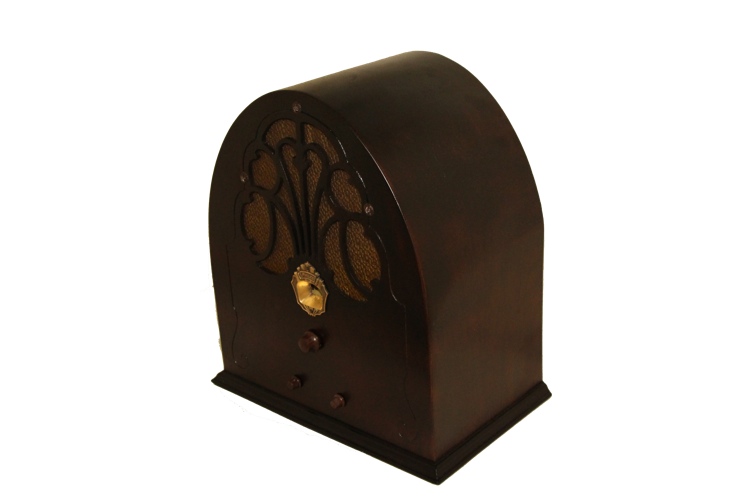

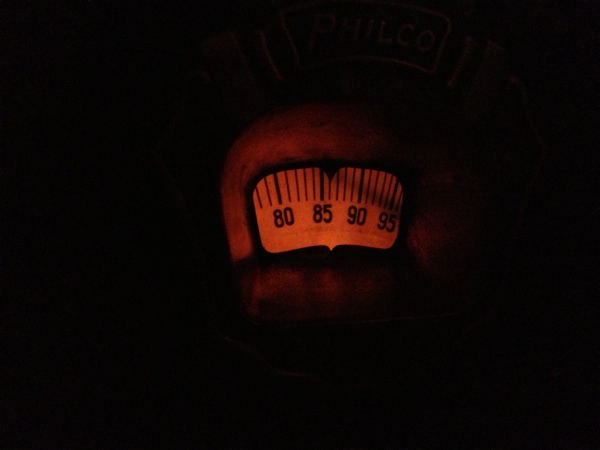

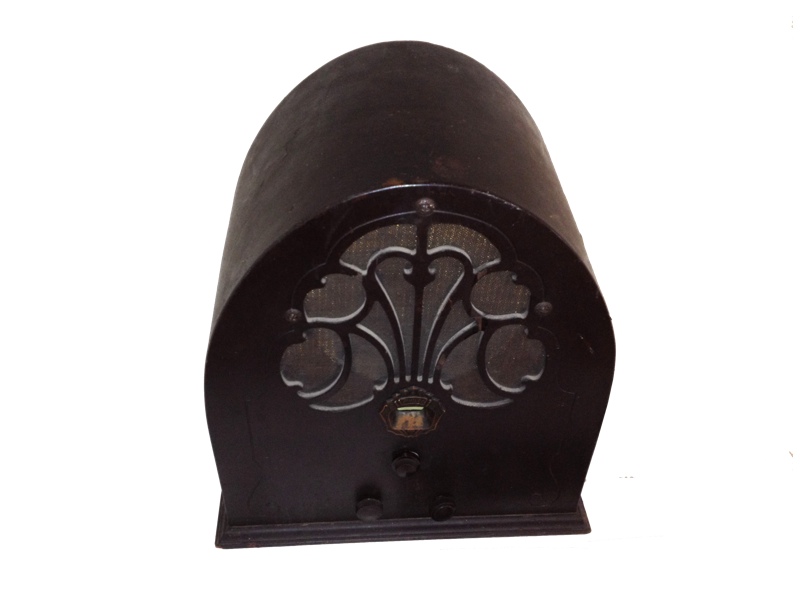

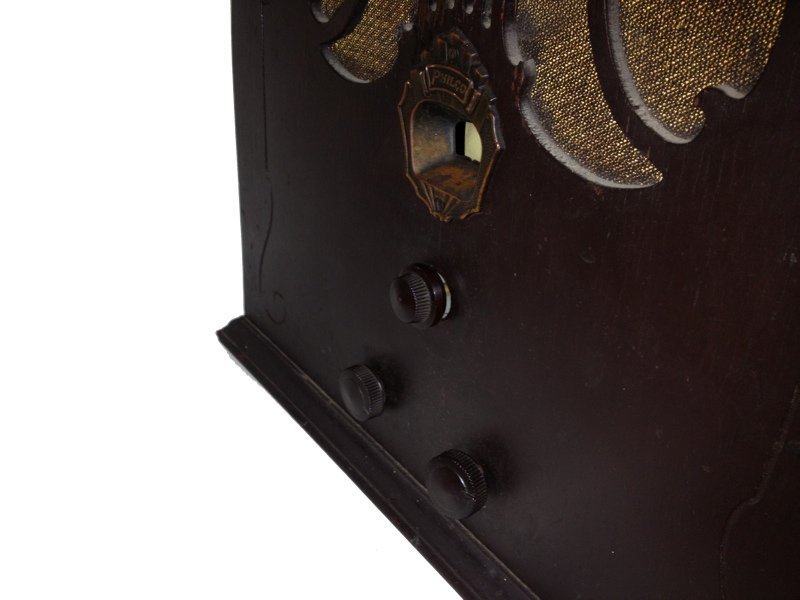

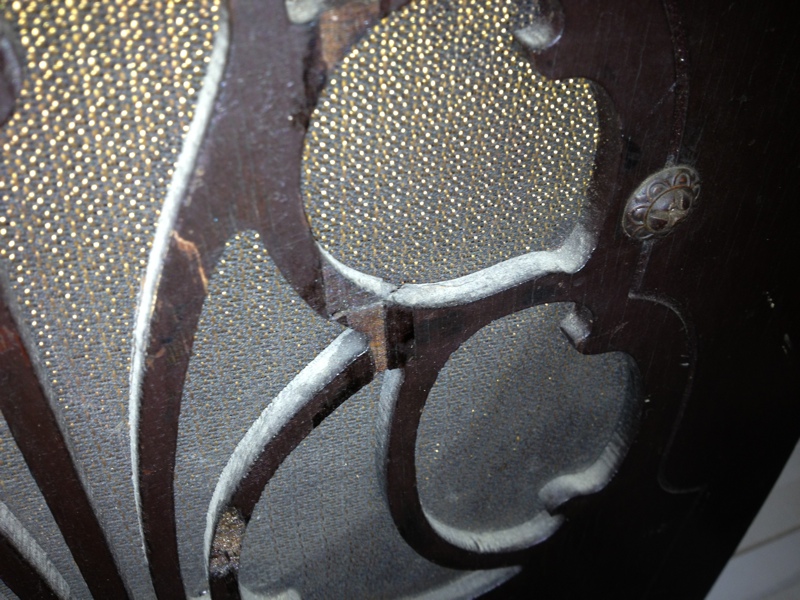

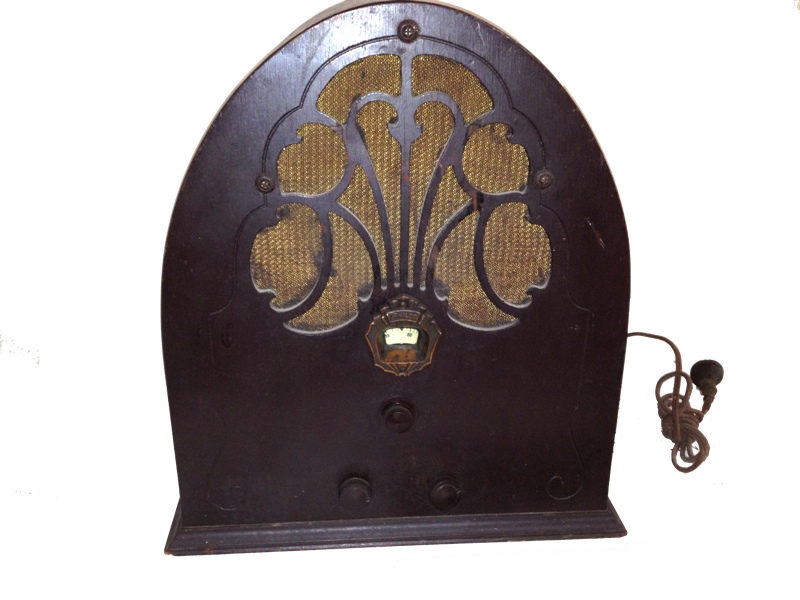

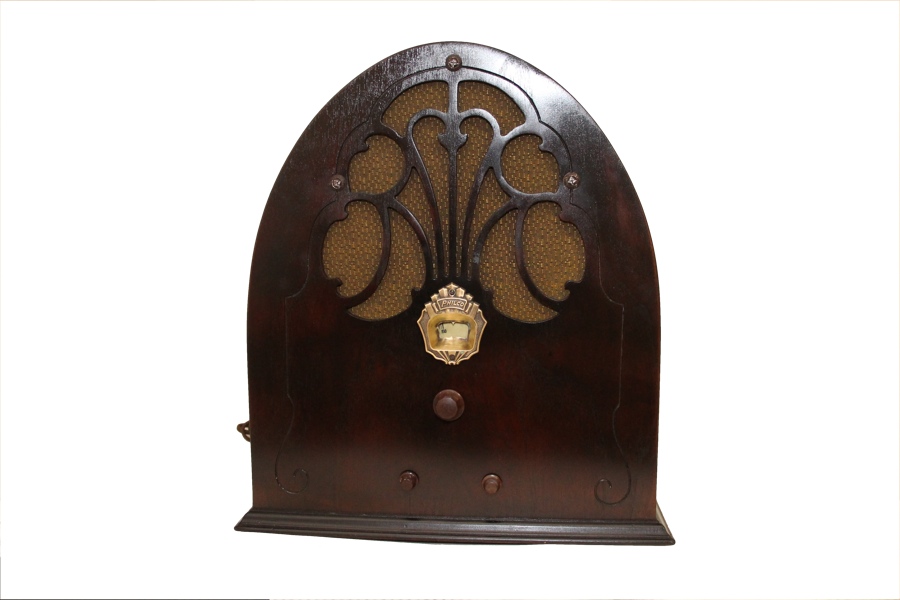

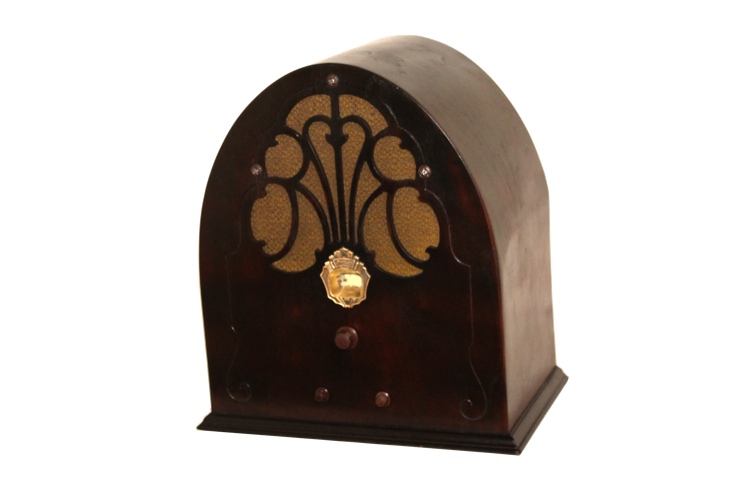

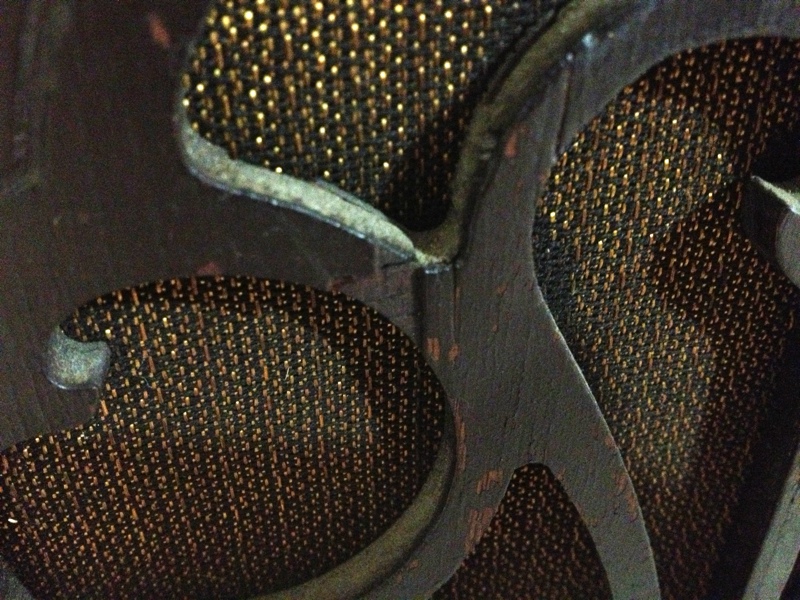

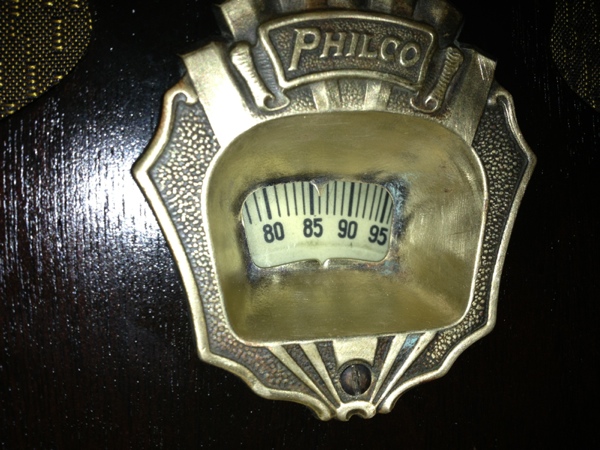

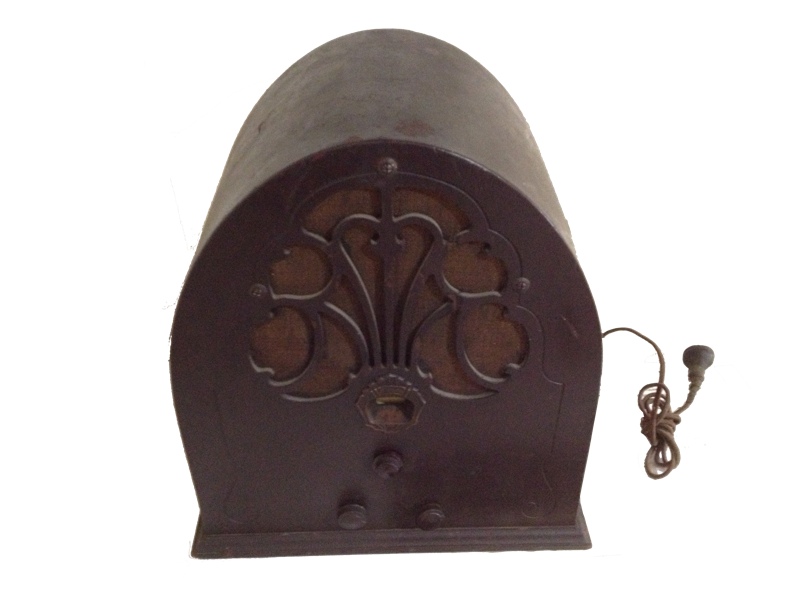

DESCRIPTIONThe Philco model 20 'Baby Grand' was the first of the Philco cathedral table top model, introduced in August, 1930. It has a center front window dial, upper cloth grill with fancy cut-outs, and 3 knobs.

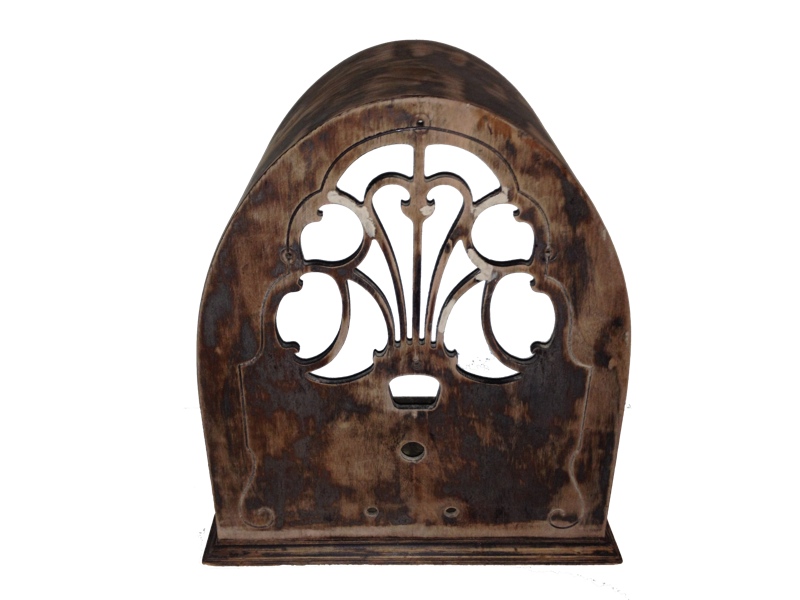

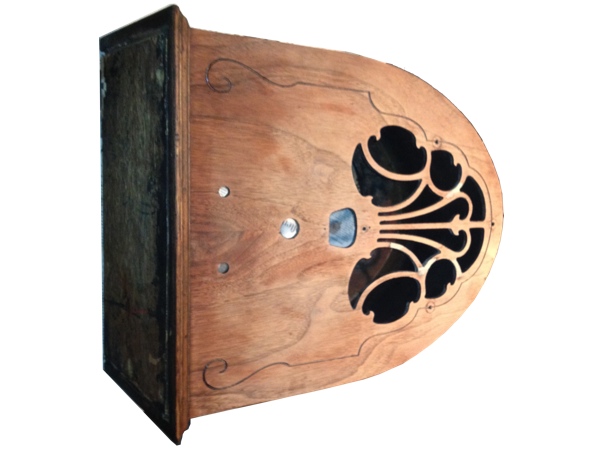

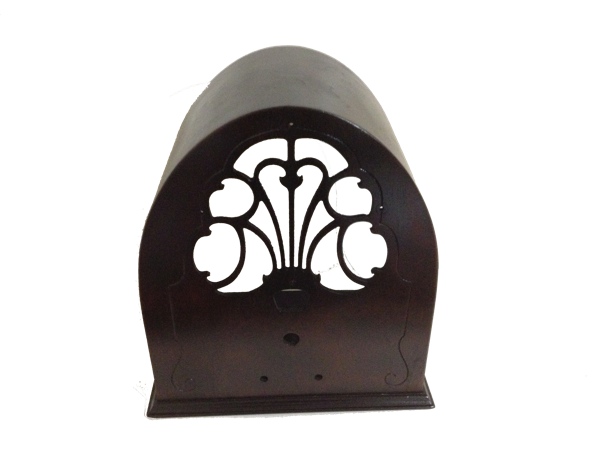

CABINET STYLECathedral
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 40
TONENo
CIRCUITTRF
IFNot applicable
POWER SUPPLYAC
VOLTS105 - 125 Volts
CONSUMPTION65 W
AC CYCLES50-60 Hz

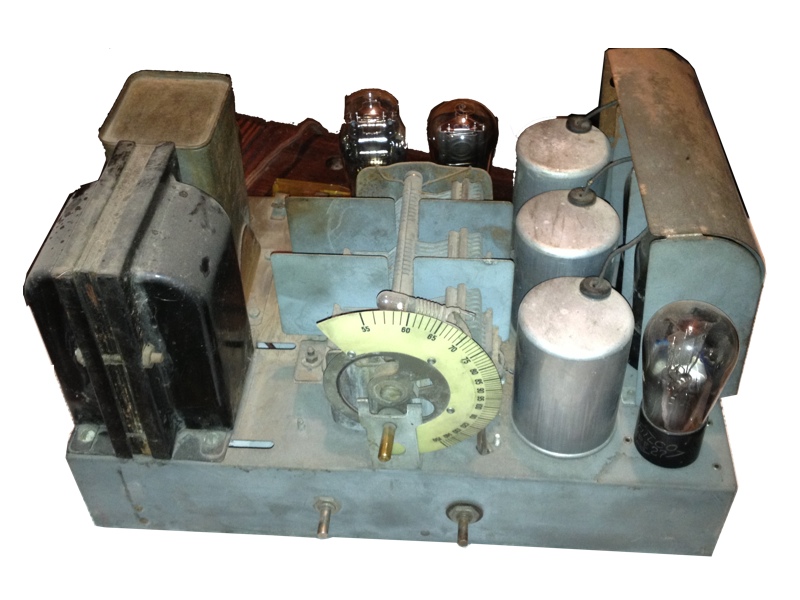

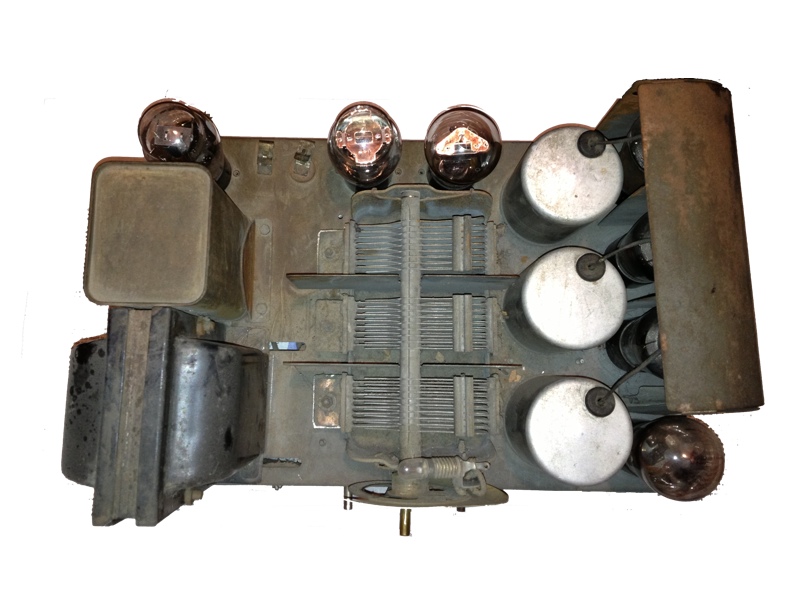

CHASSISEarly type

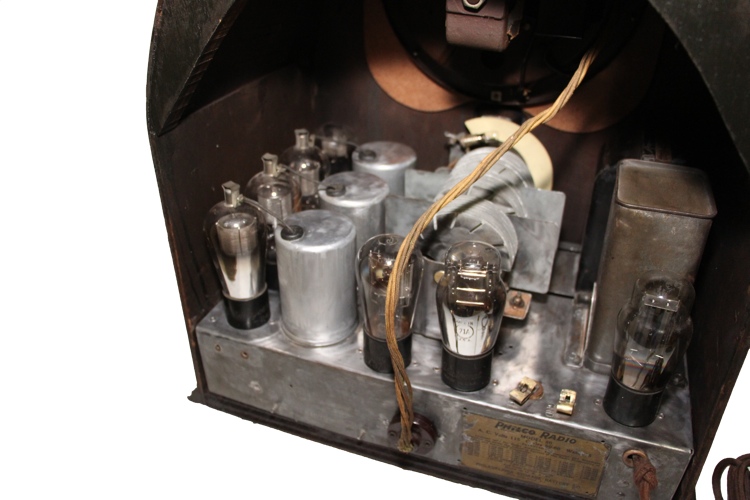

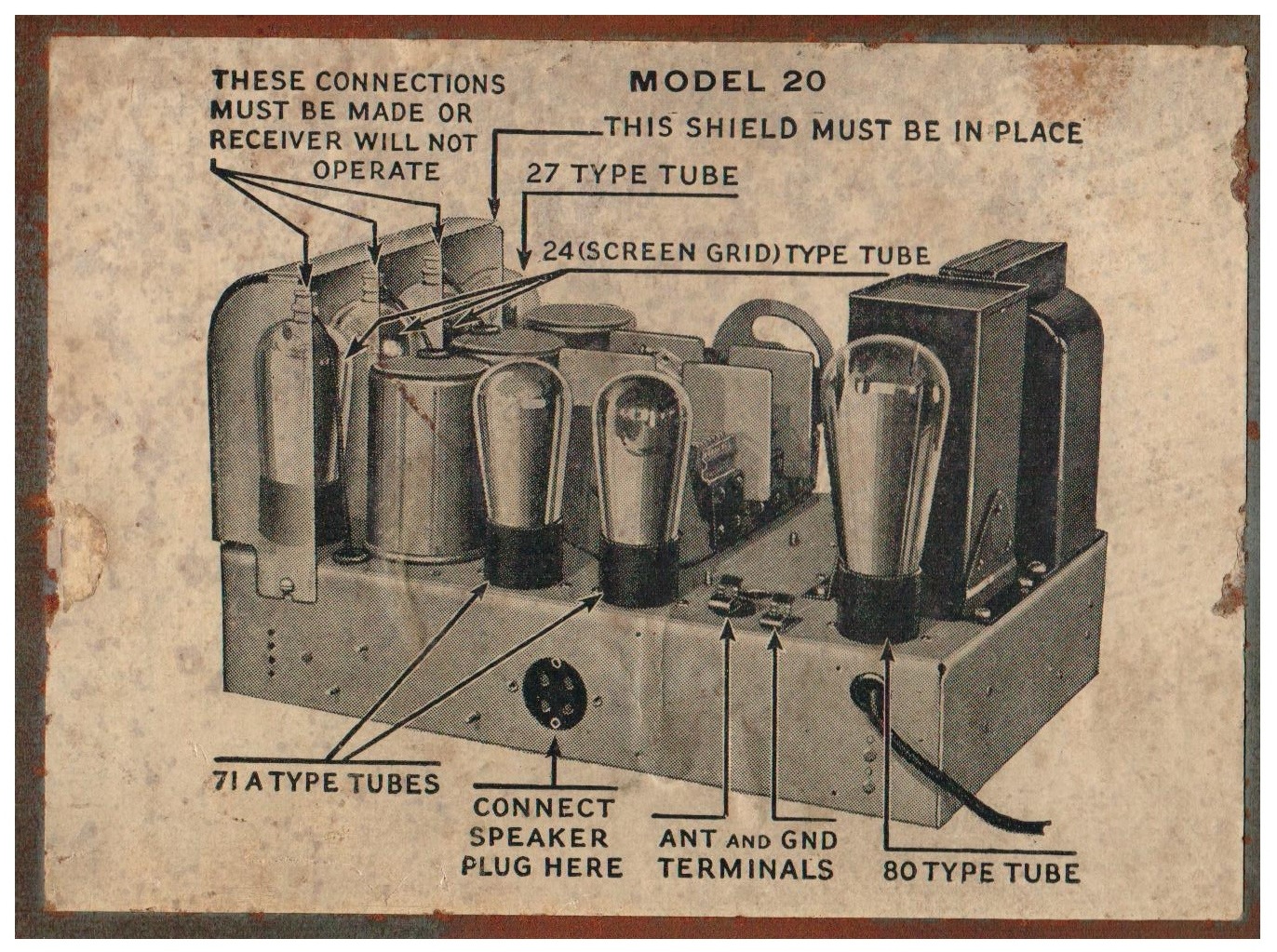

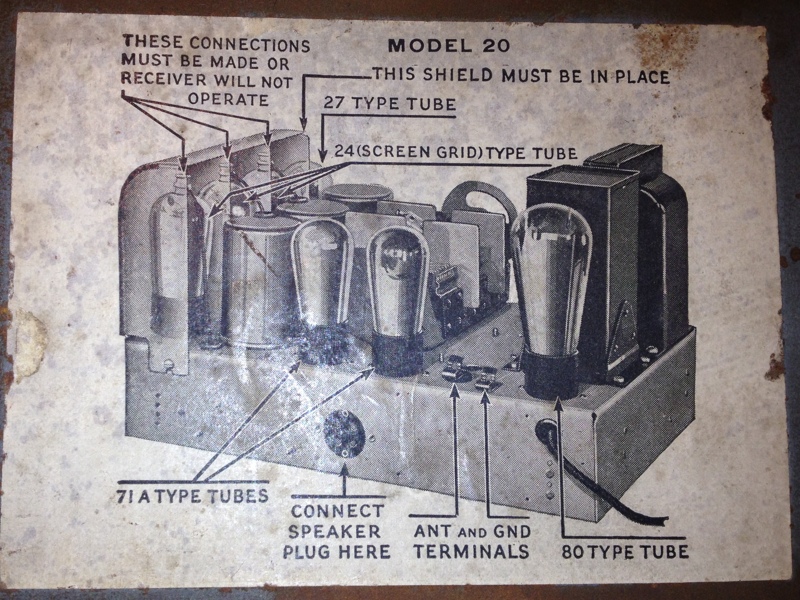

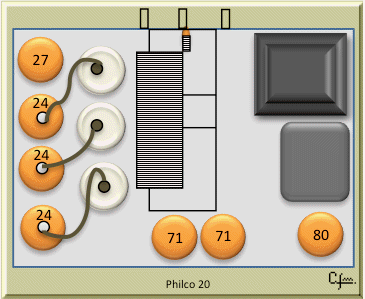

TUBES LOCATION

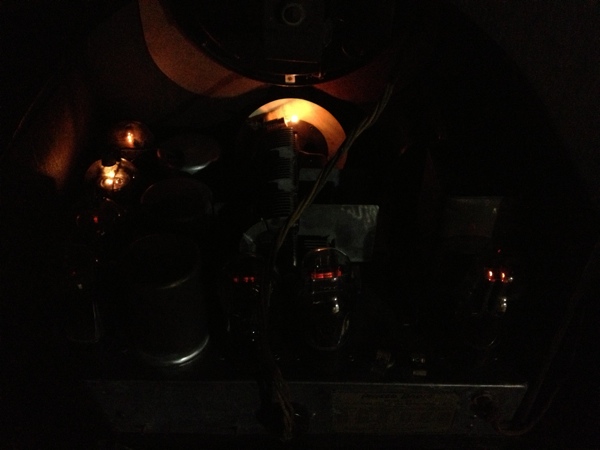

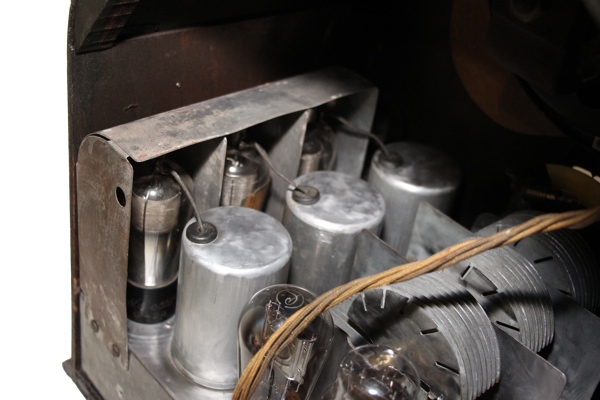

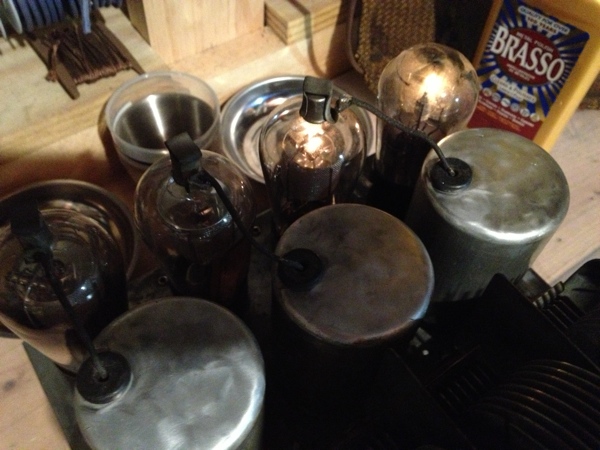

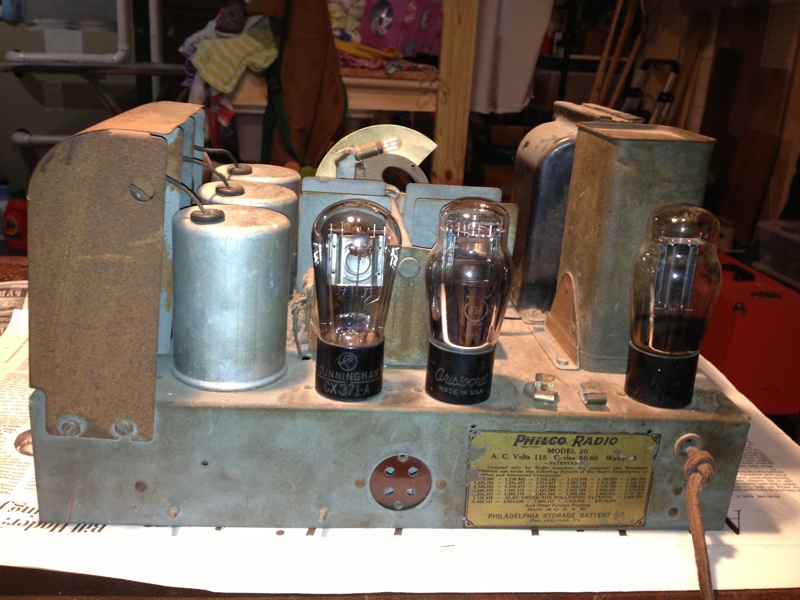

TUBE COMPLEMENT | 24 | 24 | 24 | 27 | 71A | 71A | 80 |

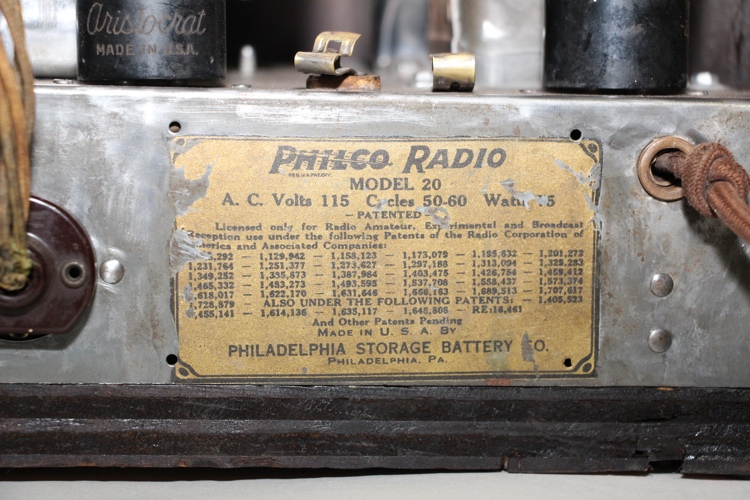

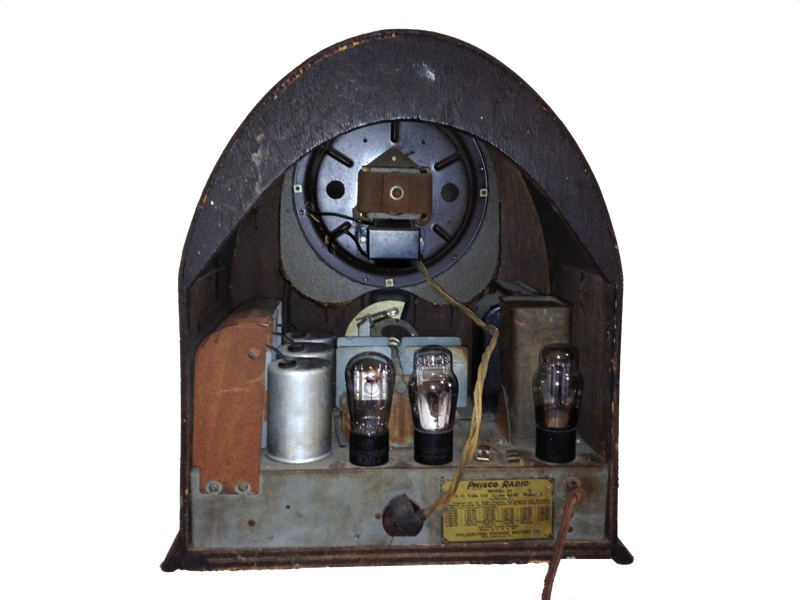

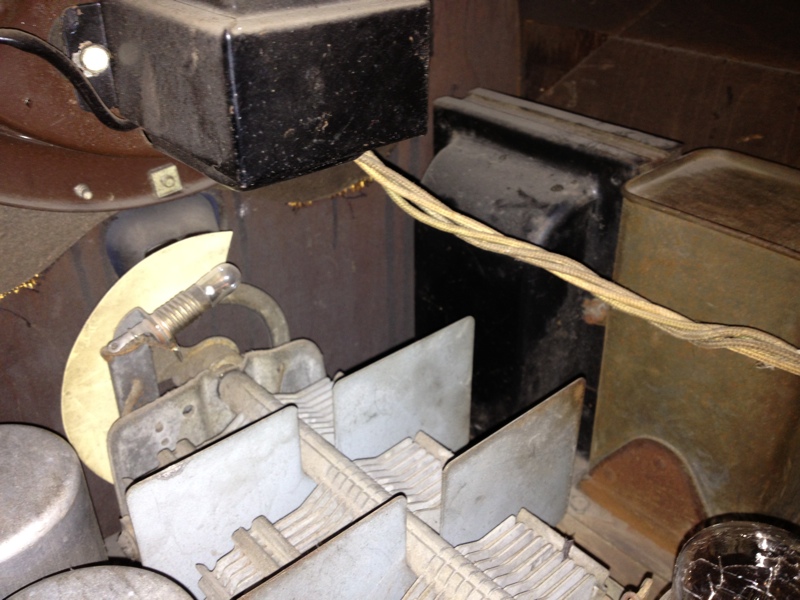

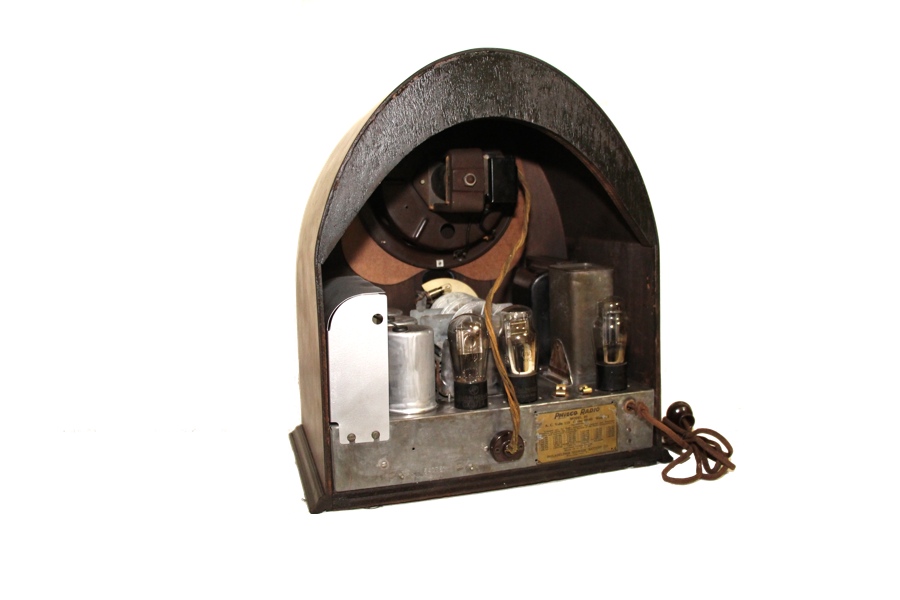

PICTURES(Click to enlarge image)

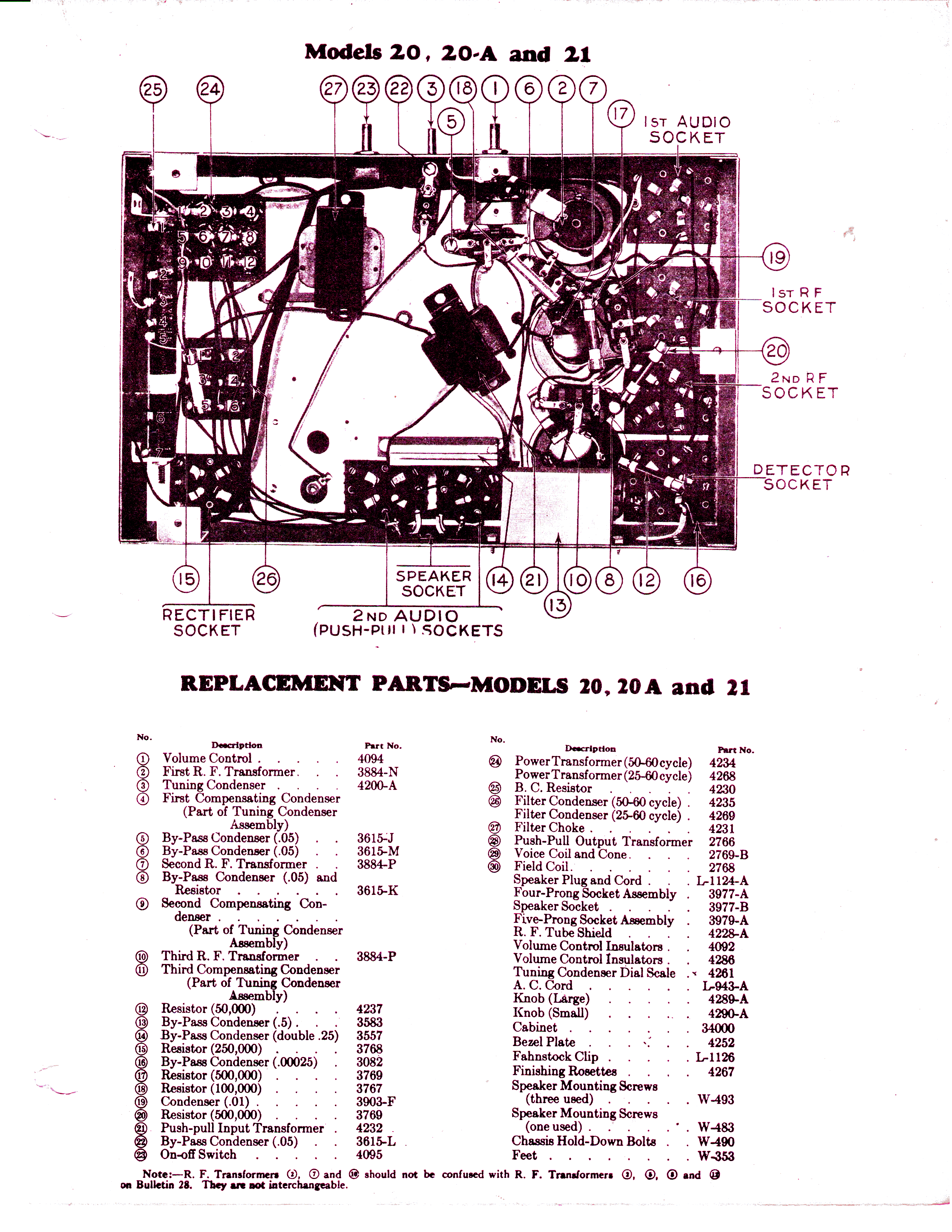

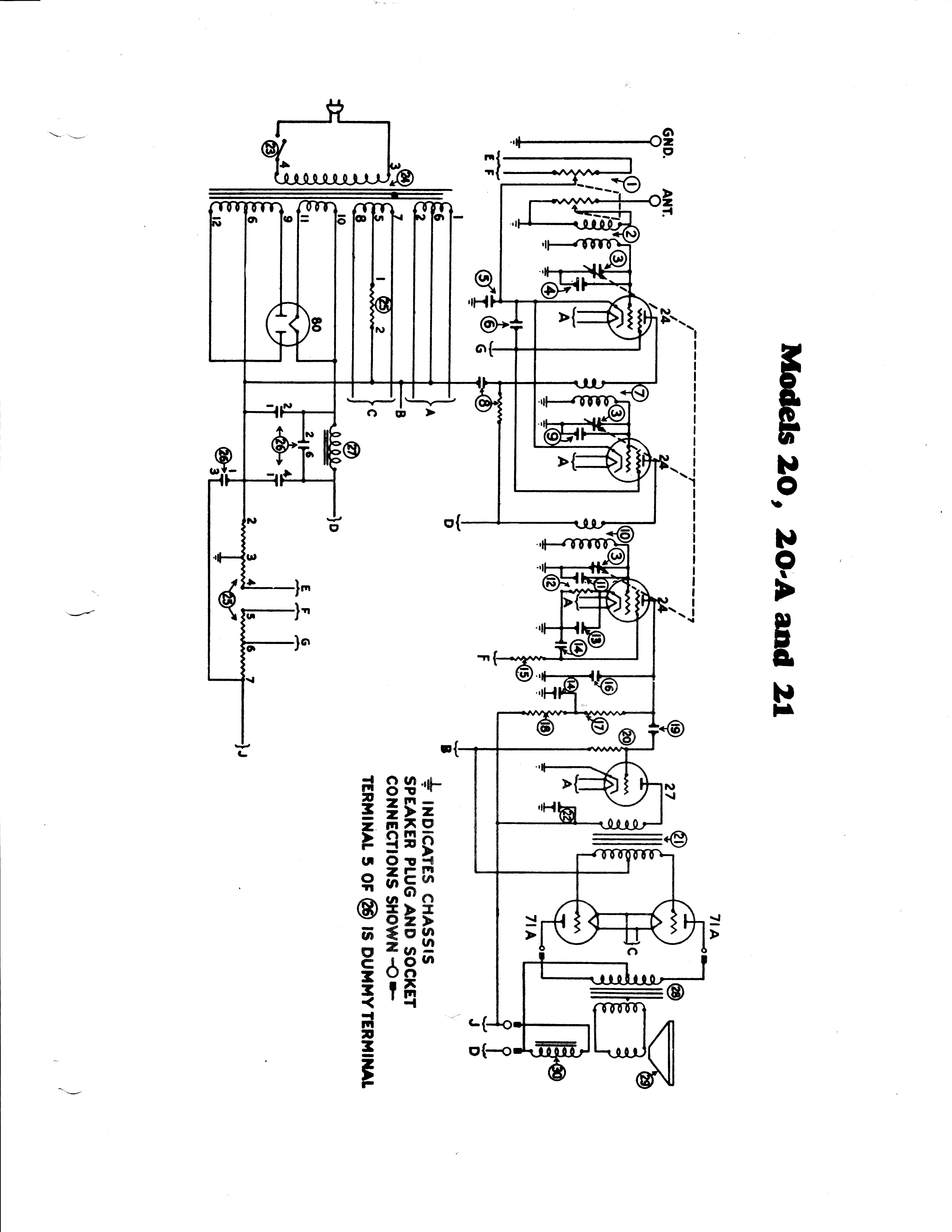

SCHEMATICS | Page1 | Page2 |
FROMFrom ebay rogerjolly2012, Leesburg, VA
