RADIOZenith
MODEL5S327
TECHNOLOGYTube
YEAR1939
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC - 550-1700 KC, SW - 5.5-18.5 MC

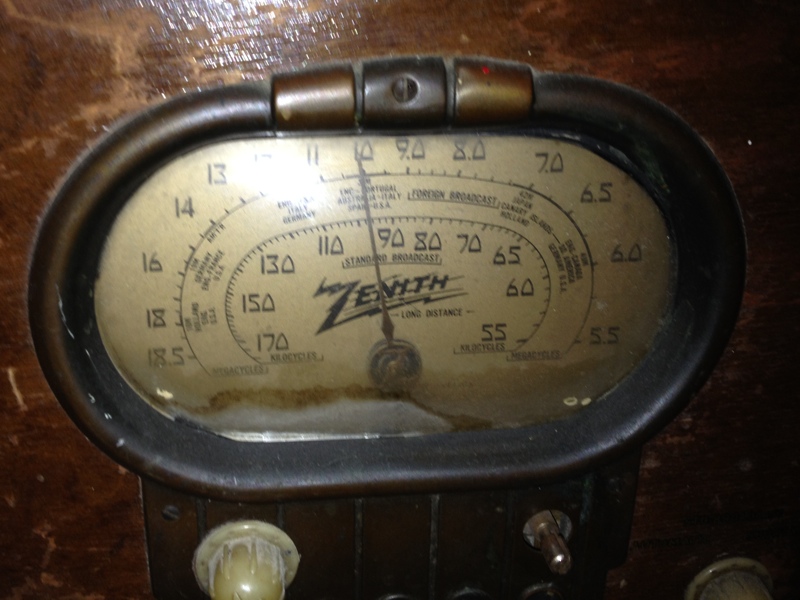

DESCRIPTIONTombstone model with a "race track" dial. A five-tube Superheterodyne with pushbuttons for selecting preset stations with 4 knobs, 5 push buttons, and a 6 inch speaker. Knobs control: ON/OFF-Volume; Frequency Tuning; Tone and Automatic/Broadcast/Shortwave settings. Lightning Bolt "Z" pointer, intricate wood detailing, copper chassis, and solid metal escutcheon around the dial and pushbuttons.
CABINET STYLETombstone
CABINET MATERIALWood
DIAL LAMP - N° x TYPE2 x 46
TONEVariable
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC
VOLTS115 Volts
CONSUMPTION45 W
AC CYCLES50-60 Hz
CHASSISNº5529

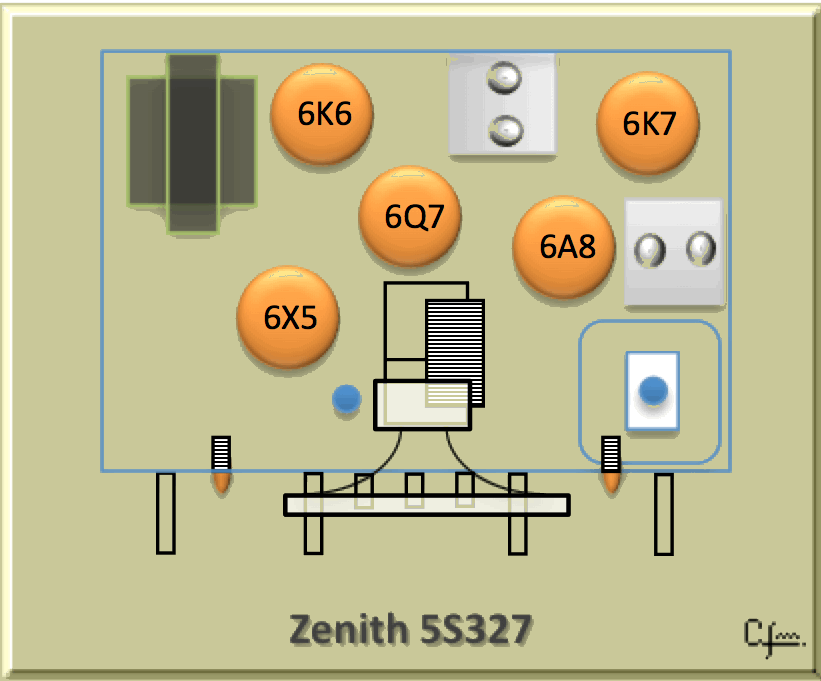

TUBES LOCATION
TUBE COMPLEMENT | 6X5 | 6A8 | 6K7 | 6Q7 | 6K6 |

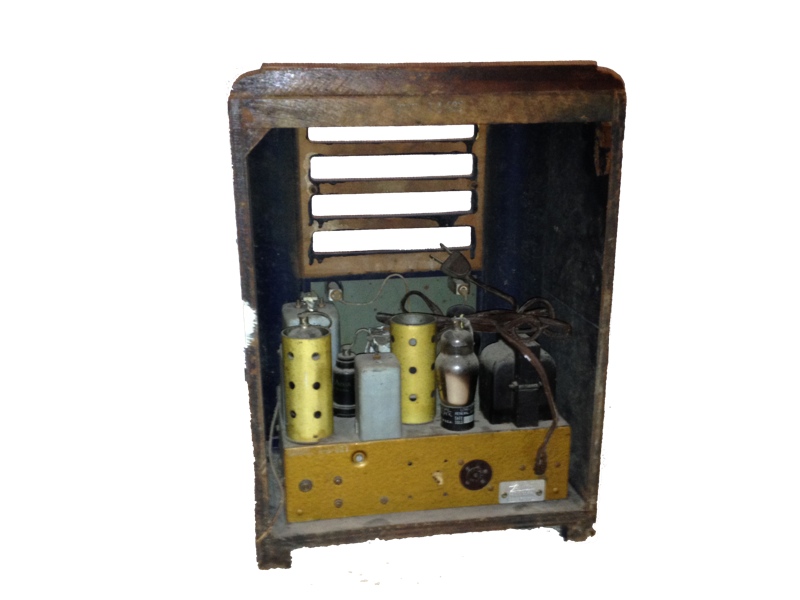

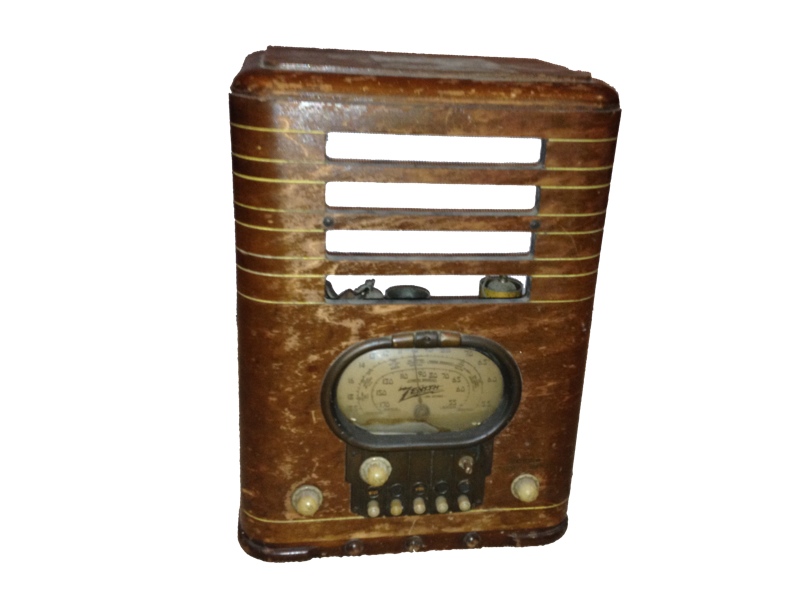

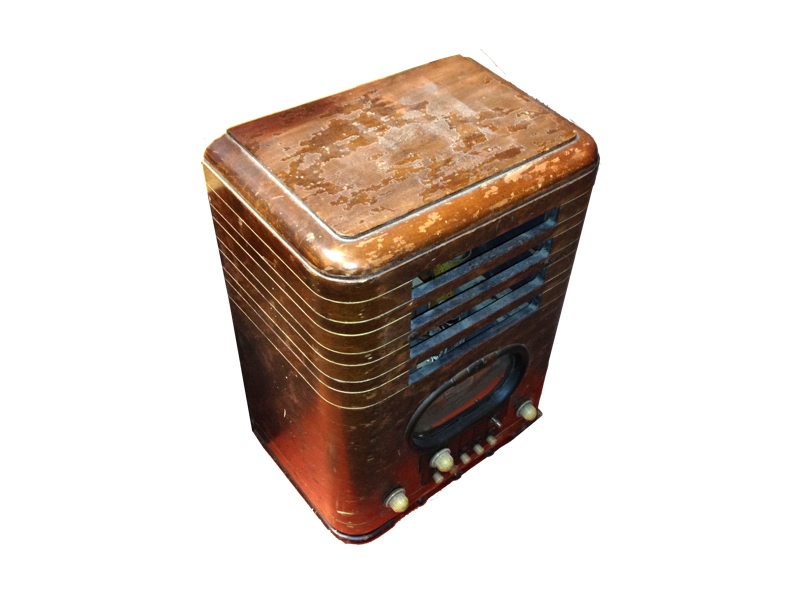

PICTURES(Click to enlarge image)

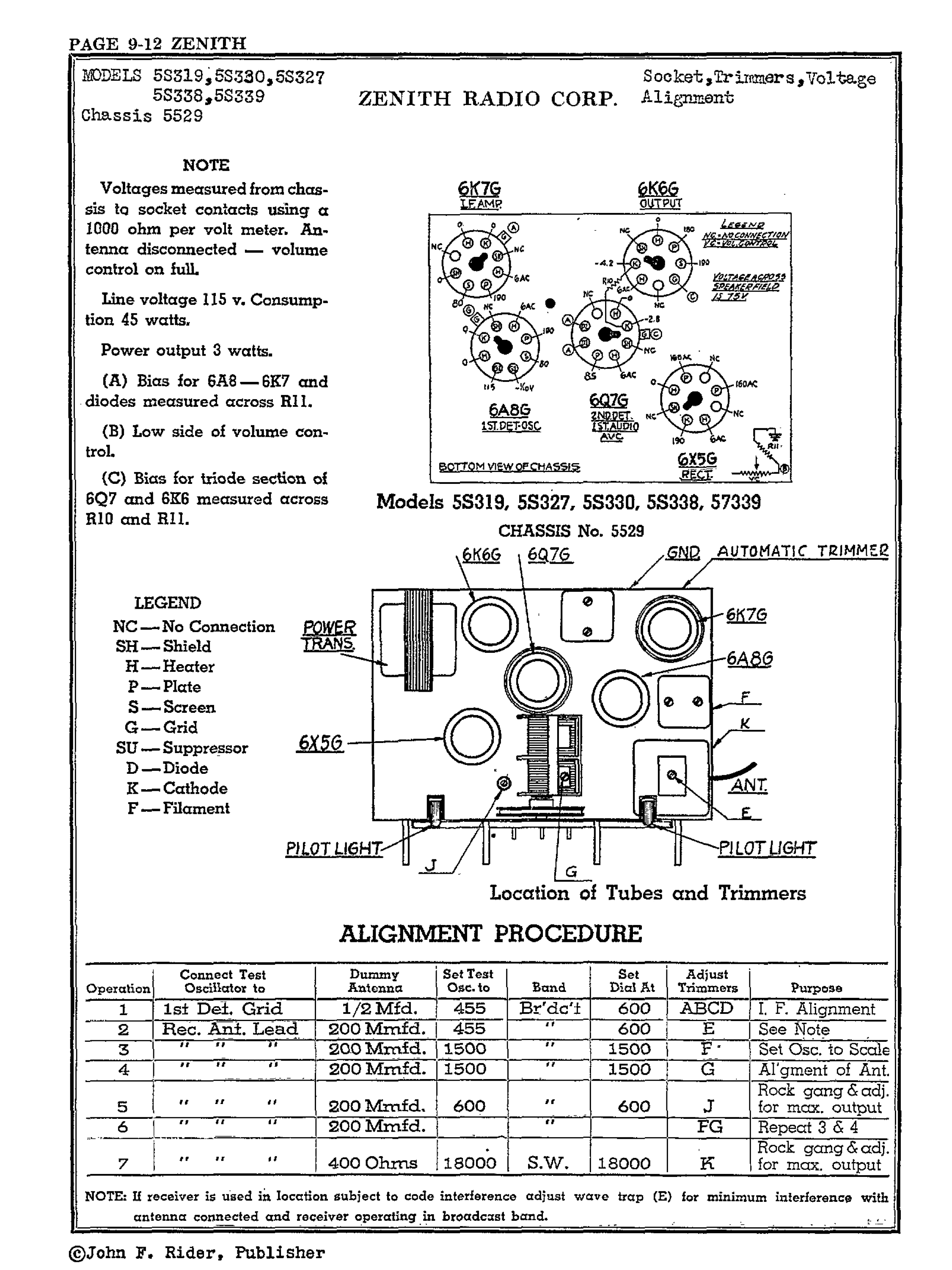

SCHEMATICS | Page1 | Page2 |
FROMFrom Sep 2014 MAARC monthly meeting
ADDITIONAL INFOIt deserves a lazarus restoration!
