RADIOEmerson
MODEL547A
TECHNOLOGYTube
YEAR1947
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 550 - 1620 Kc

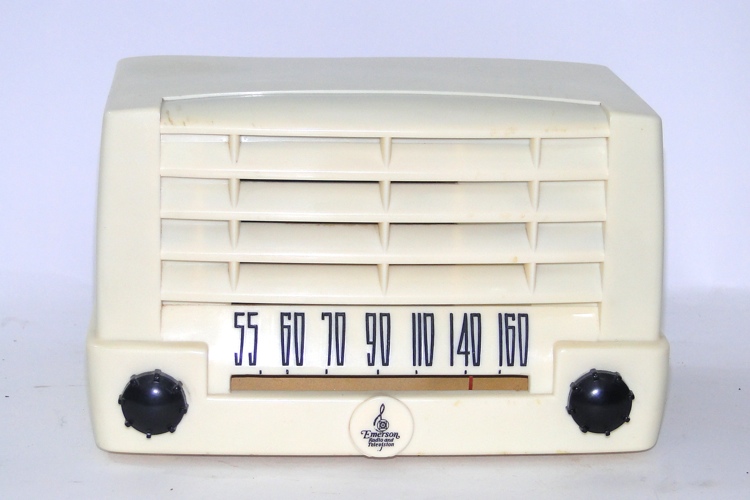

DESCRIPTIONUpper front horizontal speaker grill, lower horizontal slide ruler dial, 2 knobs, on/off volume on left and tuning on right.
CABINET STYLETable
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105-125 V
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 12BE6 | 12BA6 | 12AT6 | 50B5 | 35W4 |

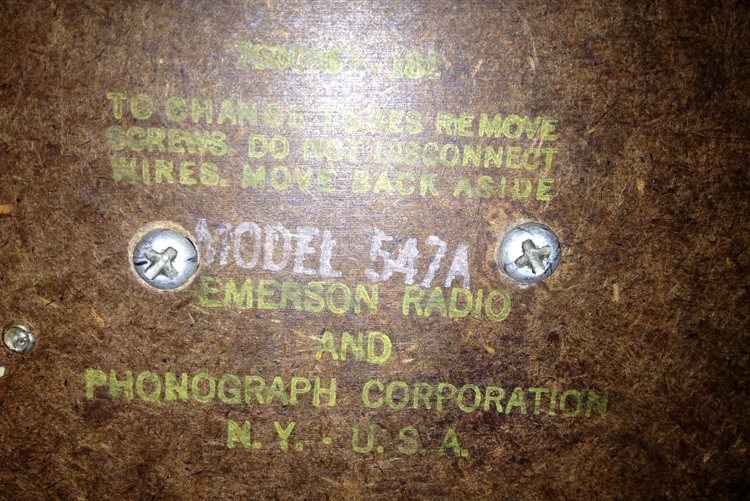

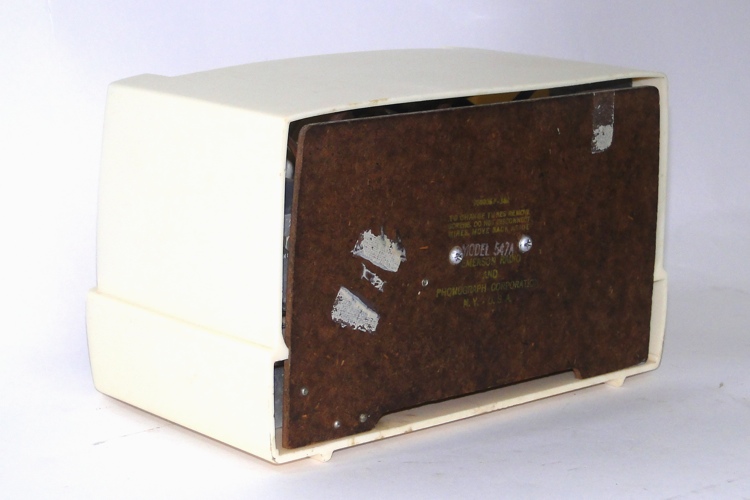

PICTURES(Click to enlarge image)

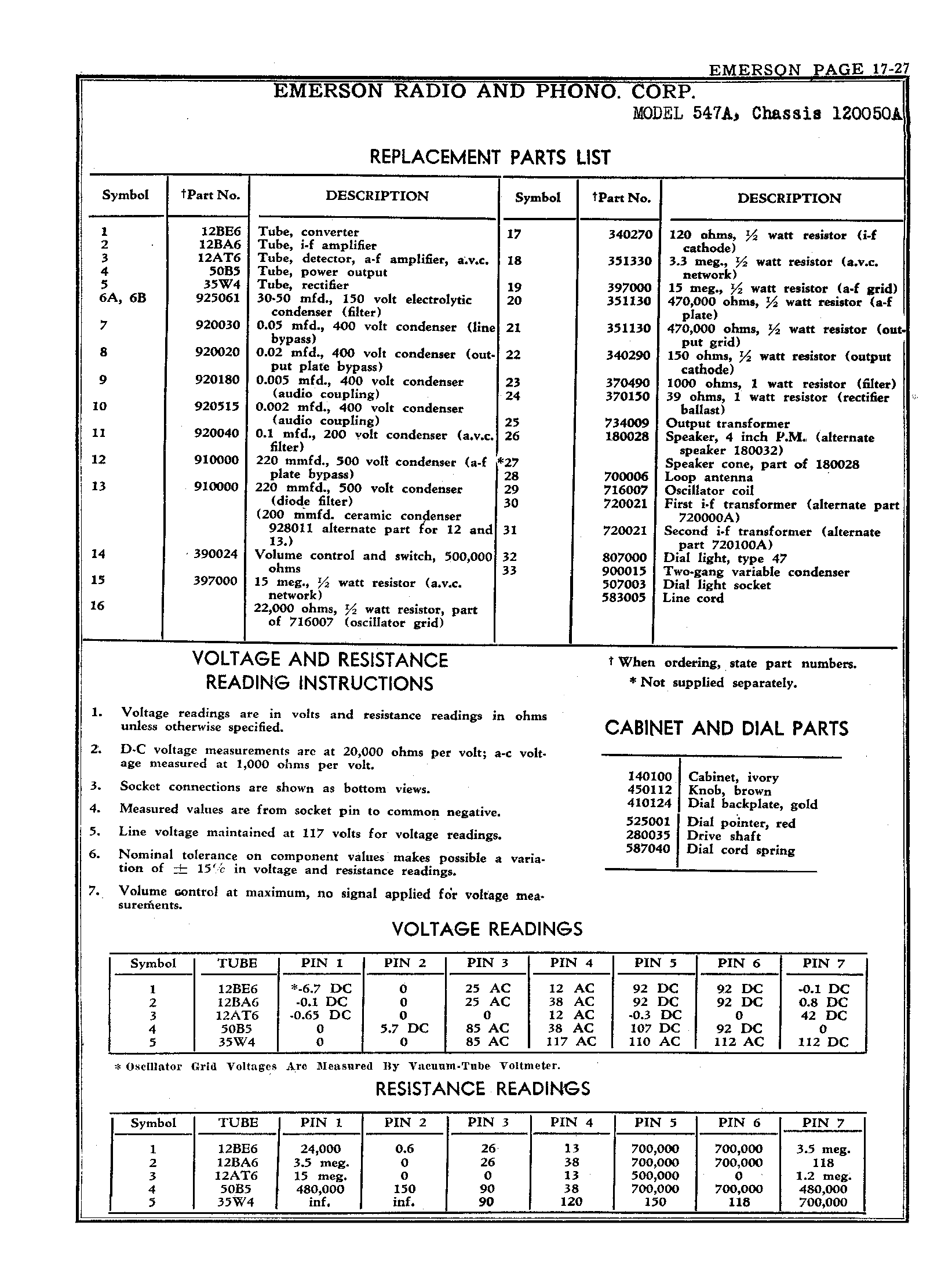

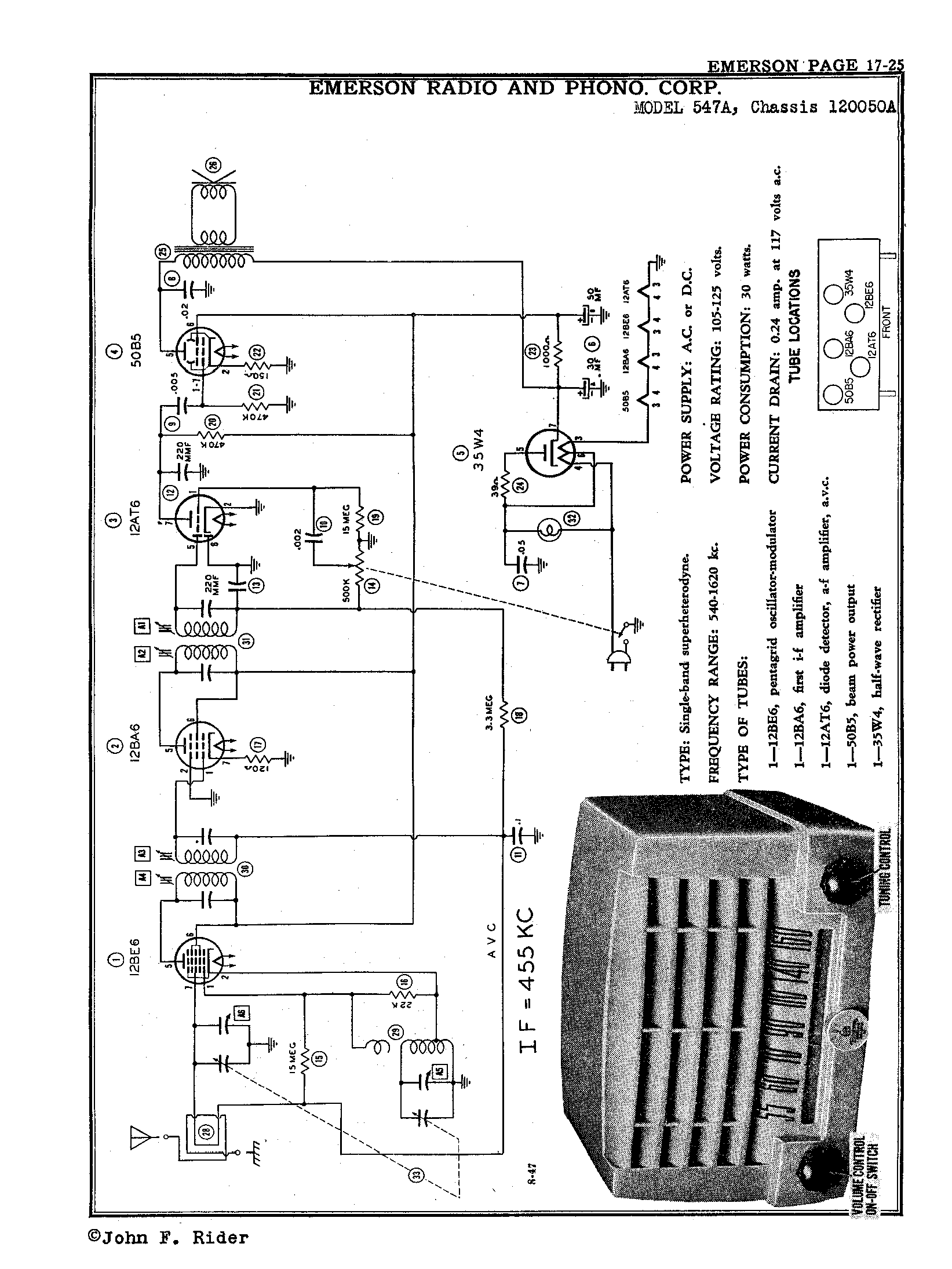

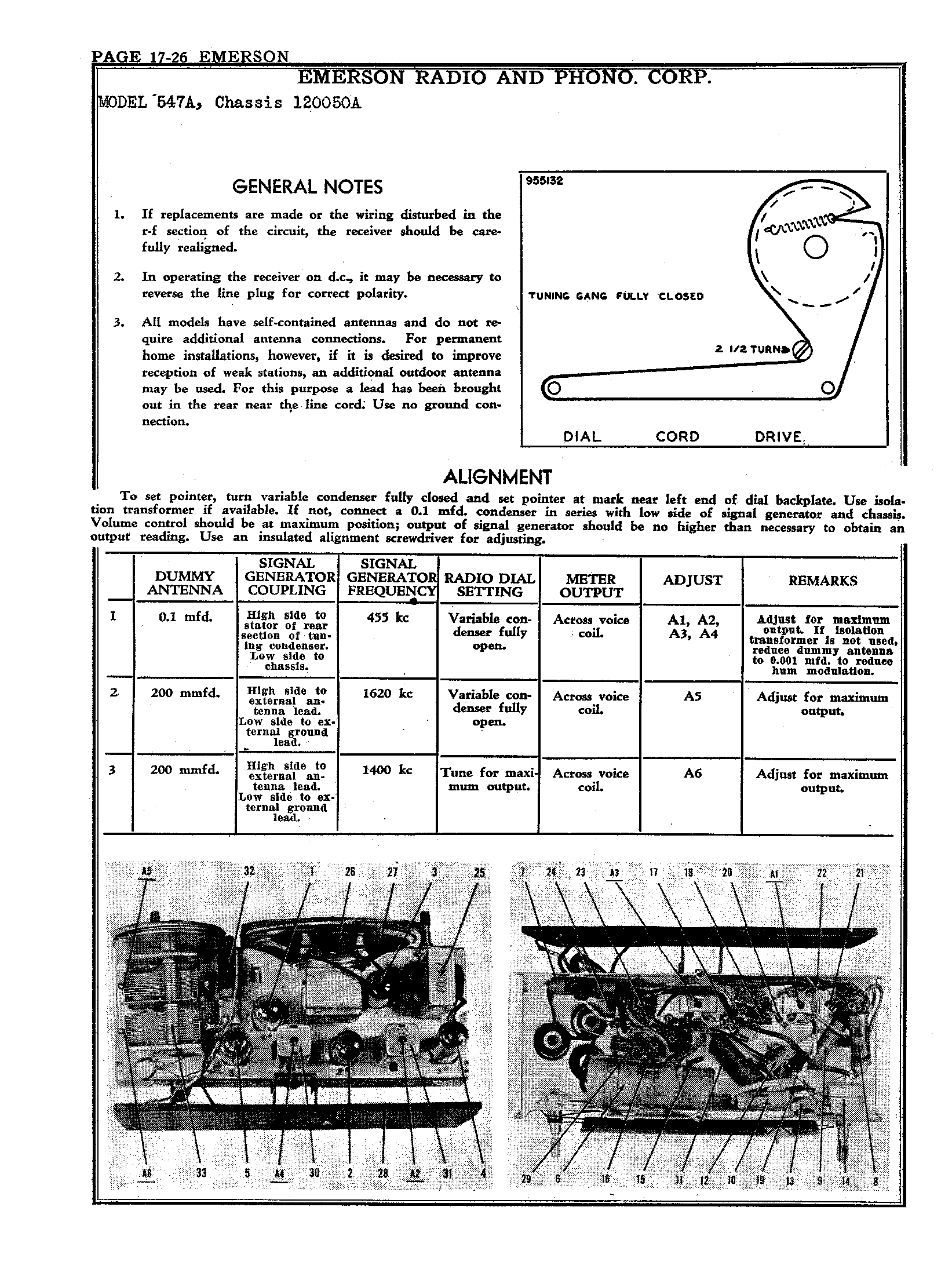

SCHEMATICS | Page1 | Page2 | Page3 | Page4 |
FROMFrom ebay US on April 3rd, 2012 from Colorado.
