| RADIO | Zenith |
| MODEL | H511 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1952 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC/SW |
| COVERAGE | BC 535 - 1620 Kc
SW ? |
| DESCRIPTION | Consoltone also known as Race Track |
| CABINET STYLE | Table |
| CABINET MATERIAL | Bakelite |
| DIAL LAMP - N° x TYPE | 1 x 44 |
| TONE | No |
| CIRCUIT | Superheterodyne |
| IF | 455 KC |
| POWER SUPPLY | AC/DC |
| VOLTS | 117 Volts |
| CONSUMPTION | 30 W |
| AC CYCLES | 40-60 Hz |
| CHASSIS | |

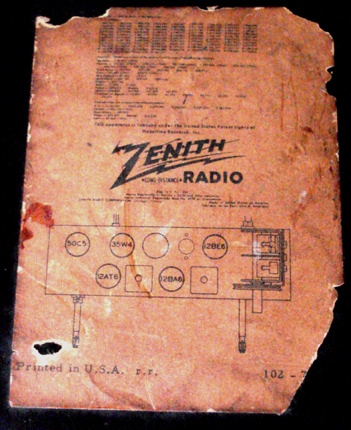

| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 50C5 | 35W4 | 12BE6 | 12BA6 | 12AT6 |
|

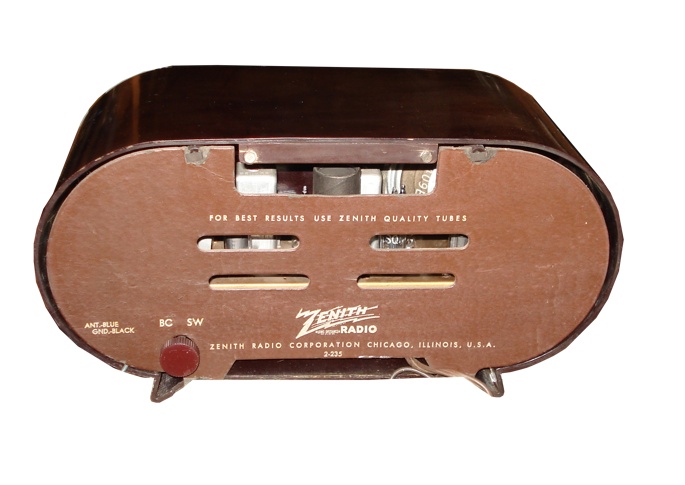

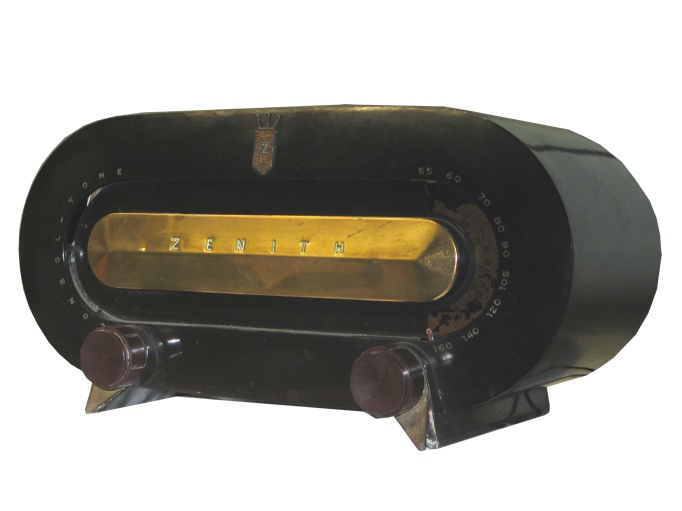

| PICTURES | (Click to enlarge image) |
|
|

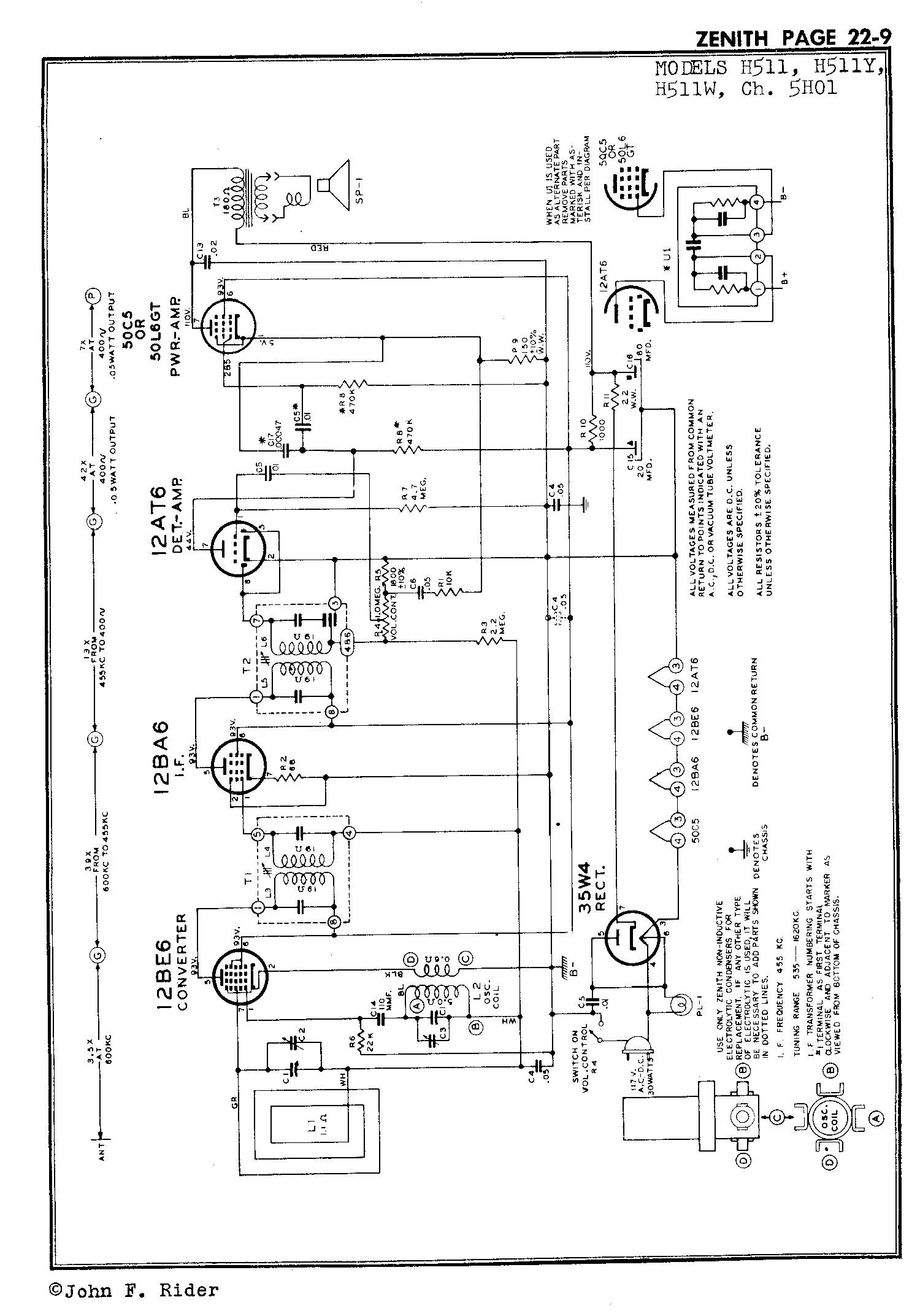

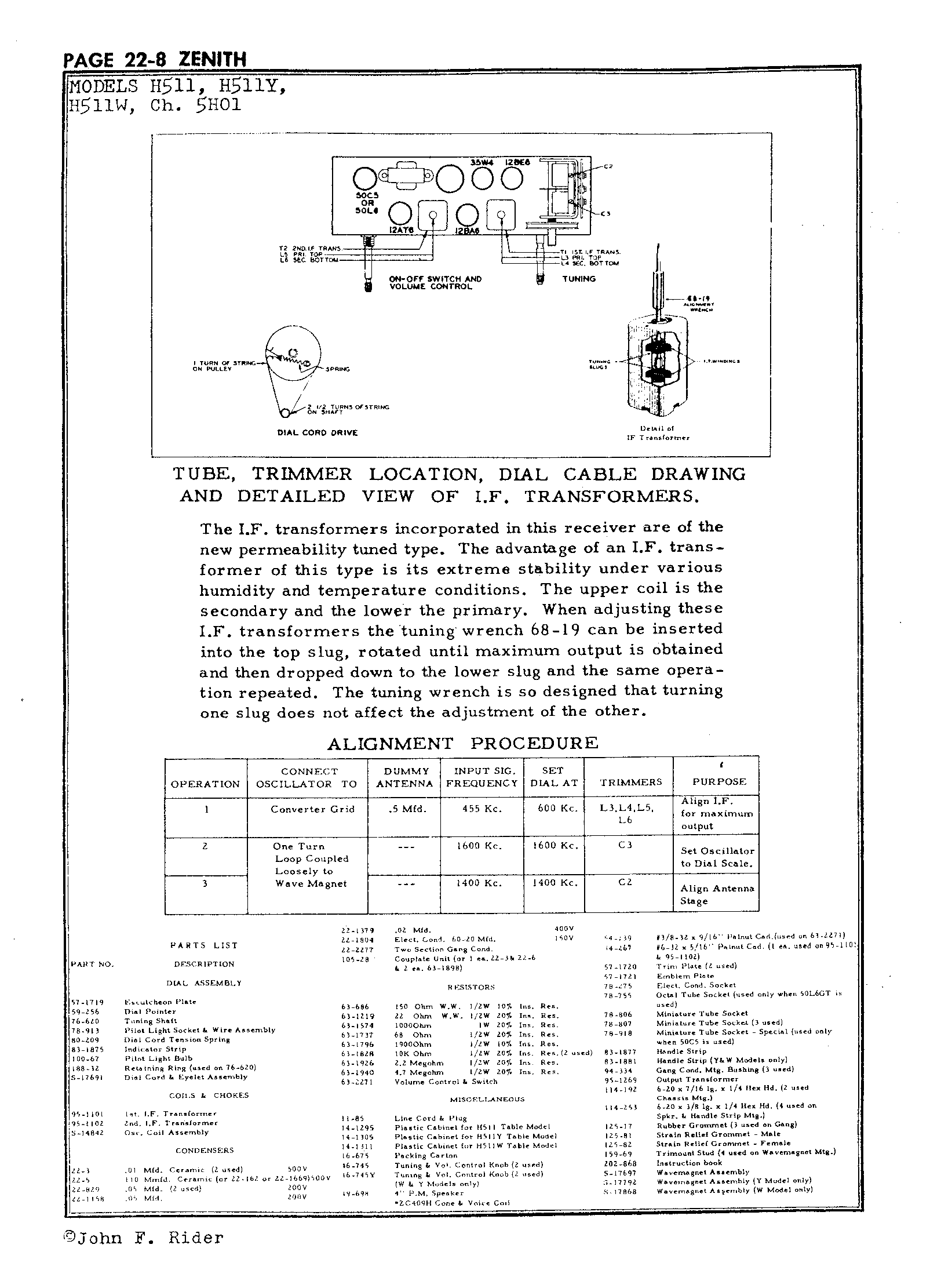

| SCHEMATICS |
| Page1
| Page2
|
|
| FROM | A gift from my sister Maria Angélica, Rio de Janeiro |
| ADDITIONAL INFO | The schematics below is for only BC set. |
