| RADIO | Emerson |
| MODEL | DB 301 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1939 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC |
| COVERAGE | BC 550 - 1550 KHz |

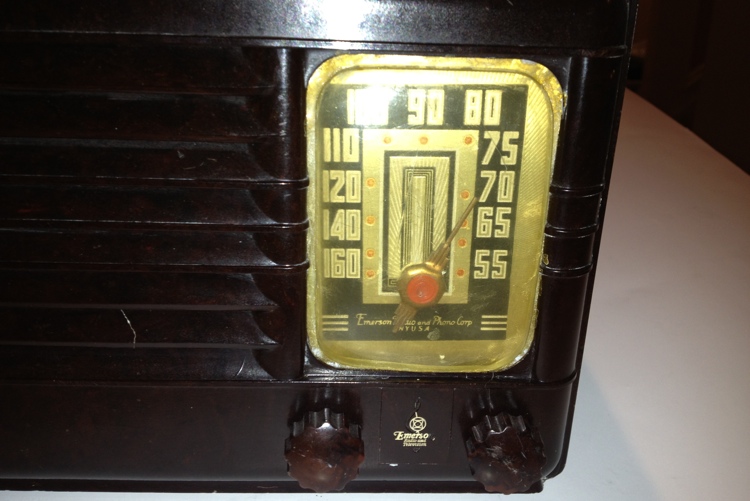

| DESCRIPTION | Right front rectangular dial, left speaker grill with horizontal louvers, two right lower knobs with Emeson logo, and top handle. |
| CABINET STYLE | Mantle |
| CABINET MATERIAL | Bakelite |
| DIAL LAMP - N° x TYPE | 1 x 47 |
| TONE | No |
| CIRCUIT | Superheterodyne |
| IF | 455 KC |
| POWER SUPPLY | AC/DC |
| VOLTS | 105 - 125 Volts |
| CONSUMPTION | ? |
| AC CYCLES | 50-60 Hz |
| CHASSIS | Model DB |

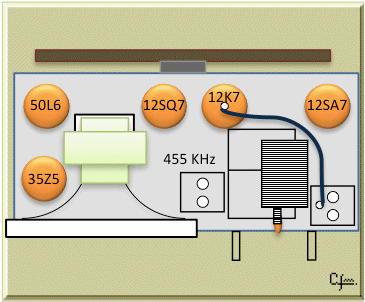

| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |
|

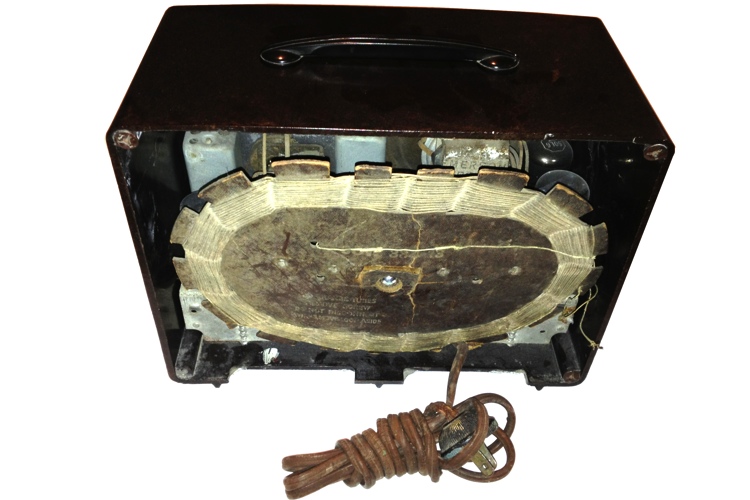

| PICTURES | (Click to enlarge image) |
|
|

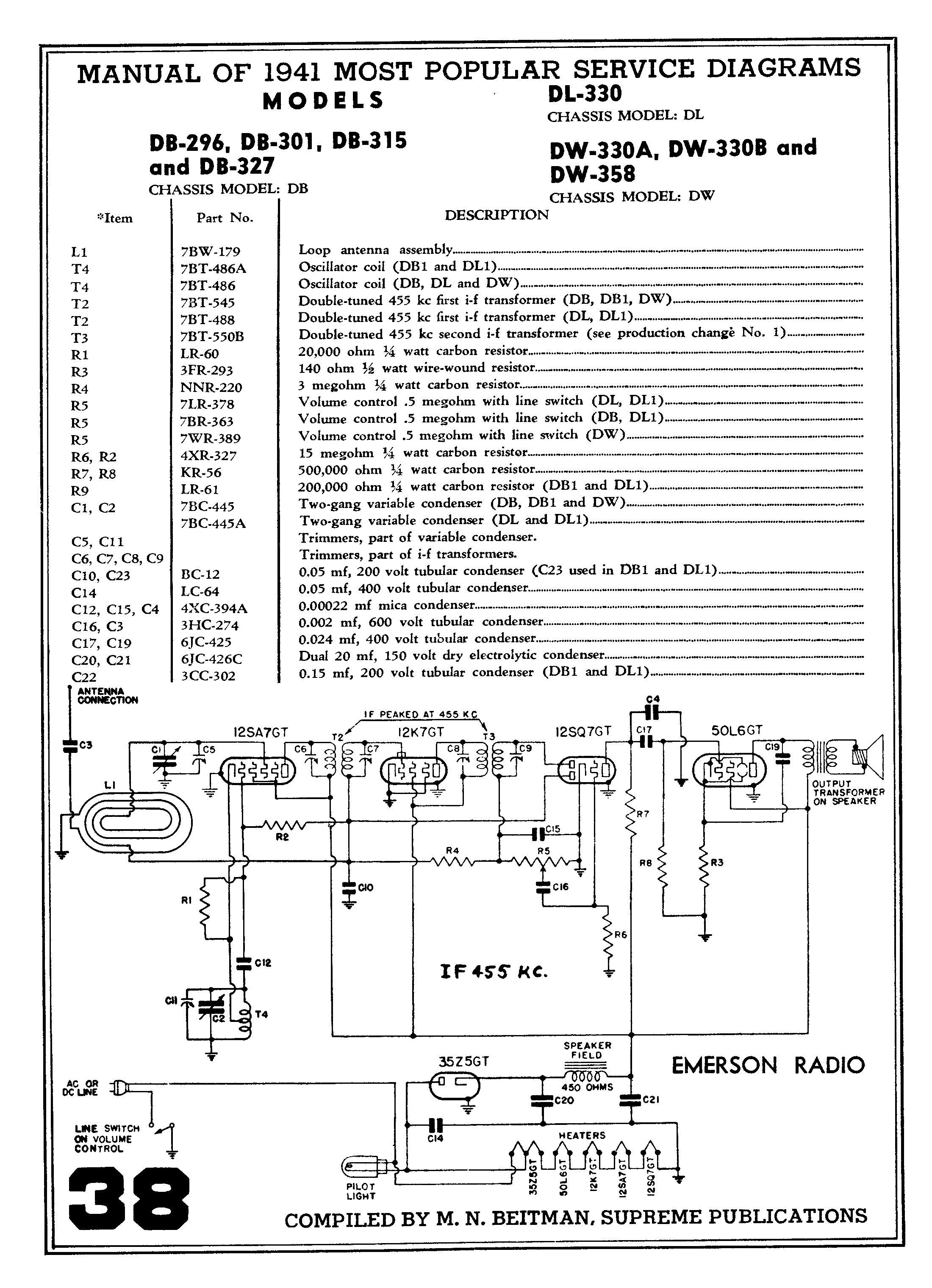

| SCHEMATICS |
| Page1
|
|
| FROM | From ebay US, Feb 2013 |
