RADIOZenith
MODEL847
TECHNOLOGYTube
YEAR1935
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 538 - 1550 KHz; SW 5.61 - 17.85 MHz

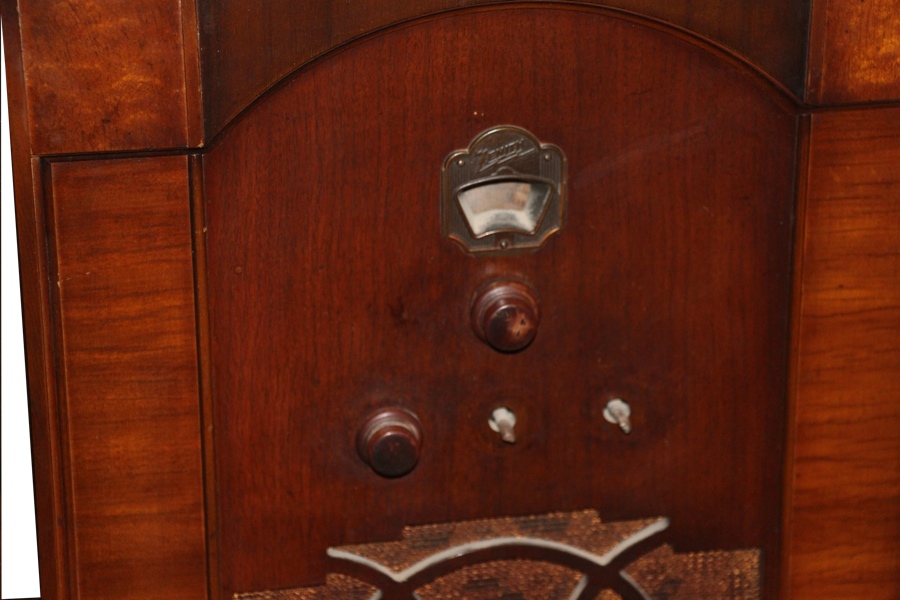

DESCRIPTIONSmall console with upper front window dial with escutcheon, lower cloth grill with ornamental cut outs, 4 knobs.
CABINET STYLEConsole
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONE2 Positions
CIRCUITSuperheterodyne
IF252.5 KC
POWER SUPPLYAC
VOLTS117 Volts
CONSUMPTION58 W
AC CYCLES50-60 Hz
CHASSISSeems to be the same of model 807 =>5506
TUBES LOCATION

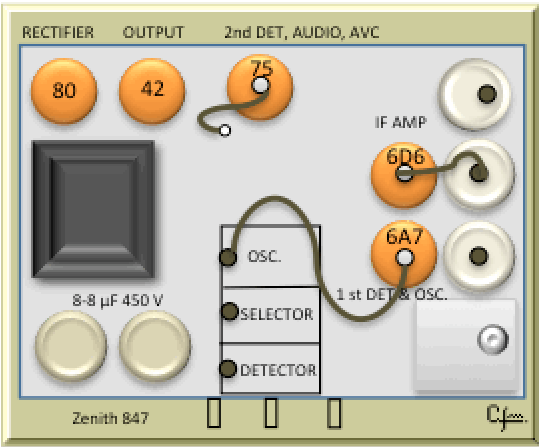

TUBE COMPLEMENT | 6A7 | 6D6 | 75 | 42 | 80 |

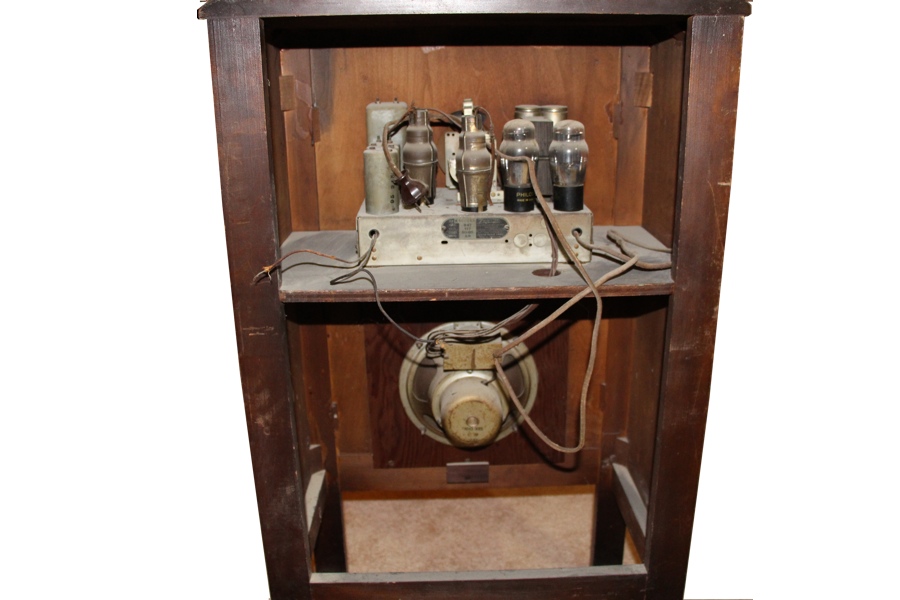

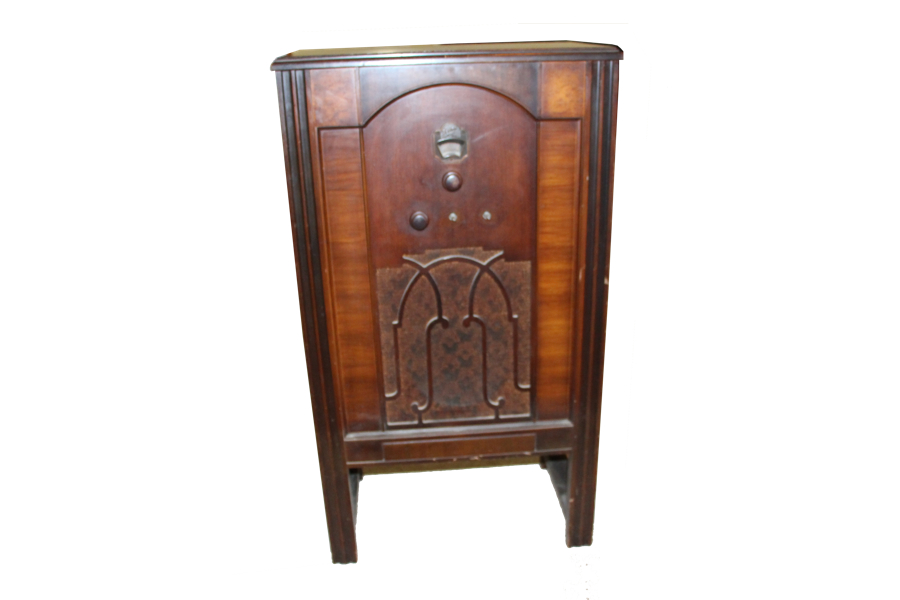

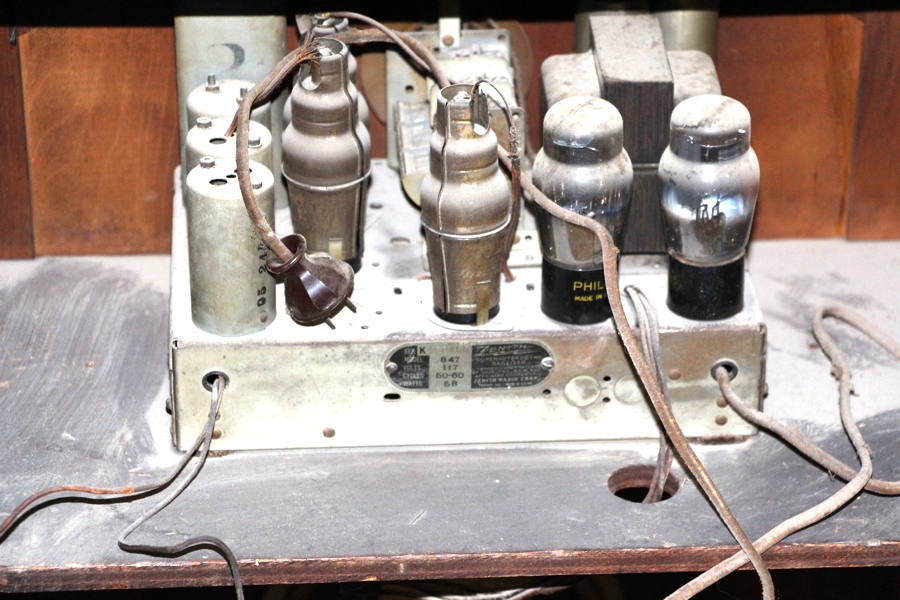

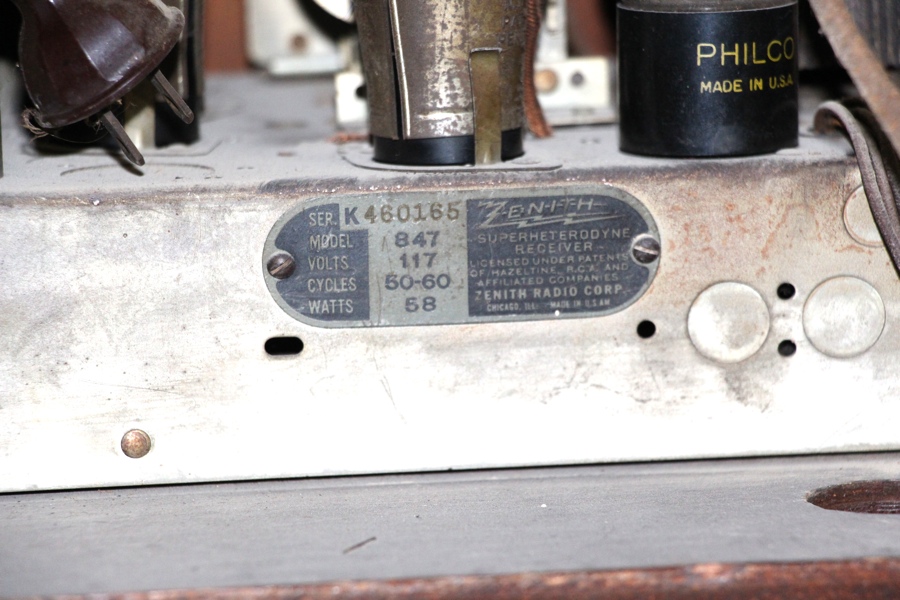

PICTURES(Click to enlarge image)

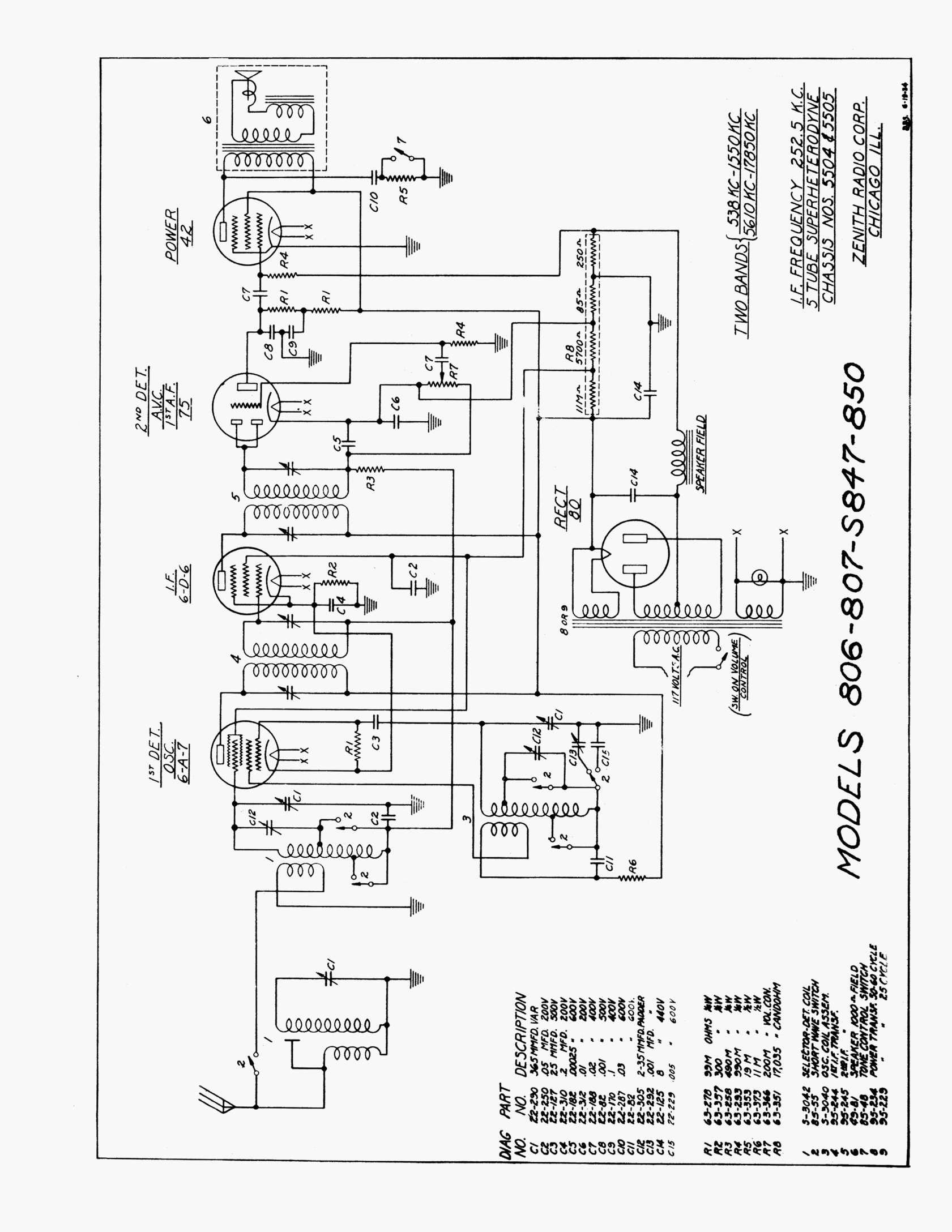

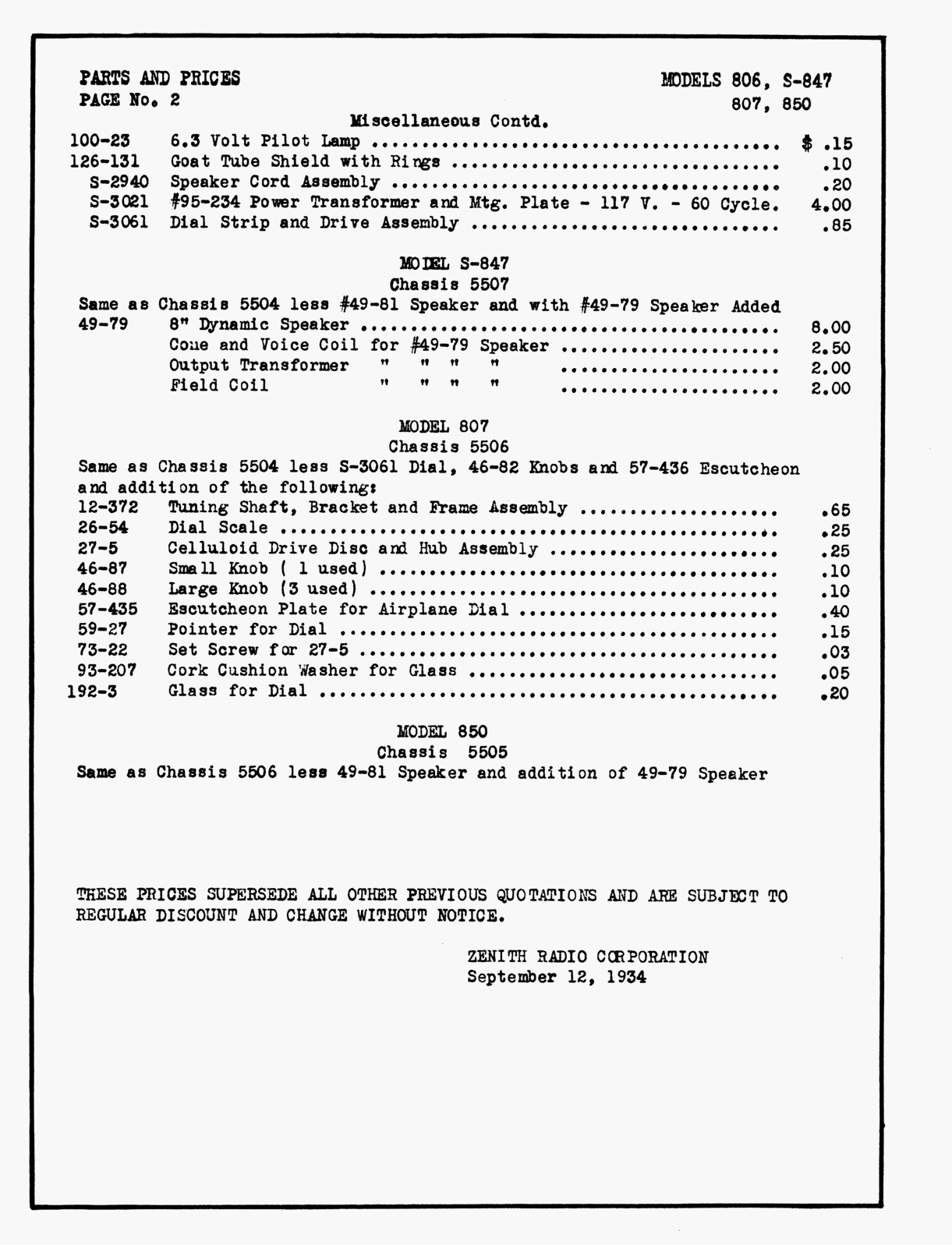

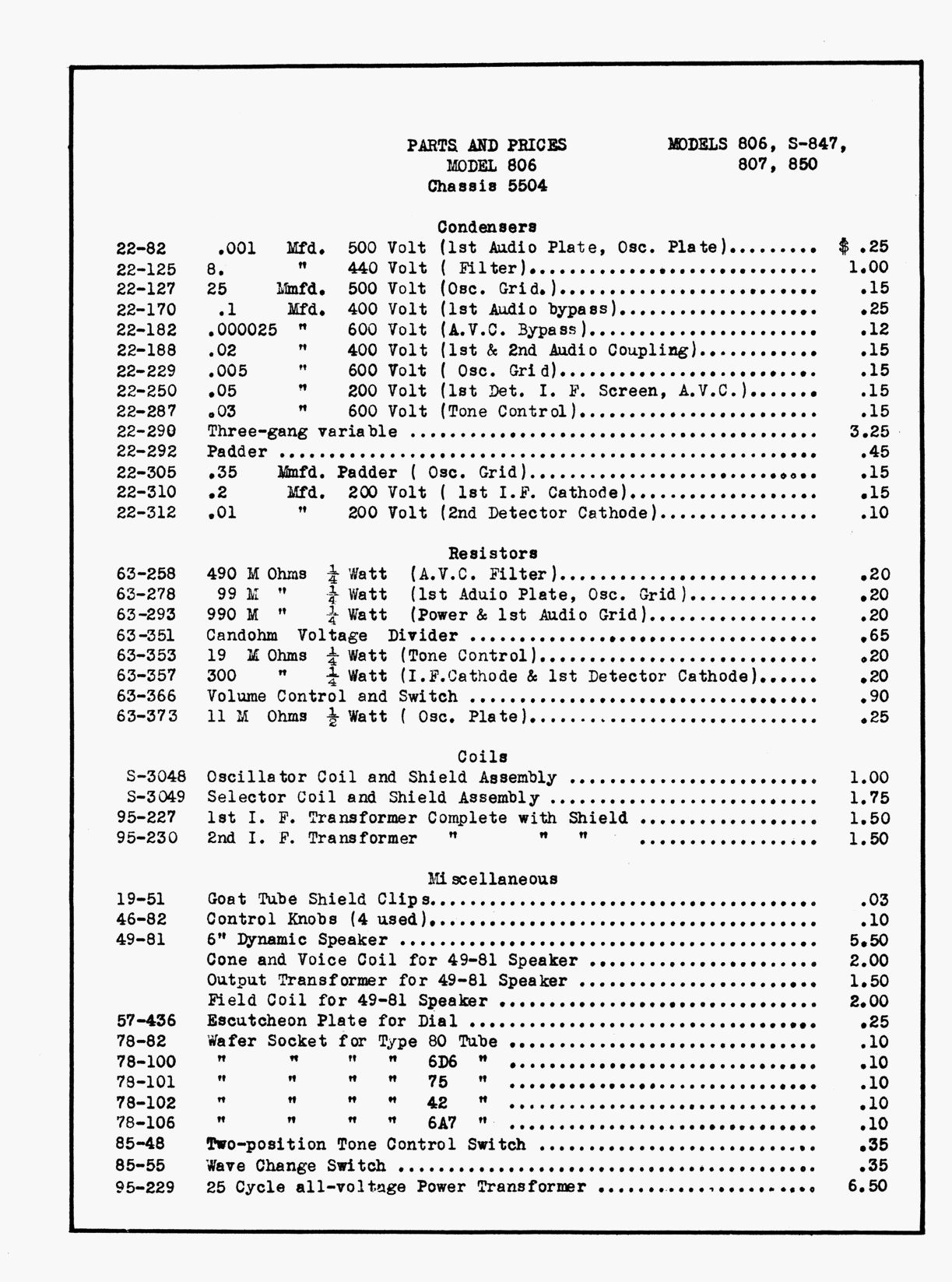

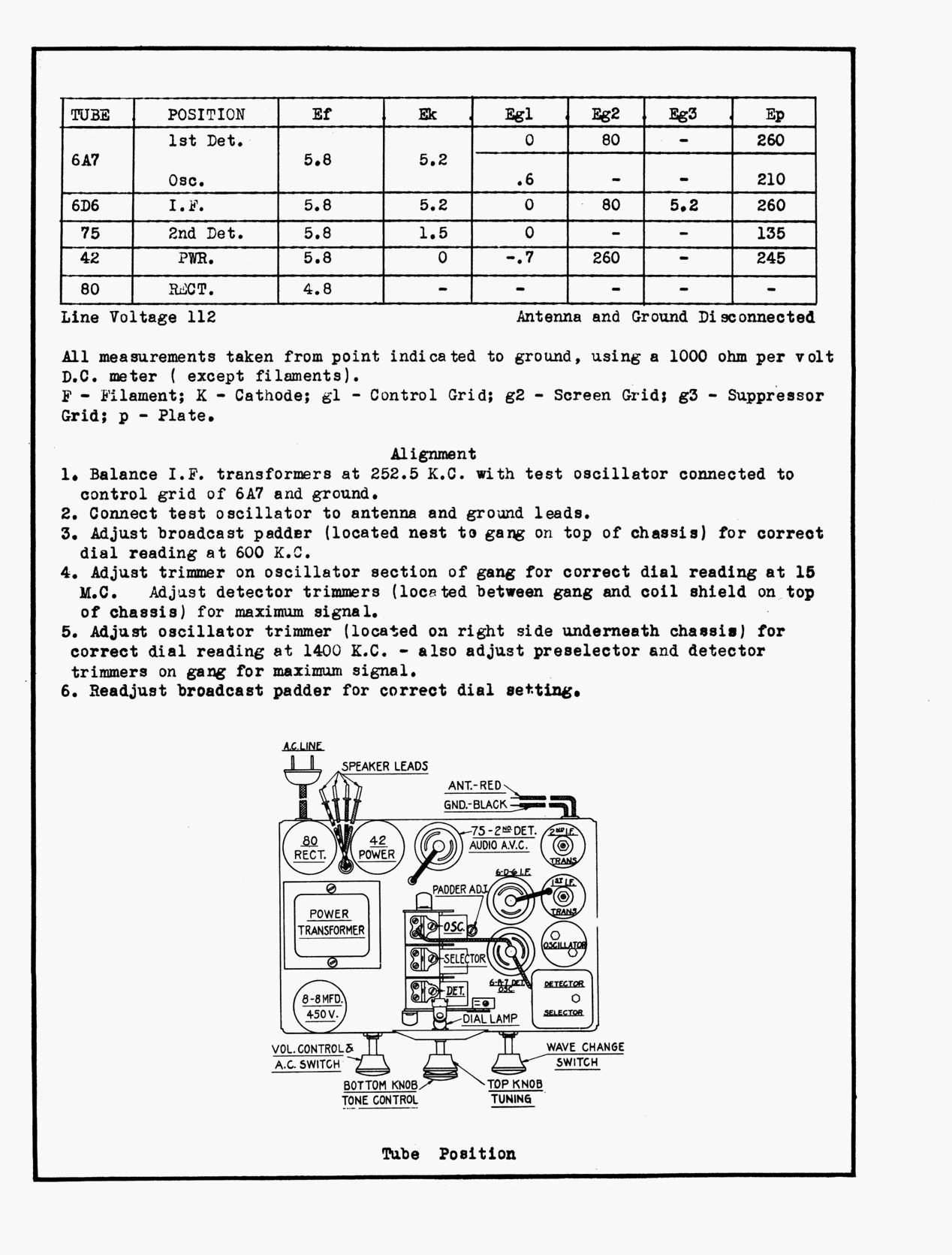

SCHEMATICS | Page1 | Page2 | Page3 | Page4 |
FROMFrom MAARC monthly meeting flea market, on September 15, 2013.
ADDITIONAL INFONeeds 2 knobs and a complete restoration.
