RADIORCA Victor
MODEL15X
TECHNOLOGYTube
YEAR1941
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 535 - 1720 KHz

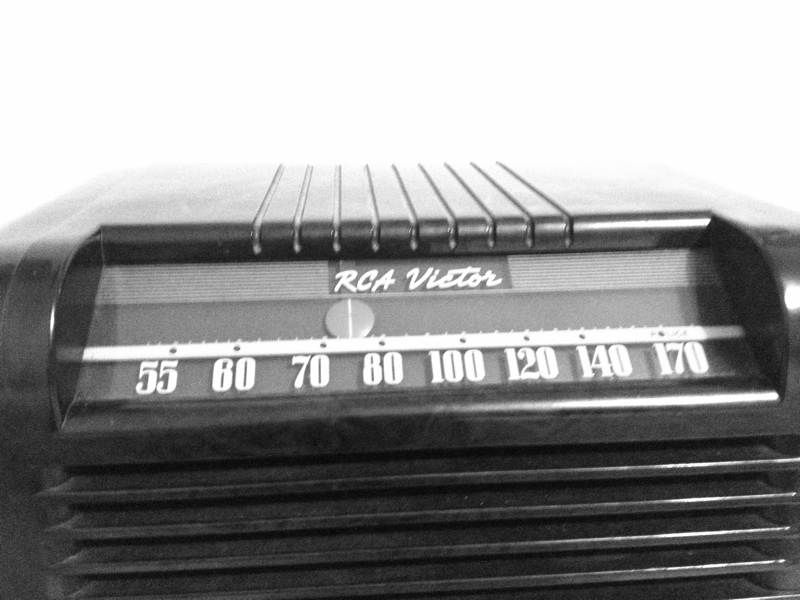

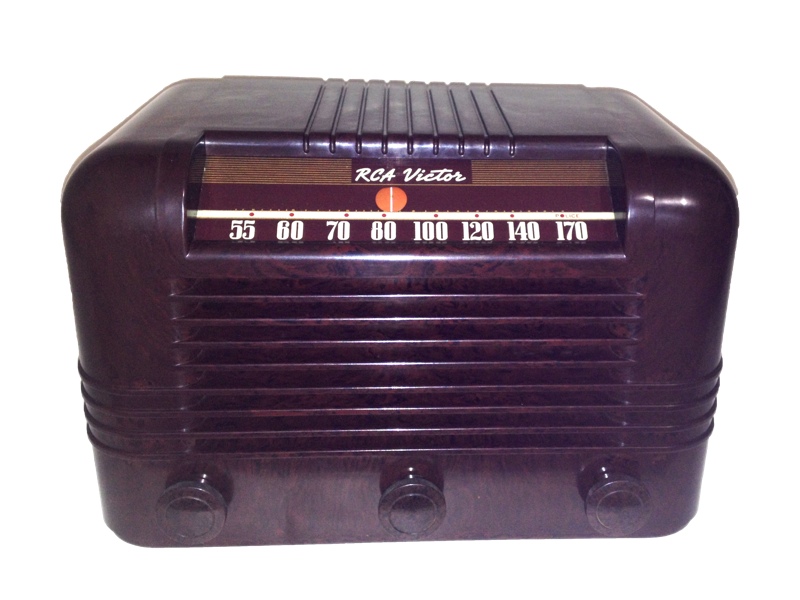

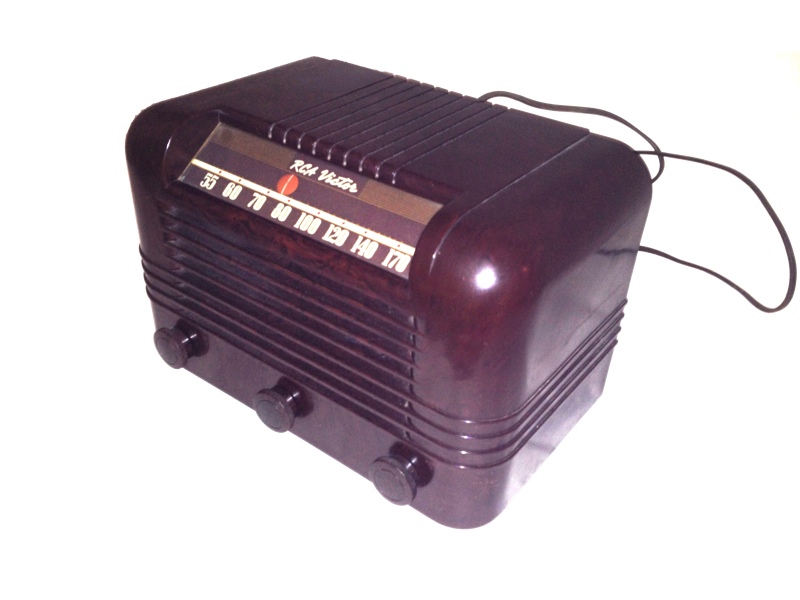

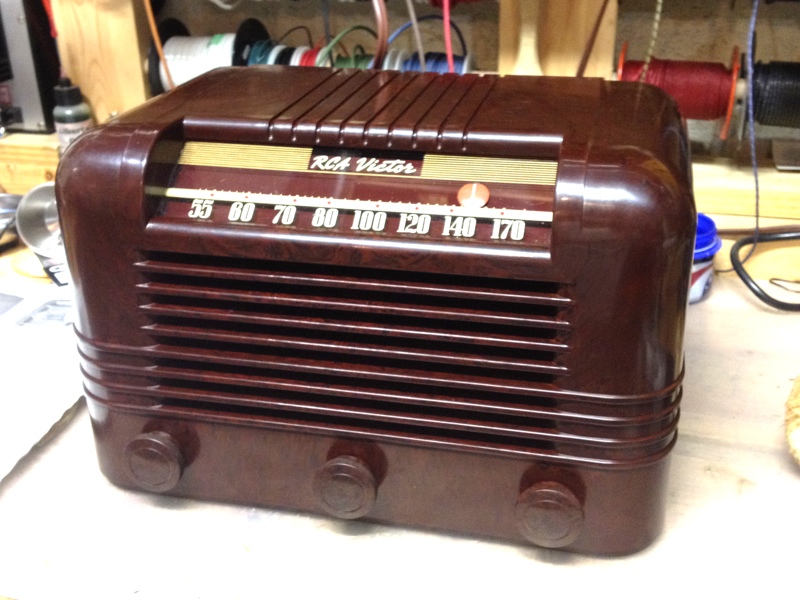

DESCRIPTIONUpper front slide rule dial, central lower horizontal grill, 3 knobs: left power-volume control knob, center tunning control knob, and tone switch knob.
CABINET STYLETable
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE1 x 51
TONE2 Positions
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105-125 Volts
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSISRC-462-A

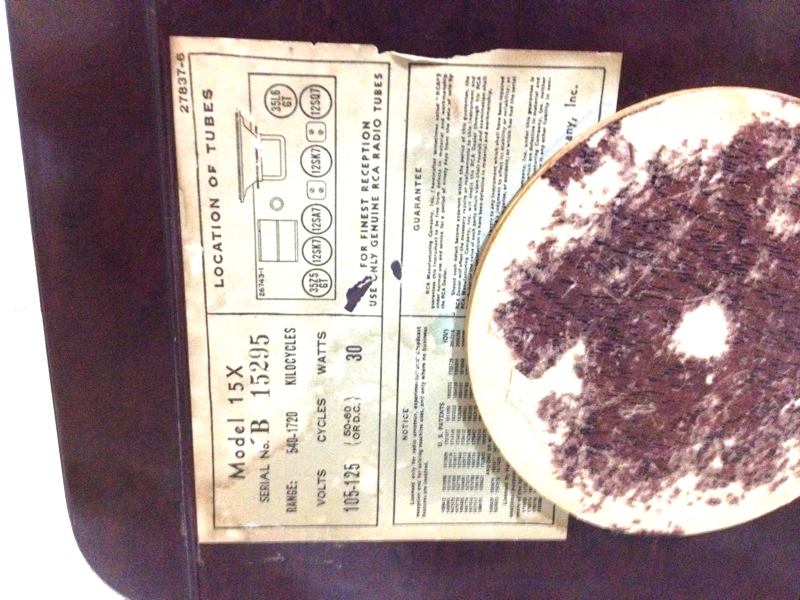

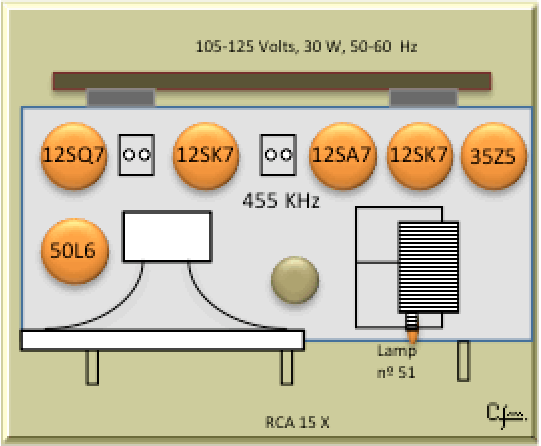

TUBES LOCATION

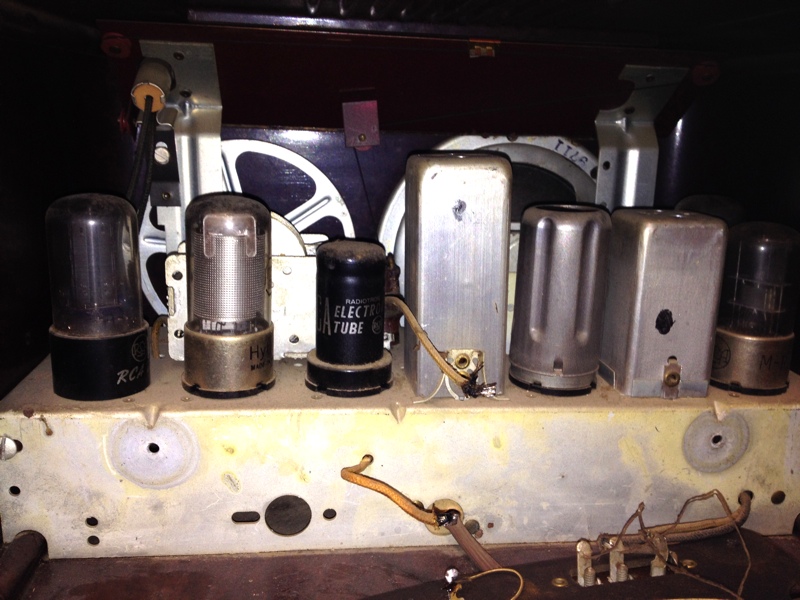

TUBE COMPLEMENT | 12SK7 | 12SA7 | 12SK7 | 12SQ7 | 35L6 | 35Z5 |

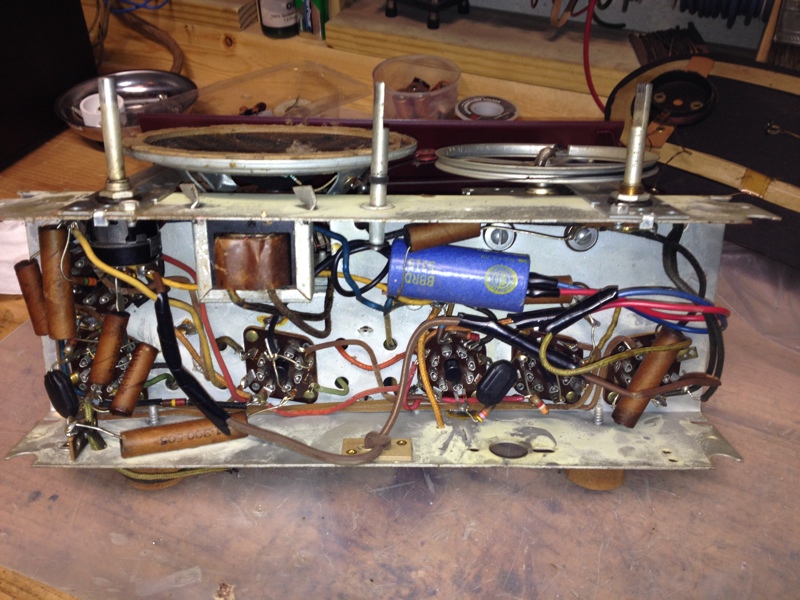

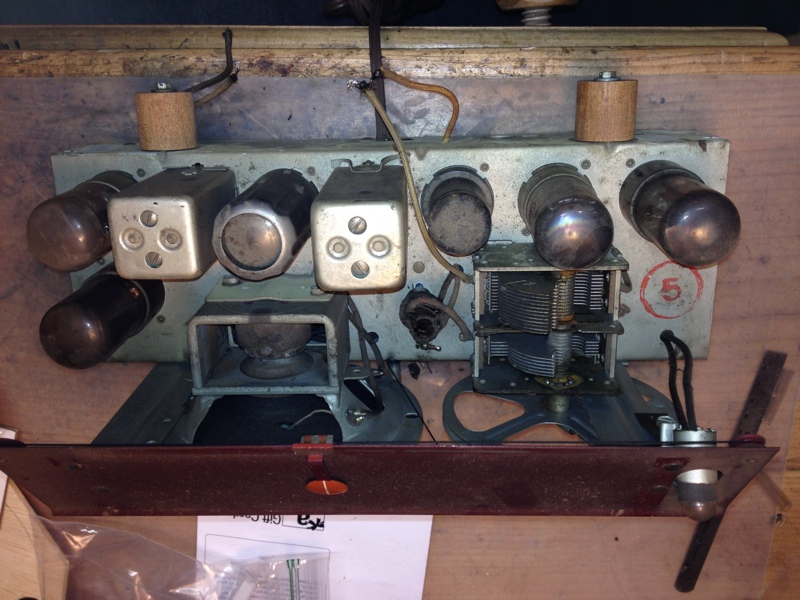

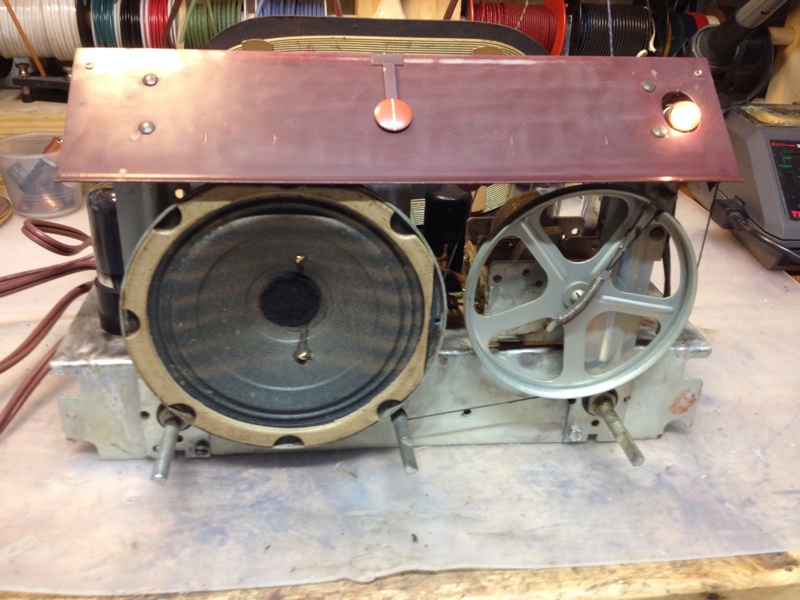

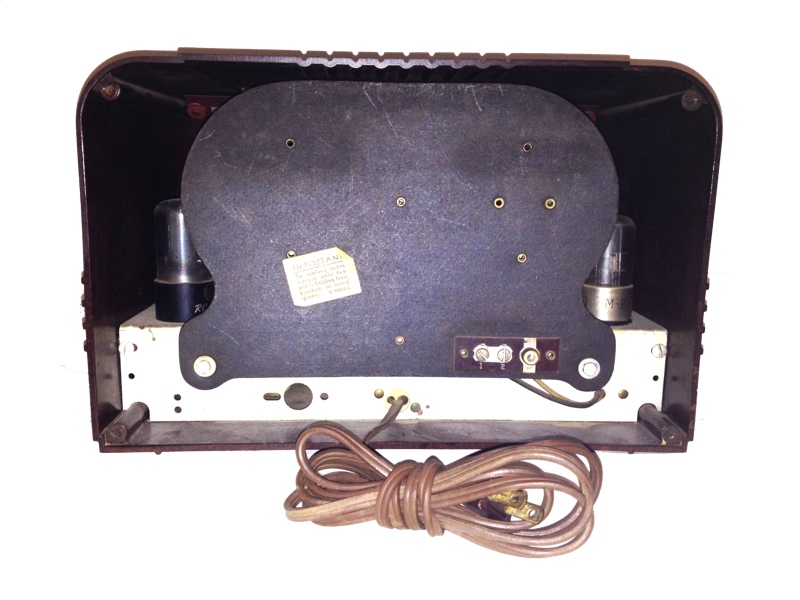

PICTURES(Click to enlarge image)

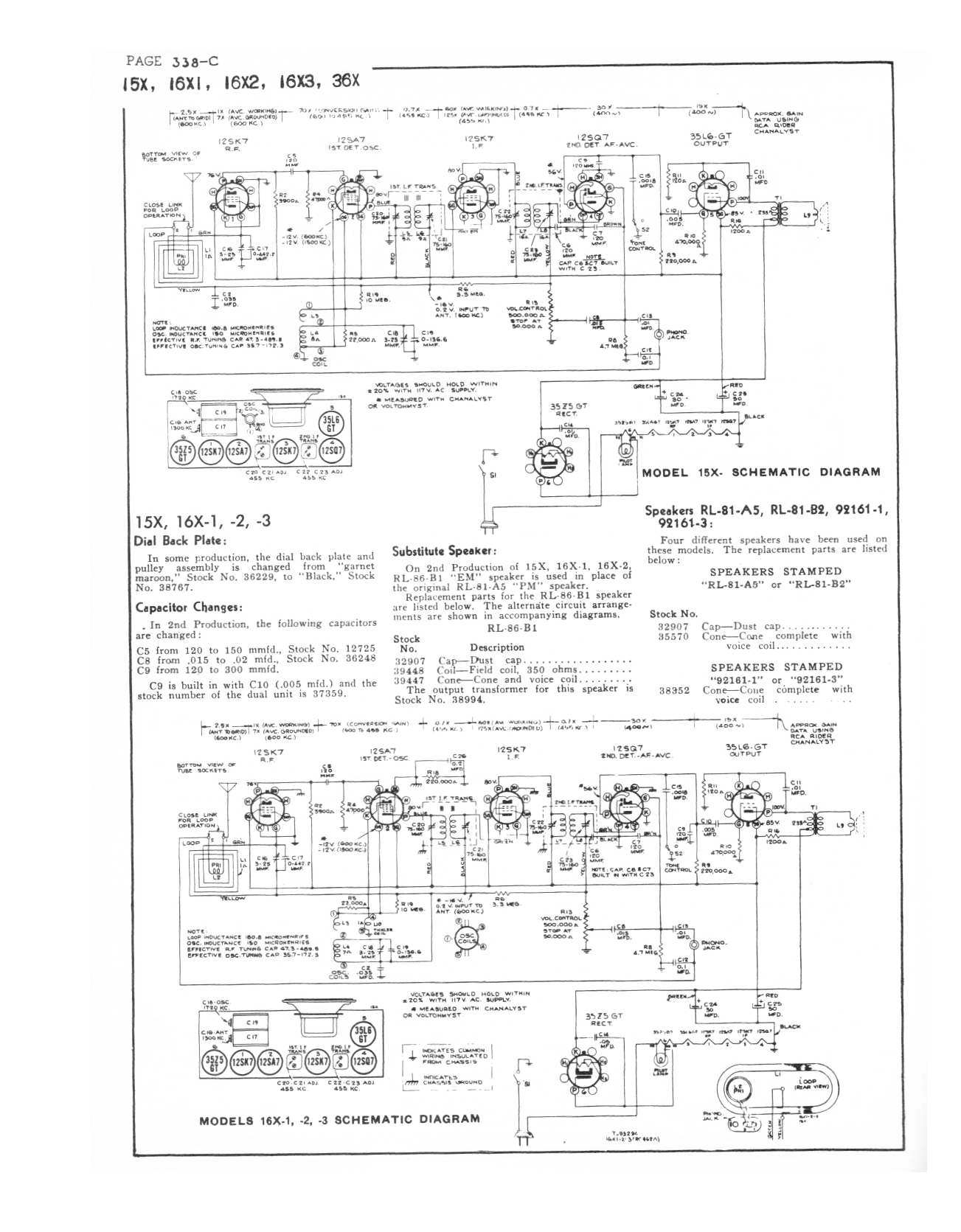

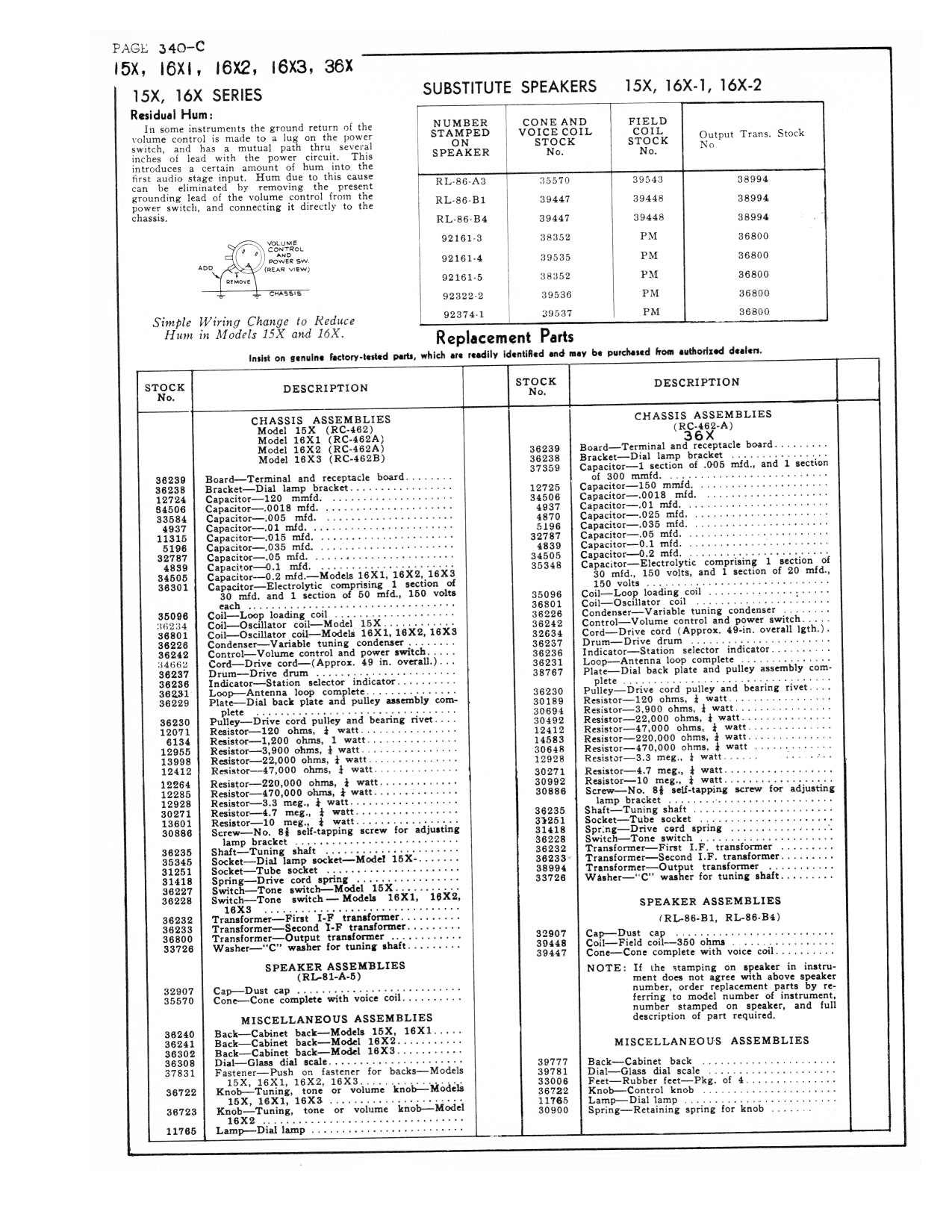

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 |
FROMFrom April 2014 MAARC Monthly Meeting, flea market. See pictures of event at maarc.org.
