RADIOPhilco
MODEL48-200 Transitone
TECHNOLOGYTube
YEAR1948
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1620 KHz

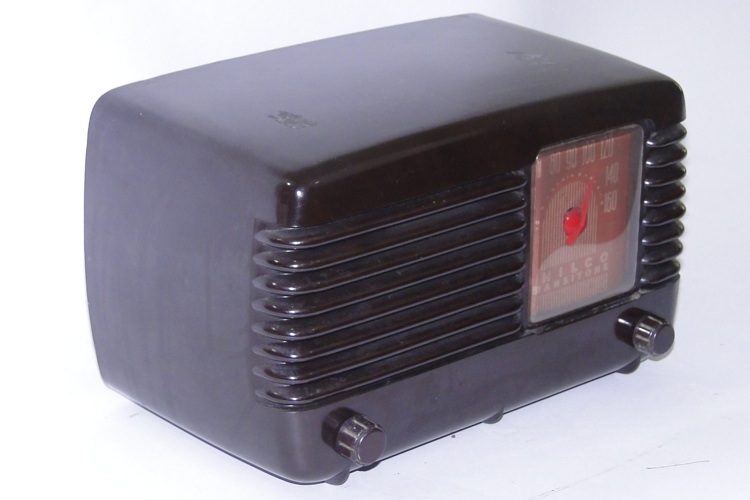

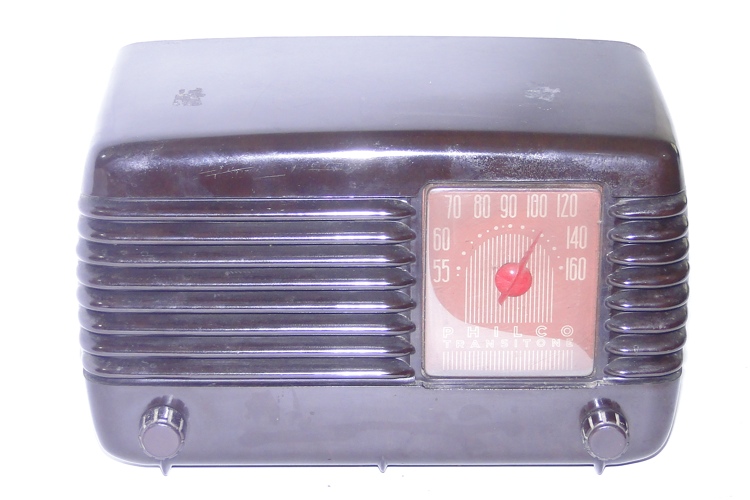

DESCRIPTIONRight dial over horizontal wrap-around horizontal bars, left on/off/volume knob and right dial knob.
CABINET STYLEMantle
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE1 x 46
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 120 Volts
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSIS

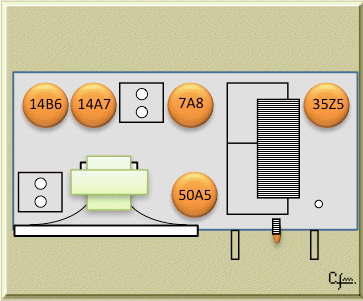

TUBES LOCATION
TUBE COMPLEMENT | 35Z5 | 50A5 | 7A8 | 14A7 | 14B6 |

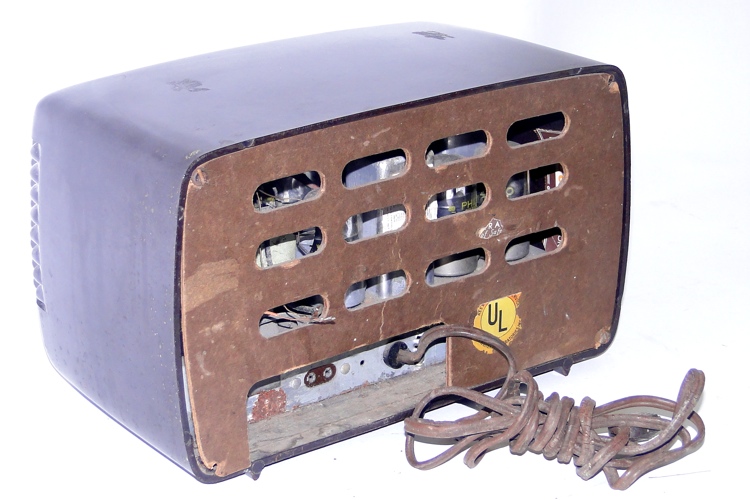

PICTURES(Click to enlarge image)

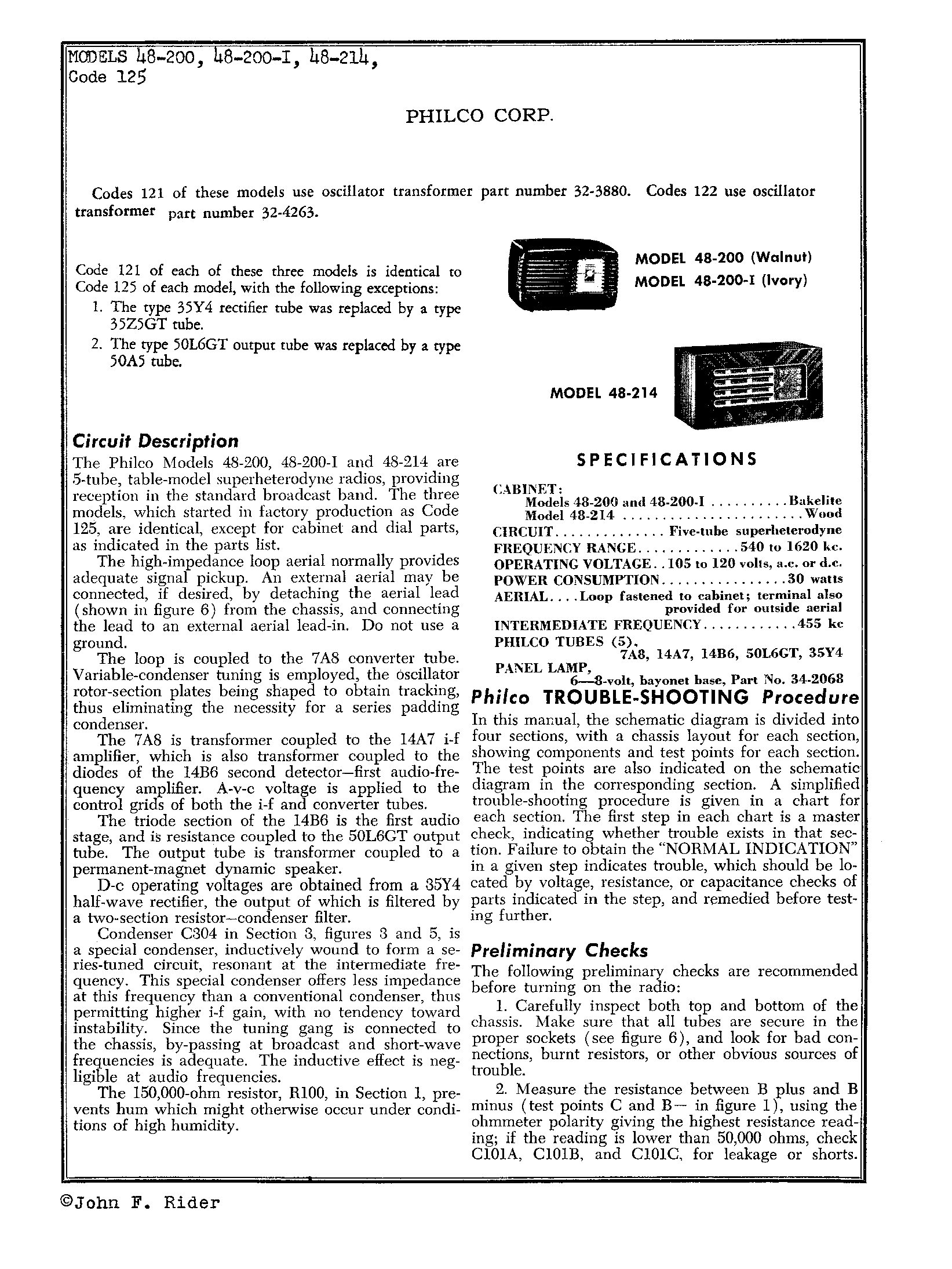

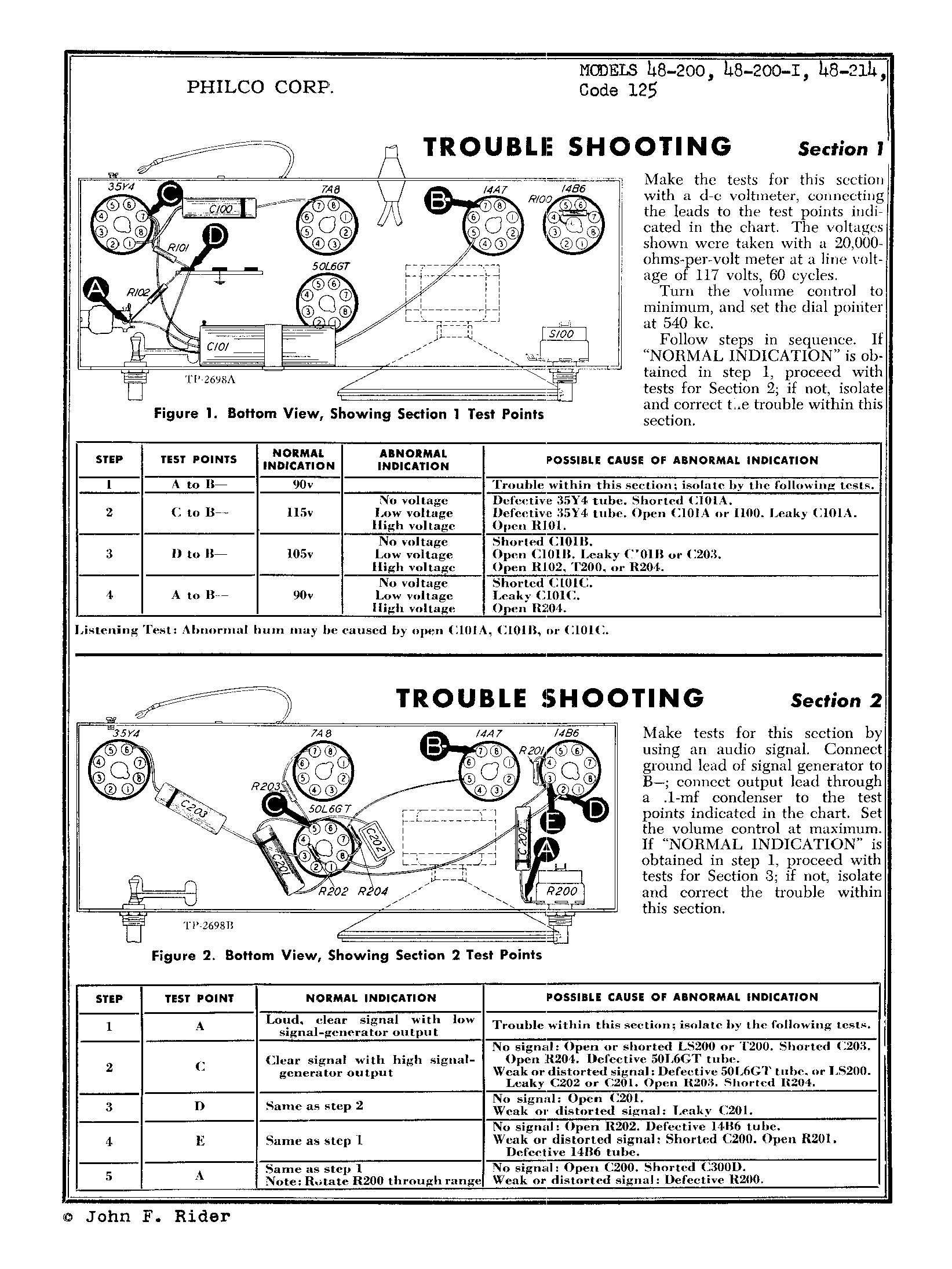

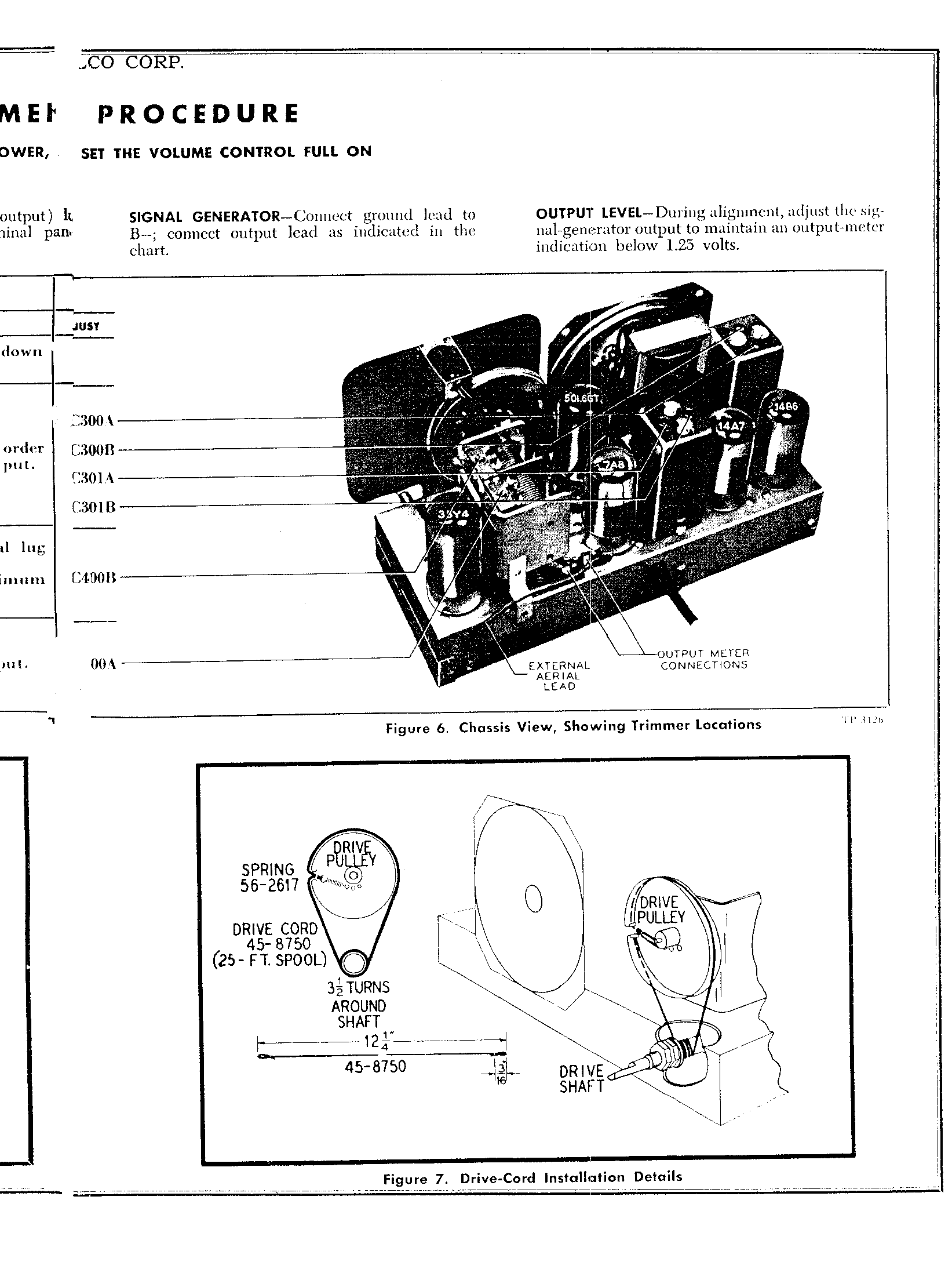

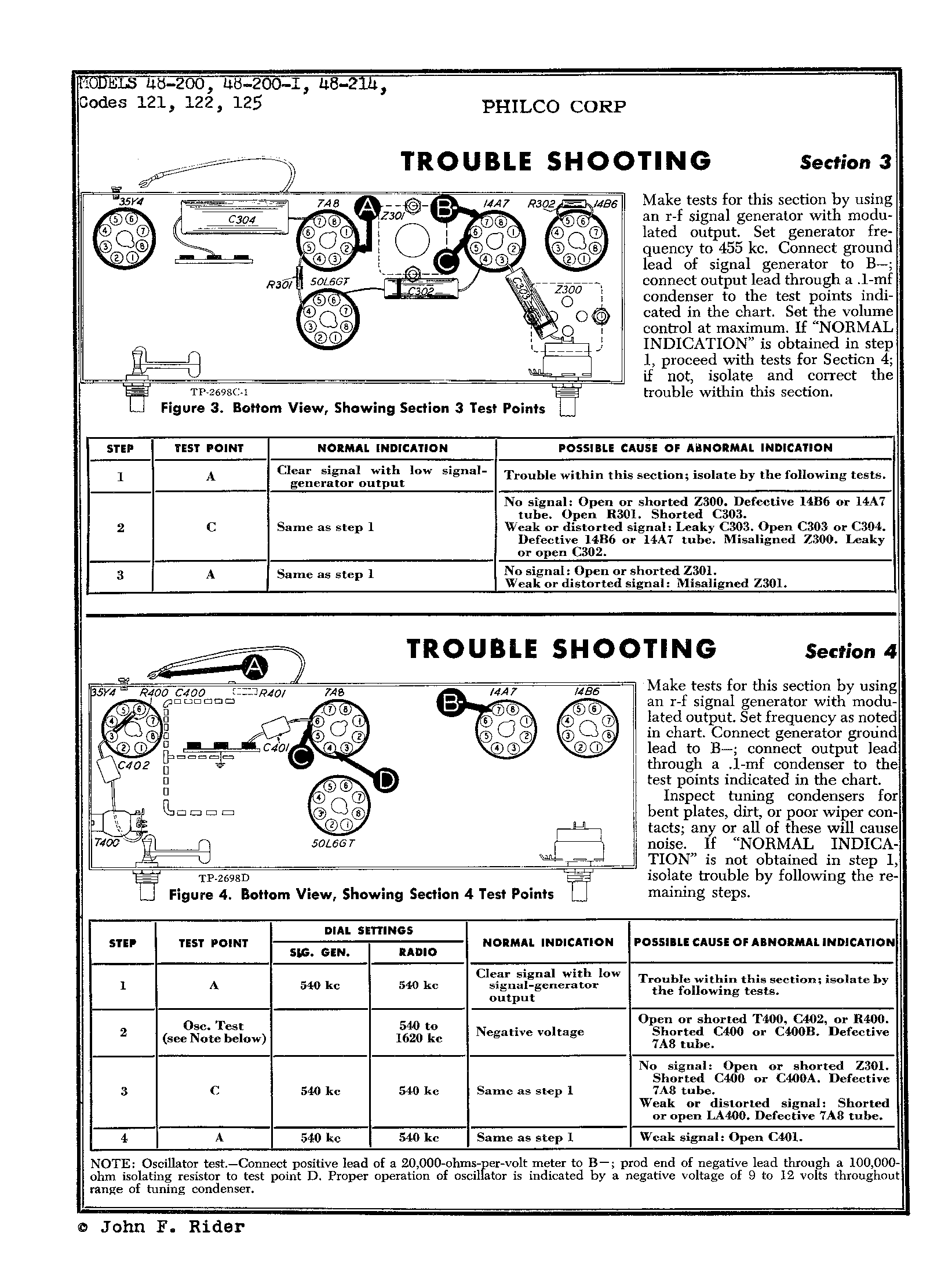

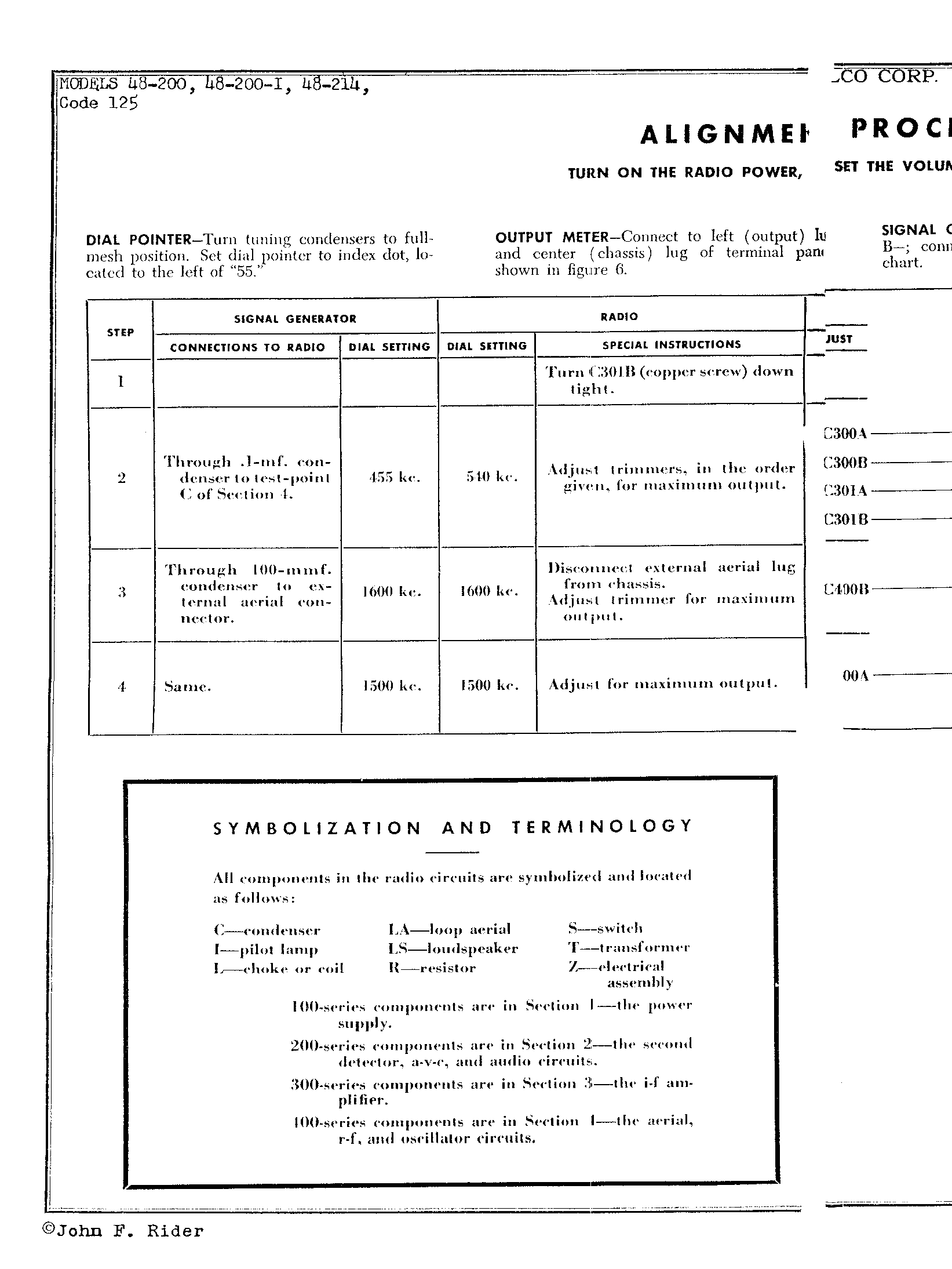

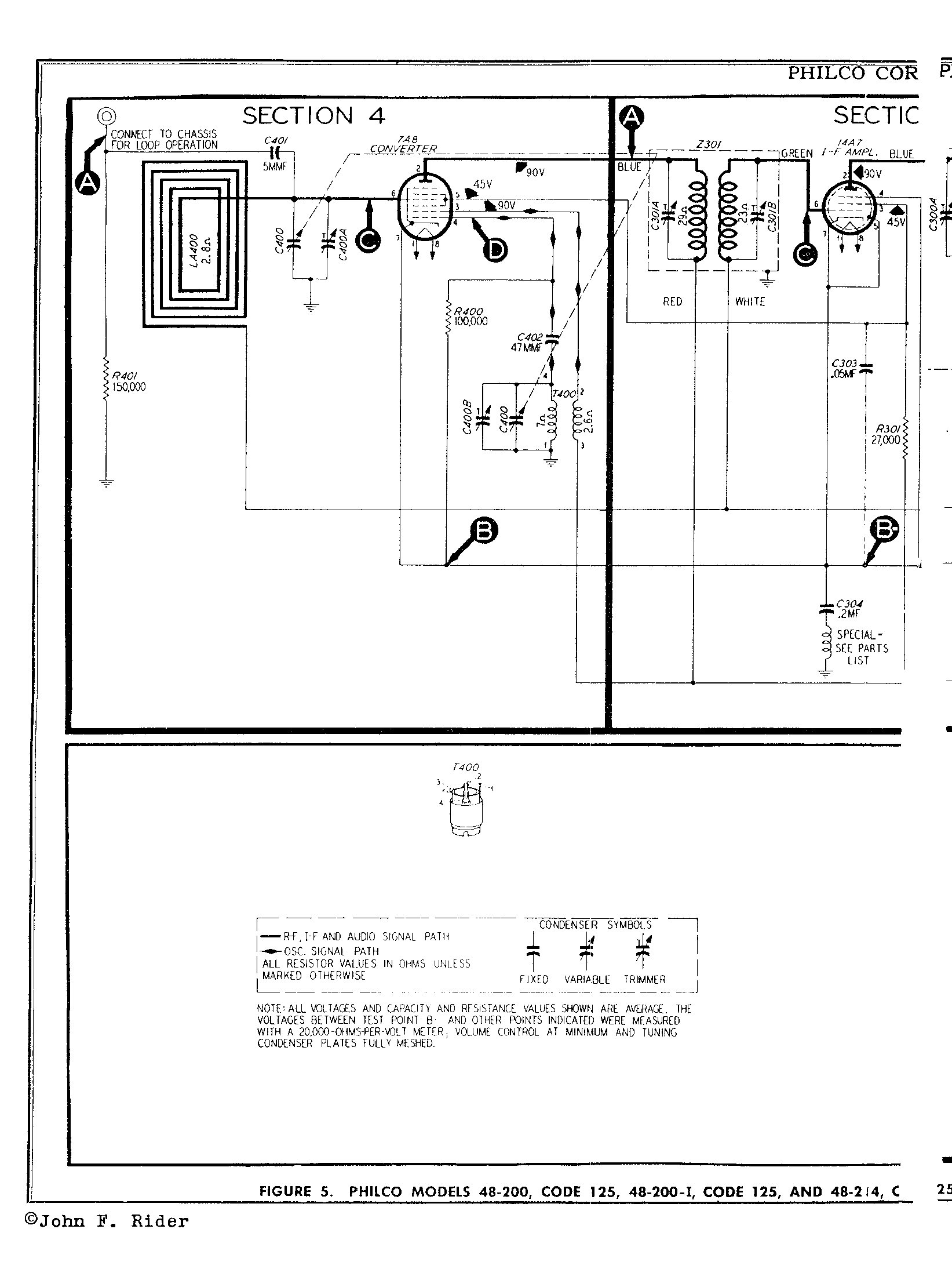

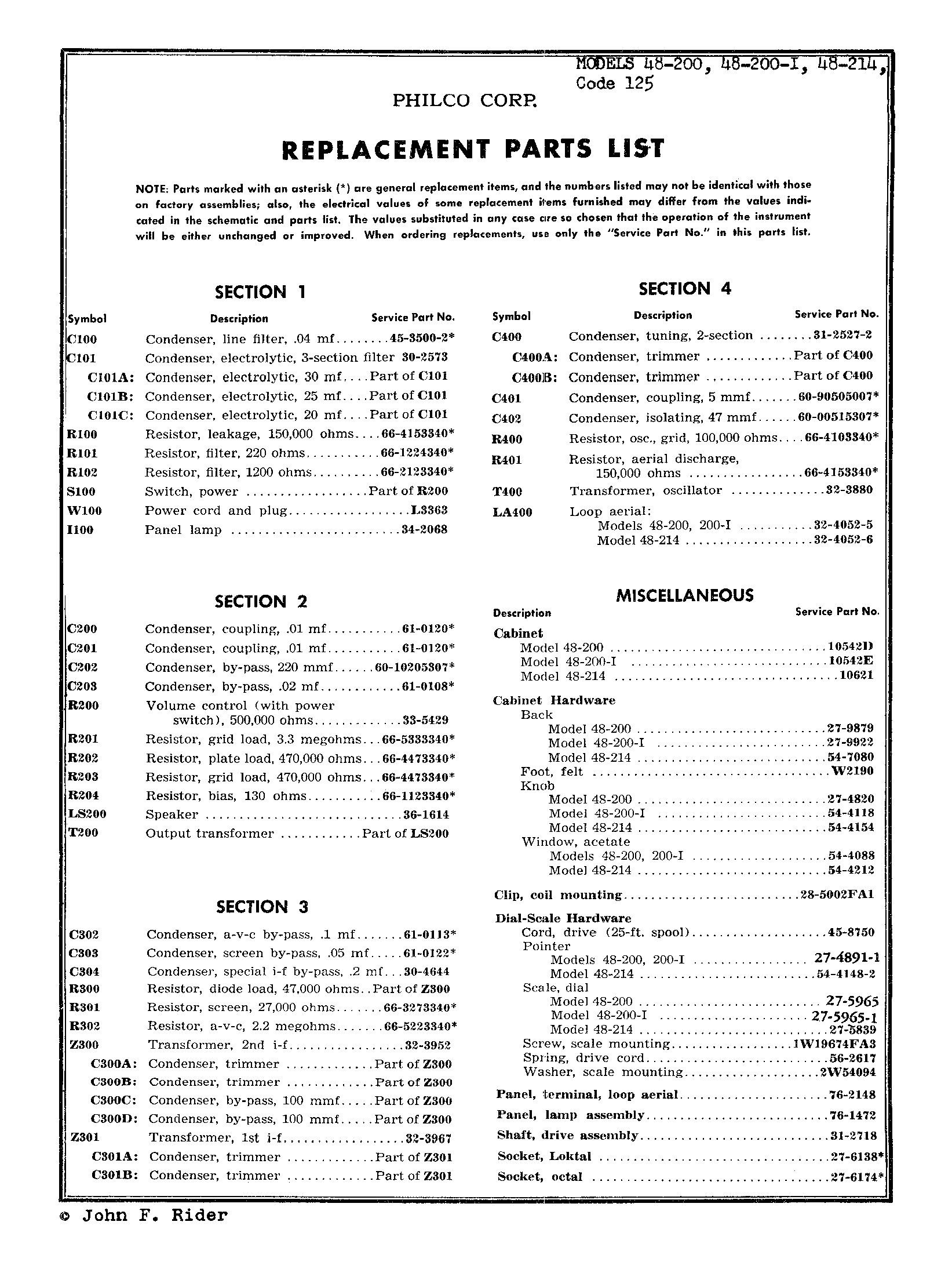

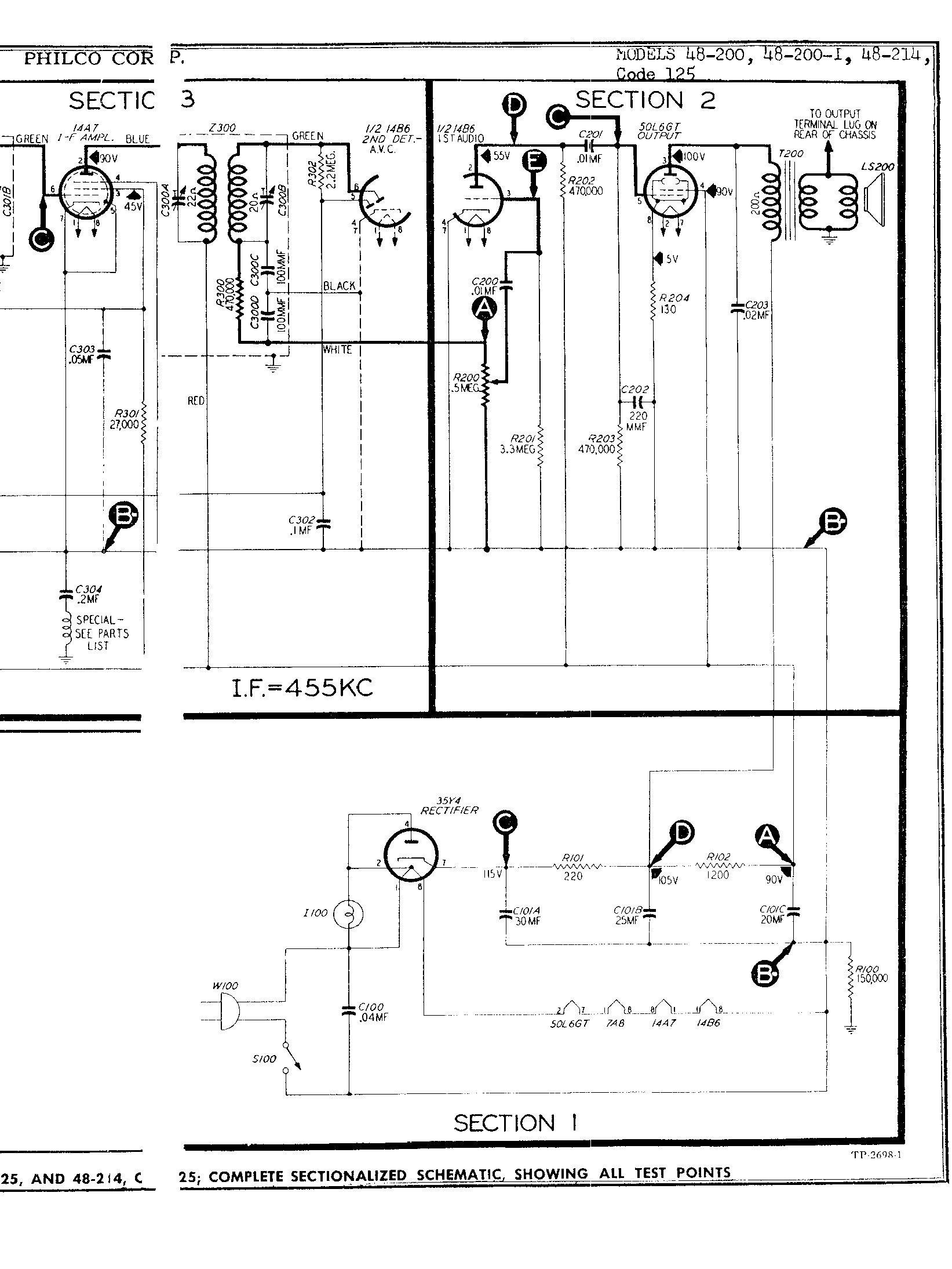

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 | Page7 | Page8 |
FROMSeptember 2012 MAARC monthly meeting auction.

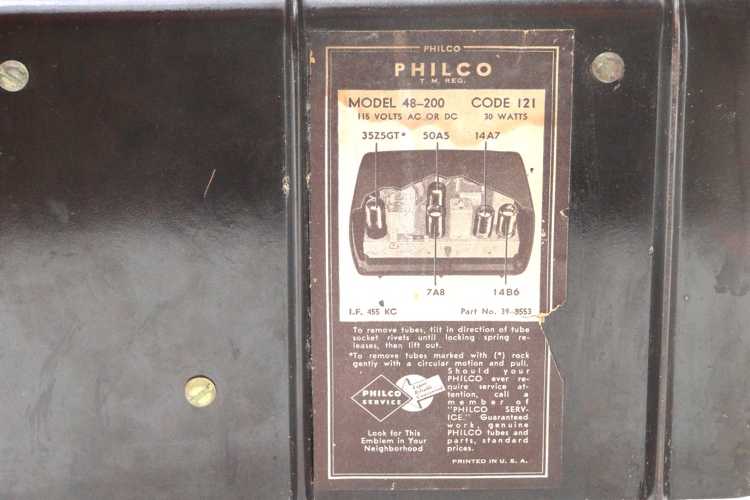

ADDITIONAL INFOThis is a 48-200, code 121. The Philco Service Bulletin and the Riders schematic I have cover code 125 that has a different tube line up from 121. Code 121 has 35Z5 and 50A5 instead of 35Y4 and 50L6, respectively.
