RADIOEmerson
MODELCL256 Strad
TECHNOLOGYTube
YEAR1939
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1780 KHz

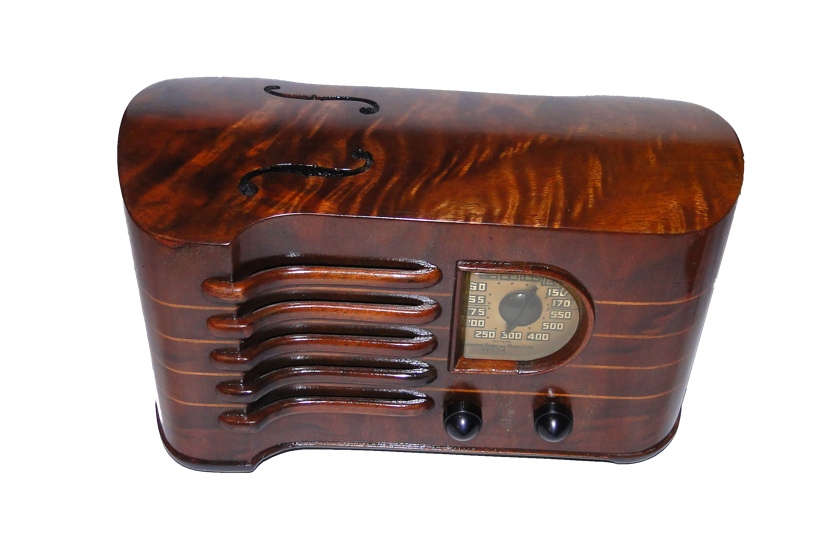

DESCRIPTIONEmerson “Strad” from 1938/9 in a walnut Ingraham cabinet, that measures 10.5×6.25×4.5″, left curved bars grill, right bullet shaped dial, 2 knobs. Highly sought after radio.
CABINET STYLEMantle
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION30 W
AC CYCLES25-40 and 50-60 Hz

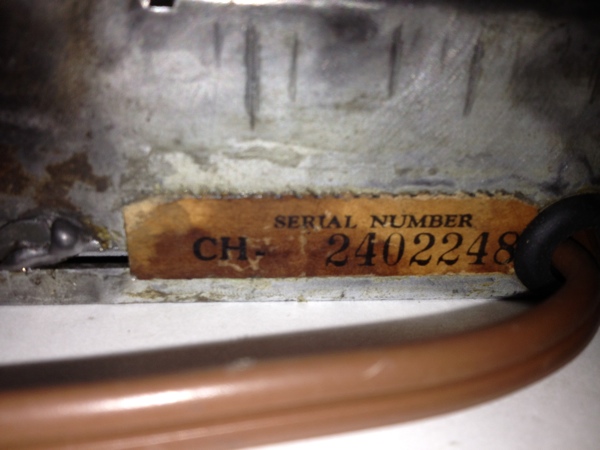

CHASSISCH 2402248
TUBES LOCATION
TUBE COMPLEMENT | 12Q7 | 12K7 | 12A8 | 35L6 | 35Z4 |

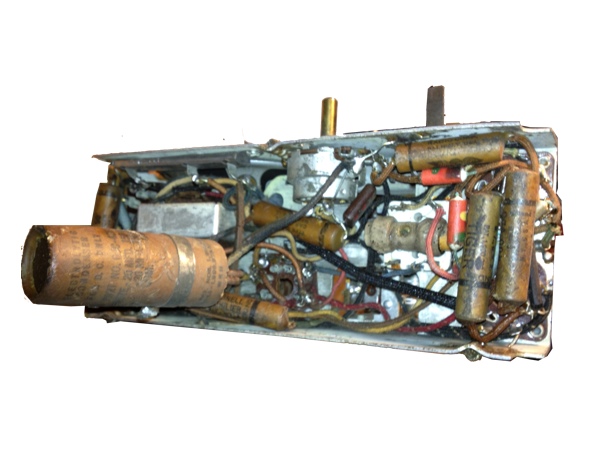

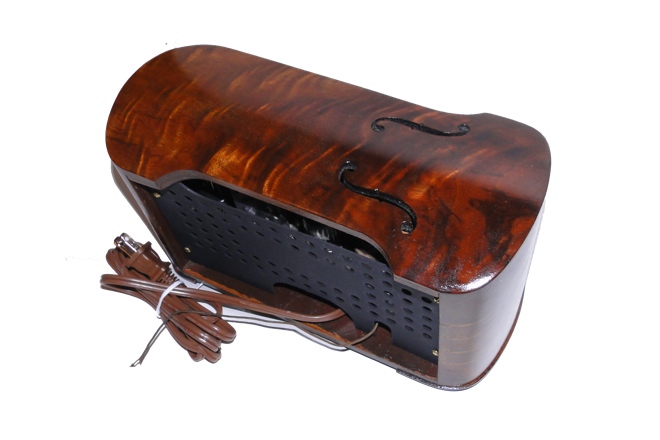

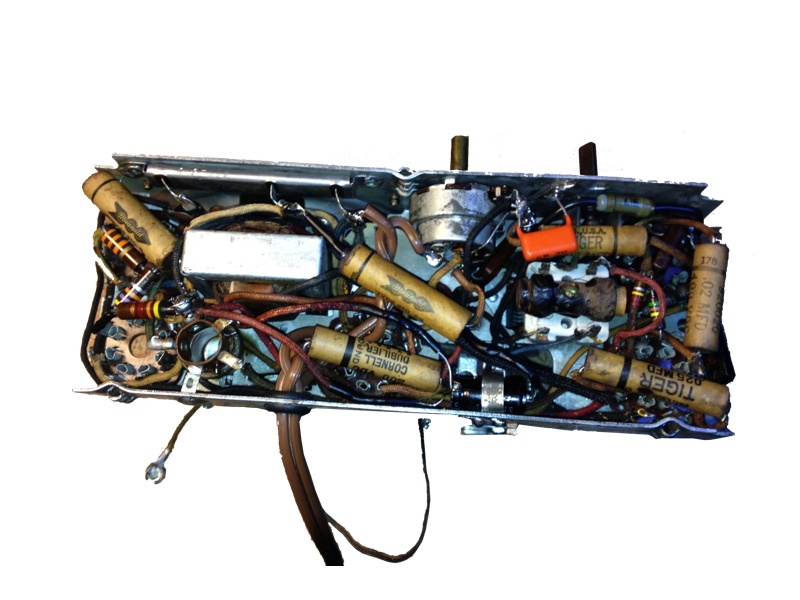

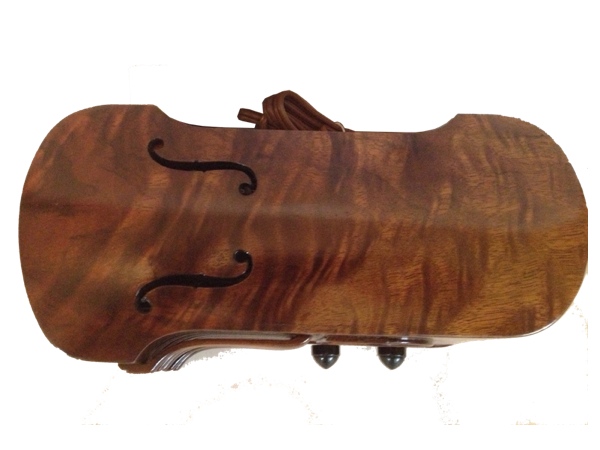

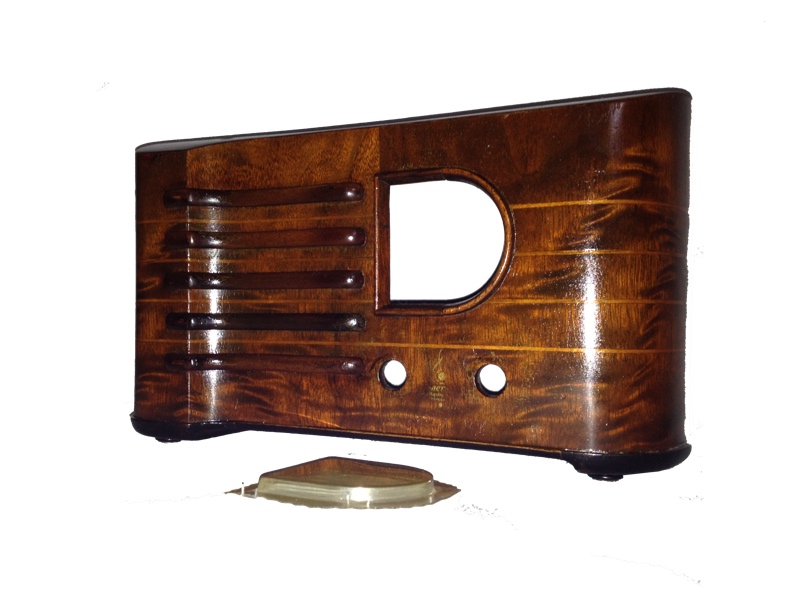

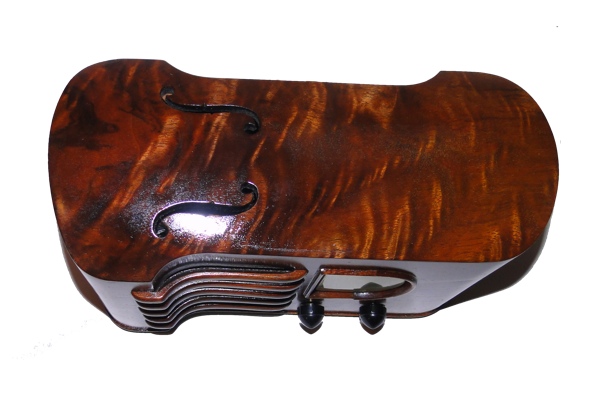

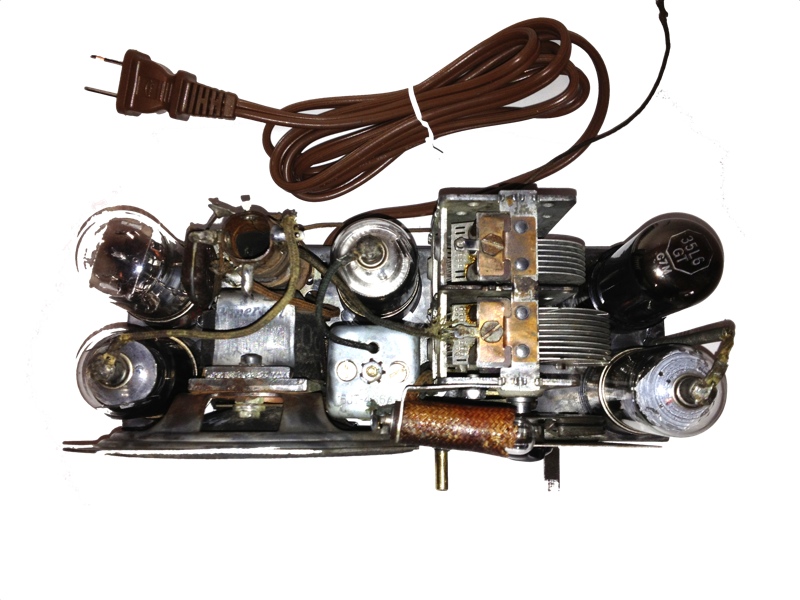

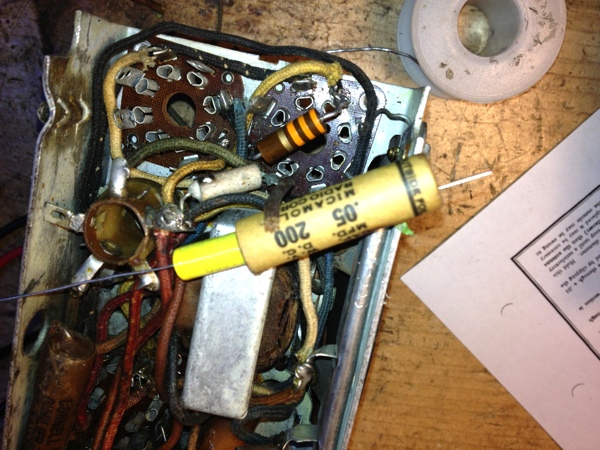

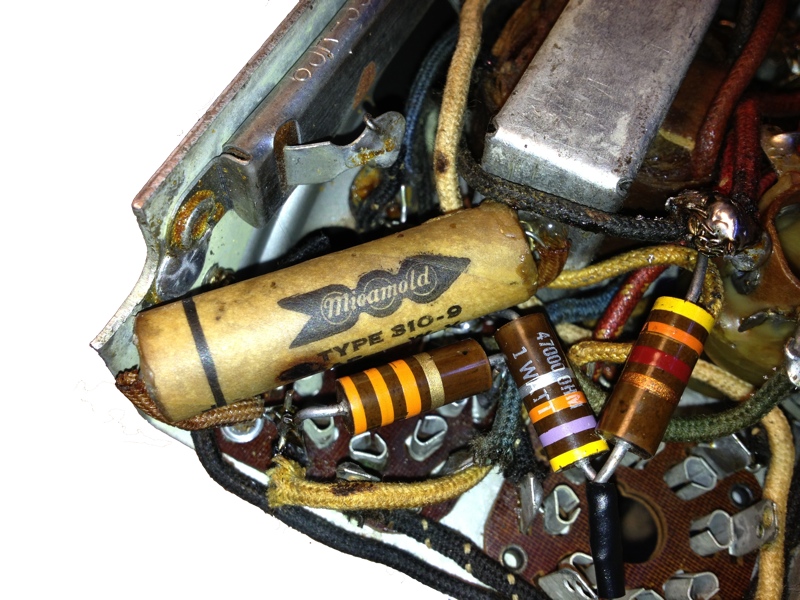

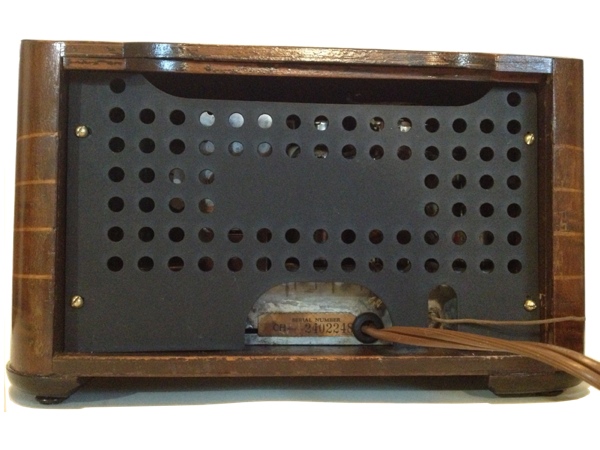

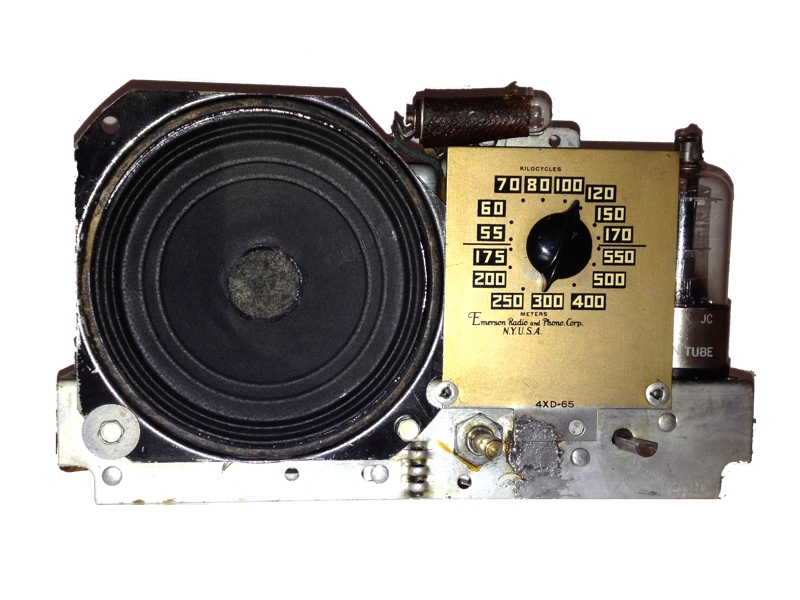

PICTURES(Click to enlarge image)

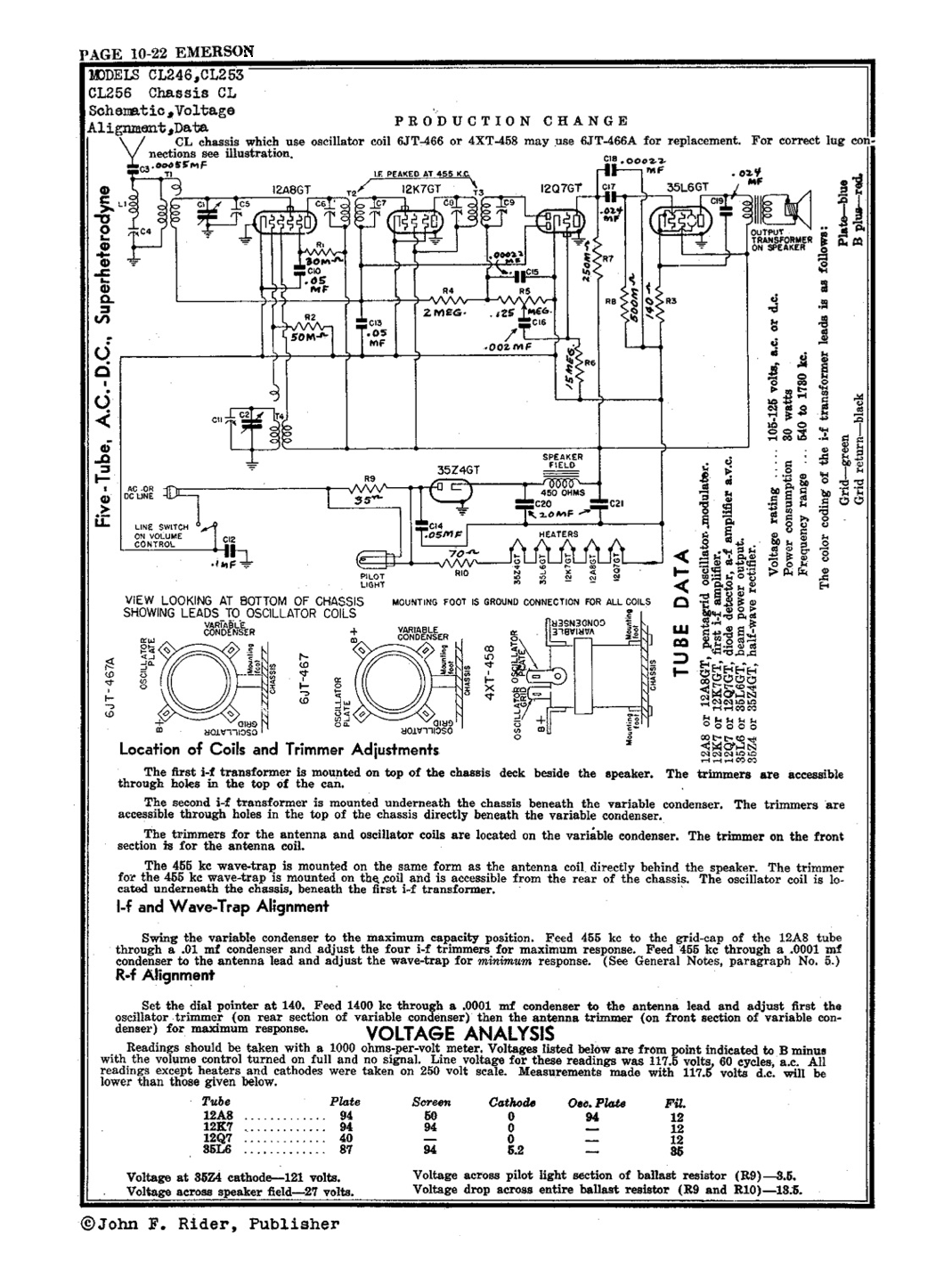

SCHEMATICS | Page1 | Page2 |
FROMFrom ebay US, Old Radio Crazy, Apr 2013
