RADIOEmerson
MODEL350 AW
TECHNOLOGYTube
YEAR1933
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1500 Kc; SW 1500 - 3000 Kc.

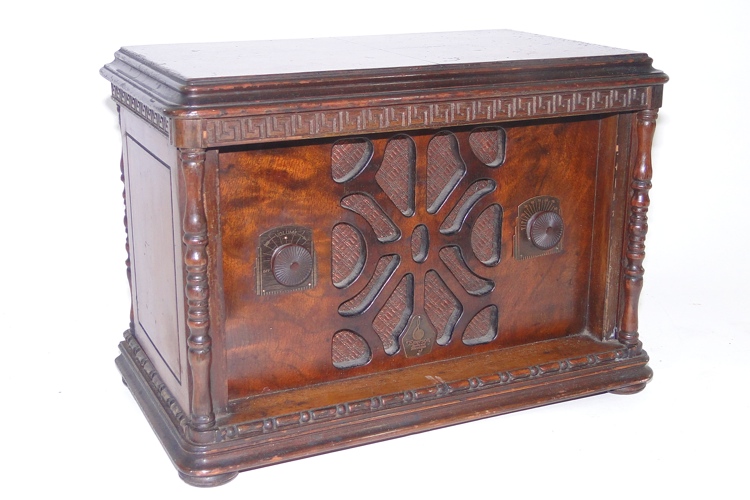

DESCRIPTIONTwo tone walnut wood cabinet, 2 awesome front doors, decorative columns and carved lower front, center fancy cloth grill with cut-outs.
CABINET STYLETable
CABINET MATERIALWood - Walnut
DIAL LAMP - N° x TYPE1 x ?
TONENo
CIRCUITSuperheterodyne
IF456 KC
POWER SUPPLYAC/DC
VOLTS100 - 135 V
CONSUMPTION?
AC CYCLES25-70 Hz

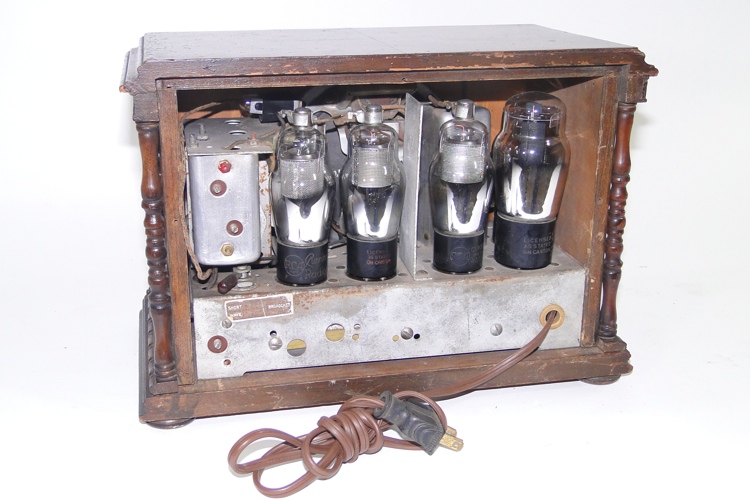

CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 78 | 78 | 77 | 43 | 25Z5 |
PICTURES(Click to enlarge image)

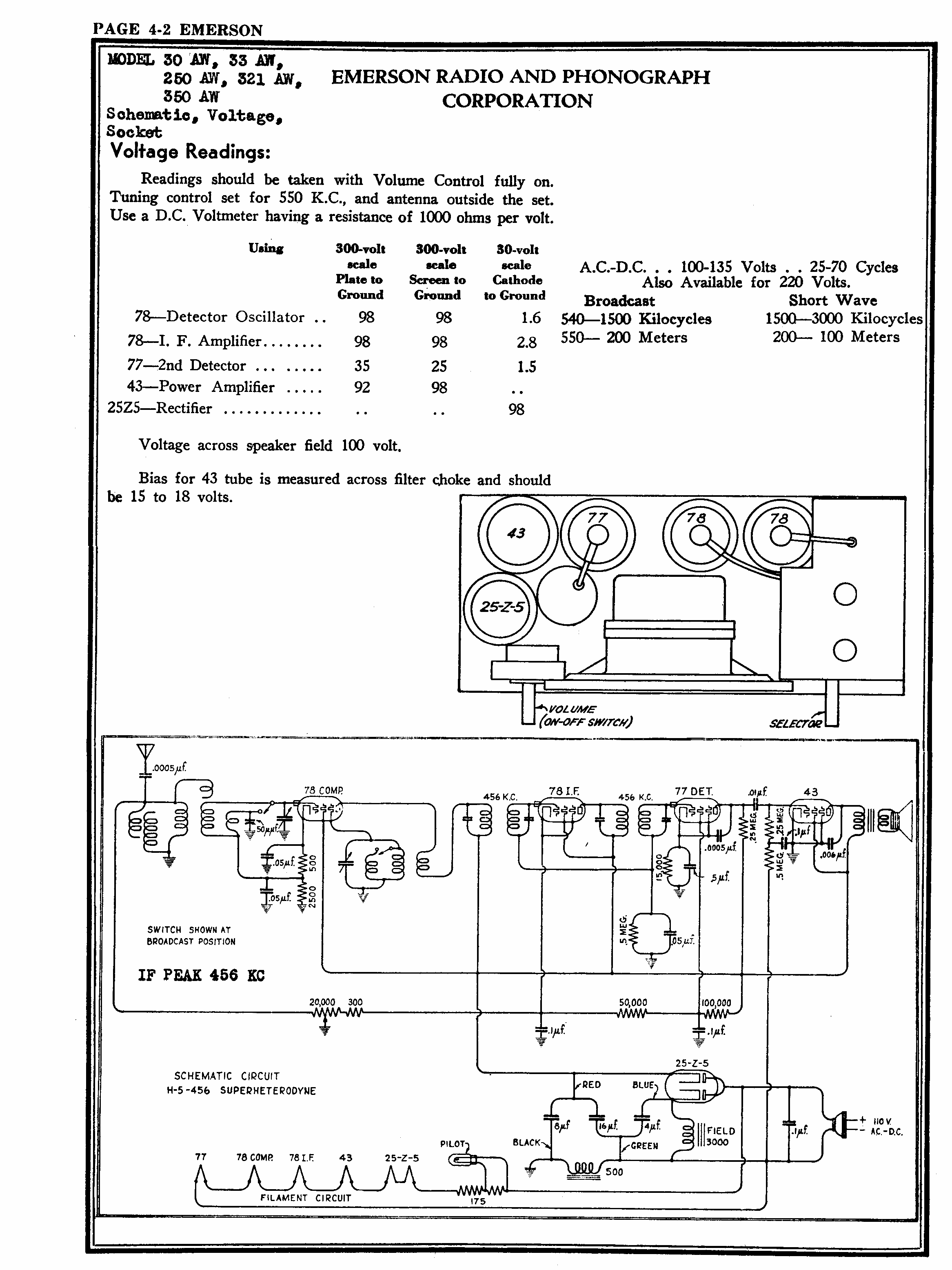

SCHEMATICS | Page1 |
FROMI got it from Geoff at the 2012 MAARC RadioFallFest in Davidsonville, MD on October 21st, 2012.
