RADIOZenith
MODEL6S229
TECHNOLOGYTube
YEAR1938
MADE INUNITED STATES
WAVE BANDSBC/Police/SW
COVERAGEAM 540 - 1730 KC, Police 1.8 - 5.5 Mc, SW 5.6 - 18.5 Mc
DESCRIPTIONTombstone with a lower front round black dial, upper grill cloth with cut-outs, 4 knobs. Original finish.
CABINET STYLETombstone
CABINET MATERIALWood
DIAL LAMP - N° x TYPE2 x 44
TONEVariable
CIRCUITSuperheterodyne
IF456 KC
POWER SUPPLYAC
VOLTS117 V
CONSUMPTION65 W
AC CYCLES50-60 Hz
CHASSISNo. 5538, Serial R368486
TUBES LOCATION
TUBE COMPLEMENT | 5Y4 | 6A8 | 6F5 | 6F6 | 6H6 | 6K7 |

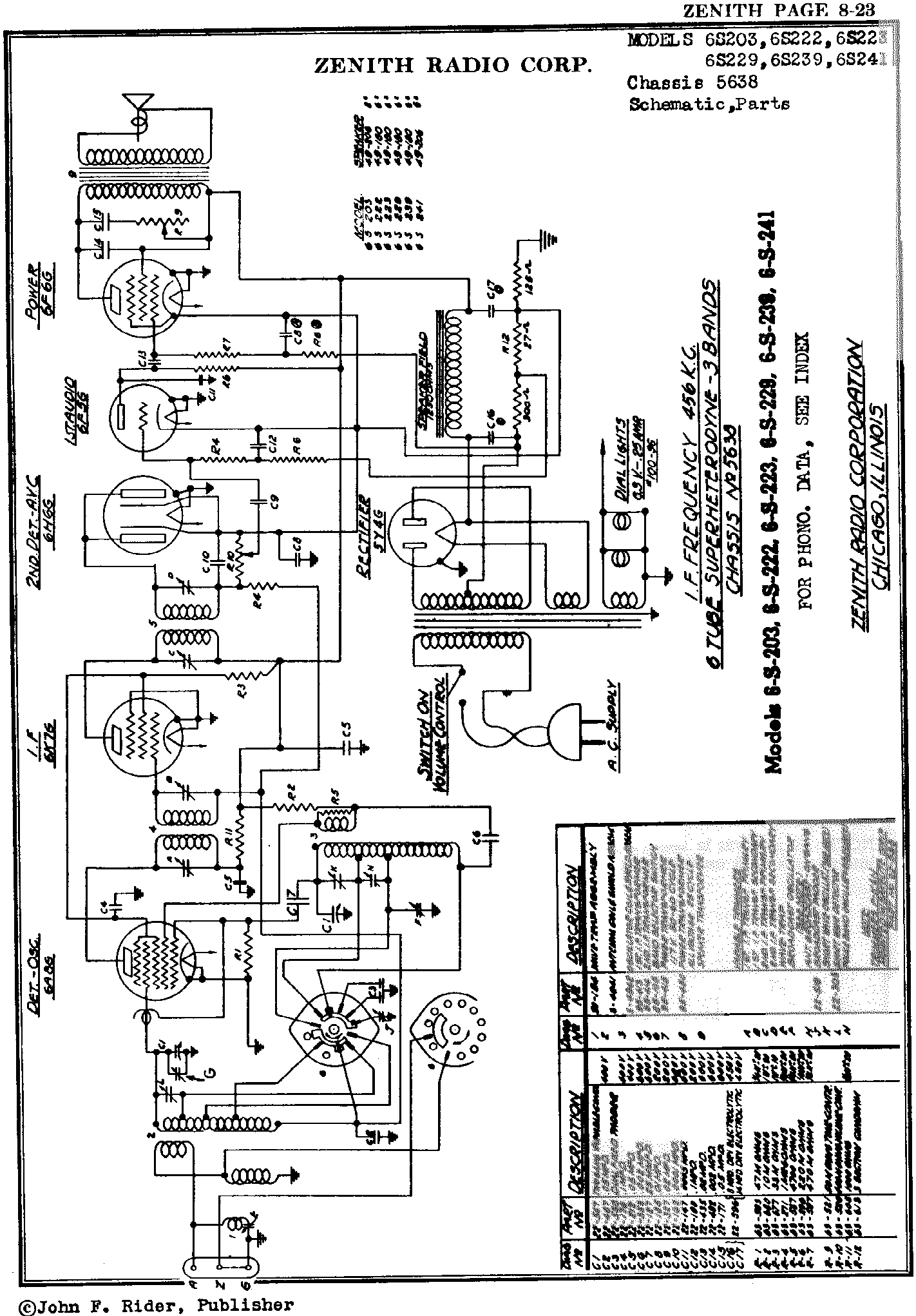

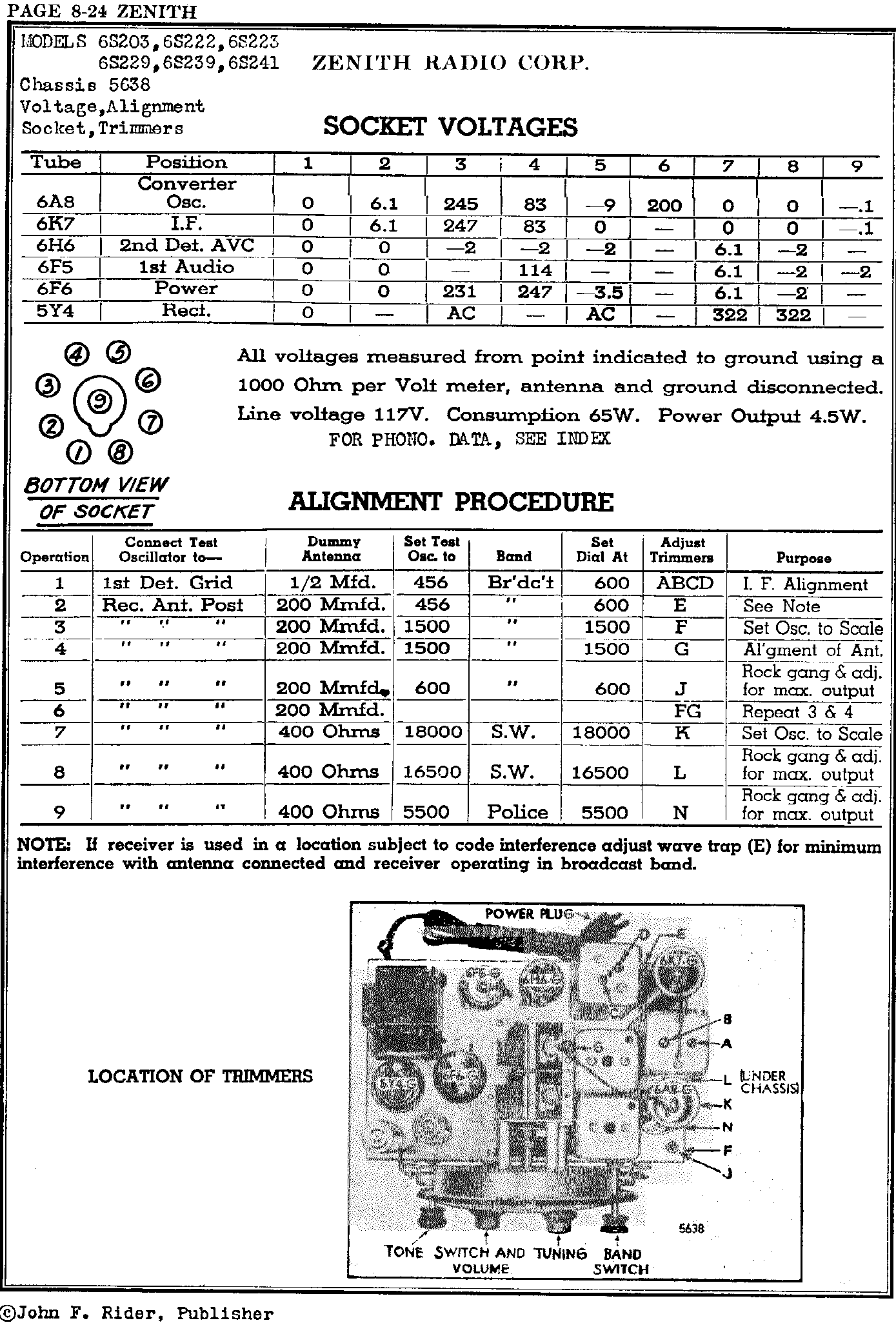

SCHEMATICS | Page1 | Page2 |
FROMGarage sale, Ithaca, NY.
ADDITIONAL INFOElectricaly restored. Works great. Radio was totally greassy when I got it. WD40 all over the set. I took everything apart, washed chassis, rewired and replaced all paper caps, electrolitics, and resistors. Completed on August, 1997.
