RADIOEmerson
MODEL250 AW
TECHNOLOGYTube
YEAR1933
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1500 Kc; SW 1500 - 3000 Kc.

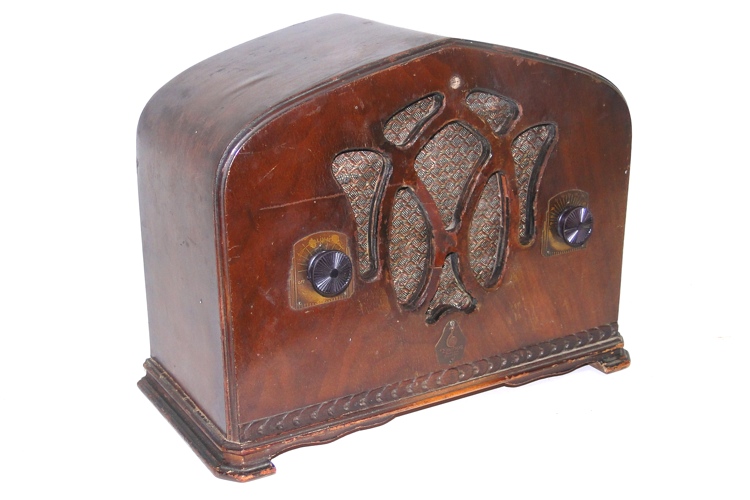

DESCRIPTIONFrontal cloth grill with fancy cut-outs, both lateral slanted top, left knob on/off volume and right knob tuning dial.
CABINET STYLETable
CABINET MATERIALWood - Walnut
DIAL LAMP - N° x TYPE1 x ?
TONENo
CIRCUITSuperheterodyne
IF456 KC
POWER SUPPLYAC/DC
VOLTS100 - 135 V
CONSUMPTION?
AC CYCLES25-70 Hz
CHASSIS
TUBES LOCATION

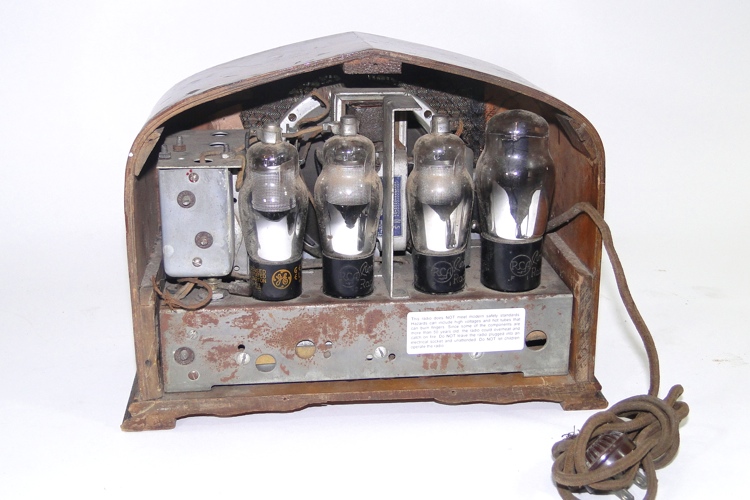

TUBE COMPLEMENT | 78 | 78 | 77 | 43 | 25Z5 |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 |
FROMFrom the auction in the MAARC RadioFallFest 2012 on October 21st, 2012.
