RADIOArvin
MODEL422
TECHNOLOGYTube
YEAR1941
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1720 KHz

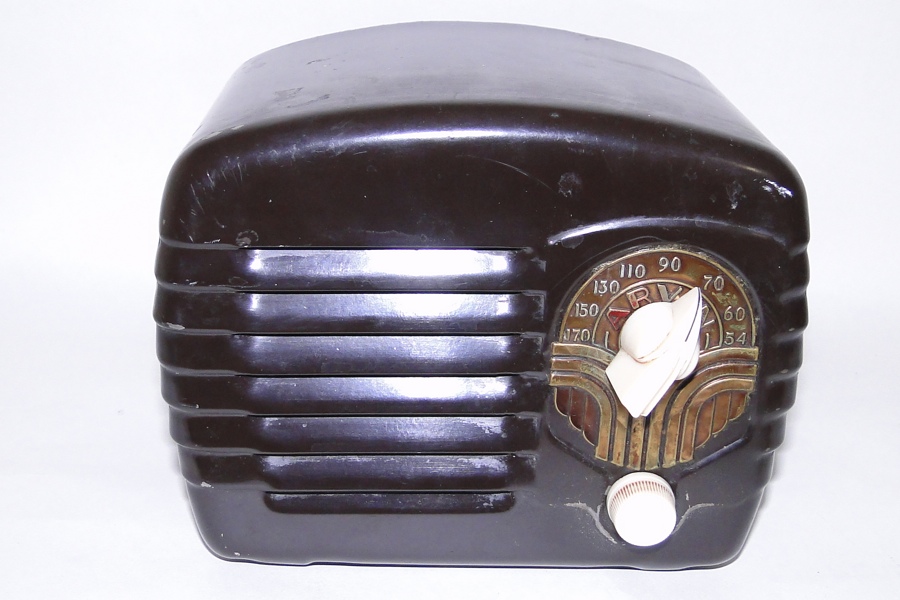

DESCRIPTIONRight front dial, left horizontal louvers, raised top, 2 right frontal knobs
CABINET STYLEMidget
CABINET MATERIALMetal
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS117 Volts
CONSUMPTION30 W
AC CYCLES40-60 Hz
CHASSIS

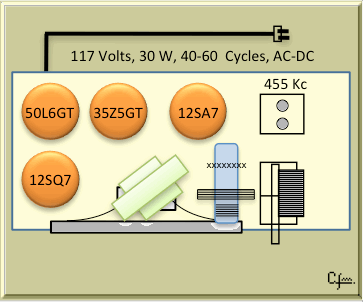

TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SQ7 | 50L6 | 35Z5 |

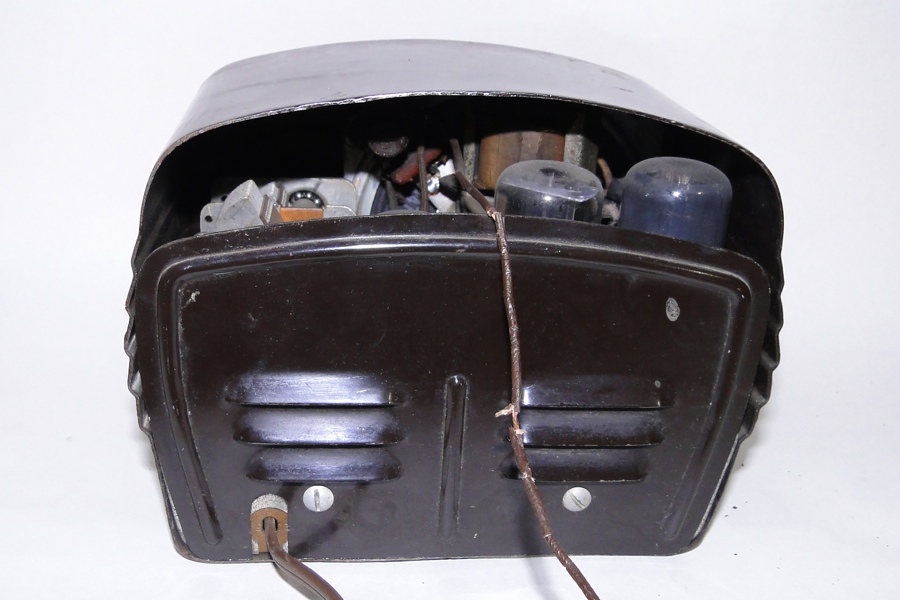

PICTURES(Click to enlarge image)

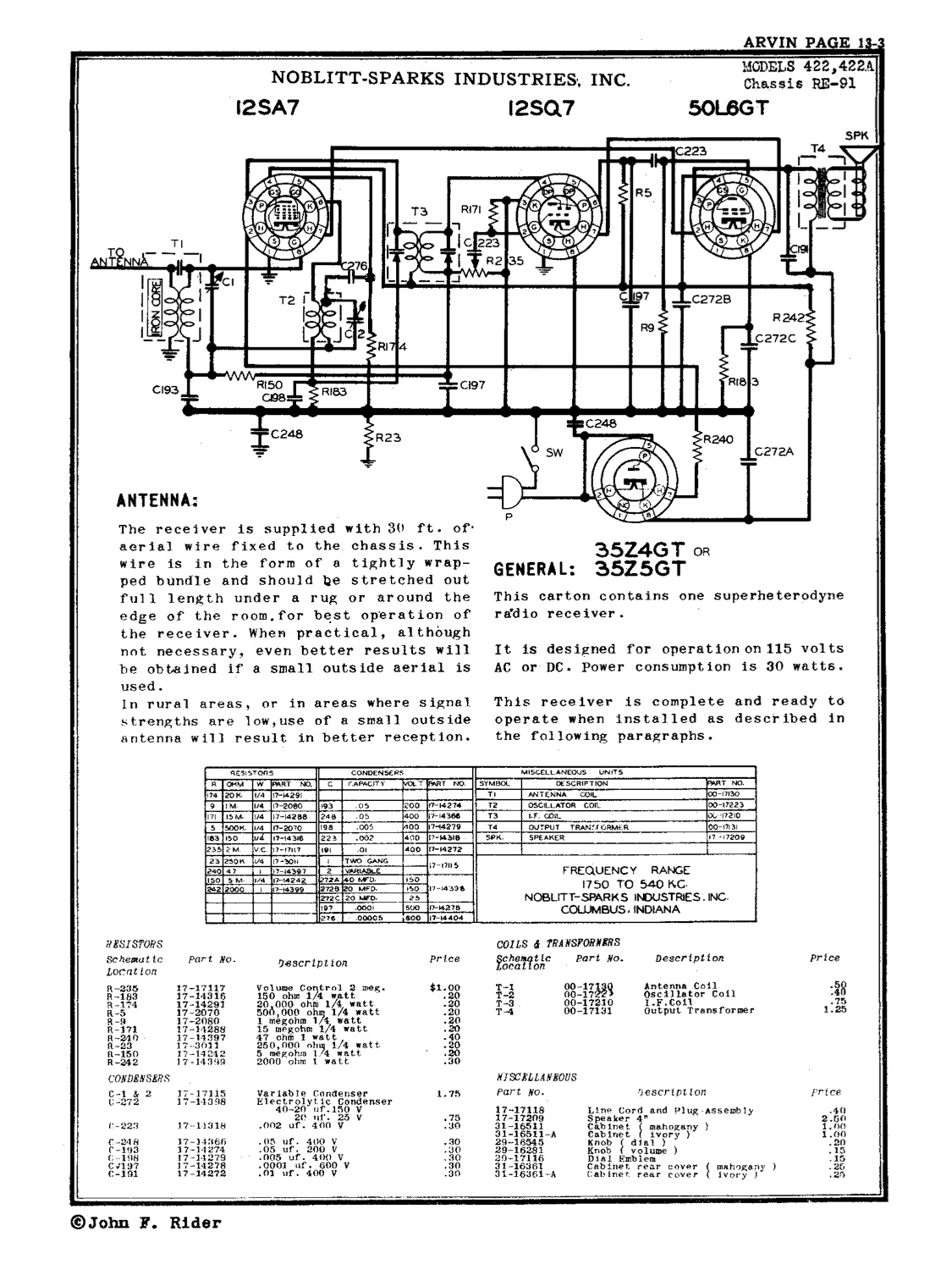

SCHEMATICS | Page1 |
FROMFrom kathleenskitchen ebay US on Marc 16th, 2013, while in Shady Grove Hospital
ADDITIONAL INFOFrom kathleenskitchen ebay US on March 16th, 2013
