| RADIO | Teletone |
| MODEL | 109 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1948 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC |
| COVERAGE | |
| DESCRIPTION | |
| CABINET STYLE | Midget |
| CABINET MATERIAL | Bakelite |
| DIAL LAMP - N° x TYPE | 1 x 47 |
| TONE | No |
| CIRCUIT | Superheterodyne |
| IF | 455 KC |
| POWER SUPPLY | AC/DC |
| VOLTS | 105-125 Volts |
| CONSUMPTION | ? |
| AC CYCLES | 60 Hz |
| CHASSIS | |

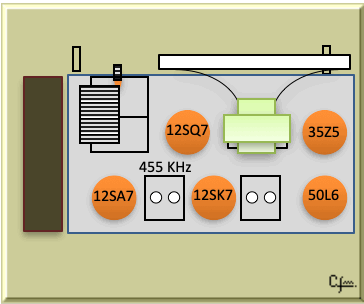

| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |
|

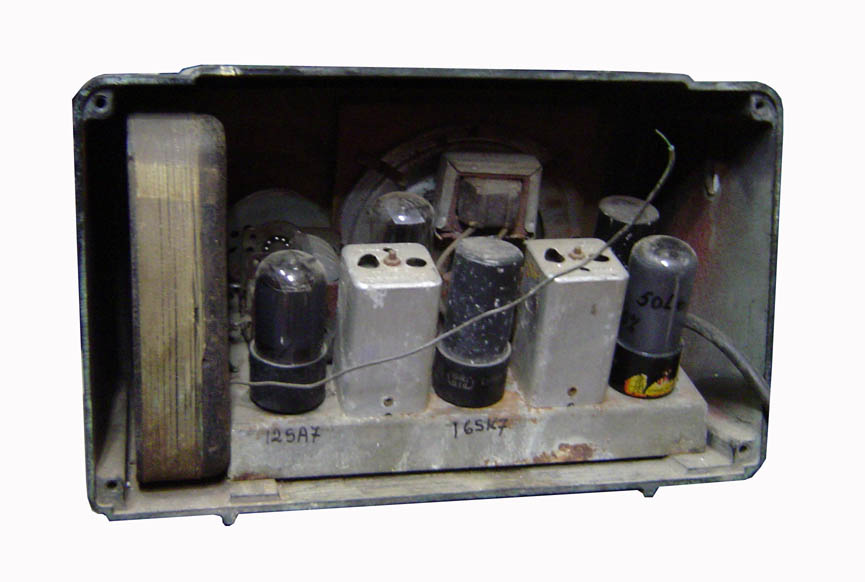

| PICTURES | (Click to enlarge image) |
|
|

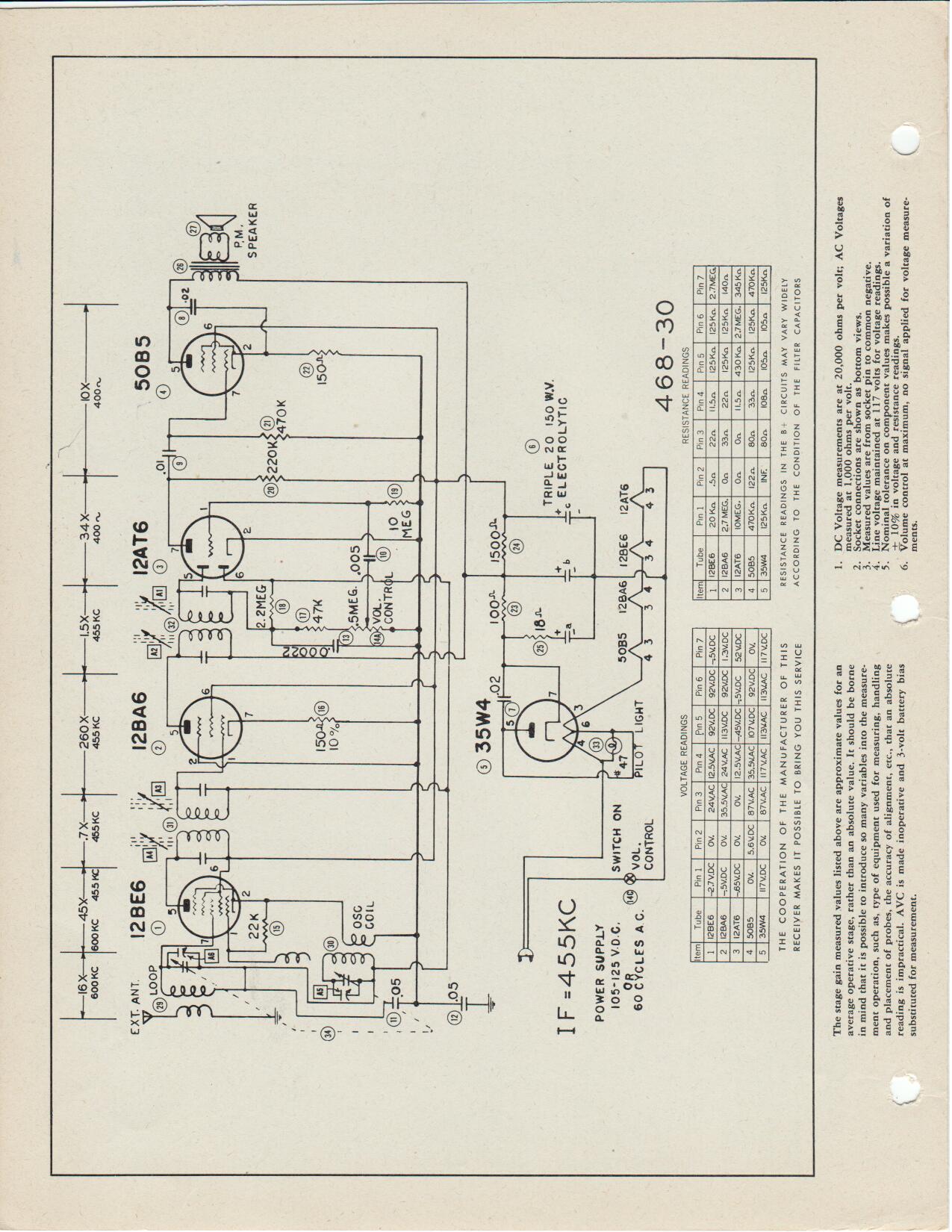

| SCHEMATICS |

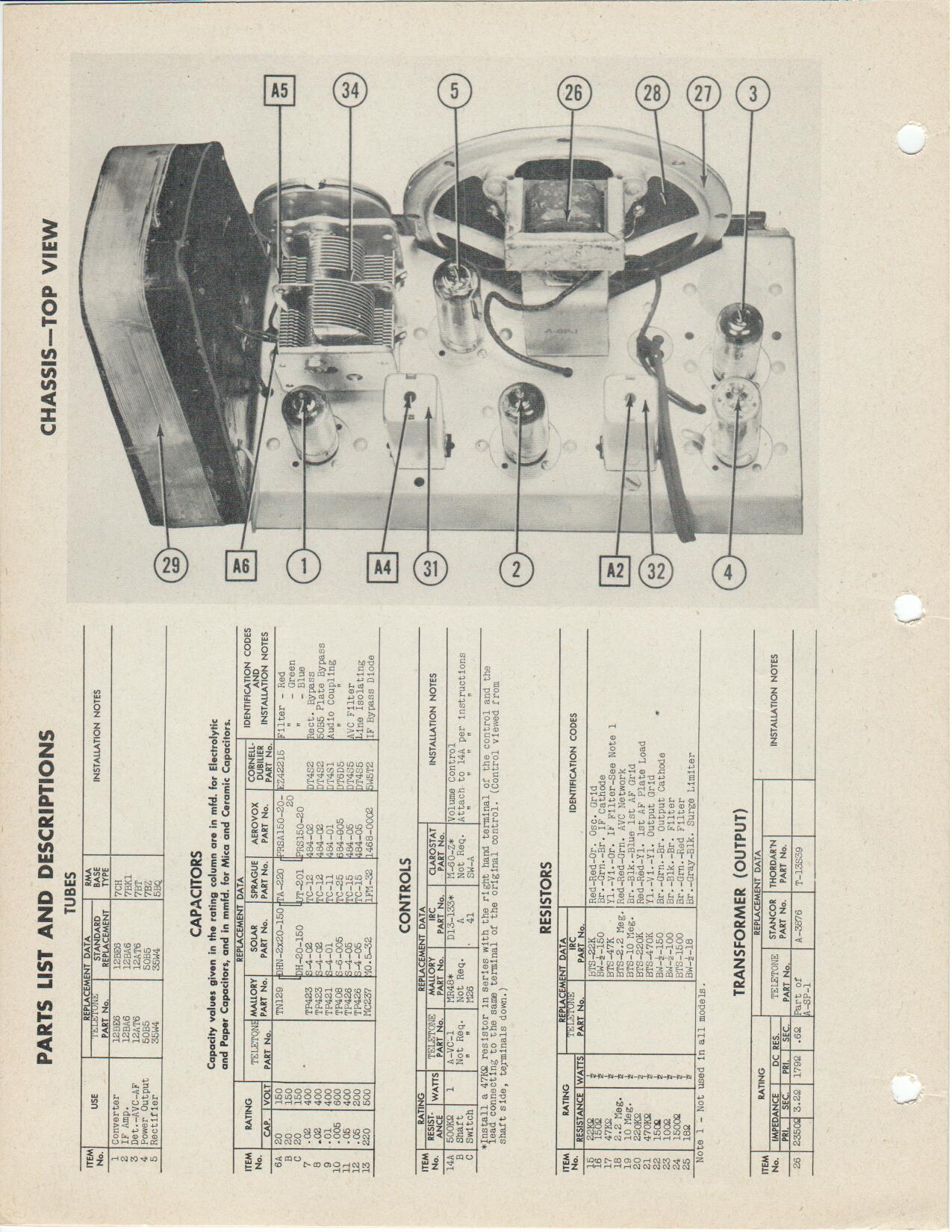

| Page1

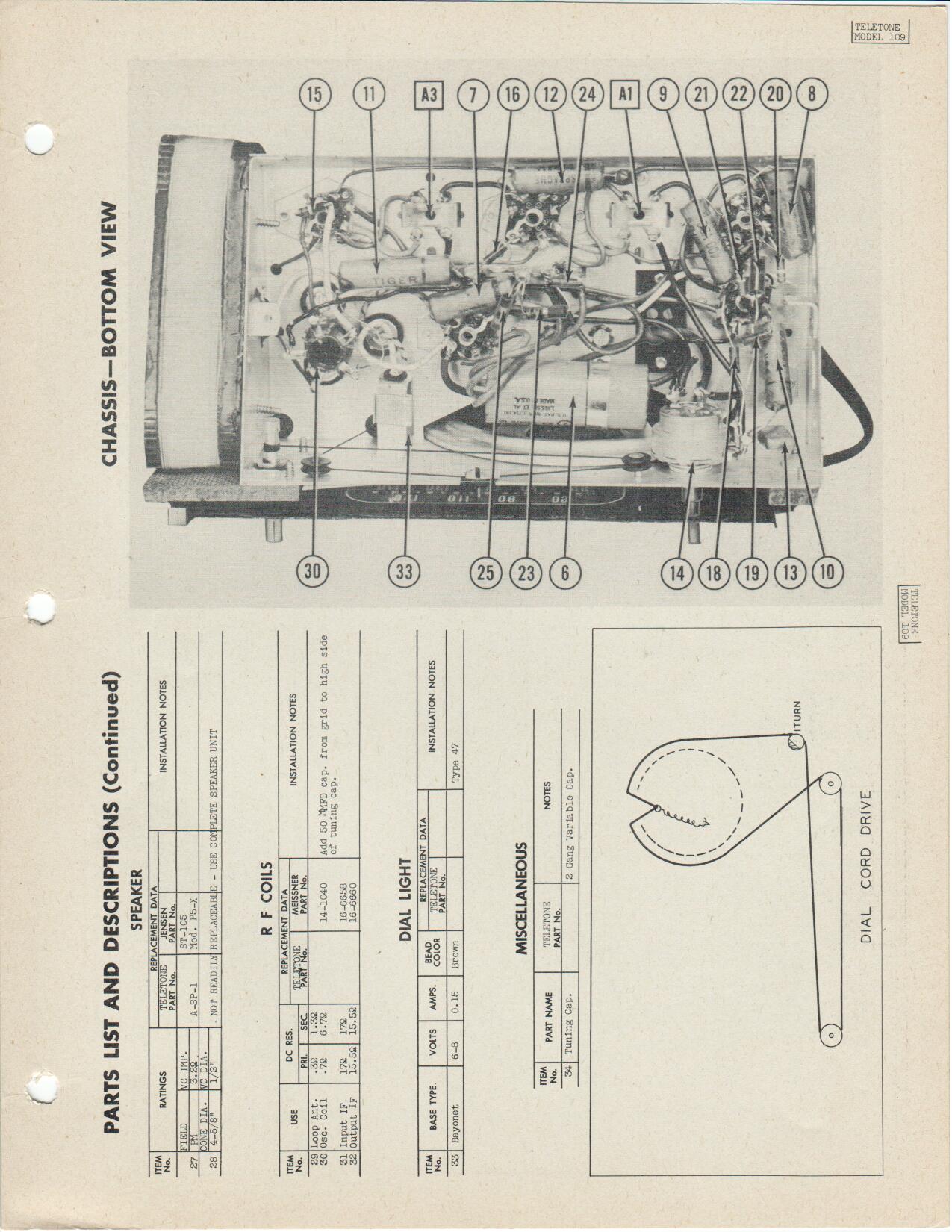

| Page2
| Page3
| Page4
|
|
| FROM | MercadoLivre, ebay, Miroto (Arcoso), Sao Paulo, SP, Brazil |
