RADIOSharp
MODELBX327
TECHNOLOGYTransistor
YEAR1961
MADE INBRAZIL
WAVE BANDSBC/SW
COVERAGEAM 535 - 1605, SW 3.9 - 12 Mc
DESCRIPTIONHorizontal set, 8 transistores, upper front horizontal 2-band slide rule dial with upper right thumbwhell tunning, upper left thumbwheel on/off/volume knob, large lower metal perforated grill area with center and lower left logos, telescoping antenna.
CABINET STYLEPortable
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYDC Battery
VOLTS6 V
CONSUMPTION?
AC CYCLESNot applicable
CHASSISSerial No. 15012153

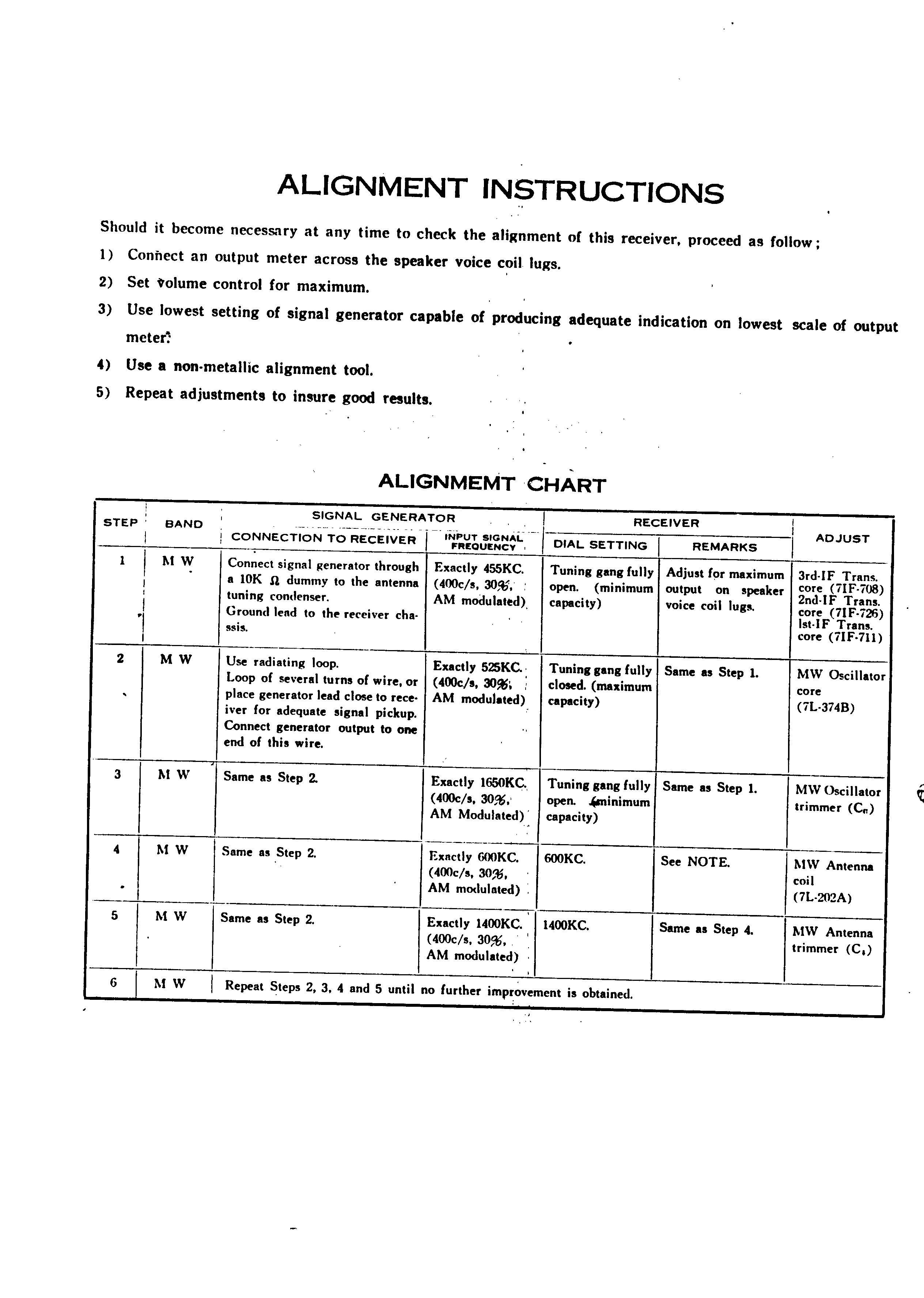

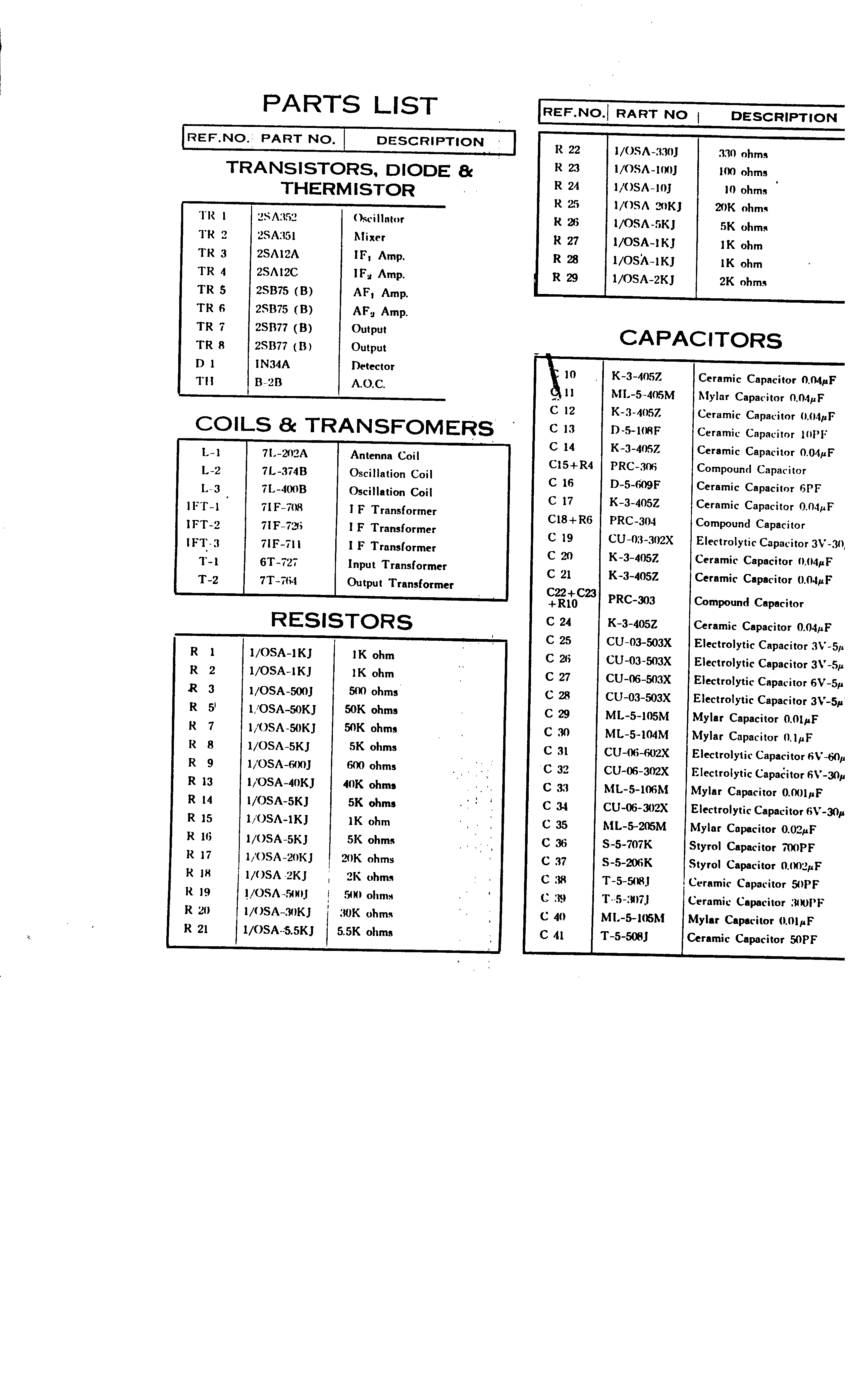

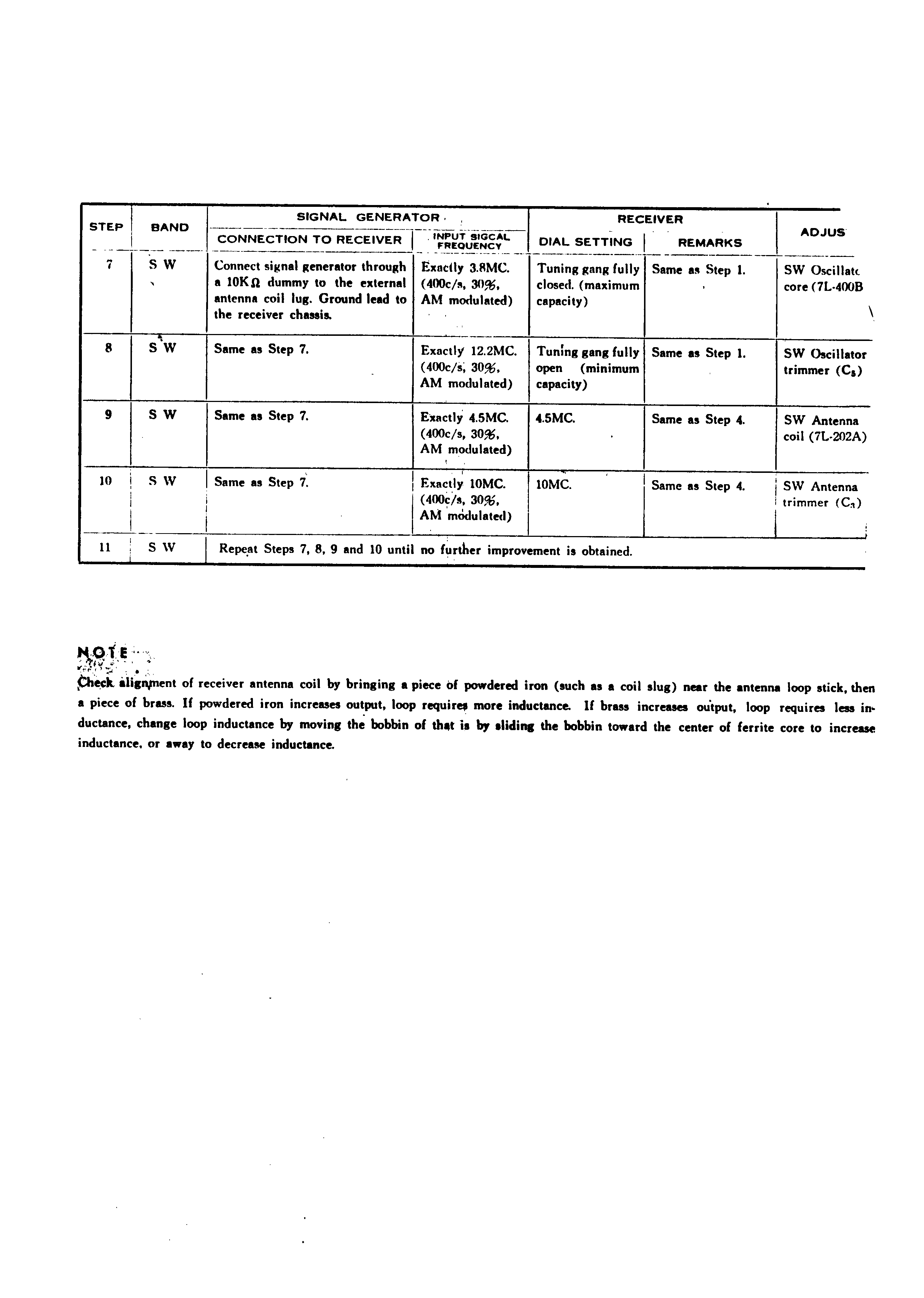

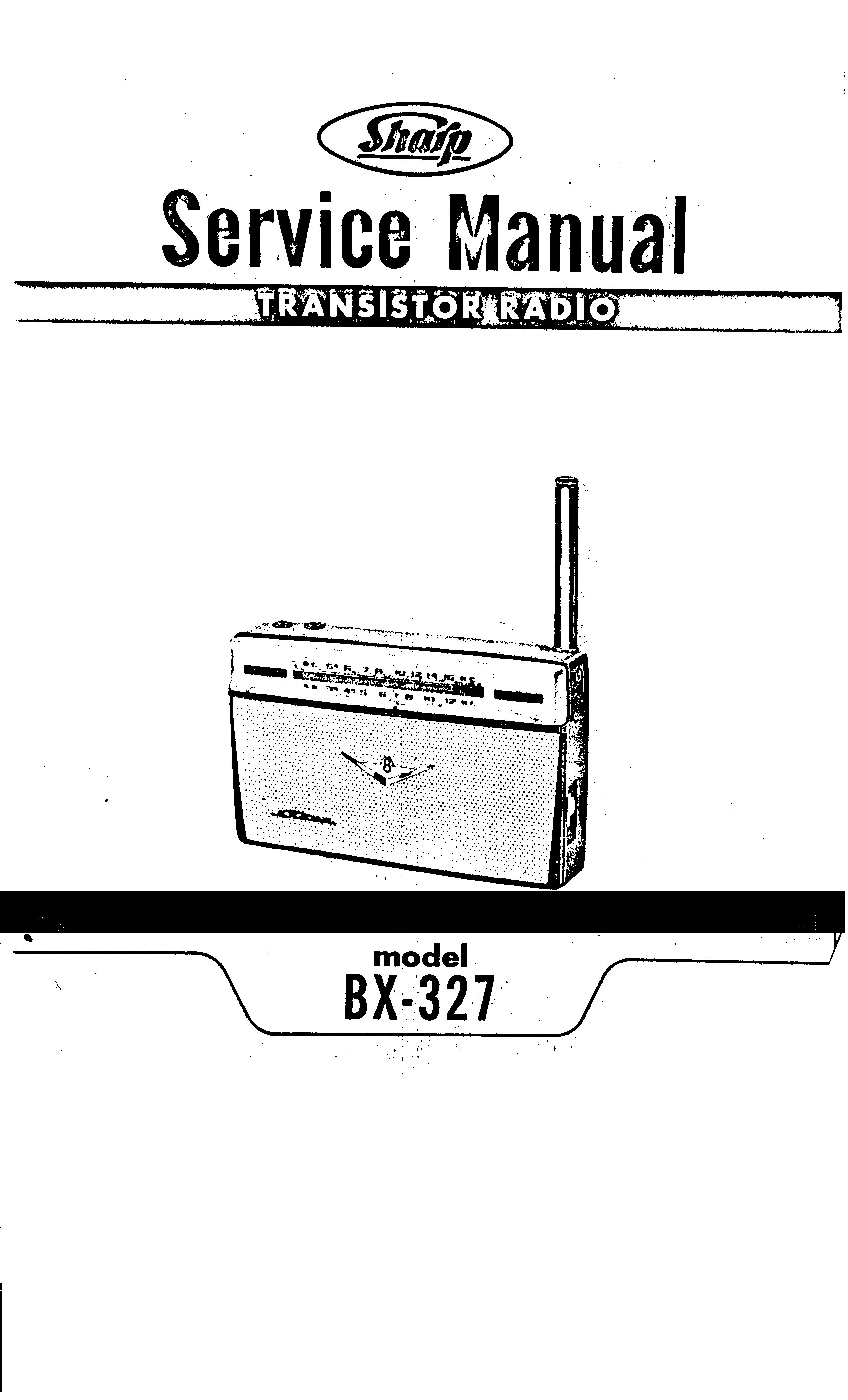

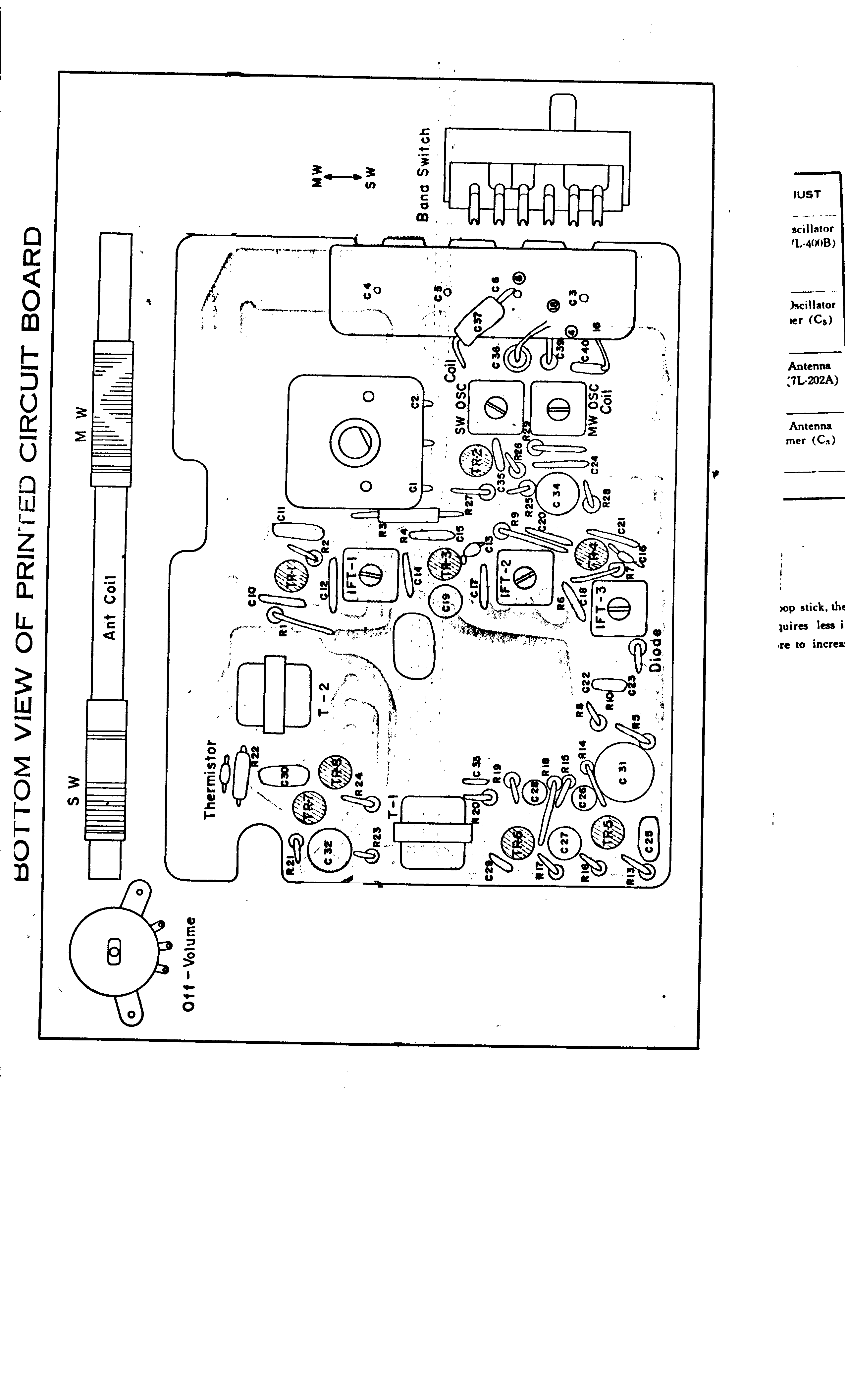

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 | Page7 | Page8 |
FROMVeslei, Brasilia, DF.
