RADIORCA Victor
MODELRadiola 16
TECHNOLOGYTube
YEAR1927
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE
DESCRIPTIONLift top, right oval vertical dial, 2 frontal knobs.
CABINET STYLETable Low Profile
CABINET MATERIALWood - Walnut
DIAL LAMP - N° x TYPE0 x ?
TONENo
CIRCUITTRF
IFNot applicable
POWER SUPPLYDC Battery
VOLTSA +5 V; B +45, +67, +135 V; C -9 V.
CONSUMPTION?
AC CYCLESNot applicable
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 01A | 01A | 01A | 01A | 01A | 12A |

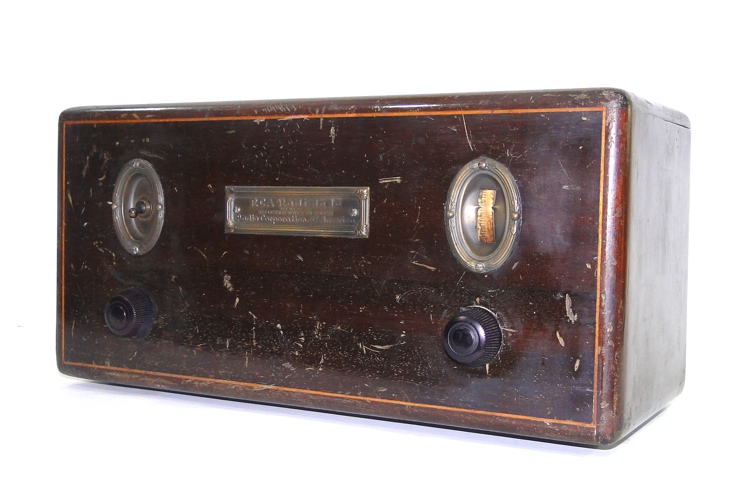

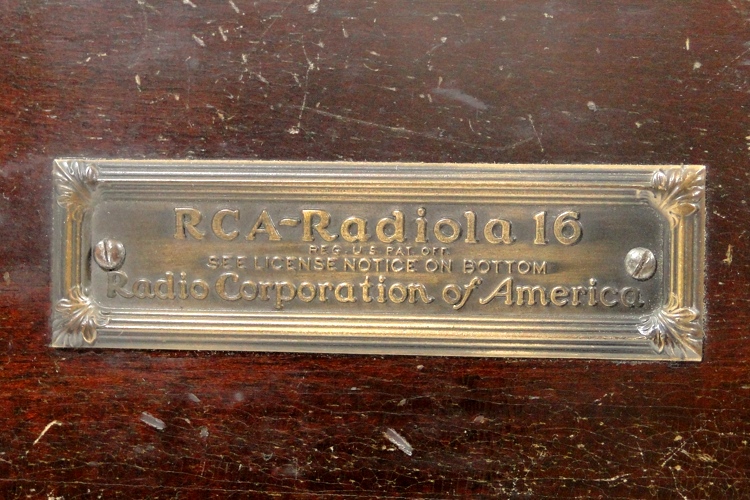

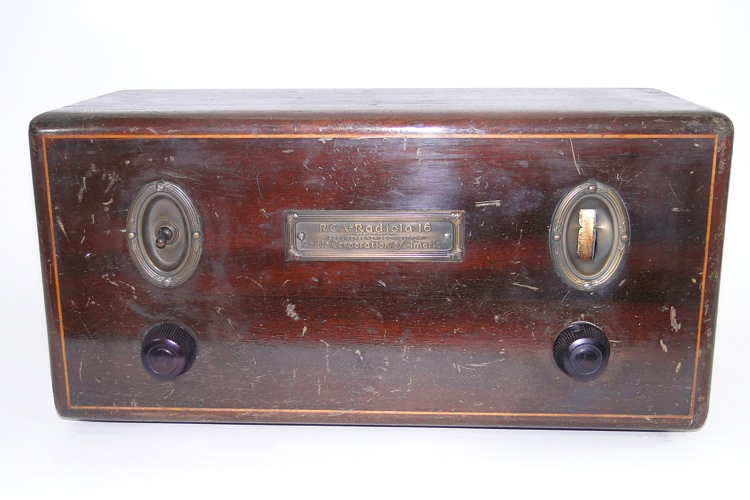

PICTURES(Click to enlarge image)

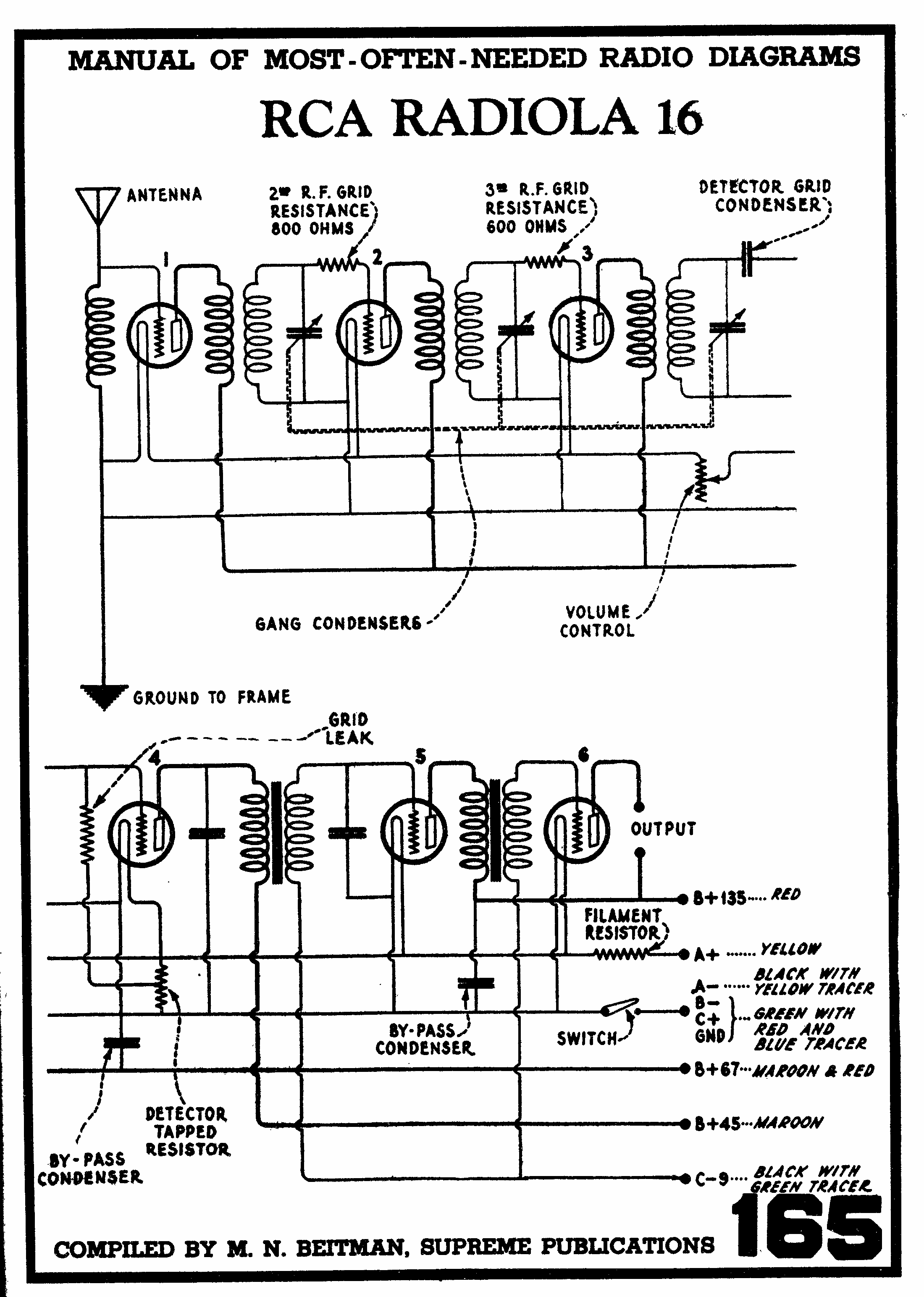

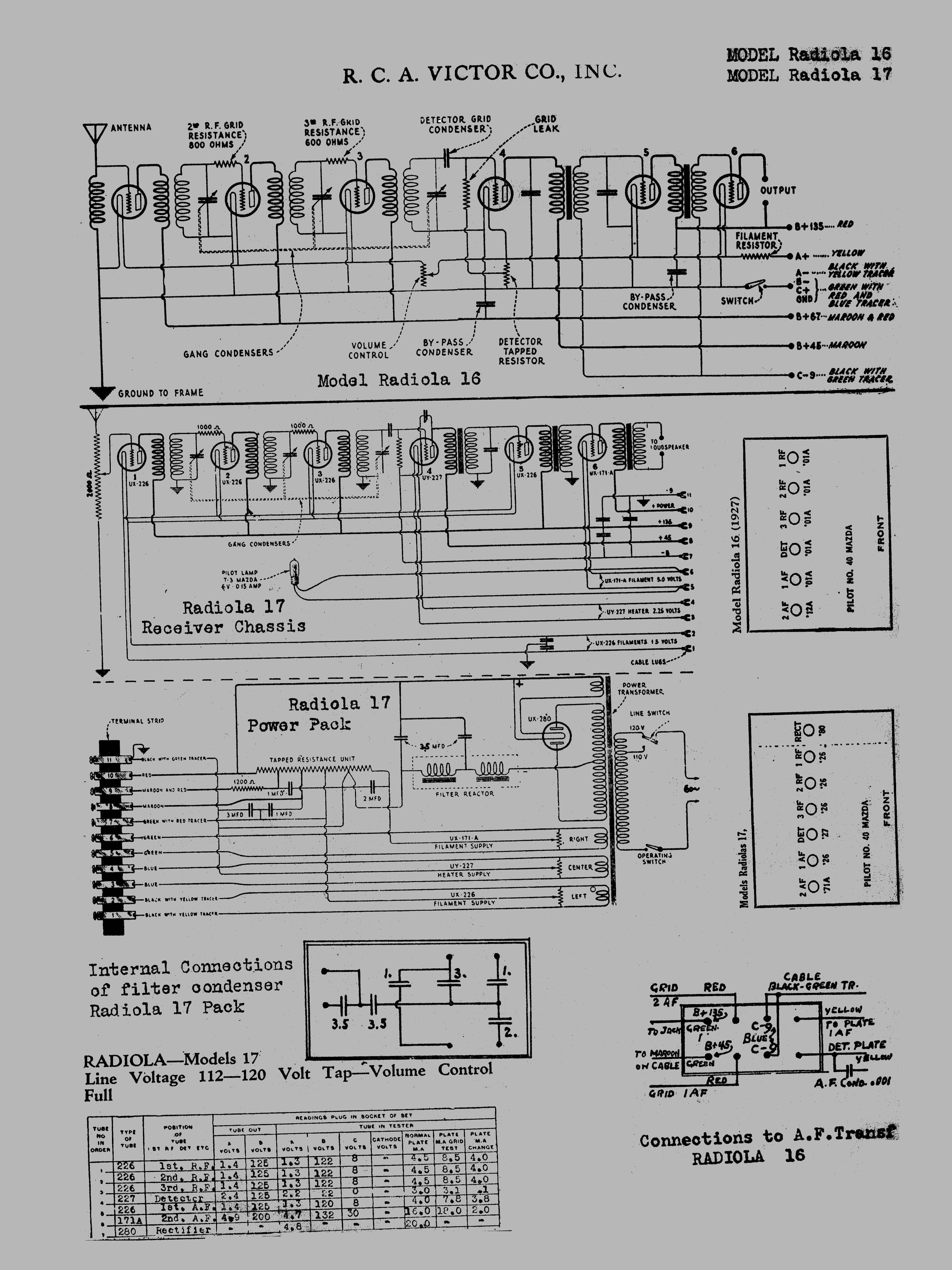

SCHEMATICS | Page1 | Page2 |
FROMFrom 2012 AWA Conference in Rochester, NY, Aug 21-25.
