RADIOZenith
MODEL5R316
TECHNOLOGYTube
YEAR1939
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE550 - 1700 Kc
DESCRIPTIONRight front dial, 2 white plastic knobs, vertical small round pushbuttons. Original finish.
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC
VOLTS117 V
CONSUMPTION45 W
AC CYCLES50-60 Hz
CHASSISChassis No. 5528, Serial S149778
TUBES LOCATION
TUBE COMPLEMENT | 6A8 | 6K6 | 6K7 | 6Q7 | 6X5 |

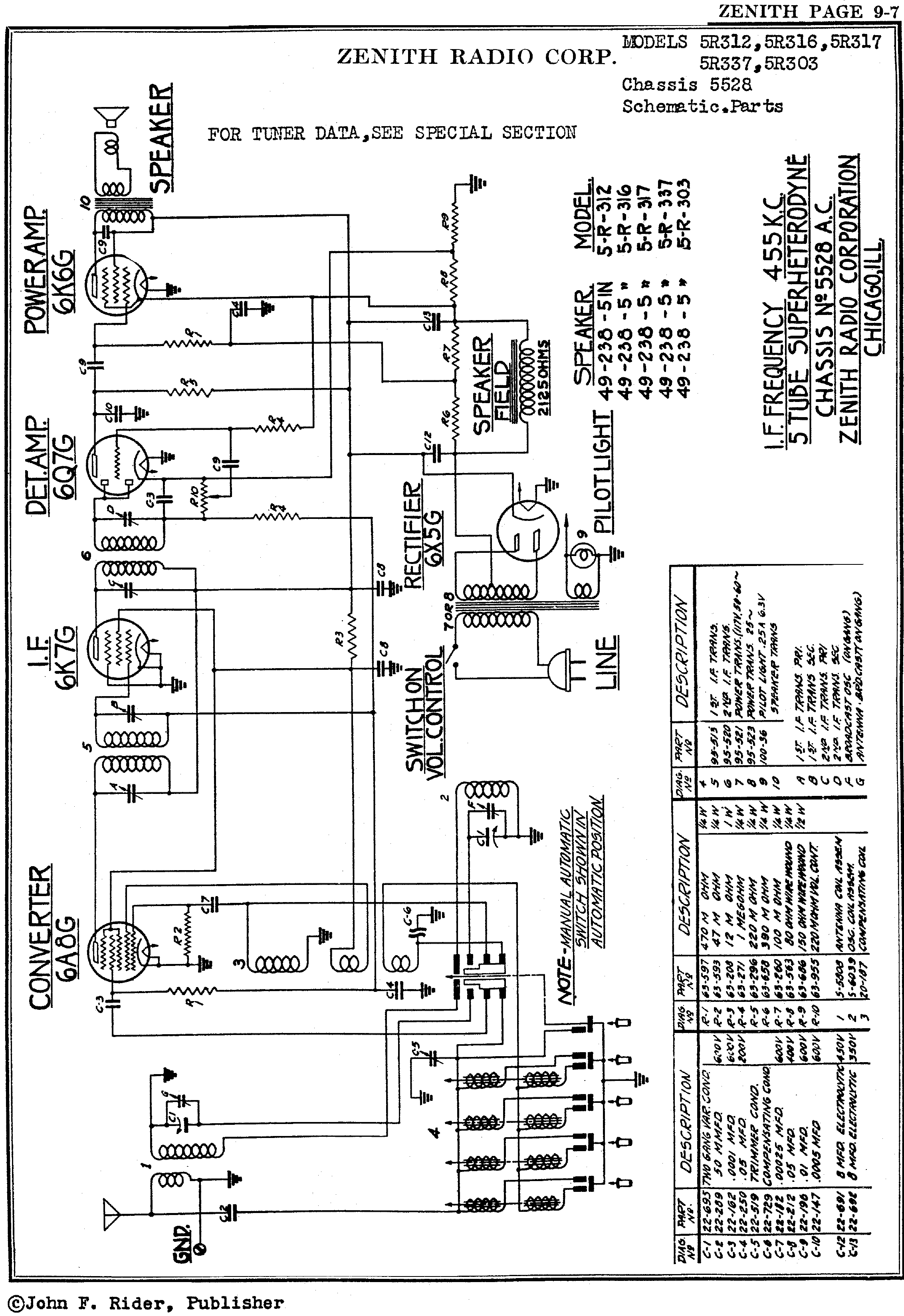

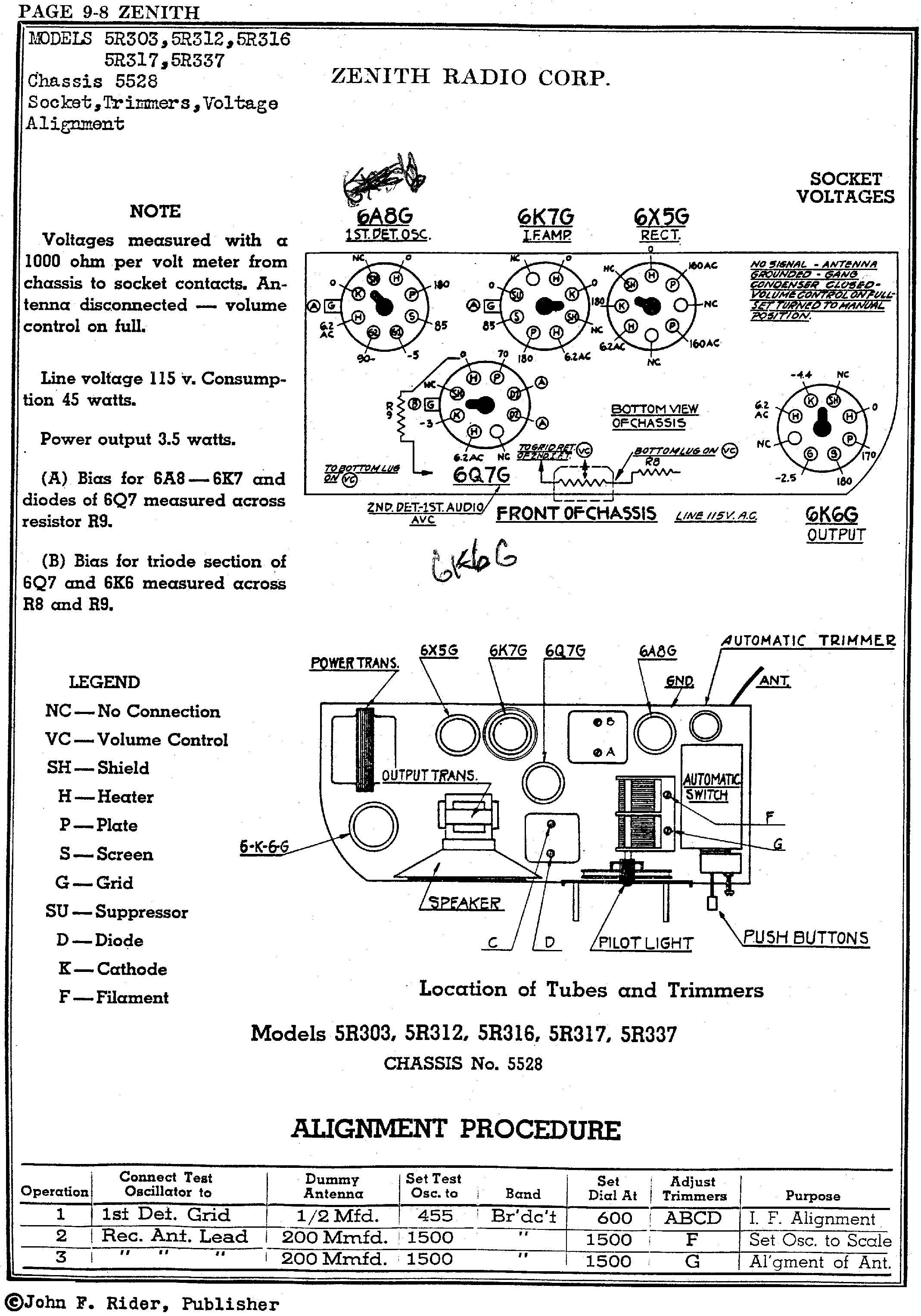

SCHEMATICS | Page1 | Page2 |
FROMCornell-marketplace ad at Aurora, NY.
ADDITIONAL INFOElectricaly restored, works great.
