| RADIO | RCA Victor |
| MODEL | Q12 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1942 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC/SW1/SW2 |
| COVERAGE | BC 540 - 1720 KHz, SW1 2.3 - 7.0 MHz, SW2 7.0 - 22 MHz |

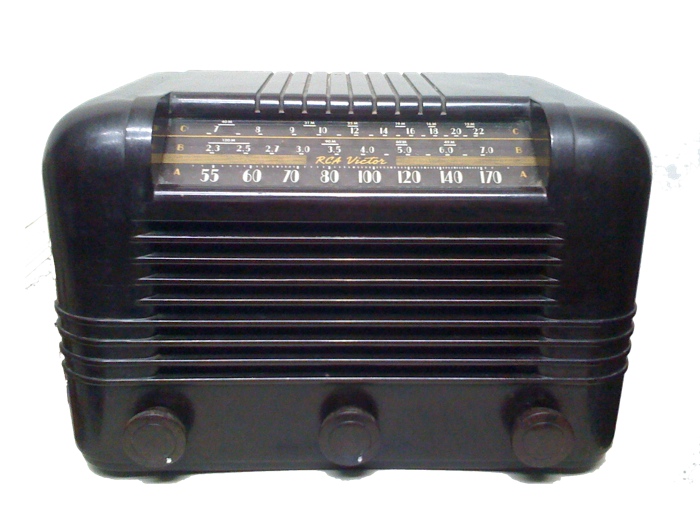

| DESCRIPTION | Upper slanted slide rule dial. lower horizontal bars, 3 knobs |
| CABINET STYLE | Table |
| CABINET MATERIAL | Bakelite |
| DIAL LAMP - N° x TYPE | 1 x 47 |
| TONE | No |
| CIRCUIT | Superheterodyne |
| IF | 455 KC |
| POWER SUPPLY | AC/DC |
| VOLTS | 105 - 125 Volts |
| CONSUMPTION | 35 W |
| AC CYCLES | 25-40 and 50-60 Hz |
| CHASSIS | |
| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |
|
