RADIOPhilco
MODEL625
TECHNOLOGYTube
YEAR1936
MADE INUNITED STATES
WAVE BANDSBC/SW1/SW2
COVERAGEBC 540 - 1720 KHz, SW1 1.75 - 5.8 MHz, SW3 5.7 - 18 MHz
DESCRIPTIONUpper front oval dial, lower cloth grill with cut-outs, fluting, 4 knobs. Tuning drive: Dual planetary, ball bearing. 50 to 1 ratio for slow tunning.
CABINET STYLETombstone
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONE3 Positions
CIRCUITSuperheterodyne
IF460 KC
POWER SUPPLYAC
VOLTS120 Volts
CONSUMPTION65 W
AC CYCLES50-60 Hz
CHASSIS

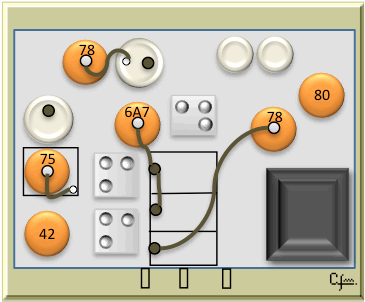

TUBES LOCATION
TUBE COMPLEMENT | 78 | 6A7 | 78 | 75 | 42 | 80 |

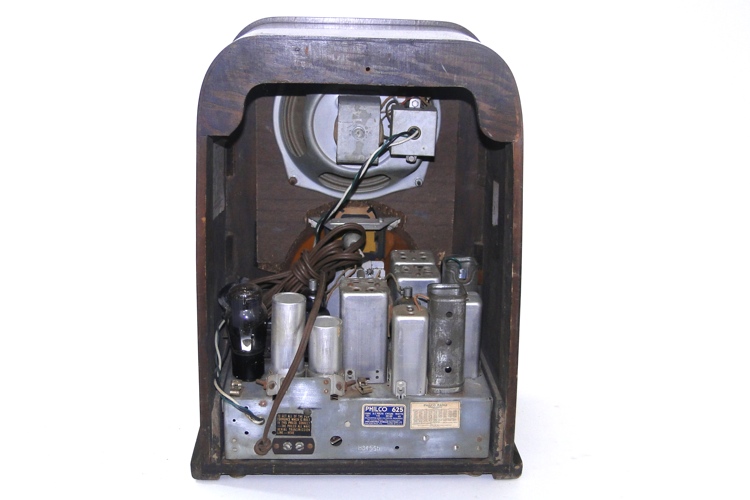

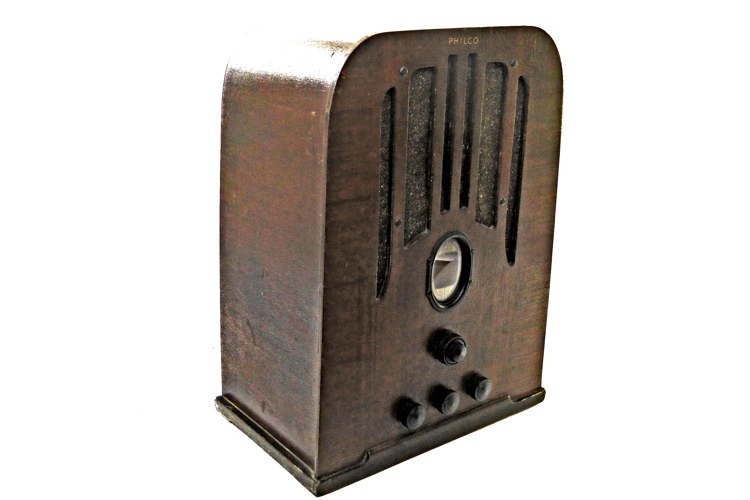

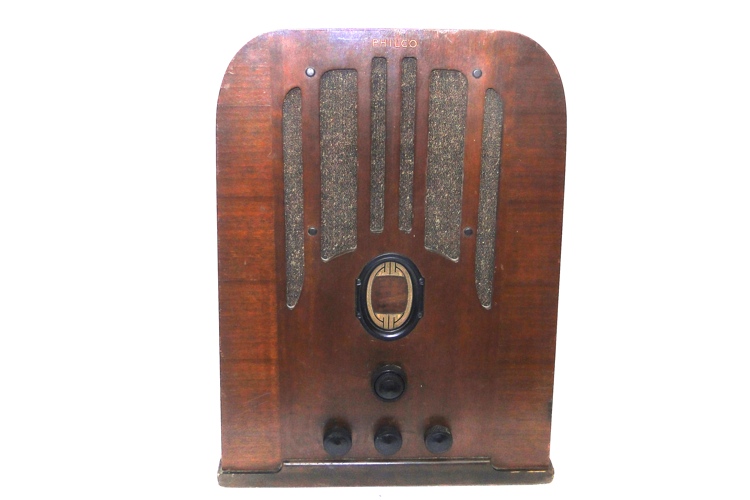

PICTURES(Click to enlarge image)

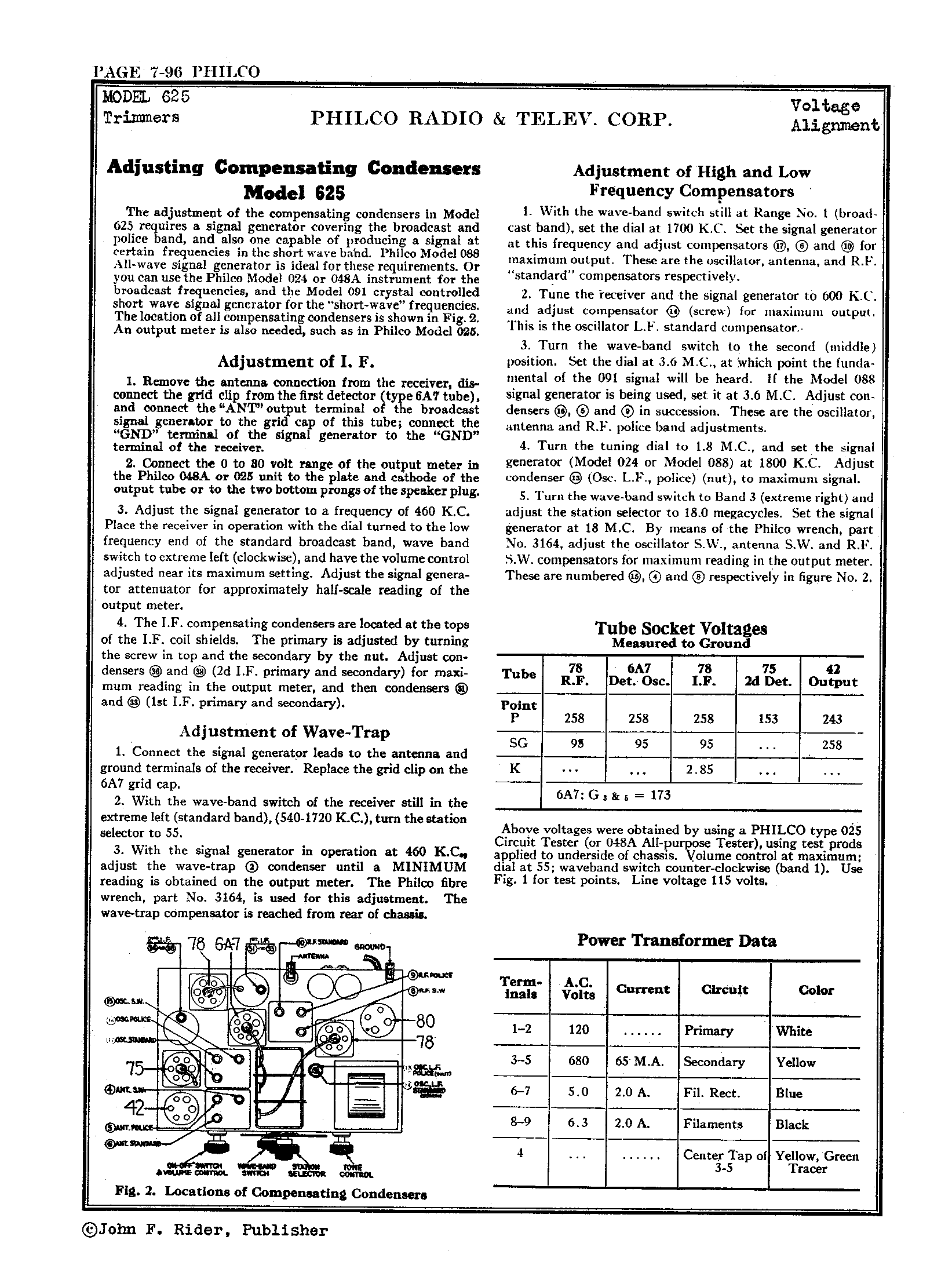

SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom ebay US, Aug 2012 Robert Czerniak, US$100
